About

Product Details

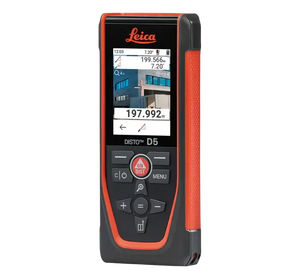

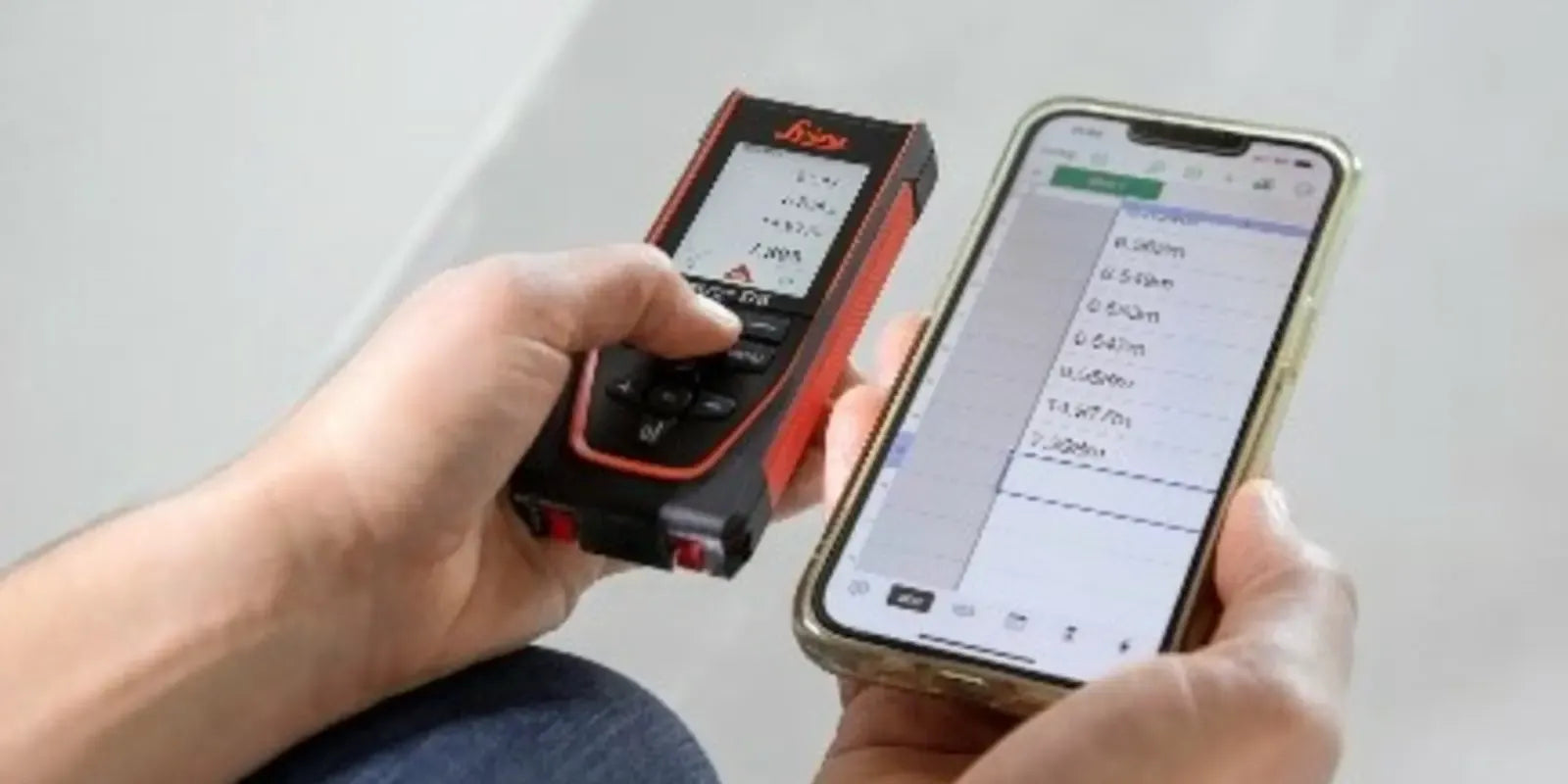

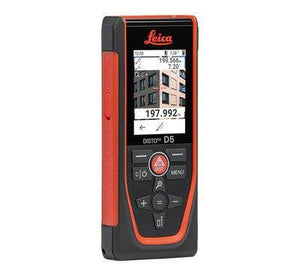

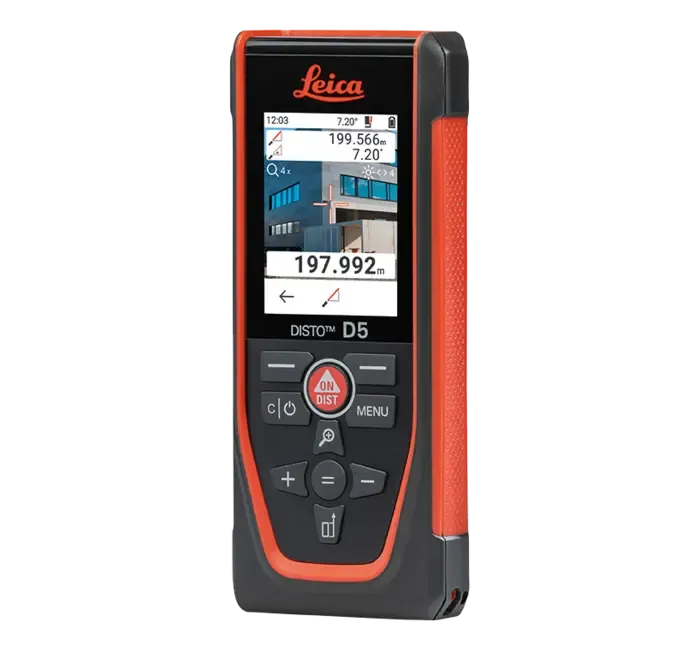

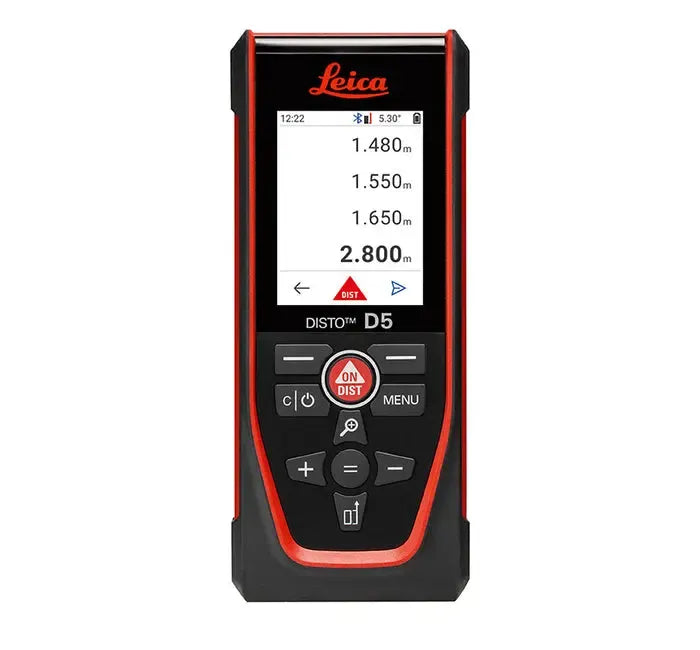

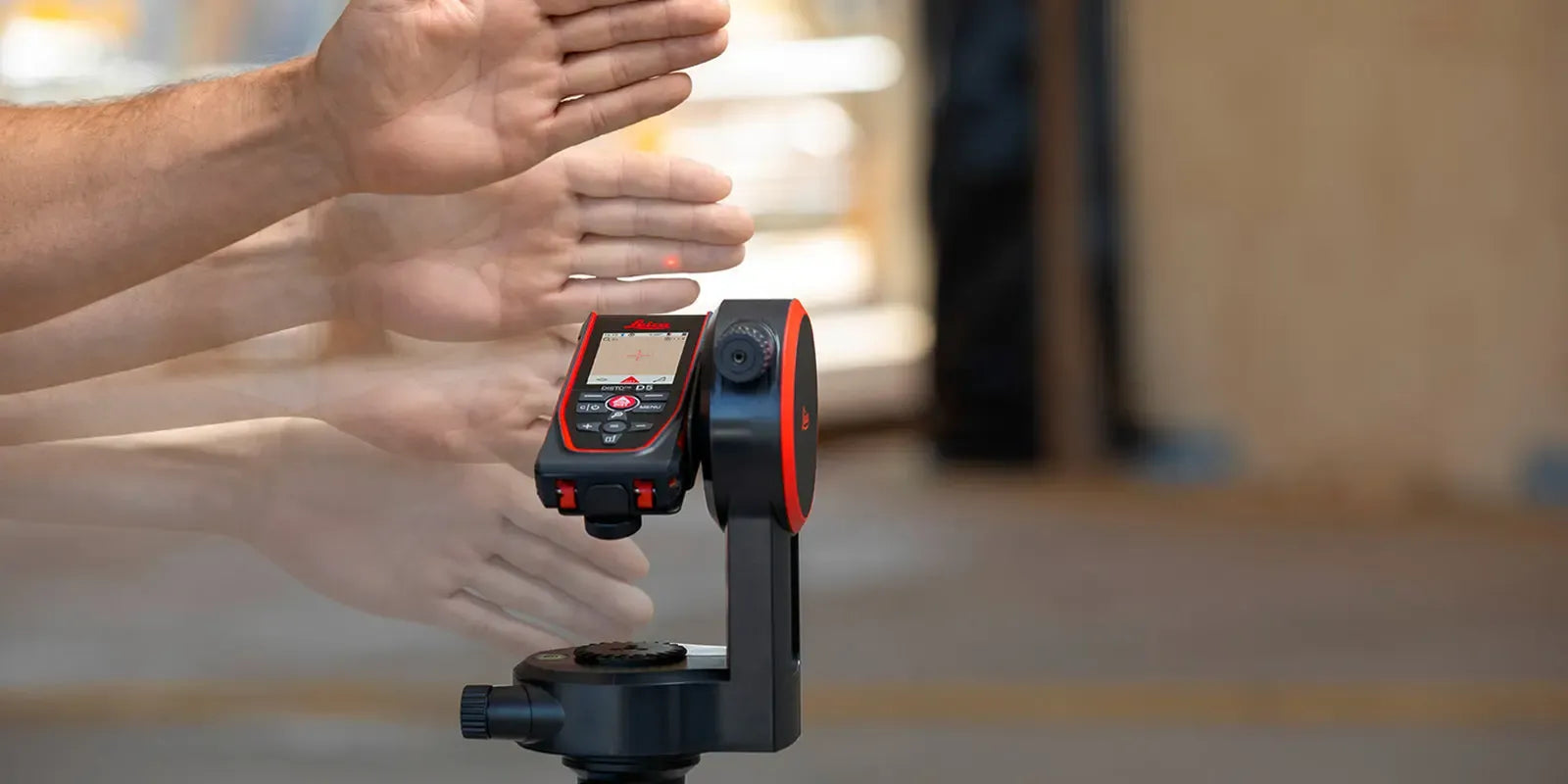

The Leica DISTO D5 is particularly suitable for distance measurements in outdoor areas. Due to the digital Point finder, aiming is no problem even in sunshine and at very long distances. Both the target and the measurement results can be seen very clearly on the large display with IPS technology. For maximum accuracy, the measurement can be triggered by gestures, which is a distinct advantage, especially over long distances. High flexibility is offered by various functions, such as Smart Horizontal Mode, height tracking, profile or angle measurements. This means that any measurement situation on the construction site can be solved quickly and efficiently. The data can then be transferred to the DISTO Plan app or individual templates, e.g. in Excel, and processed further to support an efficient and error-free digital workflow.

Specifications
Accuracy with favorable conditions 1.0 mm / 1/16
Accuracy with unfavorable conditions 2.0 mm / 1/8"
Range with favorable conditions 0.05 – 200 m / 0.07 – 660 ft
Range with unfavorable conditions 0.05 – 120 m / 0.07 – 400 ft
Smallest unit displayed 0.1 mm / 1/32 in
X-Range Power Technology yes
Laser Class 2 635 nm, <1 mW
Digital Point finder with 4-fold zoom yes
Tilt measuring range 360°
Tilt measuring tolerance ± 0.2°
ø laser point | at distances 6 / 30 / 60 mm | 10 / 50 / 100 m
Protection class IP54 (dust- and splash water protected)
Auto. laser switch off after 90 s
Auto. power switch off after 180 s
Bluetooth® Smart Bluetooth v5.0
Range of Bluetooth up to 10 m
Battery durability (Li-Ion 2 000 mAh) up to 5’000 measurements
Dimension (H x D x W) up to 10 hours operation time
Weight (with batteries) 144 x 60 x 24 mm | 5.7 x 2.4 x 0.9 in
Temperature range storage | operation 180 g / 6.35 oz
MPN -25 to 70 °C / -13 to 158 °F | -10 to 50 °C / 14 to 122 °F
Product Details

The Leica DISTO D5 is particularly suitable for distance measurements in outdoor areas. Due to the digital Point finder, aiming is no problem even in sunshine and at very long distances. Both the target and the measurement results can be seen very clearly on the large display with IPS technology. For maximum accuracy, the measurement can be triggered by gestures, which is a distinct advantage, especially over long distances. High flexibility is offered by various functions, such as Smart Horizontal Mode, height tracking, profile or angle measurements. This means that any measurement situation on the construction site can be solved quickly and efficiently. The data can then be transferred to the DISTO Plan app or individual templates, e.g. in Excel, and processed further to support an efficient and error-free digital workflow.

Specifications
Accuracy with favorable conditions 1.0 mm / 1/16
Accuracy with unfavorable conditions 2.0 mm / 1/8"
Range with favorable conditions 0.05 – 200 m / 0.07 – 660 ft
Range with unfavorable conditions 0.05 – 120 m / 0.07 – 400 ft
Smallest unit displayed 0.1 mm / 1/32 in
X-Range Power Technology yes
Laser Class 2 635 nm, <1 mW
Digital Point finder with 4-fold zoom yes
Tilt measuring range 360°
Tilt measuring tolerance ± 0.2°
ø laser point | at distances 6 / 30 / 60 mm | 10 / 50 / 100 m
Protection class IP54 (dust- and splash water protected)
Auto. laser switch off after 90 s
Auto. power switch off after 180 s
Bluetooth® Smart Bluetooth v5.0
Range of Bluetooth up to 10 m
Battery durability (Li-Ion 2 000 mAh) up to 5’000 measurements
Dimension (H x D x W) up to 10 hours operation time
Weight (with batteries) 144 x 60 x 24 mm | 5.7 x 2.4 x 0.9 in
Temperature range storage | operation 180 g / 6.35 oz
MPN -25 to 70 °C / -13 to 158 °F | -10 to 50 °C / 14 to 122 °F
Leica Geosystems Leica Geosystems

SKU:LE-950908

Leica Disto D5 Distance Measuring Tool

Regular price
$590.00
Sale price
$590.00
Regular price
Shipping calculated at checkout.
Free Shipping Available

Free Shipping on Levels, Lasers, Locators, Total Stations and Digital Theodolites

Want more Information?

Not sure if this fits your setup? Ask us before you buy.

Request More Info
