About

Product Details

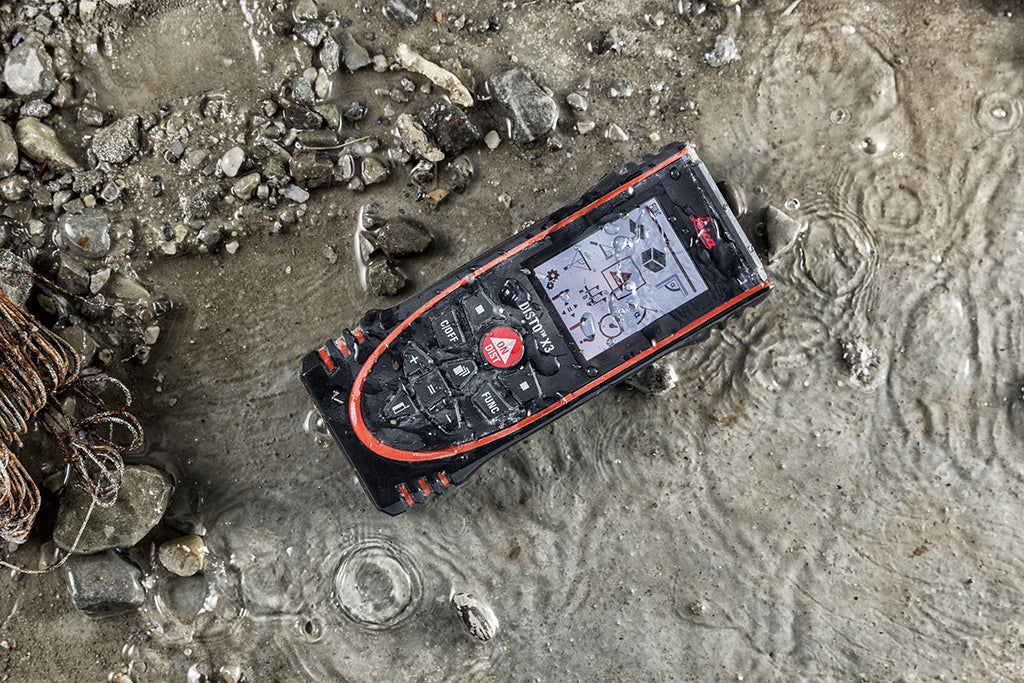

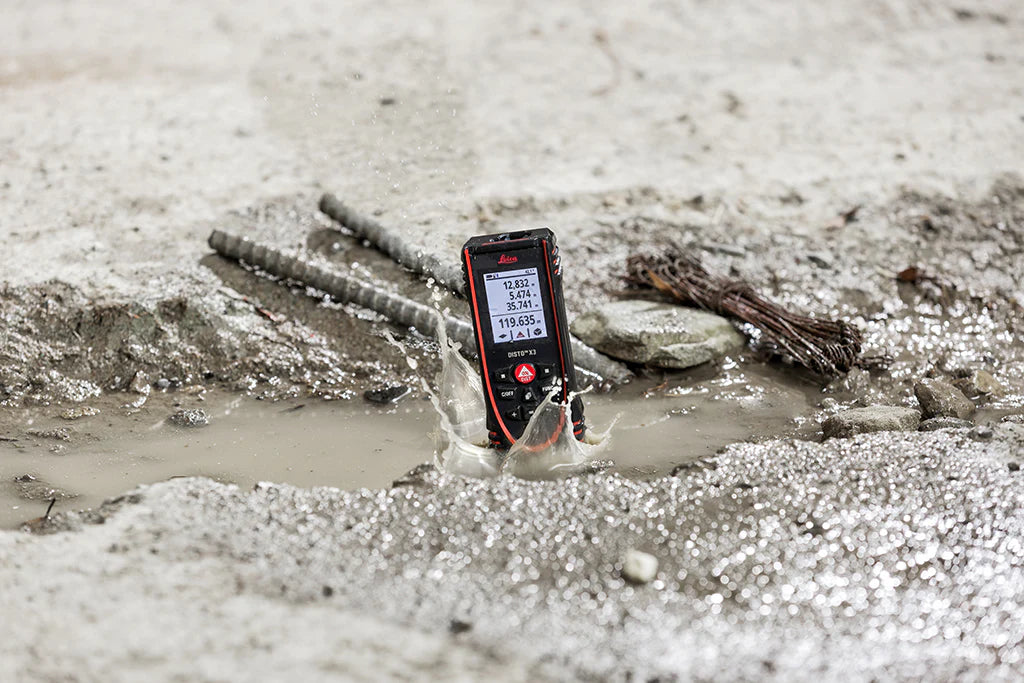

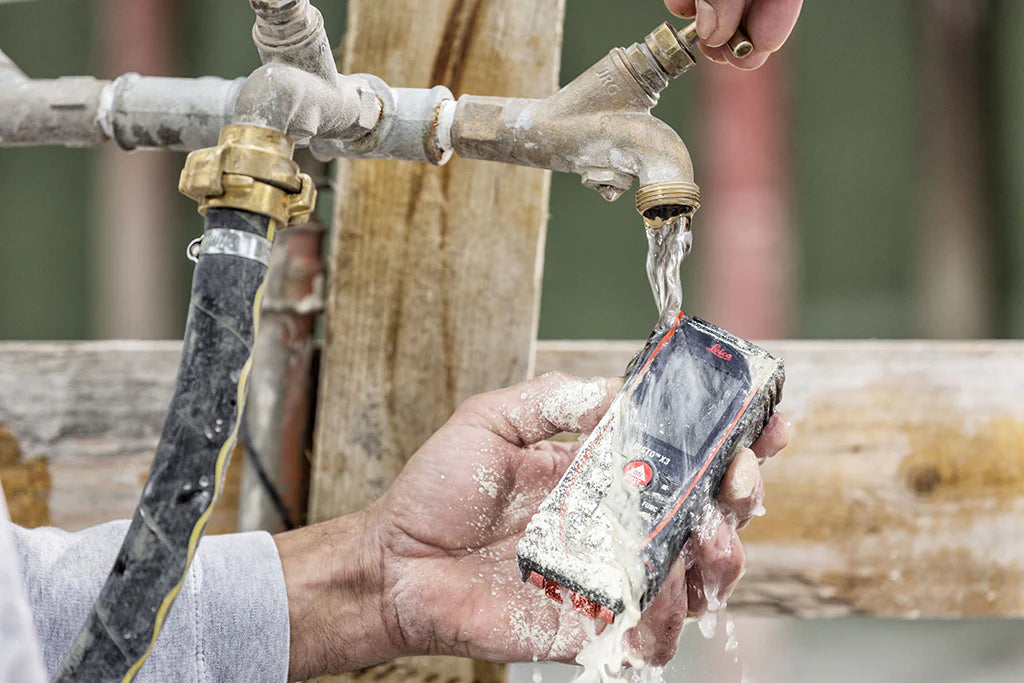

CONSTRUCTION SITE PROOF

The Leica DISTO X3 is perfect for tough construction site conditions. It is drop-tested up to 2 m in height, water jet and dust protected to IP 65 standards.



SMART ROOM

New Leica DISTO™ technologies in combination with the Smart Room function of the Leica DISTO™ Plan app* allow you to quickly create scaled floor plans on your smartphone or tablet.



POINT TO POINT MEASUREMENT

The Leica DST 360 transforms your hand-held laser device into a measurement station. It allows you to measure distances between any two points from one position.

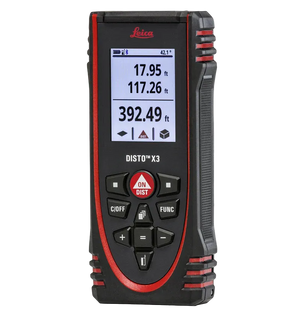

ROTATABLE DISPLAY

The Leica DISTO™ X3 display automatically rotates in line with the measurement direction. This means you can always read your measurement results from any angle.



INTUITIVE

Easy to use buttons and functions make working with the DISTO™ X3 fast and intuitive.



YOUR DISTO™ X3

The DISTO™ X3 is designed to make indoor laser measurements an easy task. A holster, hand loop and batteries are included.

Specifications
Typ. distance measuring accuracy (ISO 16331-1 certified) ± 1.0 mm
Range (ISO 16331-1 certified) 0.05 up to 150 m
Measuring units m, ft, in
X-Range Power Technology Yes
Tilt sensor Yes
Tilt sensor accuracy to the housing ± 0.2°
Smart Base measuring range Horizontal 360° for use with Leica DST 360
Smart Base measuring range Vertical -64° to > 90° for use with Leica DST 360
Typ. tolerance of P2P function for use with Leica DST 360 ± 2mm at 2m, 5mm at 5m, 10mm at 10m
Levelling range 5° for use with Leica DST 360
Memory of last measurement 20
DISTO™ transfer for Windows Yes
DISTO™ Plan app for iOS and Android Yes, includes in app purchases
Smart Room function support Yes
General data interface Bluetooth® Smart
Data interface for 3D point data Bluetooth® Smart
Measurements per set of batteries up to 4'000 (reduced when used with Bluetooth®)
Service life of batteries up to 8h (reduced when used with Bluetooth®)

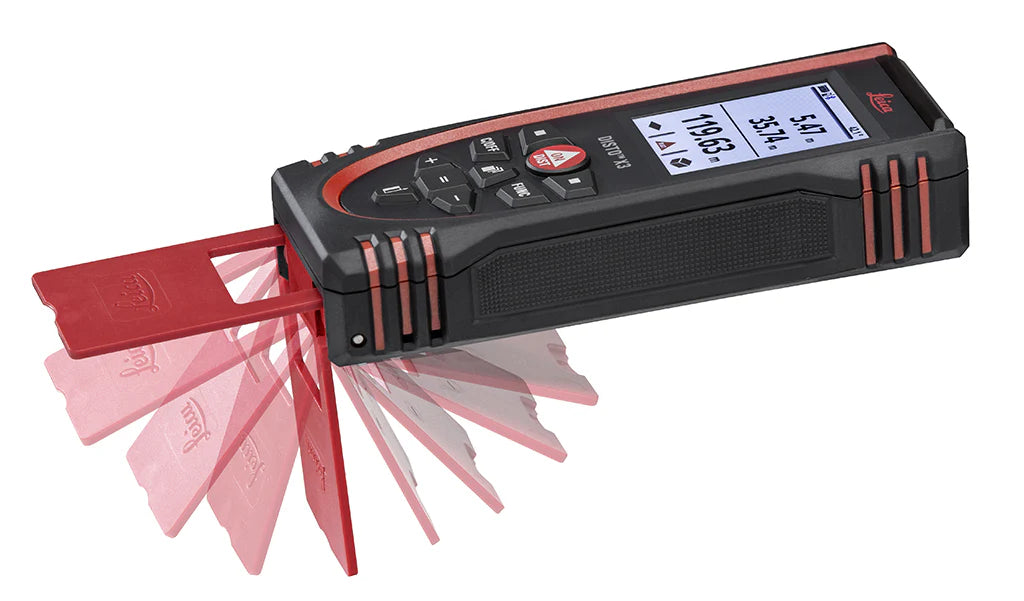

Multifunctional endpiece with automatic reference detection Yes
Batteries 2x AA Alkaline
Protection class IP 65
2m drop tested Yes
Dimensions 132 x 56 x 29 mm
Weight with batteries 184g
MPC 850833
Product Details

CONSTRUCTION SITE PROOF

The Leica DISTO X3 is perfect for tough construction site conditions. It is drop-tested up to 2 m in height, water jet and dust protected to IP 65 standards.



SMART ROOM

New Leica DISTO™ technologies in combination with the Smart Room function of the Leica DISTO™ Plan app* allow you to quickly create scaled floor plans on your smartphone or tablet.



POINT TO POINT MEASUREMENT

The Leica DST 360 transforms your hand-held laser device into a measurement station. It allows you to measure distances between any two points from one position.



ROTATABLE DISPLAY

The Leica DISTO™ X3 display automatically rotates in line with the measurement direction. This means you can always read your measurement results from any angle.



INTUITIVE

Easy to use buttons and functions make working with the DISTO™ X3 fast and intuitive.



YOUR DISTO™ X3

The DISTO™ X3 is designed to make indoor laser measurements an easy task. A holster, hand loop and batteries are included.

Specifications
Typ. distance measuring accuracy (ISO 16331-1 certified) ± 1.0 mm
Range (ISO 16331-1 certified) 0.05 up to 150 m
Measuring units m, ft, in
X-Range Power Technology Yes
Tilt sensor Yes
Tilt sensor accuracy to the housing ± 0.2°
Smart Base measuring range Horizontal 360° for use with Leica DST 360
Smart Base measuring range Vertical -64° to > 90° for use with Leica DST 360
Typ. tolerance of P2P function for use with Leica DST 360 ± 2mm at 2m, 5mm at 5m, 10mm at 10m
Levelling range 5° for use with Leica DST 360
Memory of last measurement 20
DISTO™ transfer for Windows Yes
DISTO™ Plan app for iOS and Android Yes, includes in app purchases
Smart Room function support Yes
General data interface Bluetooth® Smart
Data interface for 3D point data Bluetooth® Smart
Measurements per set of batteries up to 4'000 (reduced when used with Bluetooth®)
Service life of batteries up to 8h (reduced when used with Bluetooth®)
Multifunctional endpiece with automatic reference detection Yes
Batteries 2x AA Alkaline
Protection class IP 65
2m drop tested Yes
Dimensions 132 x 56 x 29 mm
Weight with batteries 184g
MPC 850833
Leica Geosystems Leica Geosystems

LE-850834

Leica Disto X3 Laser Distance Meter

$400.00
$400.00
Shipping calculated at checkout.
Free Shipping Available

Free Shipping on Levels, Lasers, Locators, Total Stations and Digital Theodolites
