Details

Be ready for surveying excellence with the total station defining the standard for productivity and the future of robotic

The Leica TS20 is the robotic total station productivity powerhouse for everyday surveying, from cadastral to construction. Packed with advanced automation, IP66 protection, integrated connectivity, cloud services, fast and maintenance-free motors, and much more, the TS20 ensures efficiency and reliability in even the most challenging environments.

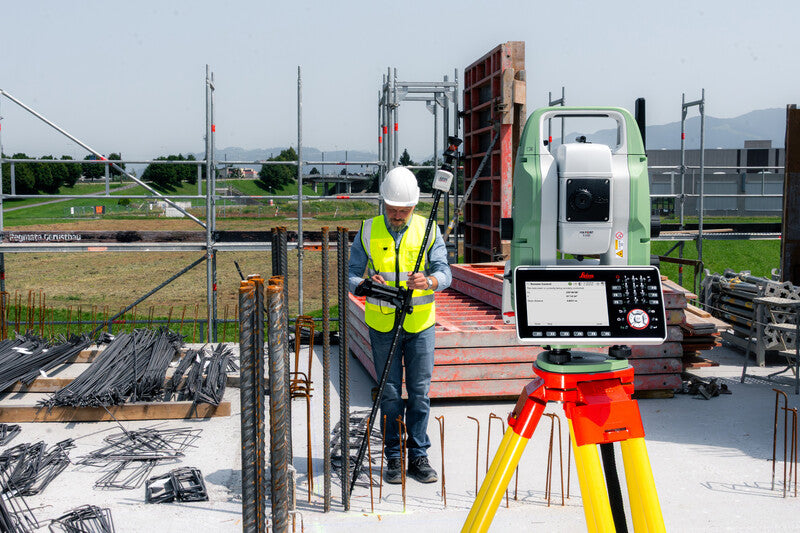

Whether you're setting up a control network, measuring points or staking out designs, the TS20 delivers a next-level total station experience empowering surveyors to work faster with fewer mistakes and total confidence. Be ready to elevate your surveying and experience the future of robotic.

  • Ready for the widest variety of measurement tasks and applications, including one- or two person surveying and stakeout.
  • Enhanced automation for faster setup and flexible, accurate measuring. AutoHeight, Leica AP20 AutoPole, PowerSearch, Dynamic Lock and advanced prism-type detection reduce downtime and mistakes.
  • Built for all weather conditions. The IP66-rated design, AI-powered ATR, and PowerSearch ensure highest performance in challenging environments.
  • Real-time data transfer with cloud connectivity. The wireless connection to GeoCloud
    services supports smooth, secure workflows.
  • Future-ready with continuous software enhancements and cutting-edge
    hardware. Adapting to evolving needs, the TS20 offers long-term value and
    steady peak performance.



Details

Be ready for surveying excellence with the total station defining the standard for productivity and the future of robotic

The Leica TS20 is the robotic total station productivity powerhouse for everyday surveying, from cadastral to construction. Packed with advanced automation, IP66 protection, integrated connectivity, cloud services, fast and maintenance-free motors, and much more, the TS20 ensures efficiency and reliability in even the most challenging environments.

Whether you're setting up a control network, measuring points or staking out designs, the TS20 delivers a next-level total station experience empowering surveyors to work faster with fewer mistakes and total confidence. Be ready to elevate your surveying and experience the future of robotic.

  • Ready for the widest variety of measurement tasks and applications, including one- or two person surveying and stakeout.
  • Enhanced automation for faster setup and flexible, accurate measuring. AutoHeight, Leica AP20 AutoPole, PowerSearch, Dynamic Lock and advanced prism-type detection reduce downtime and mistakes.
  • Built for all weather conditions. The IP66-rated design, AI-powered ATR, and PowerSearch ensure highest performance in challenging environments.
  • Real-time data transfer with cloud connectivity. The wireless connection to GeoCloud
    services supports smooth, secure workflows.
  • Future-ready with continuous software enhancements and cutting-edge
    hardware. Adapting to evolving needs, the TS20 offers long-term value and
    steady peak performance.



Leica Geosystems Leica Geosystems

LE-1012241

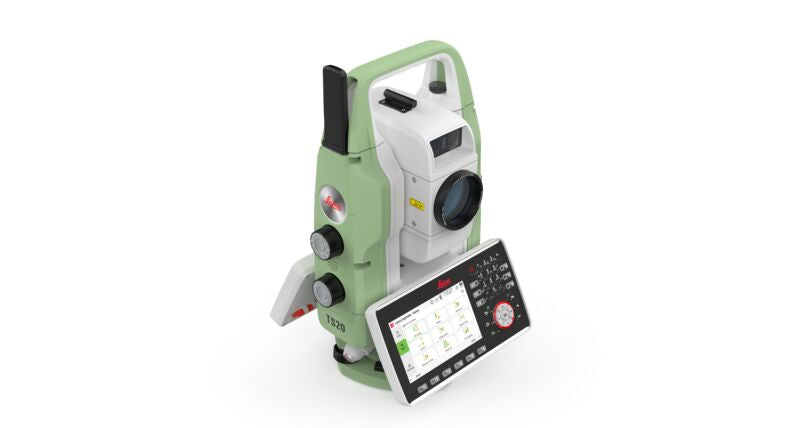

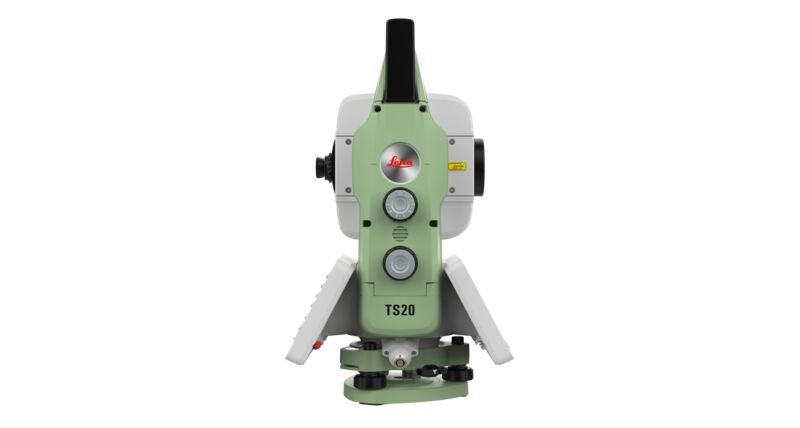

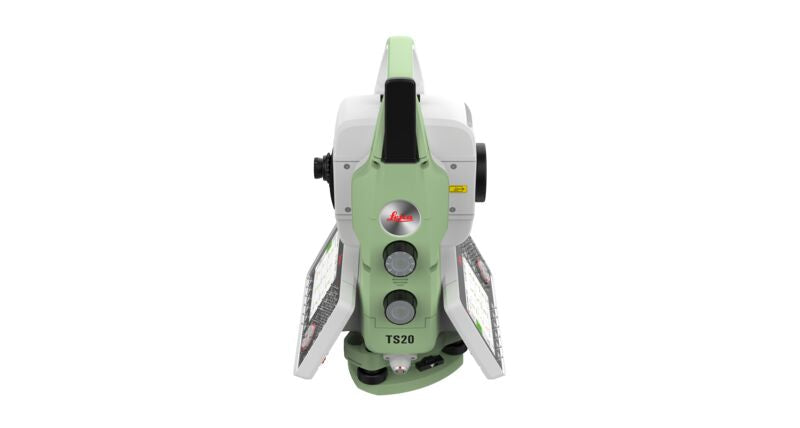

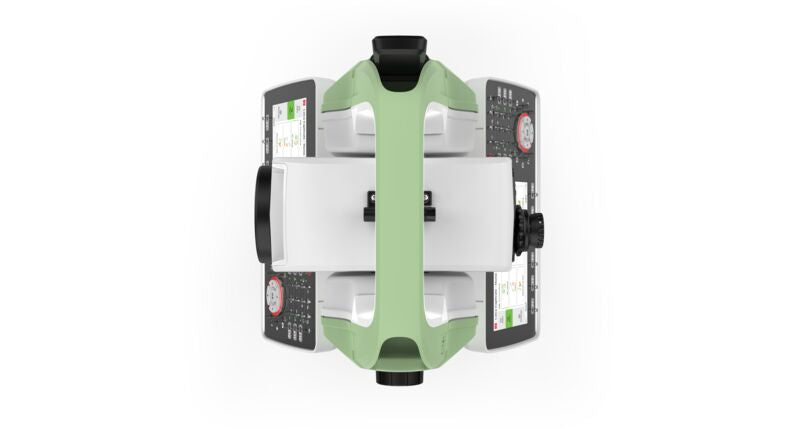

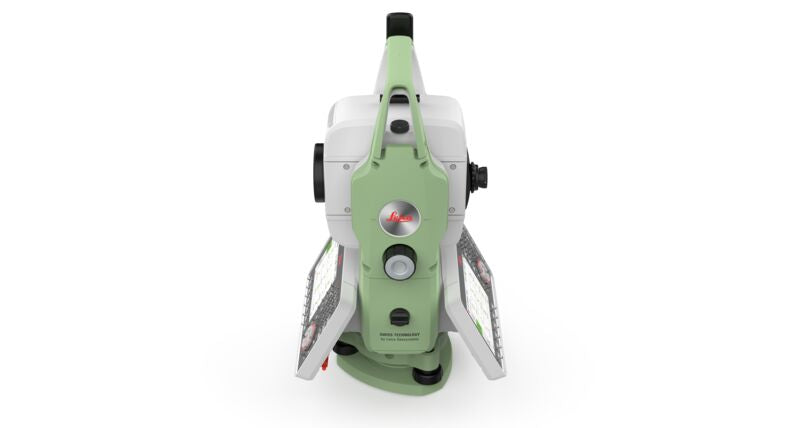

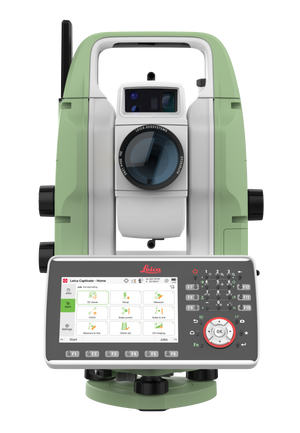

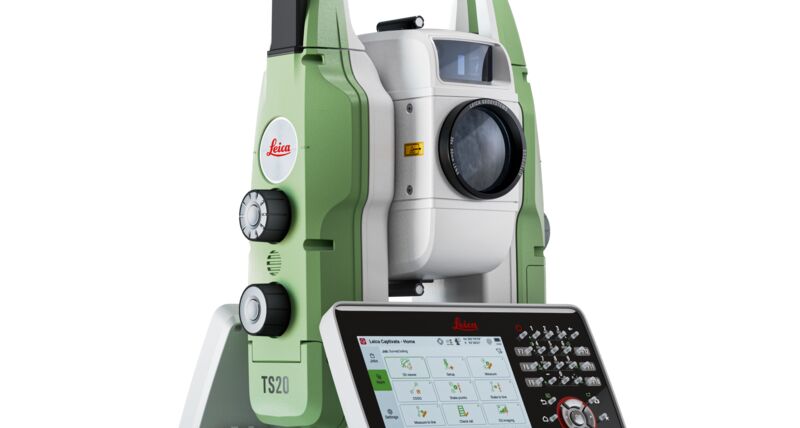

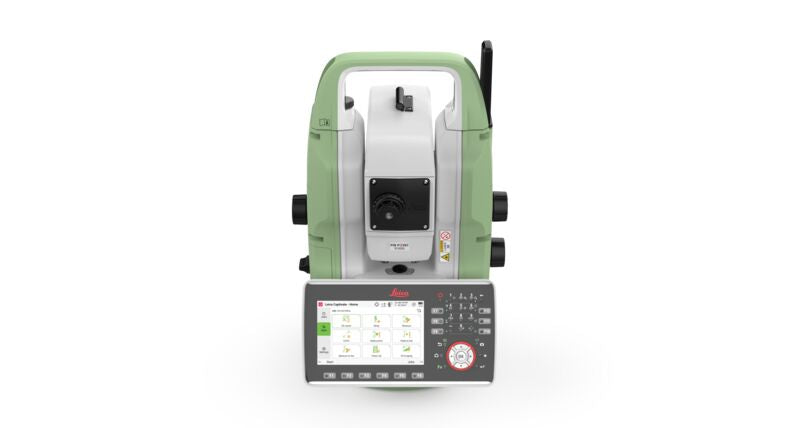

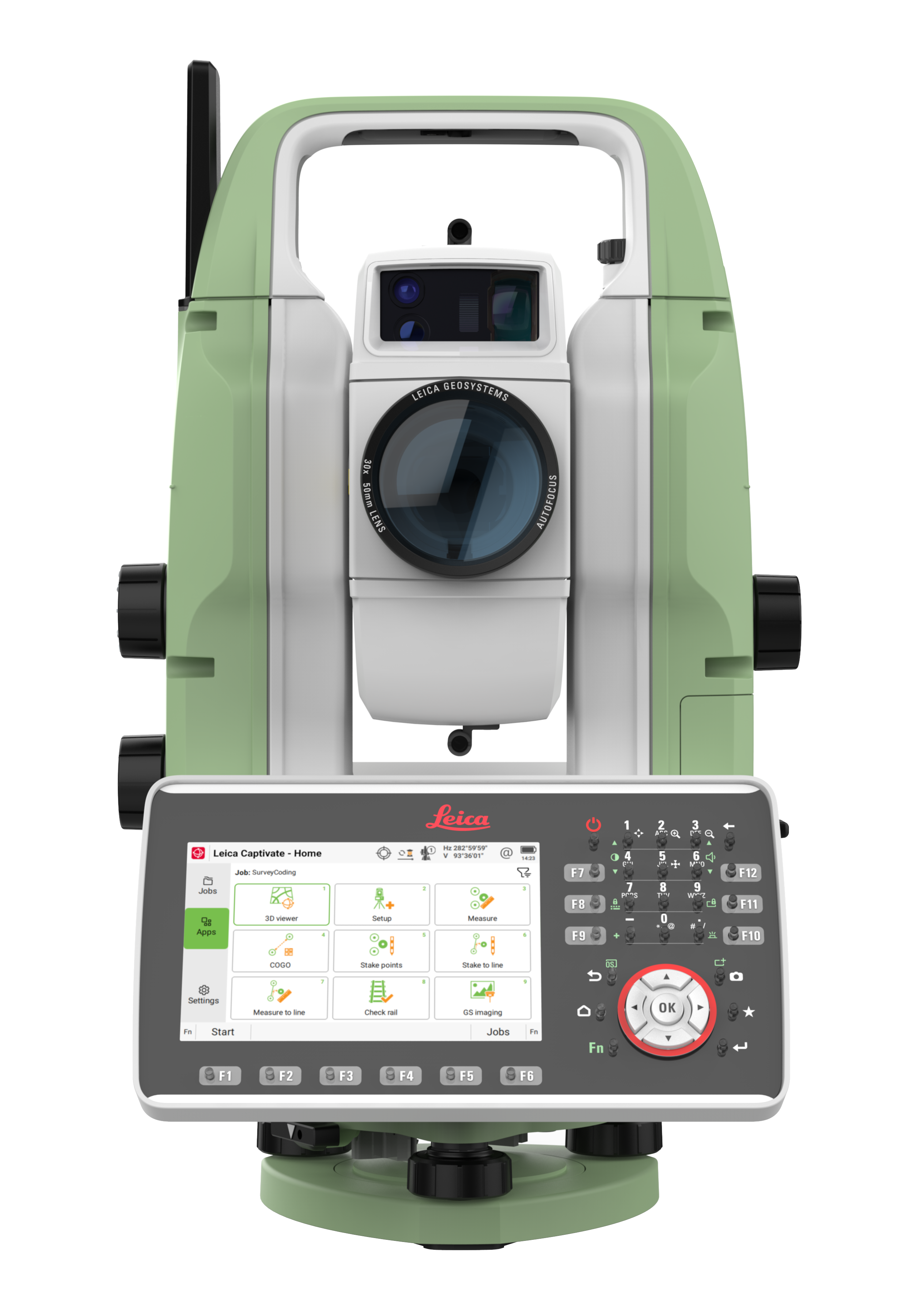

Leica TS20 P 3" R800 Robotic Total Station

$34,000.00
$34,000.00
Shipping calculated at checkout.
Download Product Spec Sheet
Download Leica TS20 P 3" R800 Robotic Total Station SDS
Free Shipping!

This item qualifies for free shipping within the continental U.S.

Want more Information?

Not sure if this fits your setup? Ask us before you buy.

Request More Info

PREPARE

Use Leica Infinity to prepare everything for TS20 field work. Import design files and other data, create and adjust jobs, define coordinate systems and more. Send to Leica Captivate with GeoCloud Drive and you are ready to go.

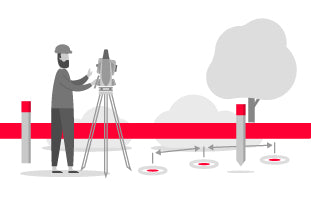

MEASURE AND STAKE

In the field, measure, visualise, and check your data with the powerful 3D everywhere, 3D everything Leica Captivate software. Use the AP20 to measure and stake out faster and with fewer total station setups.

TRANSFER DATA

Send the collected data directly to GeoCloud Drive. Your data is securely stored in the Cloud and ready for office teams to check or start processing - no delays and no data gaps.

PROCESS AND DELIVER

Manage and process your data in Leica Infinity and combine with data from other survey instruments. Use CAD drafting to make your survey notes, export to BIM and CAD apps, send data back to the field, and more.

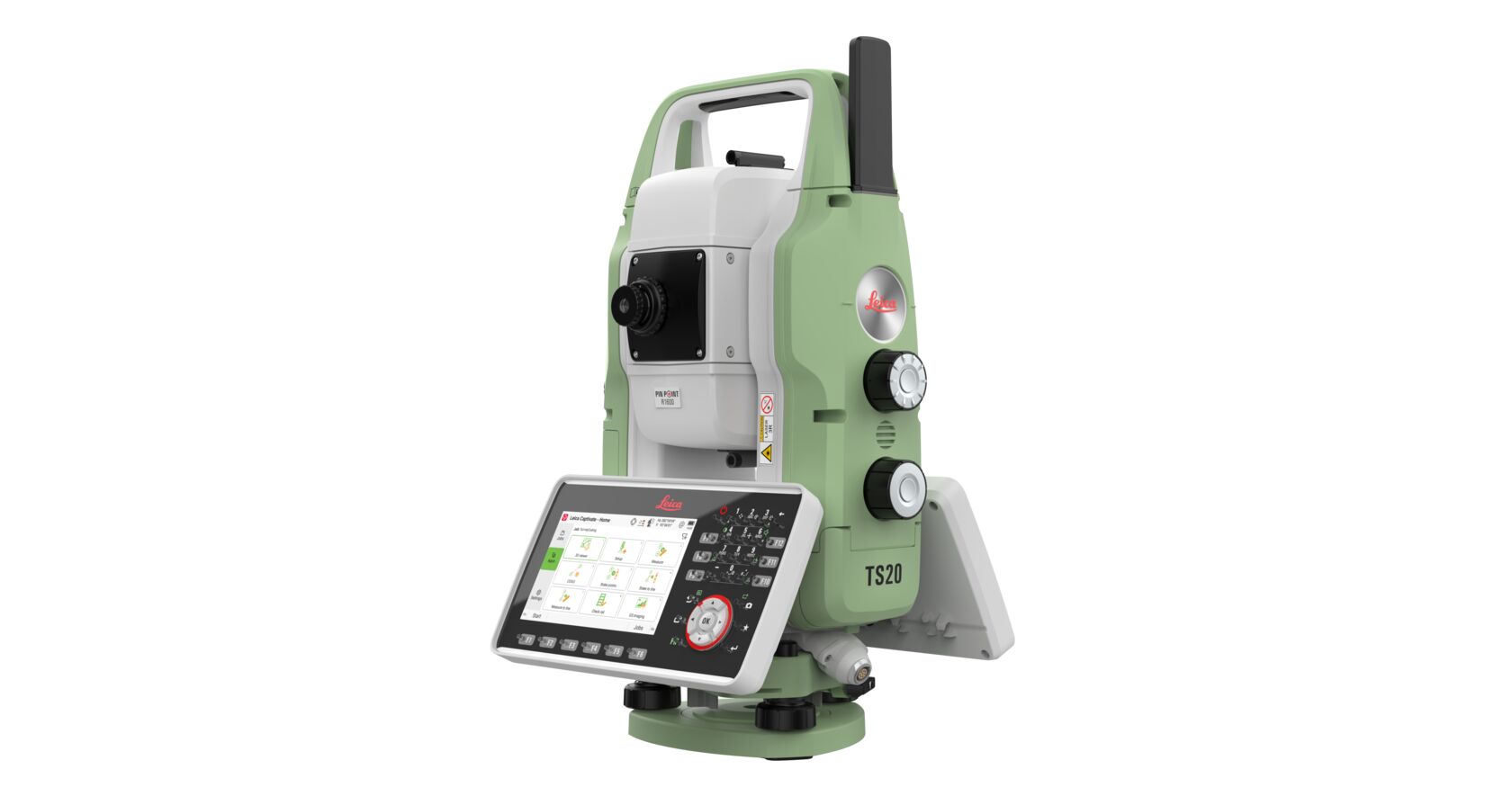

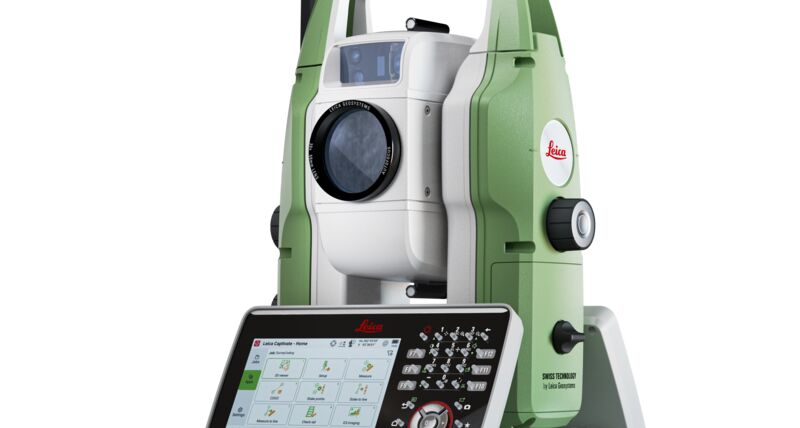

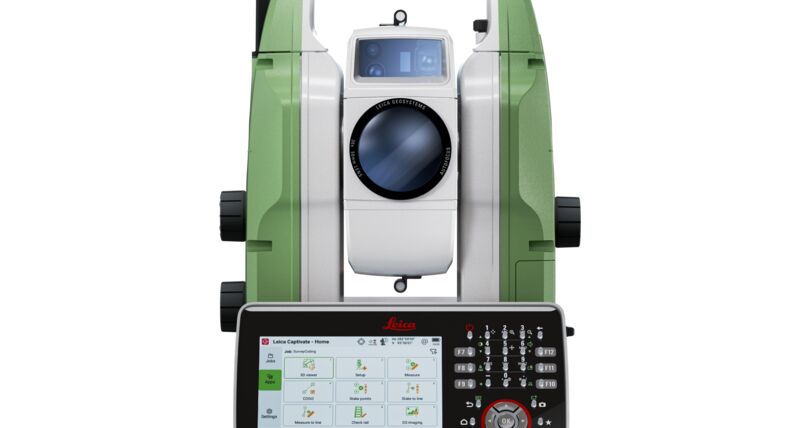

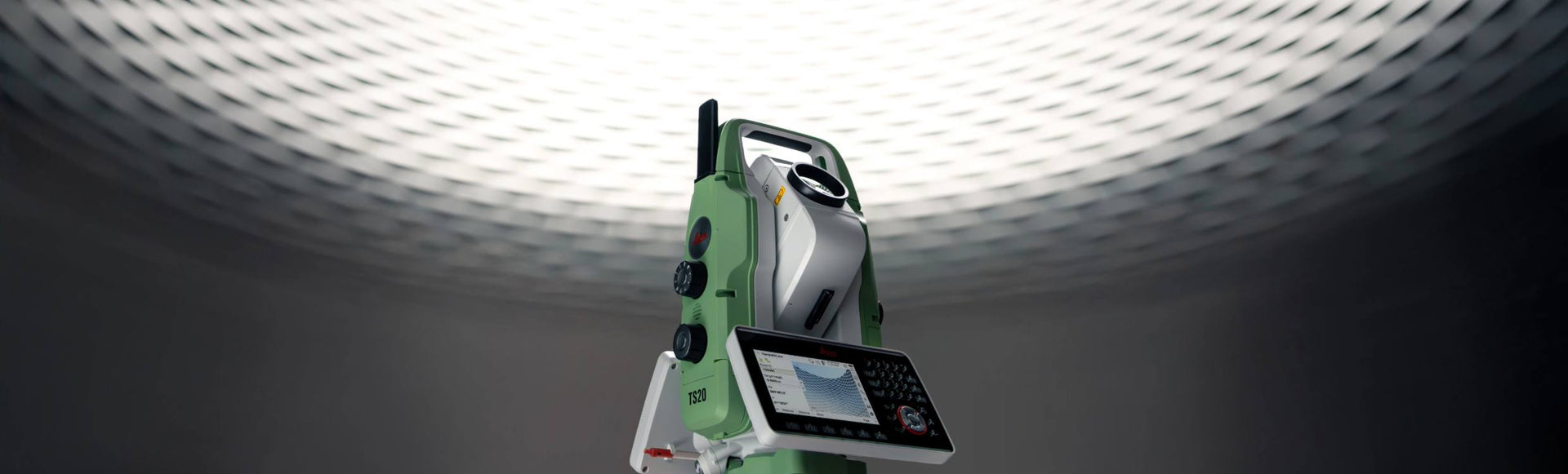

Leica TS20 Robotic Total Station

Be ready for every survey with the Leica TS20 robotic total station

The TS20 is the robotic total station that sets the standard for productivity and accuracy in everyday surveying. Unique AI-powered automation, IP66 rating, and seamless connectivity ensure outstanding performance across conditions. Combined with an optimized user experience and proven Leica Geosystems quality, the TS20 empowers surveyors to master their measurement and layout work.

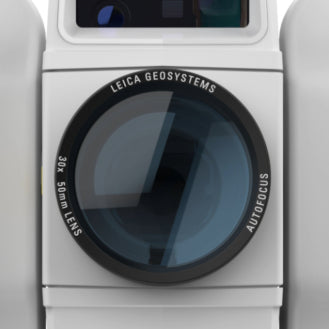

Advanced automation

Total station, meet NPU. Thanks to super in-field processing power, the TS20 automatically detects prism types and boosts efficient measuring with AI-powered search and target aiming, even to tapes.

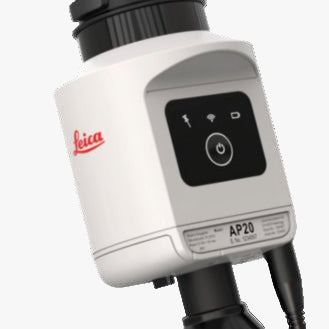

Leica AP20 optimised

The pair for productivity. The only of it's kind TS20-AP20 combo is the smart prism pole solution for strongest lock, worry-free height changes, and flexible, tilted measuring. It's where speed and accuracy meet for total efficiency.

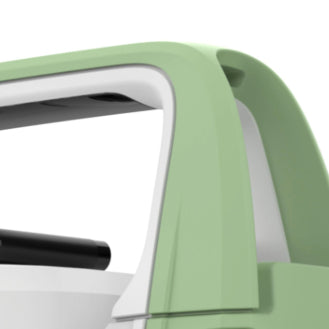

All-weather ready

No more rain checks. With IP66 for high dust and water protection and AI-powered target aiming trained on the toughest conditions, measure through any weather.

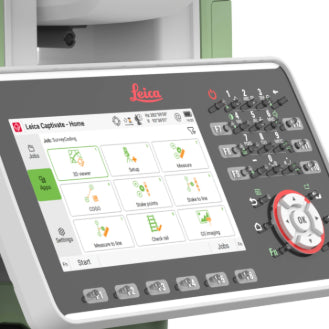

Surveying services

Stay synced. With GeoCloud Drive's cloud-based data exchange, everything can be in the cloud. And with GeoCloud Protect, easy tracking and remote locking mean you always know where your TS20 is, and only your team can use it.

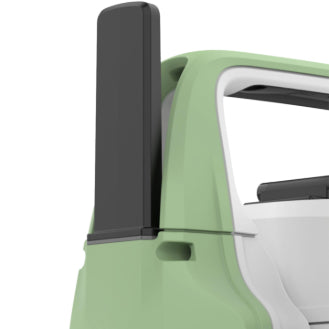

Connected

Success comes down to connection. Versatile connectivity includes integrated mobile data, WLAN, Ethernet, and long-range Bluetooth, ensuring remote access and streamlined, secure data management.

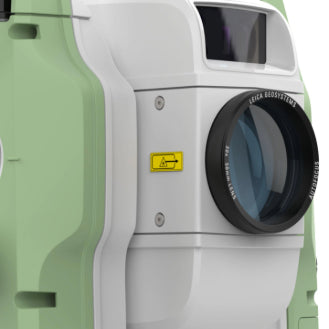

Excellence you expect

Make the extraordinary your ordinary. Speedy motors, fast and accurate PinPoint EDM, AutoHeight, and more. The TS20 includes and improves on the excellence you've come to expect in a Leica robotic total station.

TS20 FAQs

Be ready for every survey with the Leica TS20 robotic total station
1

What makes the Leica TS20 stand out from other robotic total stations?

The Leica TS20 total station is designed to be the ultimate productivity powerhouse for surveyors. It features advanced AI-powered automation, fast and maintenance-free motors, extended reflectorless range, and high accuracy. With IP66 rating, integrated theft deterrence and Instrument tracking, and seamless compatibility with Leica Captivate software, it’s built to handle any surveying challenge reliably and efficiently.

2

How does the TS20 improve productivity for surveyors?

As a future-ready robotic total station, the TS20 minimizes mistakes and streamlines workflows with advanced automation. This includes AI-Detect, which automatically checks that the prism type entered in the software matches the one you're measuring to, removing prism identification errors.

AI-powered ATR ensures measuring is efficient and work continues even in challenging conditions, like misty rain or partially covered prisms. AI-Follow, available in 2026, overcomes line of sight interruptions with the AP20 to search and relock for faster and more continuous work in one- person operations. The TS20 can also measure automatically to reflective tapes, saving time and money.

Connected to the AP20, eliminate height errors and measure with a tilted pole, easily reaching difficult points to speed up work. With AI-Follow, available in 2026, you can overcome line of sight interruptions with the AP20 to search and relock faster for more continuous work in one person operations. Additionally, the small size and weight means it's easy to take the TS20 and it's productivity potential to any site.

3

Is the TS20 compatible with existing Leica Geosystems accessories and software?

Yes, the TS20 is fully compatible with existing Leica field controllers, accessories, and software like Leica Captivate and Leica Infinity. This ensures a seamless transition for existing Leica Geosystems users while providing powerful new capabilities.

4

How does the TS20 total station handle challenging environmental conditions?

The TS20 is built to perform in tough environments with its IP66 certification, making it resistant to dust and water. It also features advanced automation to maintain performance in conditions like misty rain, ensuring consistent accuracy and reliability. Best of all, we continually train the TS20 on new environmental and weather situations, passing along these improvements to you in software updates so you benefit.

5

What theft protection features does the TS20 offer?

The TS20 includes integrated protective features with the GeoCloud Protect, a service offering remote locking, tamper detection, movement alerts so the total station can't be used anymore. With precise tracking capabilities, GeoCloud Protect enables users to locate their TS20 using advanced algorithms, view its location history, and take immediate action via a map-based interface. These features help secure your investment.

6

I have a TS16 total station. What’s different about the TS20?

The TS20 introduces several significant advancements that make it a leap forward in robotic total Station productivity and reliability. Fast, direct-drive motors follow even the quickest changes in movement and make it excellent for applications like rail, where you need to often measure in 2 faces. Enhanced EDM based on WFD technology provides fast and accurate distances along with an extended reflectorless range.

The AI-powered features are another distinguishing factor for this robotic total station: AI-enhanced Automatic Target Recognition (ATR), PowerSearch, and Dynamic lock make for fast searches and steady locks. Additionally, with completely new features like AI-detect and AI-follow (coming in 2026), productivity soars with faster work and fewer mistakes. Combined with its IP66 rating, the TS20 will work in the most challenging environments.

The TS20 integrates communication devices like long-range Bluetooth, WLAN, and mobile data. Instrument protection and tracking also get a boost with GeoCloud Protect – integrated protection that cannot be removed and allows instrument tracking and locking.

And there’s more. Check out the data sheet for a full list of the TS20’s enhanced specs.

ANGLE MEASUREMENT
Accuracy (Hz and V)
Absolute, continuous, diametrical: 1’’ (0.3 mgon), 2’’ (0.6 mgon), 3’’ (1 mgon), 5’’ (1.5 mgon)
DISTANCE MEASUREMENT
Range (Prism) 2, 3
0.8 m to >10,000 m
Range (Non-prism / any surface) 4
R800: 0.8 m to >800 m; LC2
R1600: 0.8 m to >1600 m; LC3R
Accuracy / Time (Single, prism) 2,5
1 mm + 1.0 ppm / typically 1.3 s
Accuracy / Time (Single, any surface) 2,4,5,6
2 mm + 2.0 ppm / typically 1.7 s 6
Laser dot size
At 50 m: 12 mm × 18 mm
Measurement technology
Wave Form Digitizer; coaxial, visible red laser (658 nm)
AUTOMATIC AIMING – ATR
Target aiming / locking range 2
Circular prism (GPR1, GPH1P): 2000 m / 1000 m
360° prism (GRZ4, GRZ122): 1000 m / 1000 m
Reflective tape (GZM37): 50 m / –
ATR accuracy 1,2 / Measurement time
Angle accuracy Hz, V: 1’’ (0.3 mgon), 2’’ (0.6 mgon), 3’’ (1 mgon), 5’’ (1.5 mgon) / typically 3–4 s
POWERSEARCH
Range
Circular prism (GPR1, GPH1P): 600 m
360° prism (GRZ4, GRZ122): 500 m
360° Mini prism (GRZ101): 300 m
Reflective tape (GZM37): 50 m
MOTORISATION
Direct drives / Rotation speed
BLDC technology; maximum 200 gon (180°)/s
Time to change face
Typically 1.9 s
AUTOHEIGHT
Distance accuracy / Range
1.0 mm (1 sigma) / 0.7 m to 2.7 m
IMAGING
Overview camera – Sensor
20 MP CMOS
Angle of view
21.8° × 16.4° (27° diagonal)
Frame rate
≤ 20 frames per second
GUIDE LIGHT (EGL)
Working range / Accuracy
5–150 m / typically 5 cm @ 100 m
MOBILE CONNECTIVITY (GMI01)
Sensor & data services
Network: integrated 4G LTE with eSIM support
GeoCloud Protect (Theft protection)
Outdoor & indoor positioning (GNSS, WLAN, Cellular); battery life up to 5 days
GENERAL
Field software
Leica Captivate with apps
Display & keyboard
5" WVGA colour multi-touch; 37 keys, illumination
Processor / OS
NXP I.MX 8M Plus with integrated NPU; Linux®
Autofocus telescope
30× magnification; focus range 1.45 m to infinity
Power management
Exchangeable Li-Ion battery; operating time up to 5 h
Data storage
Internal 32 GB / Removable USB-C stick 16 GB
Interfaces
Ethernet, USB-C®, Bluetooth®, WLAN
Weight
Total station: 4.97 kg
With tribrach and battery: 6.03 kg
ENVIRONMENTAL SPECIFICATIONS
Working temperature range
–20 °C (–35 °C Arctic version) to +50 °C
Dust / Water (IEC 60529)
IP66
Humidity (MIL-STD-810H Method 507.6)
100%, non-condensing
LEICA TS20 TOTAL STATIONS – VARIANTS
Models
TS20 I / TS20 P / TS20 A
ATR
TS20 I: ✔    TS20 P: ✔    TS20 A: ✔
Integrated LR-BT (controller/tablet)
TS20 I: ✔    TS20 P: ✔    TS20 A: ✔
Direct drives
TS20 I: ✔    TS20 P: ✔    TS20 A: ✔
PowerSearch
TS20 I: ✔    TS20 P: ✔    TS20 A: ✗
Dynamic lock
TS20 I: ✔    TS20 P: ✔    TS20 A: ✗
Imaging
TS20 I: ✔    TS20 P: ✗    TS20 A: ✗
AI-detect (Target type detection)
TS20 I: ✔    TS20 P: ✗    TS20 A: ✗
Mobile connectivity (GMI01)
Optional (all variants)

1. Standard deviation ISO 17123-3

2. Overcast, no haze, visibility about 40 km, no heat shimmer

3. 0.8 m to 2,000 m for 360° prisms (GRZ4, GRZ122)

4. Object in shade, sky overcast, Kodak Gray Card (90% reflective)

5. Standard deviation ISO 17123-4

6. Distance > 500 m: Accuracy 4 mm + 2 ppm, Measurement time typically 4 s
