- Measure hard-to-reach places from a distance
- Export 2D or 3D measurements to CAD
- Trigger measurements with a wave of your hand
About
Product Details

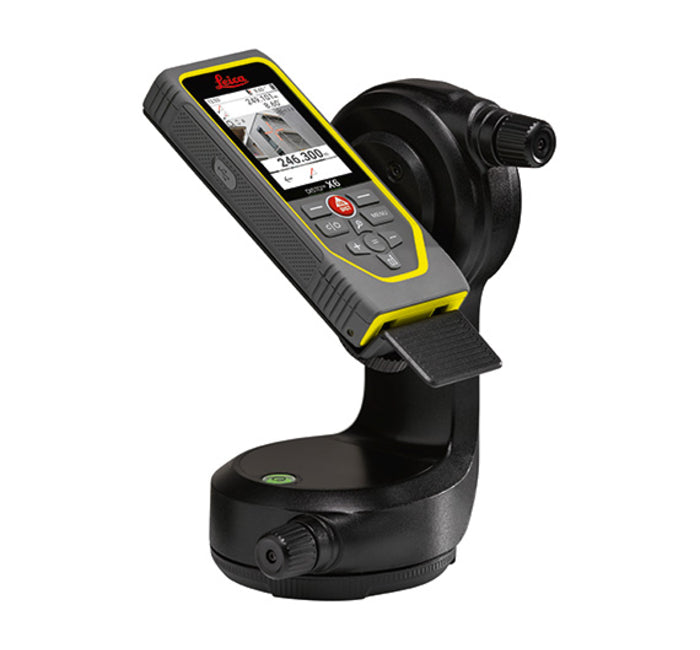

The combination of the DISTO X6 and the Leica DST 360-X Adapter enables P2P Technology, which means distances between any two points or complex areas can be measured from a safe location, even in inaccessible areas. Afterwards, the results can be downloaded as perfectly organized DXF files and further processed in any CAD software. Visualization of the data in the DISTO Plan app is also possible directly on site, allowing you to see immediately if any measurement points are still missing. This supports the digitalization process, shortens workflows, saves money and avoids errors.
Features

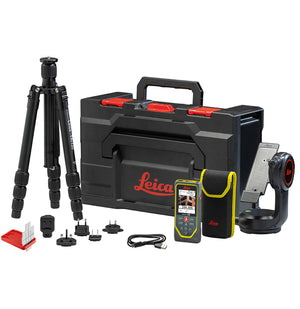

Leica DISTO X6-P2P Package
- Leica DISTO X6 laser distance meter
- Hand loop
- Pouch
- Charger including four different plugs and USB cable
- Leica DST 360-X adapter
- Leica TRI 120 tripod
- Leica GZM 3 target plate
- metaBOX
- Safety instructions
- Calibration Certificate Silver
- Quick Start with QR code linking to online manual
- 3 Years warranty card
Specifications
Accuracy with favorable conditions
1.0 mm / 1/16
Accuracy with unfavorable conditions
2.0 mm / 1/8"
Range with favorable conditions
0.05 – 250 m / 0.07 – 820 ft
Range with unfavorable conditions
0.05 – 150 m / 0.07 – 500 ft
Smallest unit displayed
0.1 mm / 1/32 in
X-Range Power Technology
Yes
Laser
class 2, 635 nm, <1 mW
Digital Point finder with 4-fold zoom
Yes
Tilt measuring range
360°
Tilt measuring tolerance
± 0.2°
ø laser point | at distances
6 / 30 / 60 mm | 10 / 50 / 100 m
Protection class
IP65 (dust tight and jet water protected) drop tested from 2 m height
Auto. laser switch off after
90 s
Auto. power switch off after
180 s
Memory
up to 300 reports
Bluetooth® Smart
Bluetooth® v5.0
Range of Bluetooth® Smart
up to 10 m
Battery durability (Li-Ion 2 000 mAh)
up to 4’000 measurements up to 8 hours operation time
Dimension (H x D x W)
154 x 68 x 25 mm
Weight (with batteries)
230 g
Temperature range storage | operation
-25 to 70 °C | -10 to 50 °C
MPN
950909
Product Details
The combination of the DISTO X6 and the Leica DST 360-X Adapter enables P2P Technology, which means distances between any two points or complex areas can be measured from a safe location, even in inaccessible areas. Afterwards, the results can be downloaded as perfectly organized DXF files and further processed in any CAD software. Visualization of the data in the DISTO Plan app is also possible directly on site, allowing you to see immediately if any measurement points are still missing. This supports the digitalization process, shortens workflows, saves money and avoids errors.
Features
- Measure hard-to-reach places from a distance
- Export 2D or 3D measurements to CAD
- Trigger measurements with a wave of your hand
Leica DISTO X6-P2P Package
- Leica DISTO X6 laser distance meter
- Hand loop
- Pouch
- Charger including four different plugs and USB cable
- Leica DST 360-X adapter
- Leica TRI 120 tripod
- Leica GZM 3 target plate
- metaBOX
- Safety instructions
- Calibration Certificate Silver
- Quick Start with QR code linking to online manual
- 3 Years warranty card
Specifications
Accuracy with favorable conditions
1.0 mm / 1/16
Accuracy with unfavorable conditions
2.0 mm / 1/8"
Range with favorable conditions
0.05 – 250 m / 0.07 – 820 ft
Range with unfavorable conditions
0.05 – 150 m / 0.07 – 500 ft
Smallest unit displayed
0.1 mm / 1/32 in
X-Range Power Technology
Yes
Laser
class 2, 635 nm, <1 mW
Digital Point finder with 4-fold zoom
Yes
Tilt measuring range
360°
Tilt measuring tolerance
± 0.2°
ø laser point | at distances
6 / 30 / 60 mm | 10 / 50 / 100 m
Protection class
IP65 (dust tight and jet water protected) drop tested from 2 m height
Auto. laser switch off after
90 s
Auto. power switch off after
180 s
Memory
up to 300 reports
Bluetooth® Smart
Bluetooth® v5.0
Range of Bluetooth® Smart
up to 10 m
Battery durability (Li-Ion 2 000 mAh)
up to 4’000 measurements up to 8 hours operation time
Dimension (H x D x W)
154 x 68 x 25 mm
Weight (with batteries)
230 g
Temperature range storage | operation
-25 to 70 °C | -10 to 50 °C
MPN
950909
Leica Geosystems
Leica Geosystems
SKU:LE-950909-K
Leica Disto X6 Distance Measuring P2P Package
- Regular price
- $1,810.00
- Sale price
- $1,810.00
- Regular price
-
Shipping calculated at checkout.
Free Shipping
Download Product Spec Sheet
