About

Product Details

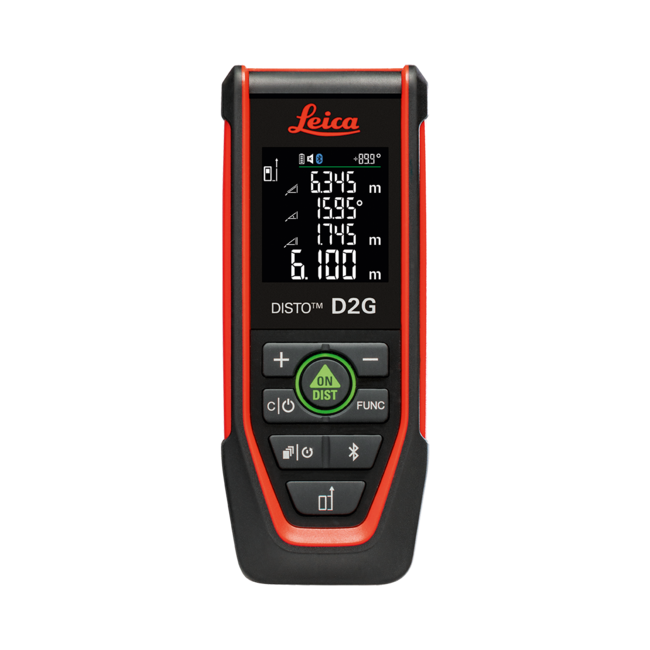

The Leica DISTO D2G is the ultimate laser measurement tool for precise measurements up to 120 m in bright indoor environments. Its highly visible green laser dot is four times more visible than a red dot, ensuring unparalleled visibility. The ‘Smart Room’ feature allows for quick creation of room plans. Measurement data can be transferred effortlessly to the DISTO Plan app using the NFC technology. The fold-out end-piece with automatic position detection ensures highly accurate measurements from edges and corners, or when using with Smart Horizontal Mode, preventing expensive mistakes. A range of additional features guarantees unmatched measurement performance indoors.





In The Box

  • Leica DISTO D2G laser distance meter
  • Hand loop
  • Pouch
  • 2 batteries type AAA 2 x 1.5 V
  • Safety instructions
  • Calibration certificate silver
  • Quick start with QR code linking to online manual
  • 3 Years warranty card
Features
  • Advanced green laser technology for superior visibility
  • Range up to 120 m
  • ± 1.5 mm accuracy, 0.1 mm resolution
  • Area (rectangular and triangular), Volume and Pythagoras function
  • Inclination sensor

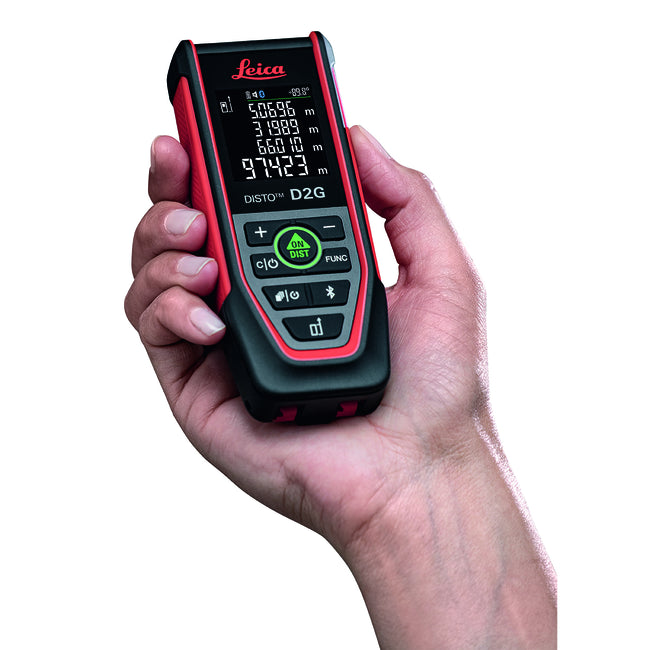

  • Smart Horizontal Mode

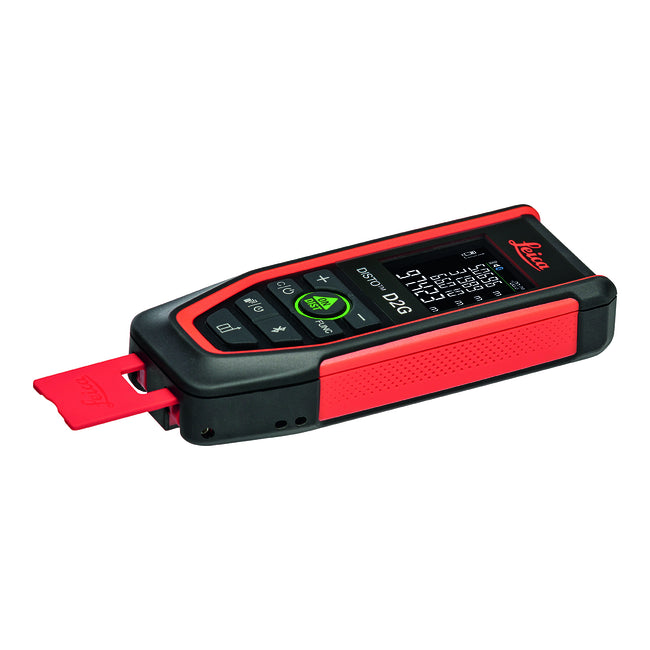

  • Foldable end-piece with automatic detection
  • Memory for 30 measurements
  • Up to 5’000 measurements with 2 x AAA batteries
  • Bluetooth® 6.0 technology for error-free data transfer
  • NFC technology for enhanced connectivity
  • Works with DISTO™ Plan App (iOS and Android) and DISTO™transfer (Windows)


Specifications
Accuracy with favorable conditions 1.5 mm / 0.06"
Accuracy with unfavorable conditions 3 mm / 0.12"
Range with favorable conditions 0.05 – 120 m / 0.16 – 400 ft
Range with unfavorable conditions 0.05 – 70 m / 0.16 – 230 ft
Accuracy and Range according to ISO 16331-1 yes
Smallest unit displayed 0.1 mm / 1/32 in
Tilt measuring range 360°
Tilt measuring tolerance ± 0.2°
Laser class 2
Laser type 518 nm, <1 mW
ø laser point | at distances 6 / 30 / 60 mm | 10 / 50 / 100 m
Protection class IP54 (dust- and splash water protected)
Auto. laser switch off after 90 s
Auto. power switch off after 180 s
Bluetooth® Bluetooth® v6.0
Range of Bluetooth® up to 10 m
Battery durability (2 x AAA) up to 5'000 measurements, up to 10 hours operation time
Dimension (L x W x H) 127 x 50.5 x 24.5 mm | 5.00 x 1.99 x 0.96 in
Weight (with batteries) 116 g/ 4.09 oz
Temperature range storage | operation -25 to 70°C / -13 to 158°F | -10 to 50°C / 14 to 122°F
Leica Geosystems | 1017809
