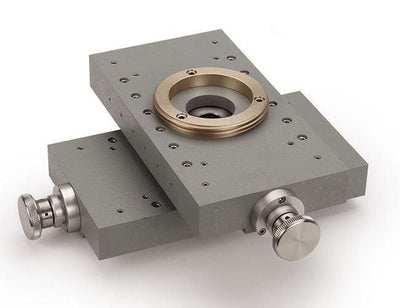

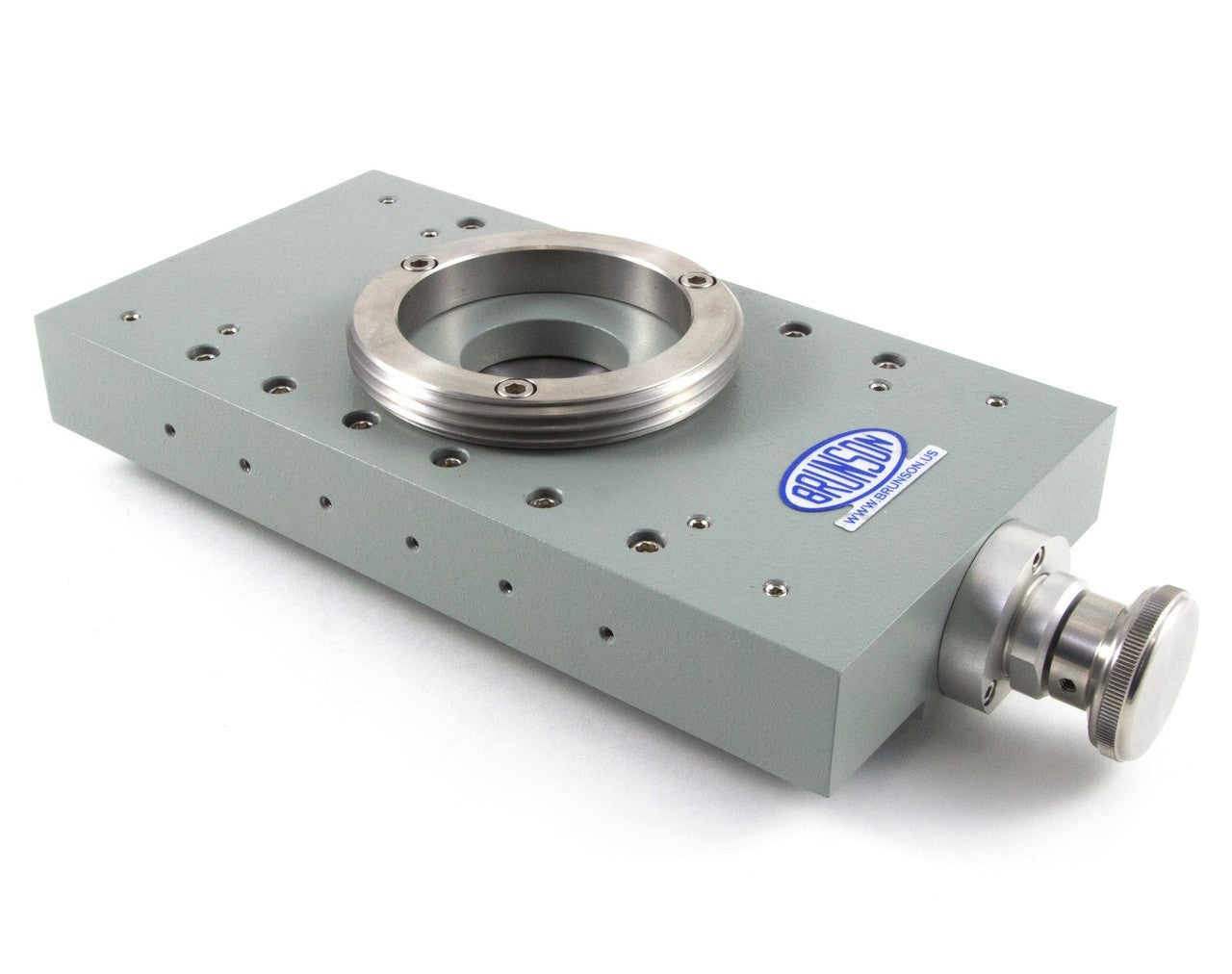

Our 802 has a substantial 2" (5 cm) travel for horizontal alignment to known points. Precision roller bearings permit accurate translation of a precision plumbed instrument, minimizing the need for readjustment. Consider also the 802-3 compound lateral slide, which is constructed using two orthogonally-mounted 802 slides.
The 802-3 therefore has a full 2" of travel in both the X and Y directions. Both slides have a clear vertical aperture designed to allow plummet sightings. Both models have a standard external 3½"-8 instrument thread mount on top.
The 802-S slide is also available for when you need to mount to a fixture. The 802-S has a 5/8"-11 threaded hole in the middle of the dovetail for mounting. Note that while mounted, the 802-S does not allow for plummet sightings.
Effective height:
(the vertical distance between the lower interface surface and the bottom of an instrument which is mounted on top of the unit)
802, 802-S: 1.18" (30 mm)
802-3: 2.875" (73 mm)
Approx. weight:
802, 802-S: 6 lbs. (2.7 kg); shipping 7 lbs. (3.2 kg)
802-3: 11 lbs. (5 kg); shipping 12 lbs. (5.4 kg)
Kit Includes:
- 1 xBrunson 802 Precision Lateral Slide
- 1 xBrunson 5146 Surface Adapter
- 1 xBrunson 235-17 Dovetail Adapter

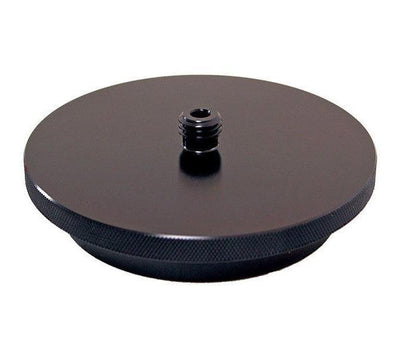

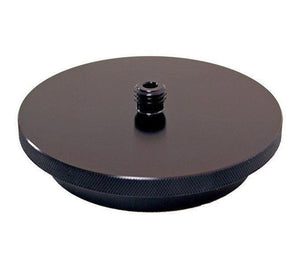

- 1 x Seco 5/8th adapter

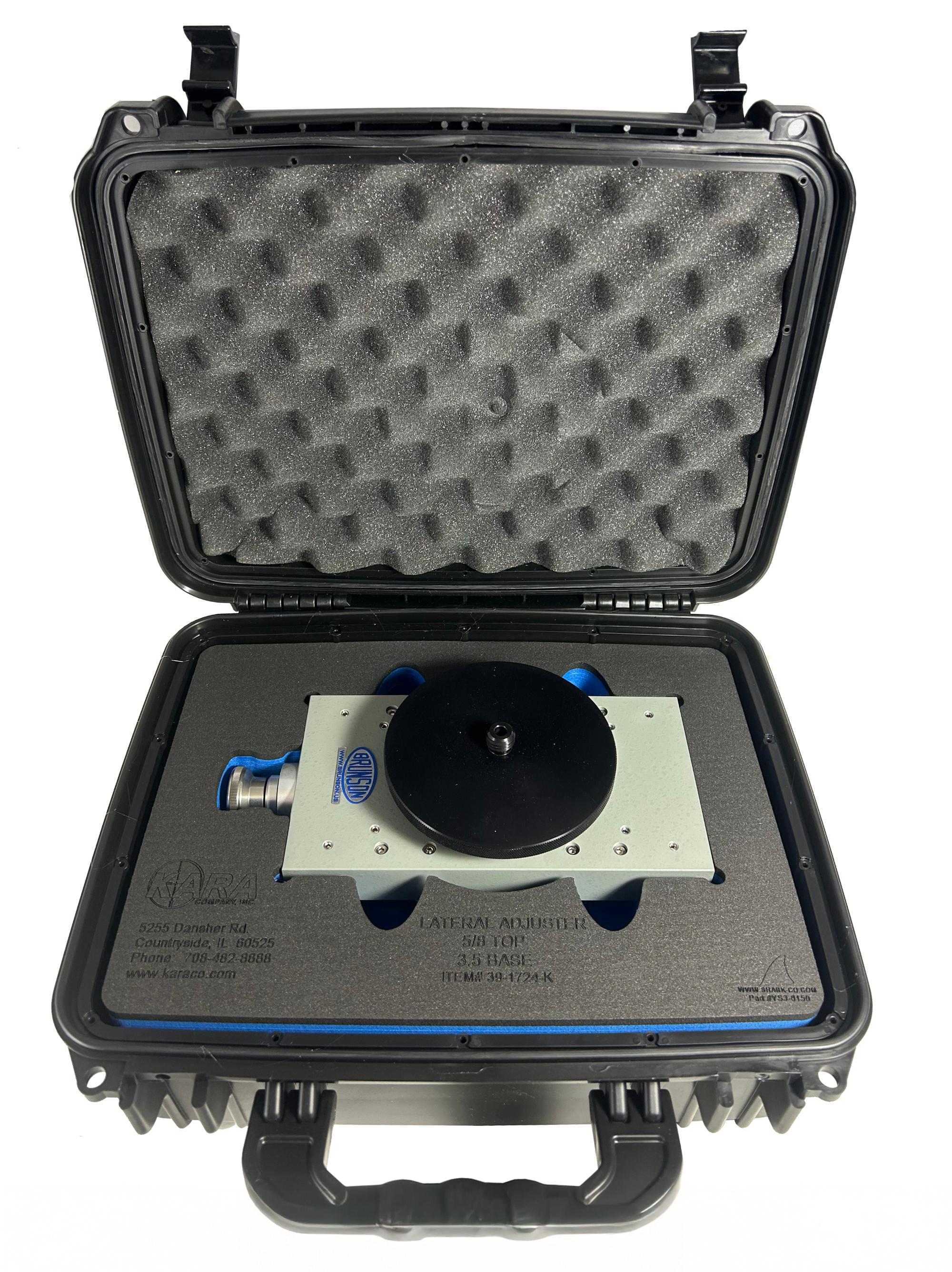

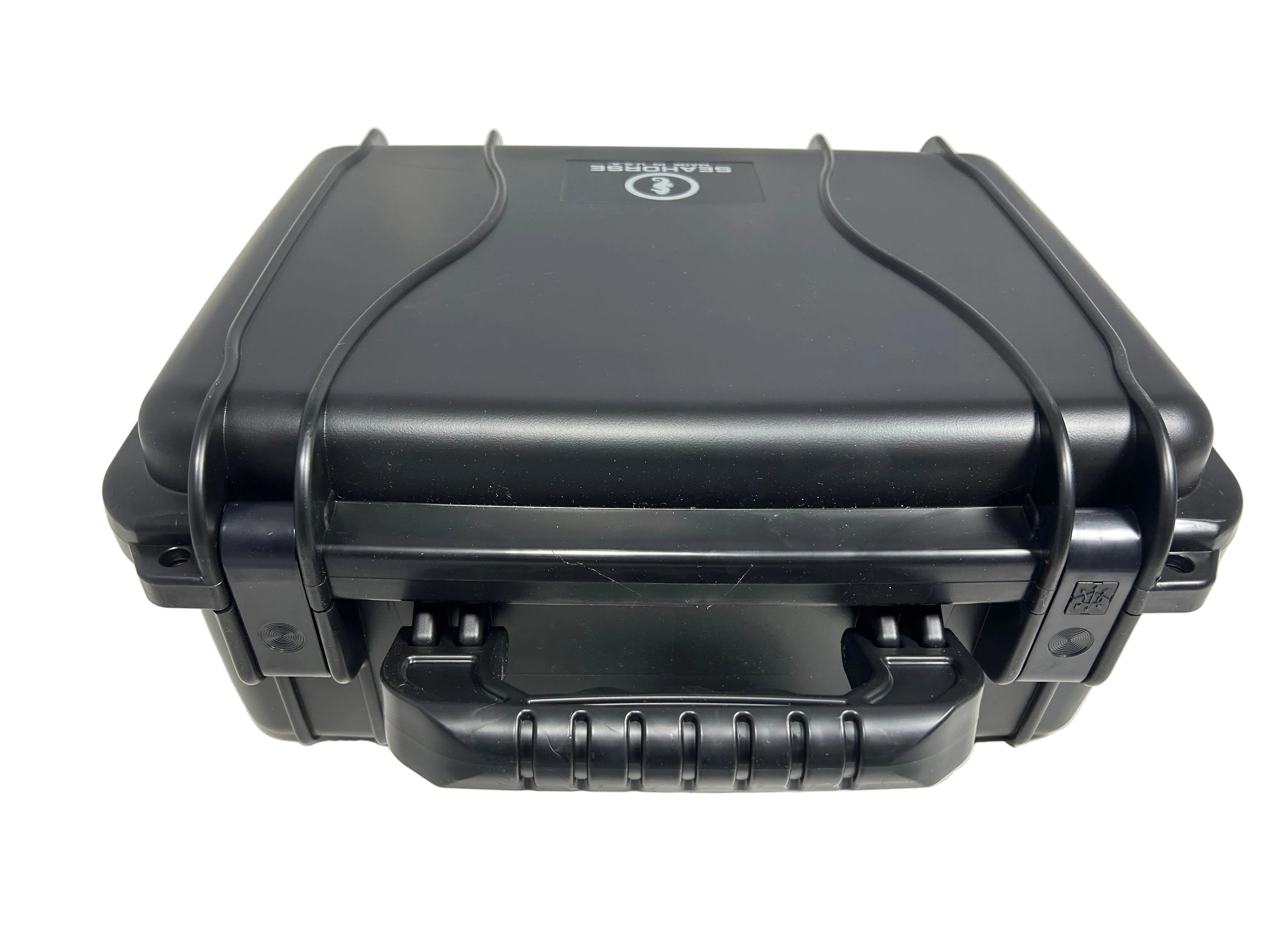

- Hard Carrying Case
