Product Details

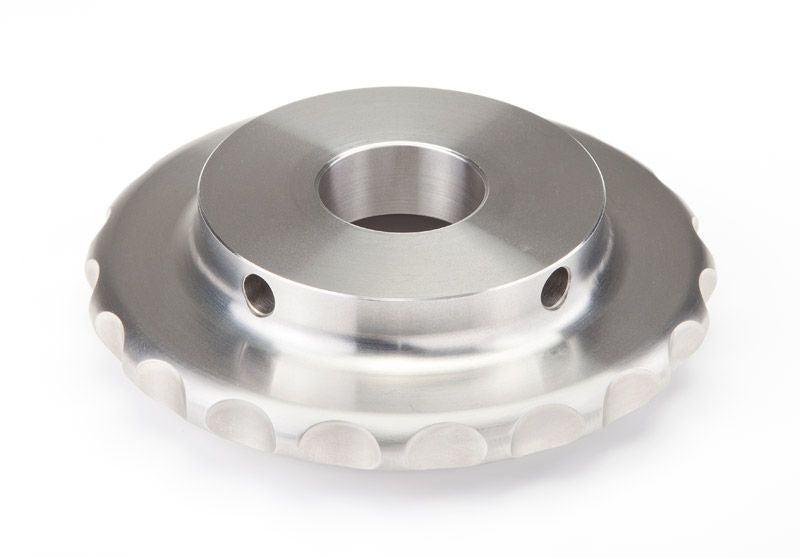

Converts a 3½"-8 external thread to a dovetail mount
The 235-17 has an internal 3½"-8 thread on its underside, which mounts to many of our stands and other adapters. A through-hole in the adapter accepts a dovetail mount such as that found on our various lateral slides, and allows unrestricted plummet sights. Two socket head setscrews secure the inserted dovetail, and allow the lateral slide (or other dovetail-equipped unit) to rotate into any azimuth direction until tightened.
May Be Used With
Fits onto any product having an external 3½"-8 thread
Accepts these products:
- 235-12 Precision Lift Adapter
- 802, 802-3 Precision Lateral Slide
Specifications
EFFECTIVE HEIGHT
1.375" (34.9 mm) – this is the vertical distance between the lower interface surface (on this adapter, the very bottom) and the top
INTERNAL THREAD
3-1/2"-8
WEIGHT, PRODUCT (APPROX.) LB
3
WEIGHT, PRODUCT (APPROX.) KG
1.36
