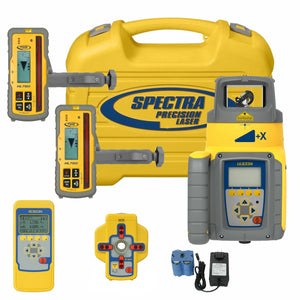

The UL633N is the first construction laser to enable the total control of all three axes (X/Y/Z). This is accomplished via unique simultaneous Radio and Infrared communication and also completely new “fan beam” technology for the Z axis. Benefiting from Spectra Precision’s know-how, the UL633N is appropriate for all applications delivering an easy, fast and accurate job.

CUT AND FILL

• Measuring cut and fill for basic site preparation

EXCAVATIONS

• Use the optional CR600 machine mounted for extra productivity
• Dig basic slopes by dialing in the required grade value

ELEVATION AND SLOPE CONTROL

• Site preparation, Building pads, drive ways, ramps, parking garages, trenching

GRADE / ELEVATION CONTROL

• Parking lots, drive ways, foundations, building pads

STEEP SLOPE

• Use the UL633 laser for embankments, sea walls, and river banks in dual axis PlaneLok mode by using the slope bracket

CHECKING PLUMB, LINE AND LAYOUT

• By putting the UL laser in the vertical position, it is possible to check plumb and alignment
• Applications include form placement, tilt-up walls, anchor bolts, footers and as-built checks

CHECKING SQUARE, LINE AND LAYOUT

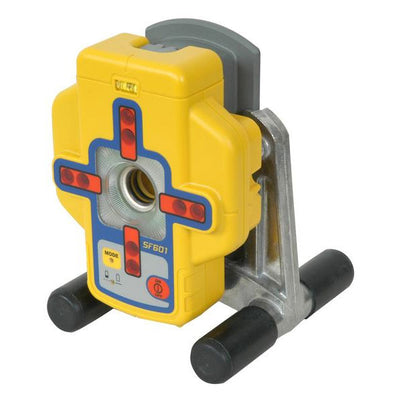

• By putting the UL laser in the vertical position, it is possible to check square and do 90° layout using the Spot Finder SF601

BUILDING AXIS ALIGNMENT

• Control of building lines, columns or foundations

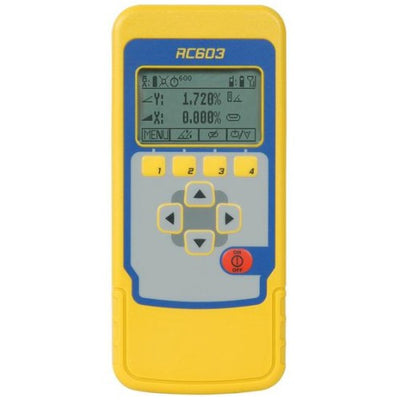

• Use the remote control to align the laser in vertical between two known reference points using automatic vertical PlaneLok

SCREEDING CONCRETE

• Measure the elevation of concrete
• Check for level or slope across the pad

GRADING

• Building pads, ramps, drive ways, parking lots
