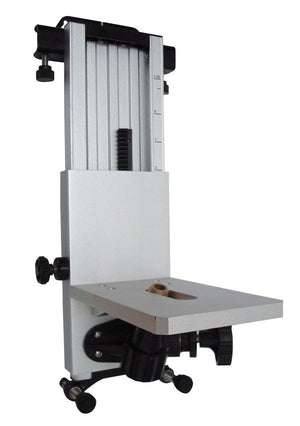

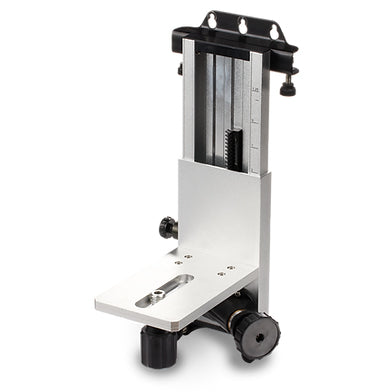

Nail Holes (3) – allows you to hang the wall mount onto nails or screws.

Locking Screws – lock/unlock the wall mount at the wall molding or floor track.

Locking Knob—tightens/loosens the sliding bracket in place after it has been positioned along the elevation scale.

5/8“ –11 Laser Mount – lets you connect the laser to the wall mount.

Fine height adjustment screw—lets you fine adjust the laser’s position on the wall mount.

Adjustment screw – adjust the slider‘s movement tightness considering the laser weigth.

Elevation Scale – provides graduated marks that indicate the position of the laser relative to the wall molding height. The adjustment range on the scale is from 3.1 cm (1-1/4 inch) above wall-molding height to 5 cm (2 inch) below it. (The “–2“ position is aligned with the horizontal centerline at the ceiling target.)

Reading Edge – allows you to adjust the laser position appropriate for your application needs.

Vertical-Alignment Notch—shows the position of the laser beam when the laser is set up in vertical mode and is moved up to the top (3.1 cm [1 1/4 in.]) stop.
