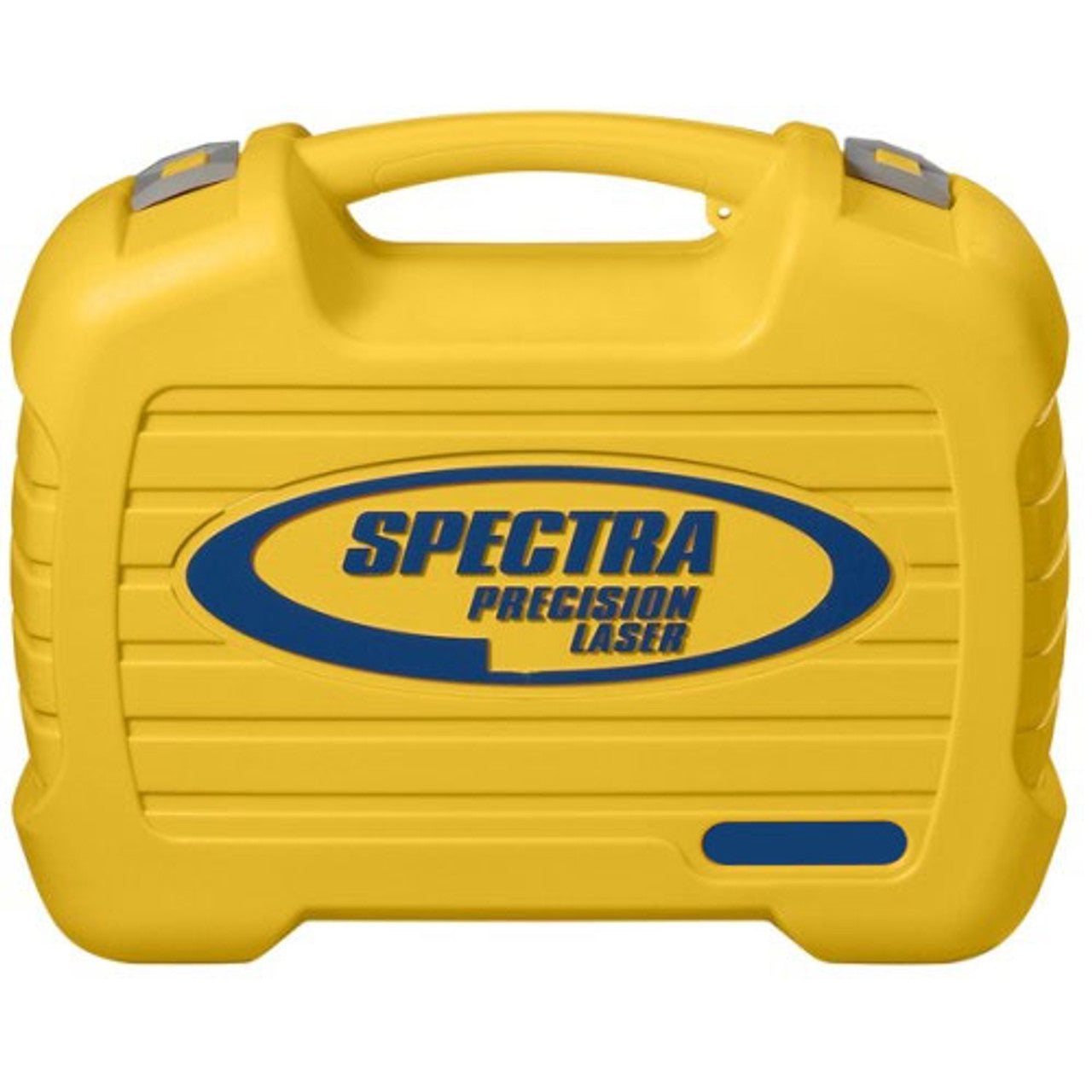

Spectra Precision 5289-0670 Small Laser Carrying Case for GL612N, GL622N and UL633N
Spectra LT58 Green Laser Full Squaring
    Spectra LT58 Green Laser Full Squaring
    Spectra Precision 5289-0670 Small Laser Carrying Case for GL612N, GL622N and UL633N
    Spectra LT58 Green Laser Full Squaring
Spectra LT58 Green Laser Full Squaring
Spectra Precision 5289-0670 Small Laser Carrying Case for GL612N, GL622N and UL633N
Spectra LT58 Green Laser Full Squaring
Spectra LT58 Green Laser Full Squaring
Spectra Precision 5289-0670 Small Laser Carrying Case for GL612N, GL622N and UL633N
Spectra LT58 Green Laser Full Squaring
    Spectra LT58 Green Laser Full Squaring
    Spectra Precision 5289-0670 Small Laser Carrying Case for GL612N, GL622N and UL633N
    Spectra LT58 Green Laser Full Squaring
Spectra LT58 Green Laser Full Squaring
Spectra Precision 5289-0670 Small Laser Carrying Case for GL612N, GL622N and UL633N
Spectra LT58 Green Laser Full Squaring

About

Product Details

The Spectra LT58G delivers a bright green 360° laser line ideal for ceiling work, visible up to 100 feet even in well-lit spaces. Two perpendicular vertical planes provide precise reference for wall layout, point transfer, cabinet installation, and tile work. With 50% more power than comparable models, the green beam ensures visibility in demanding conditions.



The compact design features an optimized ceiling mount compatible with standard and shadow track systems, plus adjustable tripod and stud mounting options. Powered by a 7200 mAh rechargeable lithium-ion battery offering 19 hours of continuous operation—or AC power for unlimited runtime—this tool eliminates daily battery replacement costs. Built to withstand professional jobsite demands with a 3-foot drop rating, the LT58G streamlines layout tasks on high ceilings with minimal setup time.





Applications

  • Ceiling installation
  • Interior (wall) contractors
  • Home Builders
  • Finish Carpenters
  • Cabinet makers and installers
  • Window and door installers
  • Electricians for track light, receptacles and wire alignment
  • Plumbers for pipe alignment and fixture placement
  • Mechanical (HVAC) installation and alignment





Two 360⁰ red vertical beams are 90⁰ apart to provide all the reference required for interior layout.

  • Rugged and durable - 3 foot drop specifications means the LT58G can keep working even after minor drops
  • Lithium-ion batteries provide 19 hours operating time - huge savings on battery cost compared to alkaline models and are ecological friendly

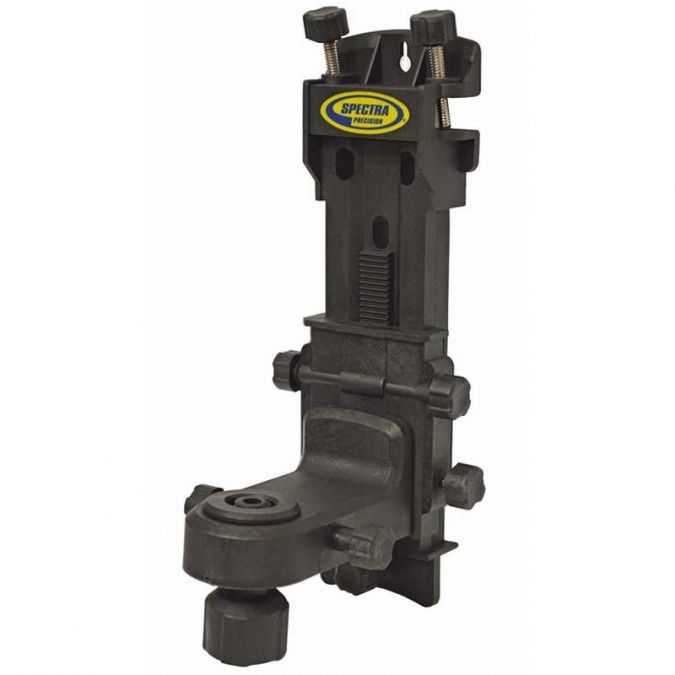

LT58 Ceiling Mount Optimized for All Tracks







Features

Bright crisp laser lines

  • Green horizontal beam is ideal for ceiling work
  • Extends the working range for fewer setups
  • Easier to see in bright conditions

Lithium-Ion batteries with 19 hour operating time

  • Saves about $75 dollars a month in battery cost as compared to replacing alkaline
  • 4x competition battery operating time – can work all day
  • Ecological

Optimized for ceiling work

  • Accessory includes ceiling mount that attaches to all types of ceiling track
  • Compact and lightweight allows easy mounting at ceiling height

Rugged Built

  • 3 foot drop specification – like all Spectra Precision products
  • IP54 – like all Spectra Precision Laser Tools

Simple Operation and Setup

  • Automatic Self Leveling
  • Constant Beam
  • No Rotation
  • No Remote Control Needed

  • Simple Easy to use Keypad
  • One button for horizontal beam
  • One Button for vertical beams

  • Warranty – 3 year / 2 year no cost - convenient over-the-counter exchange
Specifications
Laser Power Less than 1mw
Class/Wavelength Class 2 / 522nm - 635nm
Batteries Lithium-ion, 7200 mAh
Battery Life 1 Beam Green : 19 hours, 3 Beams : 11 hours
Charge Time 8 hours
Charger Input 100-240V AC 0.5 Amp
Charger Output 5V DC 2.0 Amp
Out of Level Indication Flashing beam - triple flash every 10 seconds
Self Leveling Range 4⁰ ±1⁰ all directions
Dust and Water Resistance IP54
Operating Temperature 14⁰ to 113⁰ F (-10⁰ to 45⁰ C)
Storage Temperature -4⁰ to 158⁰ F (-20⁰ to 70⁰ C)
Size (L x W x H) 4.6 x 6.0 x 3.3 inch (152 x 116 x 84 mm)
Weight 1.48 lb (.067 kg)
Spectra Precision Spectra Precision

SKU:SP-LT58G

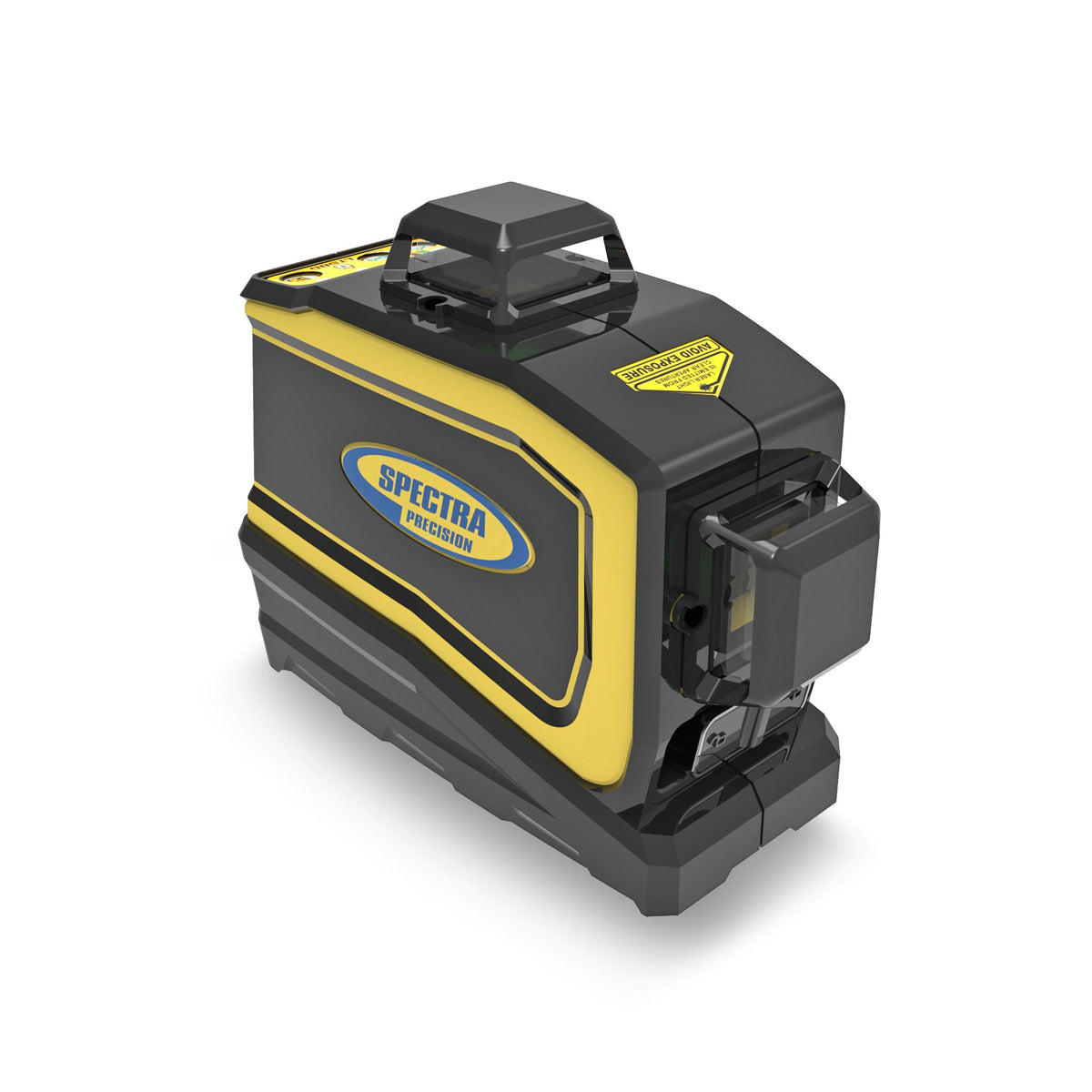

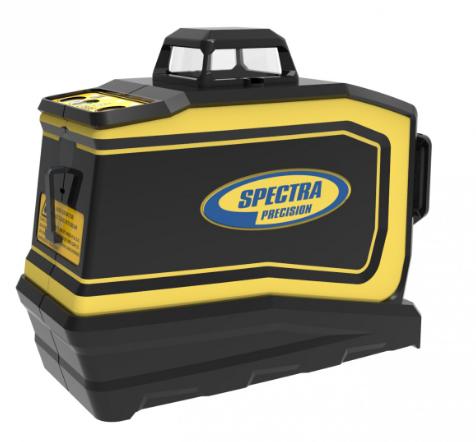

Spectra Precision LT58G Universal Laser Layout Tool with Green Beams

Regular price
$738.00
Sale price
$738.00
Regular price
$820.00
Shipping calculated at checkout.

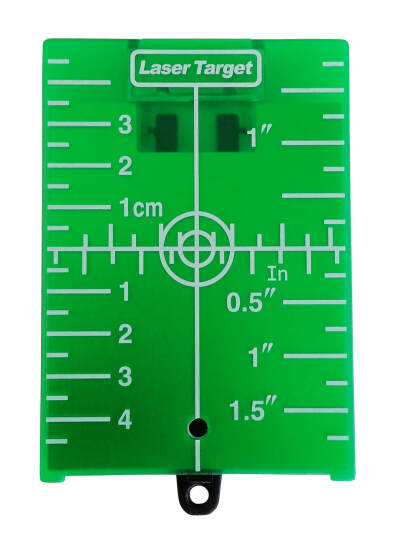

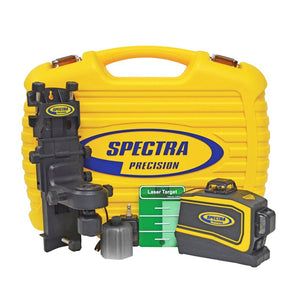

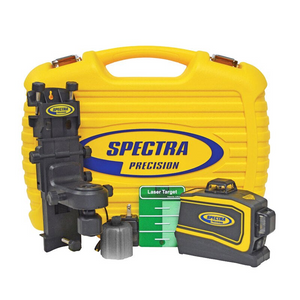

LT58G 3x360 degree green laser planes, Case, Charger, Spacer Accessory Mount, Green Target, & operators guide
LT58G 3x360 degree green laser planes, Case, Charger, Spacer Accessory Mount, Green Target, & operators guide
6 in Stock Now
Limited quantities available for this popular surveying tool
Free Shipping!

This item qualifies for free shipping within the continental U.S.
