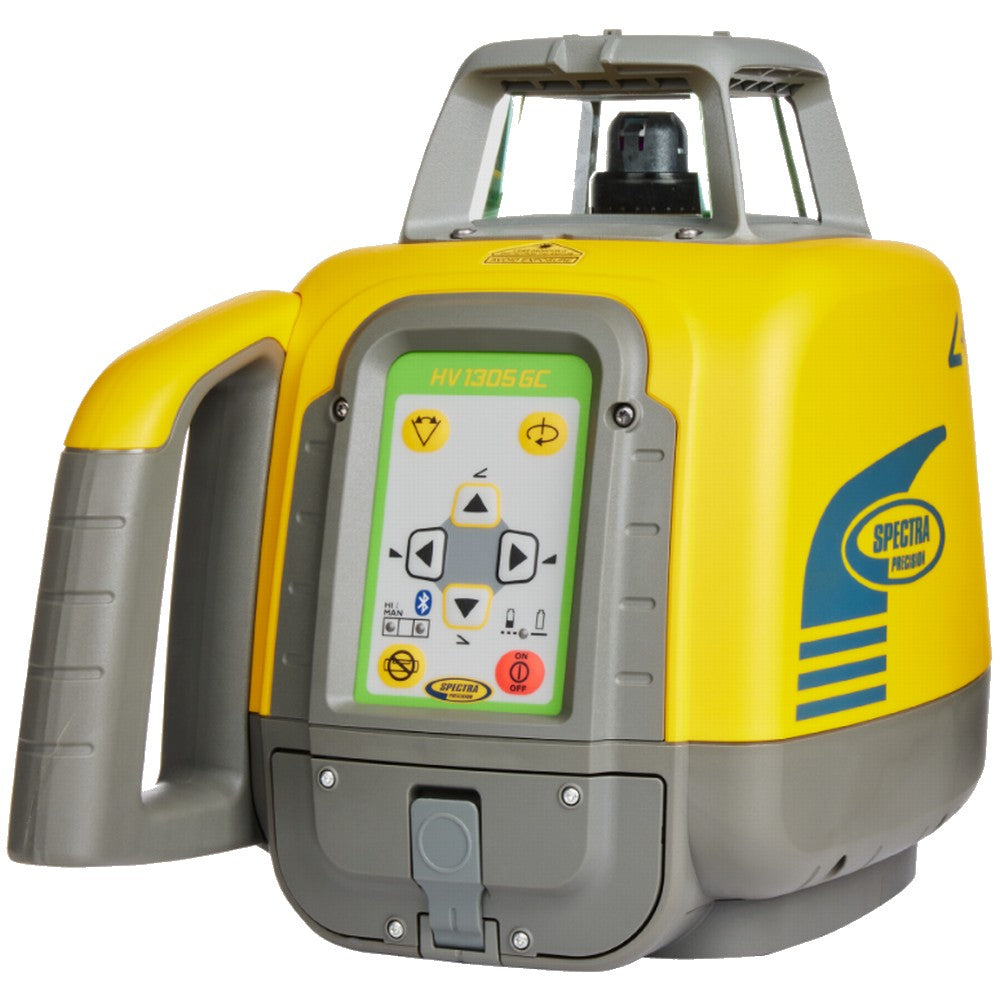

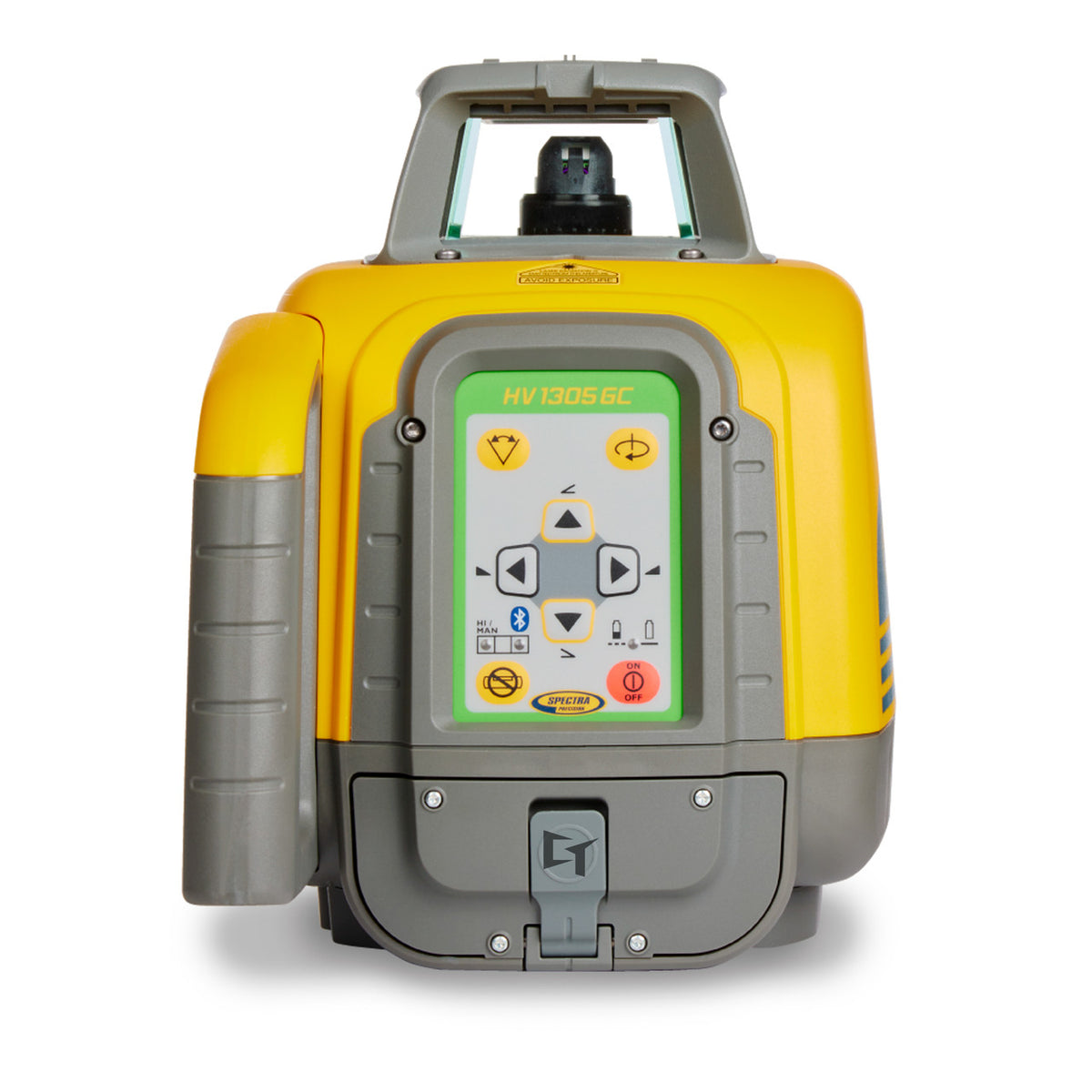

The automatic self-leveling Spectra Precision® HV1305GC Horizontal/Vertical Laser offers exceptional versatility and superior green beam visibility for increased productivity at a great value. The HV1305GC is capable of handling a wide variety of horizontal, vertical and plumb applications optimized for interior projects. A split beam enables plumb point transfer and 90 degree layout. Even in brightly lit interior conditions, the high visibility green beam of the HHV1305GC delivers consistently reliable and accurate performance, enabling you to work faster and smarter.

The HV1305GC is capable of handling a wide variety of horizontal, vertical and plumb applications optimized for interior projects. A split beam enables plumb point transfer and 90 degree layout. Even in brightly lit interior conditions, the high visibility green beam of the HV1305GC delivers consistently reliable and accurate performance, enabling you to work faster and smarter.

Extremely rugged, the laser can withstand drops of up to 1 meter (3 feet) onto concrete and tripod tip-overs up to 1.5 meter (5 feet), resulting in reduced downtime and lower repair costs. Even in
the toughest jobsite conditions, the laser delivers reliable, accurate performance to increase overall productivity and cost-savings.

The HV1305GC features a simple keypad with arrow buttons, making it easy to use. The laser can be configured with an HR150U receiver or the new HL760U Universal Digital Readout Receiver. By utilizing the radio communication between HV1305GC and the optional HL760U receiver, a reference for a sloped ceiling or line points for drywall layout can be quickly and easily established. The HL760U
receiver is unique as it will work with any green, infra-red or red beam laser.



Spectra Precision HV1305GC-7 Laser Applications

  • Interior, light to medium
  • commercial and residential construction
  • Squaring/layout
  • Leveling and aligning of interior walls
  • Installation of ceilings and raised floors
  • Interior finishing work
  • Vertical alignment
  • Plumb
Features
  • Automatic horizontal and vertical self-leveling
  • Accuracy 1/16-inch @ 100 feet (1.5mm @ 30 m)
  • Working visible range of 250 feet (75 m) radius
  • High-visibility beam – easily visible even in brightly lit conditions
  • Split beam – enables plumb point transfer and 90-degree layout
  • Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
  • HR150U - Interior Receiver with highly visible LEDs and built-in Magnetic Mount
  • Extremely durable and portable
  • 3 Year warranty
Specifications
Leveling accuracy ± 1.5 mm/30 m, 1/16-inch @ 100 ft, 10 arc seconds
Operating visible radius 250 feet (75 m)
Rotation 0, 10, 80, 200, 600 rpm
Pre-selected scan sizes 5°, 15°, 45°, 90°, 180° and 0
Laser type green diode laser 520 nm
Laser class Class 3A/3R, max. 5 mW
Self-leveling range ± 5° (±9%)
Leveling indicators LED flashes
Radio range (HL760U) up to 100 m (330 ft)
Power source 10.000 mAh NiMH battery pack
Battery life 30 hours NiMH; 45 hours alkaline
Operating temp 0°C to 40°C (-4°F to 122°F)
Storage temp -20°C to 70°C (-4°F to 158°F)
Tripod attachments 5/8 x 11 horizontally and vertically
Dust and waterproof Yes - IP66
Weight 3.1 kg (6.8 lbs)
Low voltage indication LED battery indicator
Low voltage disconnection unit shuts off
Warranty 3 Years
Laser Orientation Horizontal / Vertical
Application Interior
Laser Color Green
Laser Range (diameter) 125 feet
Laser Accuracy 1/16-inch
Grade Type / Range Manual Grade
Plumb Point Yes
Battery Type Rechargeable
Mount Wall and Ceiling
Spectra Precision Spectra Precision

SKU:SP-HV1305GC-BCC

Spectra Precision HV1305GC-BCC Green Beam Laser Interior / Exterior - Laser Only

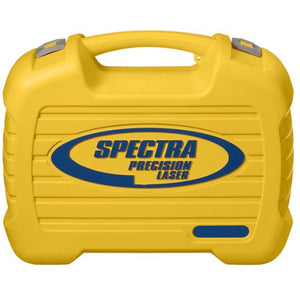

With charger, battery and case
