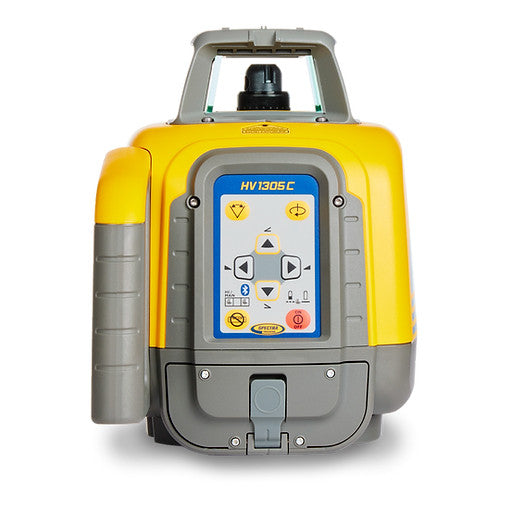

Spectra Precision HV1305C-BCC Horiz/Vert - Interior/Exterior RED Beam Laser Kit - Laser Only
    Spectra Precision HV1305C-BCC Horiz/Vert - Interior/Exterior RED Beam Laser Kit - Laser Only
Spectra Precision HV1305C-BCC Horiz/Vert - Interior/Exterior RED Beam Laser Kit - Laser Only
Spectra Precision HV1305C-BCC Horiz/Vert - Interior/Exterior RED Beam Laser Kit - Laser Only
    Spectra Precision HV1305C-BCC Horiz/Vert - Interior/Exterior RED Beam Laser Kit - Laser Only
Spectra Precision HV1305C-BCC Horiz/Vert - Interior/Exterior RED Beam Laser Kit - Laser Only

About

Product Details

General Purpose Construction Laser for Interior and Exterior Applications
Includes: RC1402N Remote, HL760 Receiver, Small Case, and Rechargeable Batteries



The automatic self-leveling Spectra Precision® HV1305C red beam laser is one of the most rugged, cost-effective lasers that provide both horizontal and vertical alignment. Even in harsh job site conditions, the lasers deliver consistently reliable and accurate performance, enabling you to work faster and smarter.



The HV1305C-4 is capable of handling a wide variety of horizontal, vertical, and plumb applications in both interior and exterior projects. Its high-visibility red beam enables simultaneous rotating and 90-degree plumb references and is easy to see even in brightly lit interiors.





Applications

  • Interior and exterior, light to medium commercial, and residential construction
  • Leveling and aligning of forms and footers
  • Leveling and aligning of interior walls
  • Installation of ceilings and raised floors
  • Interior finishing work
Features
  • Fully Automatic Self-Leveling in Horizontal or Vertical
  • For use in Interior or Exterior Applications
  • Highly Accurate - 1/16 inch at 100 feet
  • Longest Range - Working Range up to 4,000 foot diameter with HL760 or CR700
  • Bluetooth connection allows easy adjustments and laser control with a smartphone. (Tap and GO)
  • Height of Instrument Alert - Unit stops rotating when jarred to avoid erroneous readings.
  • Automatic PLUMB DOWN Beam for quick and easy Horizontal Set-Up
  • Rotation selection of 0, 10, 100, 200, 300 or 600 RPM
  • Composite material housing is rugged,lightweight and IP66 weatherproof making it easy for contractor carry and use in demanding jobsite conditions, reducing repair downtime
  • Fully automatic self-leveling in both horizontal and vertical for fast, accurate setup in horizontal and vertical applications
  • Single-axis manual slope mode with ‘cross-axis’ self-leveling allows grade matching for basic slope work, while maintaining accuracy in the cross-axis
  • Automatic Grade Match which establishes a plane between two different elevations elevations using the RC402N Remote Control and HL760 Receiver
  • Horizontal and Vertical PlaneLok which eliminates errors caused by drift, improper calibration, and environmental conditions using RC402N Remote Control and HL760 Receiver
  • Highly visible 3A/3R beam and superior scanning functions making it easier for interior layout and aligning over longer range job sites (visible diameter of 330-feet)
  • Long-range remote control operation allows convenient access to key functions across the job site
  • Flexible power options, including rechargeable battery pack, AC power and alkaline batteries, combined with low battery warnings, reduces downtime by having multiple power options
Included in this kit
Spectra Precision Q104025 Medium Duty Aluminum Tripod
Spectra Precision
Spectra Precision Q104025 Medium Duty Aluminum Tripod
SKU: SP-Q104025
Spectra Precision CH10 Charger for UL633 / UL633N / GL1425C Rotary Laser and DG613 and DG813 Series Pipe Lasers
Spectra Precision
Spectra Precision CH10 Charger for UL633 / UL633N / GL1425C Rotary Laser and DG613 and DG813 Series Pipe Lasers
SKU: SP-CH10
Spectra Precision 128995-00 Large Laser Carrying Case for GL1425C and LL1505C Series Lasers
Spectra Precision
Spectra Precision 128995-00 Large Laser Carrying Case for GL1425C and LL1505C Series Lasers
Specifications
Leveling Accuracy 1/16“ @ 100 ft, 10 arc seconds
Operating Diameter 4,000 feet with HL760 Receiver
Rotation Preset 0, 10, 100, 200, 300, 600 rpm Adjustable in 10 rpm increments > 100 rpm
Pre-Programmed Scan Angles Adjustable in 5°, 15°, 45°, 90°, 180°
Plane Match Distance 260 feet
Plane Lok Distance 260 feet
Laser Type red diode laser 600-680 nm
Laser Class Class 2 / 510 to 530 nm
Automatic Plumb Down Accuracy 15 arc min, 1/4 inch @ 4 feet
Plumb down Limitation ± 8°
Self-Leveling Range ± 5° (± 8.7%)
Leveling Indicators LED flashes
Radio Range (HL760): up to 330 feet
Power Source Rechargeable 10,000 mAh Alkaline Batteries
Battery Life 45 hours alkaline
Operating Temperature -4°F to 122°F
Storage Temperature -13°F to 158°F
Tripod Attachments 5/8 x 11 horizontally and vertically
Dust and Waterproof Yes - IP66
Weight 7.7 lbs
Low Voltage Indication LED battery indicator
Low Voltage Disconnection unit shuts off
Warranty 5 Years
Laser Orientation Horizontal / Vertical
Application Interior / Exterior
Laser Color Red
Laser Range (diameter) 4,000 feet
Laser Accuracy 1/16-inch
Grade Type / Range Manual Grade
Laser Plumb Point Up Yes
Laser Plumb Down Yes
Spectra Precision Spectra Precision

SP-HV1305C-BSC

Spectra Precision HV1305C-BSC RED Beam Laser Kit With Tripod

With Case and Rechargeable Batteries
With Case and Rechargeable Batteries
$1,188.00
$1,188.00
$1,320.00
Shipping calculated at checkout.
Free Shipping
Download Product Spec Sheet
Download Spectra Precision HV1305C-BSC RED Beam Laser Kit With Tripod SDS
Free Shipping!

This item qualifies for free shipping within the continental U.S.
