New Longer Radio Range for Remote and Automatic Features up-to 500-foot.
Spectra Precision announces the launch of the new Spectra Precision GL622N Dual-Grade Laser. This laser replaces the GL622 and updates include a  new long range radio and HL760 digital readout receiver. These lasers  offer automatic self-leveling in grade, horizontal and vertical planes.  Both feature  grade capability of ± 25% and  can be used in a wide variety of grading, excavating and alignment applications by general and specialty contractors.

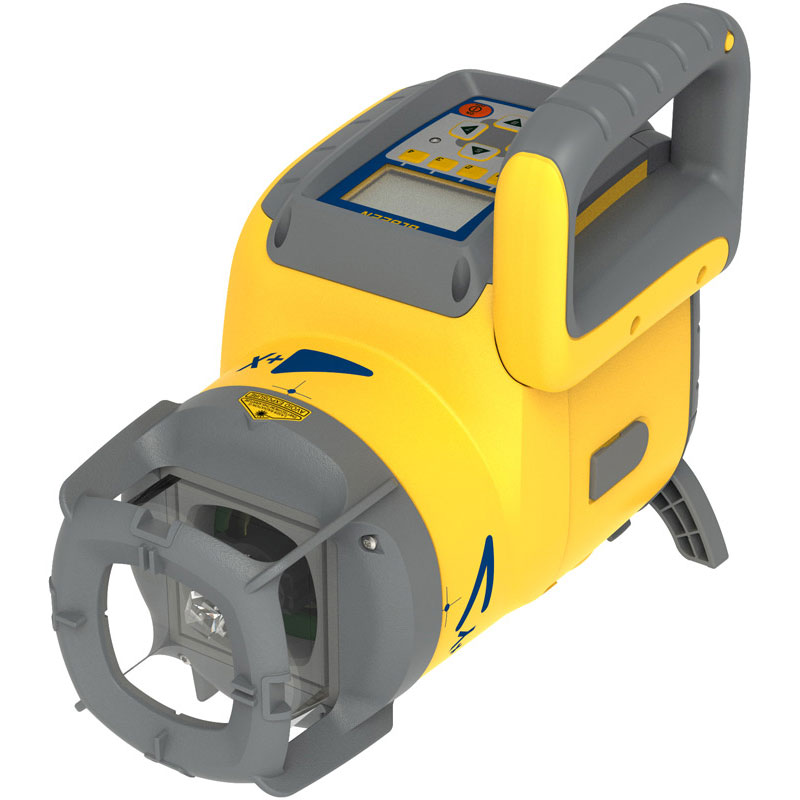

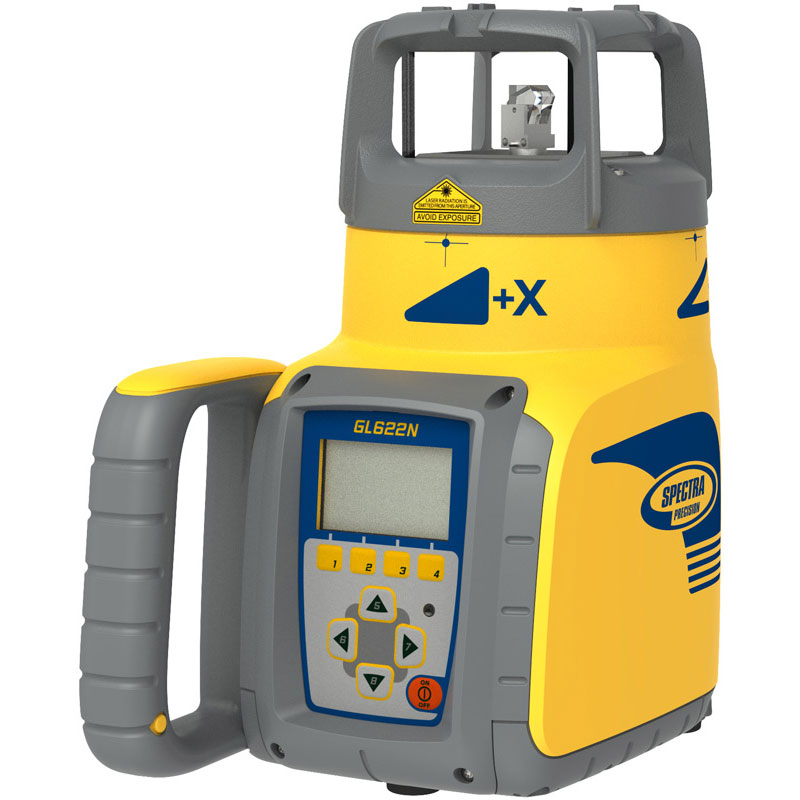

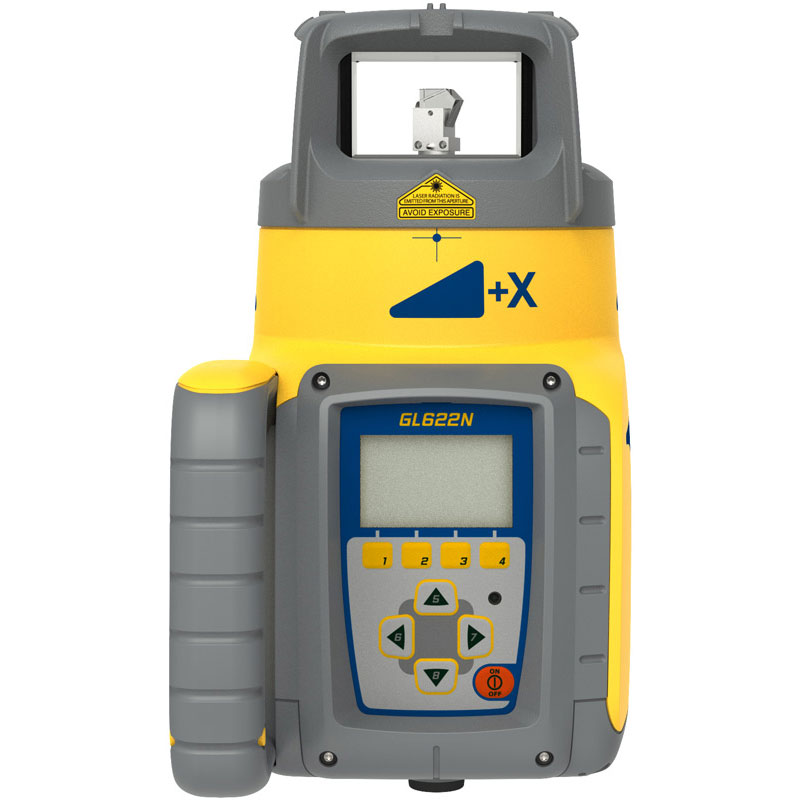

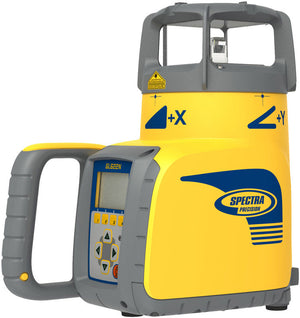

The GL622N is a dual slope grade laser. This rugged, automatic self-leveling laser has a grade capability of ± 25% and can be used in a wide variety of grading, excavating and alignment applications by general and specialty contractors. An intuitive keypad and graphic display makes all grade and alignment functions easy to use and greatly reduces setup time and increases productivity.

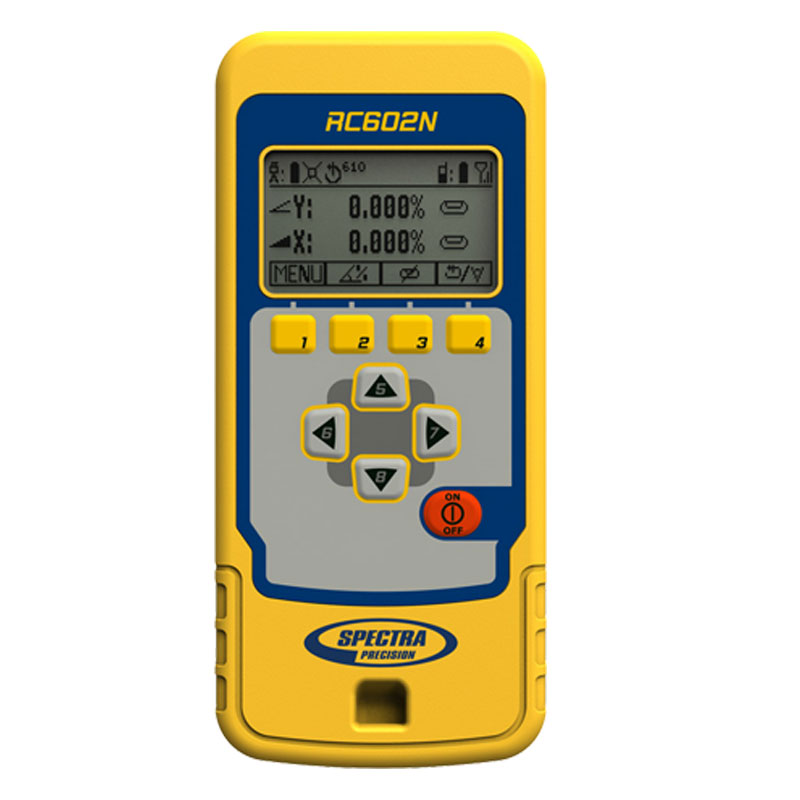

The GL622N includes the RC602N  full-function radio remote control. Both the remote and lasers  have  a large,  intuitive graphic displays and  keypads  that make  setups easier  and faster than ever. The displays are also backlit for ease of viewing. With the remote, contractors can do everything that they can do at the laser keypad, up to 500 feet away. The ability to make grade changes and start automatic alignments remotely can significantly reduce setup time and speed operations.

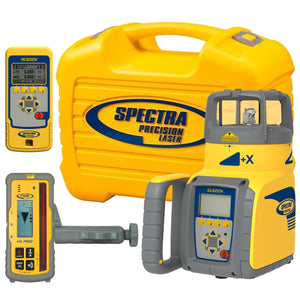

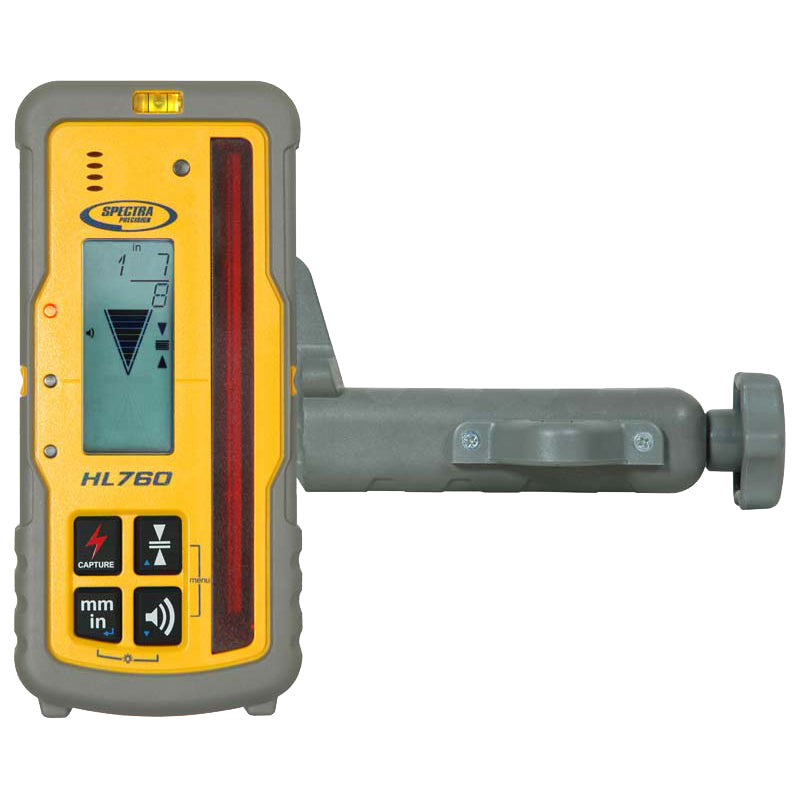

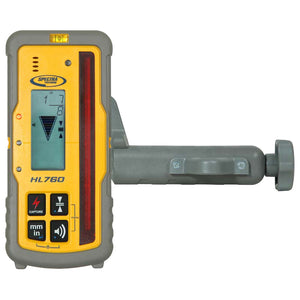

Each laser system includes the advanced HL760 Digital Receiver that provides a digital readout of elevation and can be used at an operating diameter of up to 2,600 feet.  With the HL760, several advanced features of the GL600 series can be utilized:

Grade Match:  Wireless communication between the HL760 Digital Receiver  and the transmitter provide automatic Grade Matching which allows measurement of unknown grade values between two points.

Plane-Lok: For applications that require maximum stability and accuracy, PlaneLok is available in both the horizontal and vertical planes. PlaneLok automatically locks the beam on the receiver and keeps it on grade, reducing typical environmental factors that may induce an error.

Automatic Axis Alignment (GL622N  only): Automatic axes alignments can be accomplished by positioning the receiver at the direction hub in a range of +/-40° at the desired laser axis. This allows contractors to easily perform dual axis alignments for grade work applications such as sports fields,  parking lots, tennis courts, driveways or any irregular field with non-perpendicular grade profiles

In addition, the HL760 Digital Receiver  can communicate  with another HL760 for long-range wireless remote display and monitoring.

The GL622N Grade Lasers self-plumb in the vertical position to allow an even wider range of applications such as such as anchor bolt installation, form, tilt up, and curtain wall plumbing.

With its rugged design,  the GL622N  lasers can survive a drop of up to 3-feet on concrete. The lasers also feature IP67 moisture and dust sealing to handle the tough construction environments.

Applications

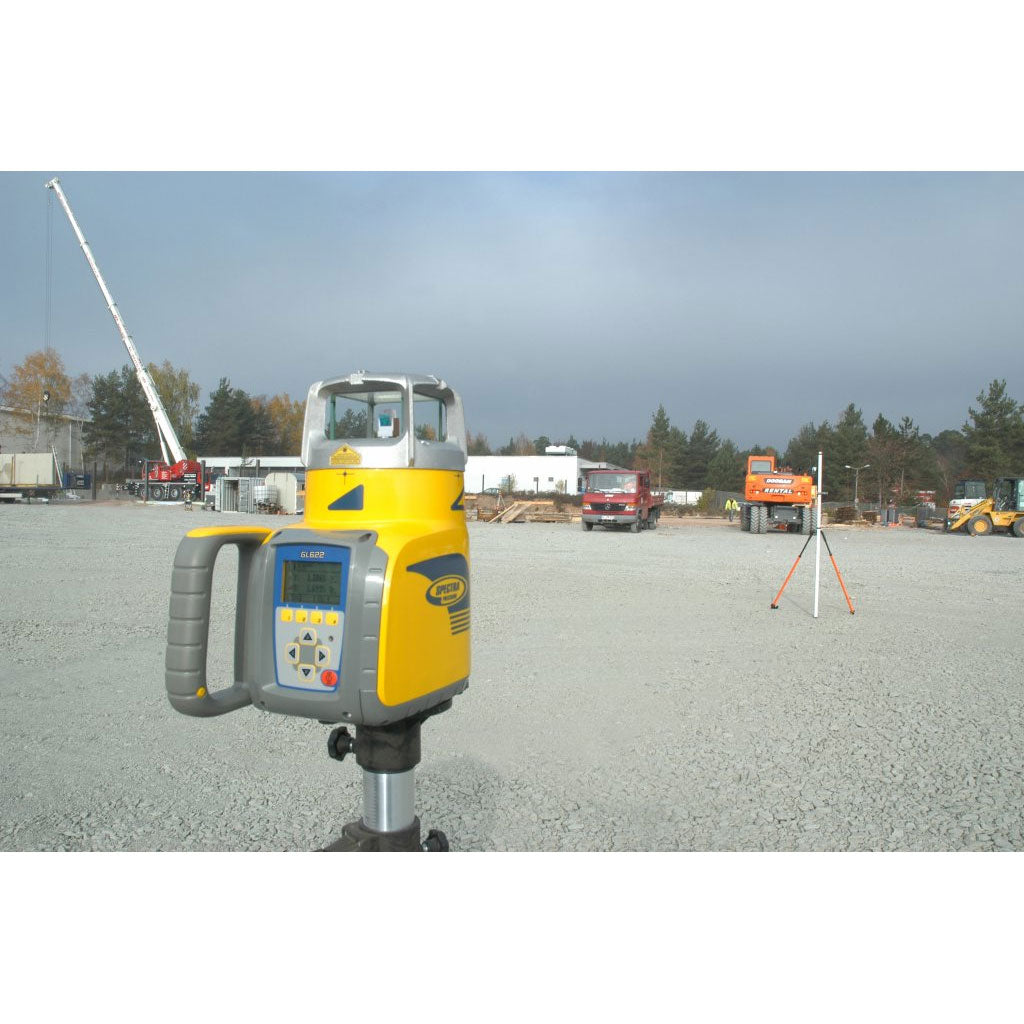

• General Construction Leveling such as concrete forms, footers and Pads

• Dual Slop Grading and Steep Slope Excavating
• Precision placement of concrete for critical specification surfaces over long distance and with laser controlled screeds (Automatic PlaneLok)
• Drift free general construction vertical allignment and plumb for plus form, tilt up and curtain wall plumbing (Automatic PlaneLok)
• General construction vertical alignment and plumb such as anchor bolt and form alignment
• “Over the top” sewer and storm drain pipe installations
• Sports fields, driveways, ramps and drainage

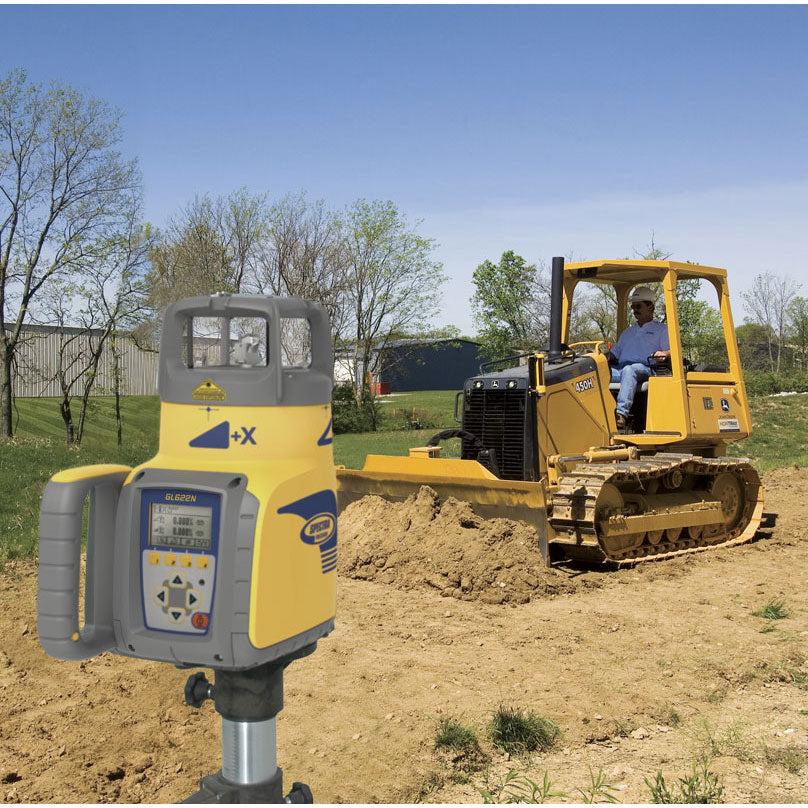

• General construction grading and excavating

• Slope work for sports fields, driveways, ramps and parking garages
• Steep slope road embankments and ditch banks
• Interior construction – layout of walls and installation of drop ceilings
