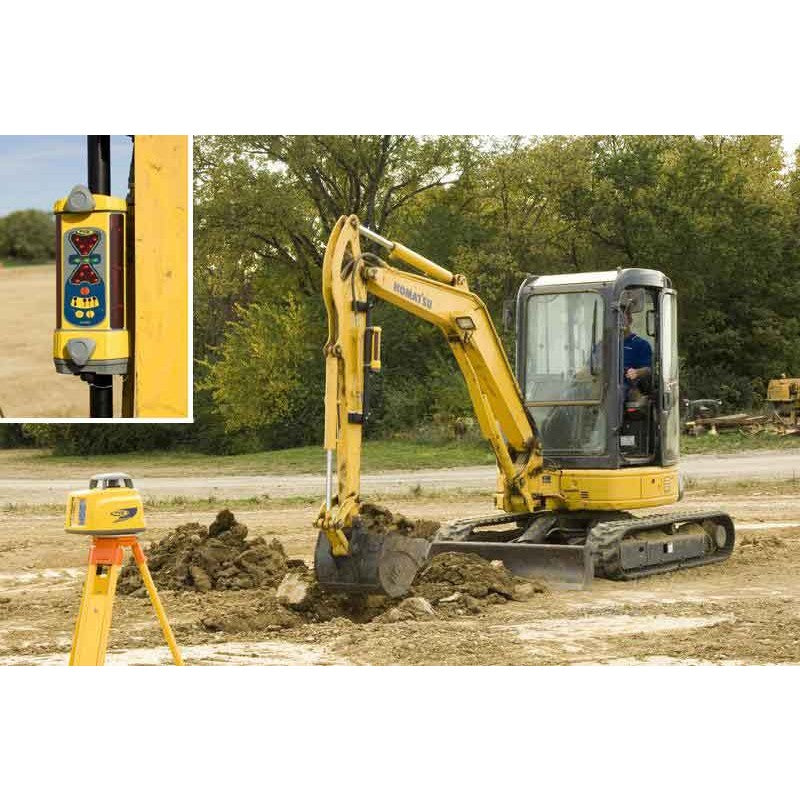

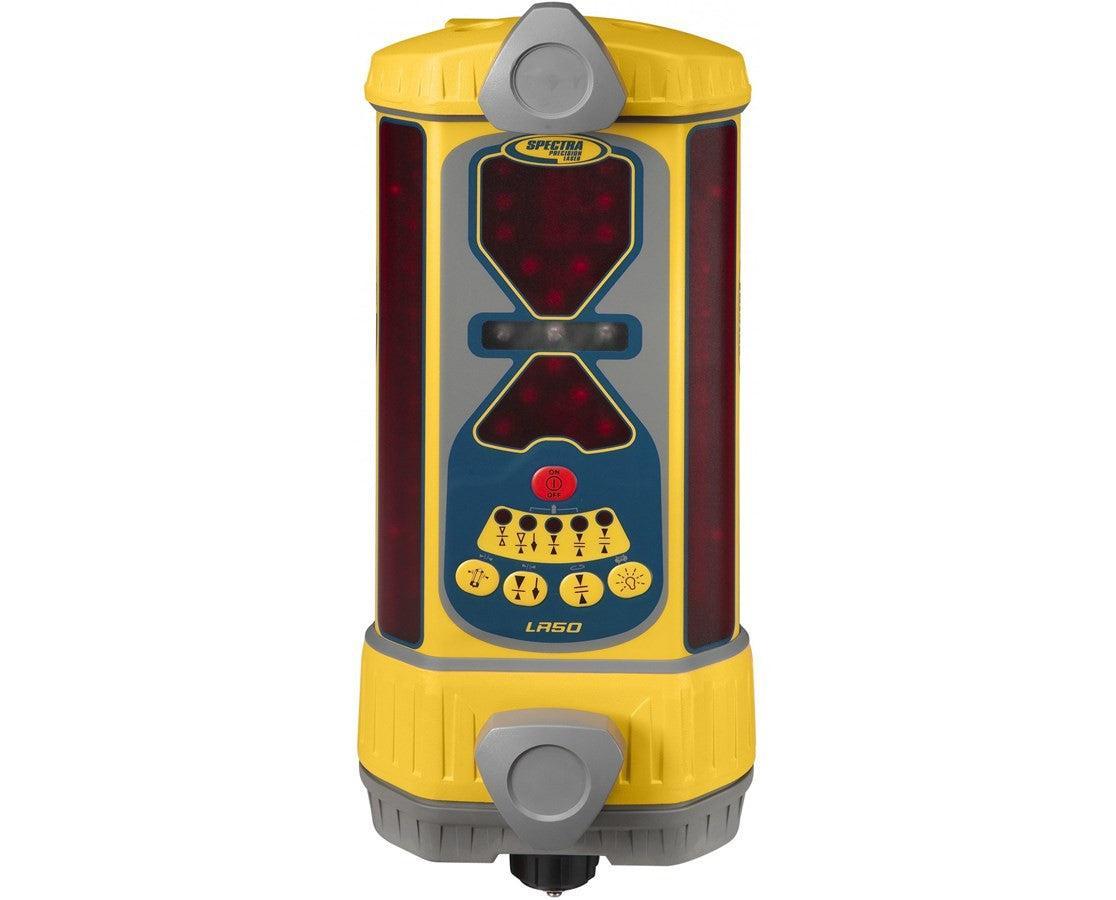

The Spectra LR50 Laser Machine Control Receiver is designed to be used as a stand-alone display receiver on grading and excavating equipment. It is an ideal choice for doing machine mounted grade checking, grading and leveling, and excavation and trenching. Featuring a versatile 360-degree reception angle, this machine control receiver can work with all types of rotating lasers for a fast, hassle-free setup. With three accuracy settings, this Spectra receiver provides the maximum flexibility by allowing the user to work to the tolerance demanded by the job. Also, it features a built-in blade tilt and plumb indicator for increased grading accuracy and precision.
The LR50 receiver includes a 6.75-inch capture height and six display channels of grade information when in excavating mode. Also, it comes with an adjustable, ultra-bright LED with a green on-grade display that provides user selectable, an easy-to-see display for matching ambient lighting conditions. This machine mounted receiver includes touch panel buttons for selecting blade-tilt indication, on-grade location, plumb indication, and display brightness. Rugged and durable, the Spectra LR50 is constructed from a tough aluminum poly carbonate housing that protects the instrument from knocks and drops. Also, it has a 60-hour battery life and has an automatic shut-off function when left inactive for 75 minutes. This receiver includes large, front-facing knobs that allow a quick and fast installation to a round pipe or square tubing. As an additional feature, there is an option of the RD20 wireless remote for an easier job.

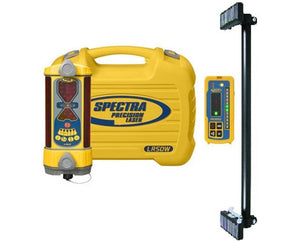

What's In the Box:

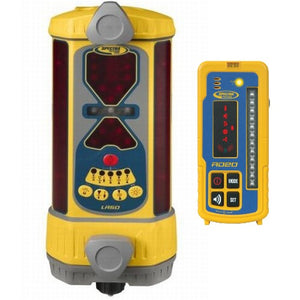

- Spectra LR50 Laser Machine Control Receiver (LR50W-2)
- Rechargeable MiMH Battery Pack (010562-99)
- NiMH Battery Charger 220V AC & Adapter (991604-99)
- Charger Adapter LR30/50/60 (010536-99)

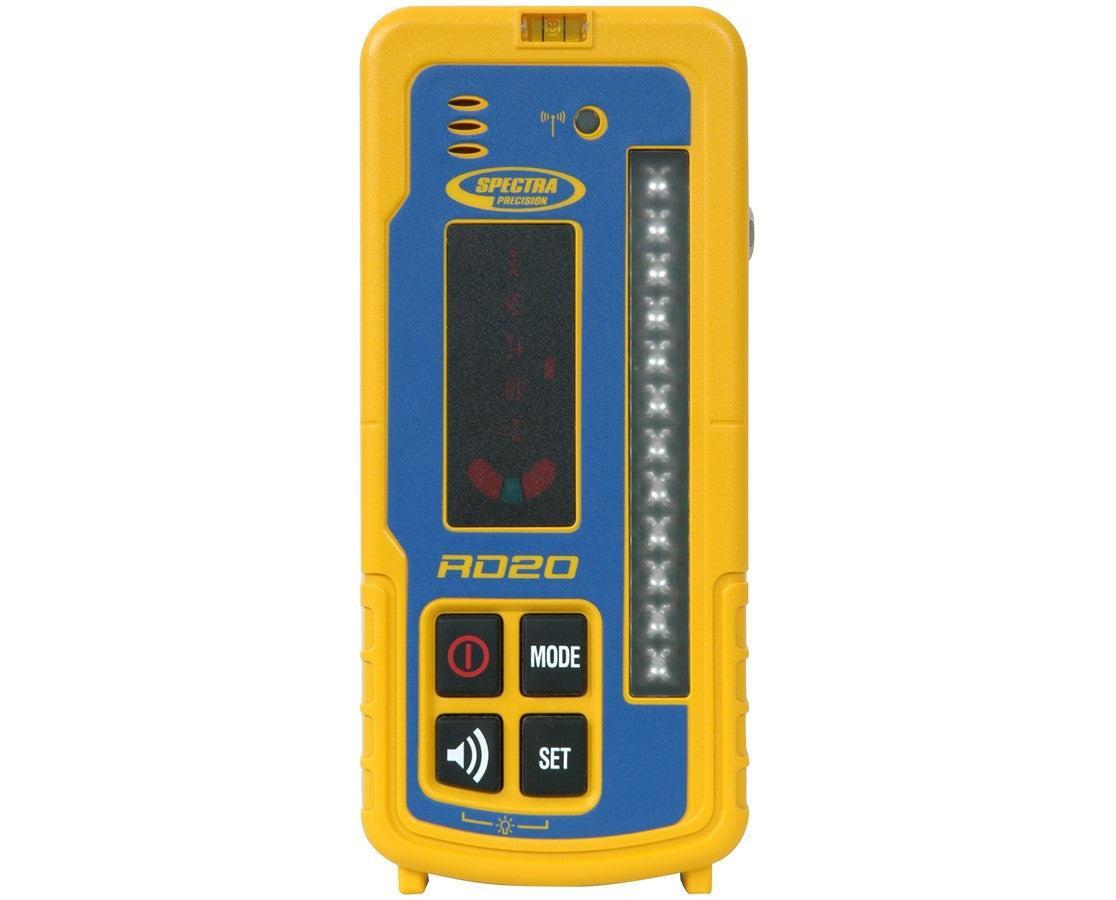

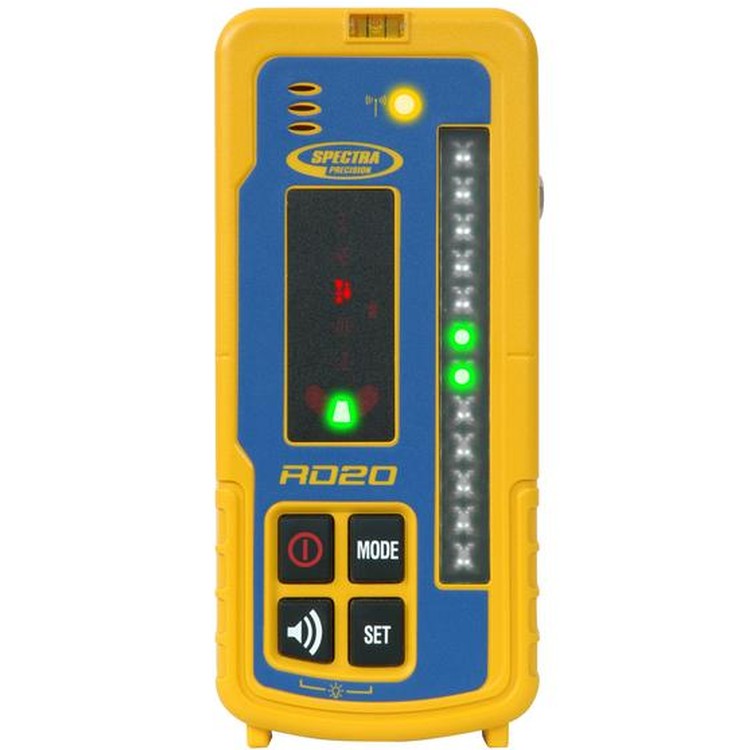

- RD20 Remote (RD20)
- MM-1 Magnetic Mount (MM-1)
- Carrying Case (010536-99)
Features for Spectra Precision LR50-1 LR50 Laser Machine Control Receiver
- Choice of 8 packages
- 3 detection accuracies
- 360-degree reception angle
- Built-in blade tilt and plumb indicator
- 6 display channels in excavating mode
- 6.75” capture height
- Super bright LED indicators
- Touch panel
- Automatic shut-off (after 75 minutes of inactivity)
- Mounting knobs
- Tough aluminum polycarbonate housing

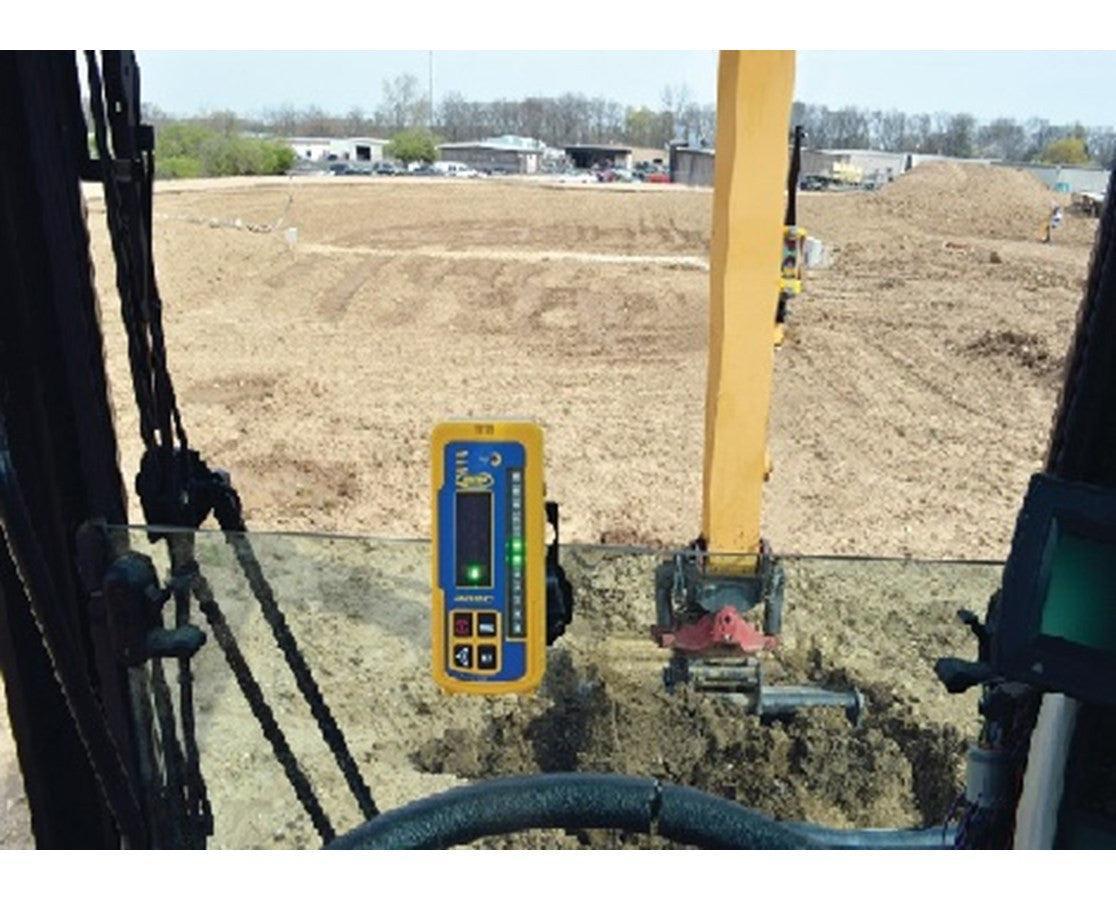

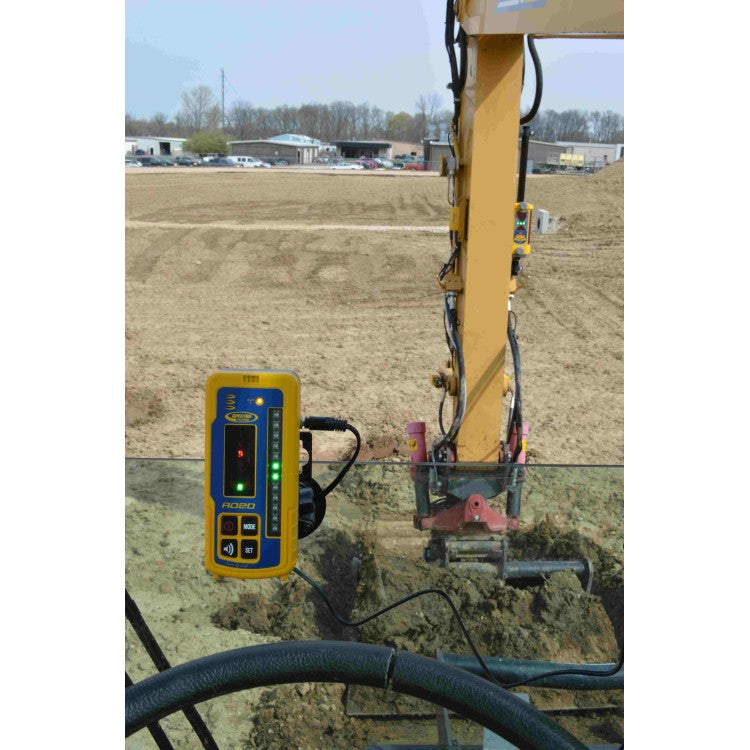

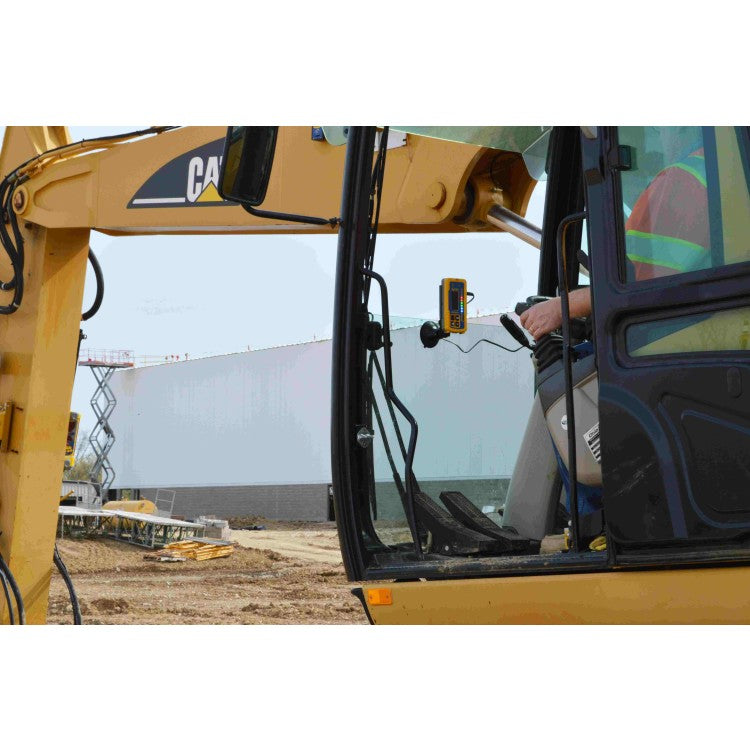

- Optional RD20 wireless remote
- 60 hour battery life
Specifications
Type of Attachment
Magnetic (optional)
Dimensions
13.50" L x 5.58" W x 5.88" H
Weight
5.5 lbs (2.5 kg)
Housing
Aluminum-cast
Warranty
2-year
Accuracy Fine
±5 mm
Accuracy Medium
±10 mm
Accuracy Coarse
±20 mm
Battery Life
Up to 60 hours (alkaline) or 45 hours (NiMH)
Power Source
Alkaline C Cell or Rechargeable NiMH
Charging Time
Up to 3 to 4 hours
Temperature Operating
-4 to 140 °F (-20 to 60 °C)
MPN
LR50W
