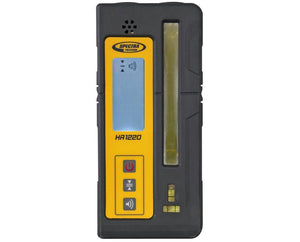

Spectra HR1220 Line Laser Receiver
Spectra HR1220 Line Laser Receiver
    Spectra HR1220 Line Laser Receiver
Spectra HR1220 Line Laser Receiver

About

Product Details

The Spectra Precision® HR1220 Laser Receiver detects both red and green laser beams generated from crossline lasers including the LT52R, LT52G, LT56, and LT58G. The receiver can extend the indoor working range of these crossline lasers as well as increasing versatility by allowing outdoor use.



It's compatible with current Spectra Precision models LT52R, LT52G, LT56, and LT58G. The receiver can extend the indoor working range of these crossline lasers as well as increasing versatility by allowing outdoor use when the beam may not be visible.

Features
  • Green and Red Beam Line Laser Receiver
  • Front and rear LCDs provides easy viewing from either side
  • Illuminated LCDs for readings in low light conditions
  • Two accuracy selections to fit various jobsite requirements
  • Large 80 mm (3 inch) reception height for quick beam acquisition

​

  • Audio volume High, Low or Off for various job-site conditions or individual preference
  • Dual horizontal and vertical level bubbles for accurate horizontal and vertical readings
  • Work indoors and outdoors increases laser versatility
  • Built-In magnets on top of receiver for quick attachment to ceiling grids or metal studs
  • Includes rod clamp for attachment to grade rods and staffs
  • Four-stage battery status indicates life of battery remaining to eliminate surprise power issues
  • Automatic shut-off when not in use conserves battery life
  • Marking notches on each side at on-grade for easy transferring of 1 meter (4 foot) marks
  • All around over-molding protects the unit
  • 3-Year Warranty
Specifications
Working Radius (Laser Dependent) 85 m (275 ft.)
Laser Detection Height 127.0 mm (5“)
Elevation Readout Front and rear LCDs
Audio Control Loud / Low / Off
Capture Height 80 mm (3.1 in.)
Accuracy ±1.0 mm (1/16 in.) ±2.0 mm (1/8 in.)
Marking Notches 60 mm (2.36 in.) below top of receiver
Battery Life 40+ hours
Low Battery Indicator Battery symbol on LCD
Power Supply 2 AA alkaline batteries
Operating Temperature –10 °C to 50 °C (–14 °F to 122 °F)
Storage Temperature –20 °C to 70 °C (–4 °F to 158 °F)
Automatic Shut-Off 30 min
Spectra Precision

Spectra HR1220 Line Laser Receiver

$190.00
$190.00
