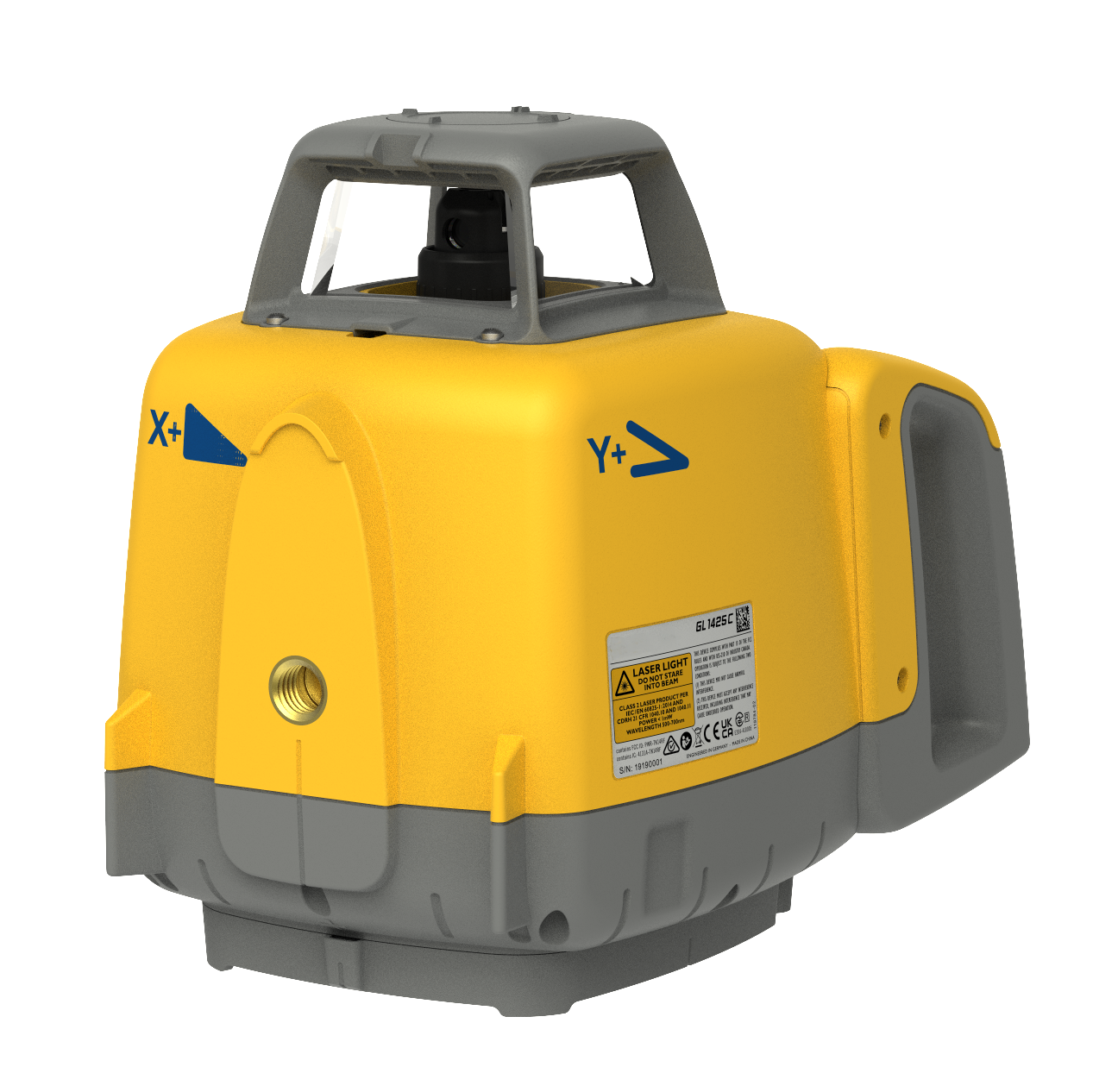

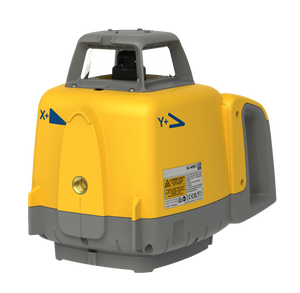

The Spectra GL1425C Dual Grade Laser is a rugged, precise, and accurate self-leveling grade laser designed for leveling, grading, and vertical alignment. Made to boost job site efficiency, the GL1425C can be controlled right from your smartphone via Bluetooth. It also comes with a remote controller. This grade laser can withstand 1-meter drops onto concrete, ensuring years of quality service.



ROBUST BLUETOOTH-ENABLED DUAL-GRADE LASER

	Working Range 2,600 ft.
	Accuracy ±1/16 inch at 100 ft.
	Dual Slope Range ±15%
	Rotation Selection 300, 600, or 900 RPM
	Weather Protection IP66 waterproof and dustproof





WIRELESS CONTROL FOR UNINTERRUPTED WORKFLOW

Stay on top of your work wherever you are on the construction site with wireless control.

Control with your smart device via Bluetooth

• Eliminates the cost of the remote control
• Benefit from the large and familiar graphic interface of your phone or tablet for a much easier laser operation
• Free Android and iOS app: Spectra Laser Control app

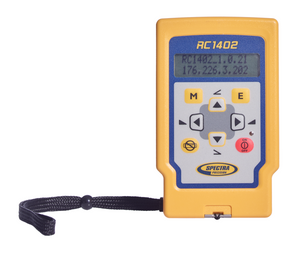

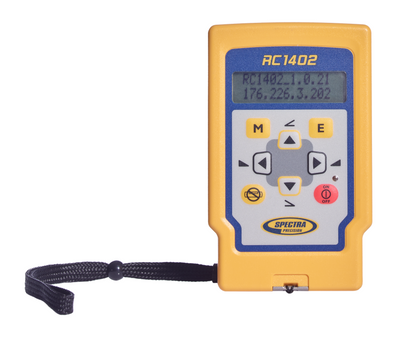

Control with the RC1402 remote controller

• Working range of up to 330 feet
• Backlit LDC screen
• 130-hour battery life
• IP66 rating for water and dust protection
• Included in the package



HOW THE GL1425C ENSURES ACCURACY

The GL1425C has advanced features that not only ensure consistent accuracy but also fast-track setups and measurement times.

• Height of Instrument or Shock Alert - Stops the laser from rotating when the laser moves or falls over to prevent erroneous readings.
• Automatic Grade Matching - Matches the rise or fall of the ground between two unknown elevations and shows the value on the laser display, remote control, or app. This eliminates the need for complex, error-prone calculations.
• PlaneLok - Stops the beam from drifting due to vibrations, changing temperature, and other factors to reduce measurement errors.



DO MORE WITH SPECTRA LASER RECEIVERS

The GL1425C Dual Grade Laser includes the HL760 Laser Receiver, a robust receiver for basic and advanced applications. It can also be paired with the CR700 Receiver (sold separately) for machine-guided applications.



HL760 Laser Receiver

• Robust receiver for basic and advanced leveling and aligning applications
• Digital readout of elevation saves significant time by removing the need to be on-grade before measuring
• IP67 dust proof, waterproof, and weatherproof
• Battery life: 60+ hours



CR700 Laser Receiver

• Machine-mounted receiver for small grading and excavating machines

• Extremely bright LED lights

• Includes a magnetic mount and grade rod clamp

• IP67 dust proof, waterproof, and weatherproof

• Battery life: 60+ hours



WHERE TO USE THE GL1425C DUAL GRADE LASER

• Flat work applications such as building pads, forms, and footers
• Single-grade applications including trenching, sewer lines, and driveways
• Dual-grade applications including drainage, sports fields, parking lots, and runways
• Vertical alignment applications such as anchor bolt and form alignment





Spectra GL1425C Dual Grade Laser delivers precision with a 5-Year No-Cost Warranty and shock-proof design surviving 3-foot concrete drops. Features include Radio Remote control for long-range operation, automatic Grade Match between elevation points, and Dual Axis PlaneLok for fixed beam positioning, ensuring consistent accuracy in demanding construction environments.
