About

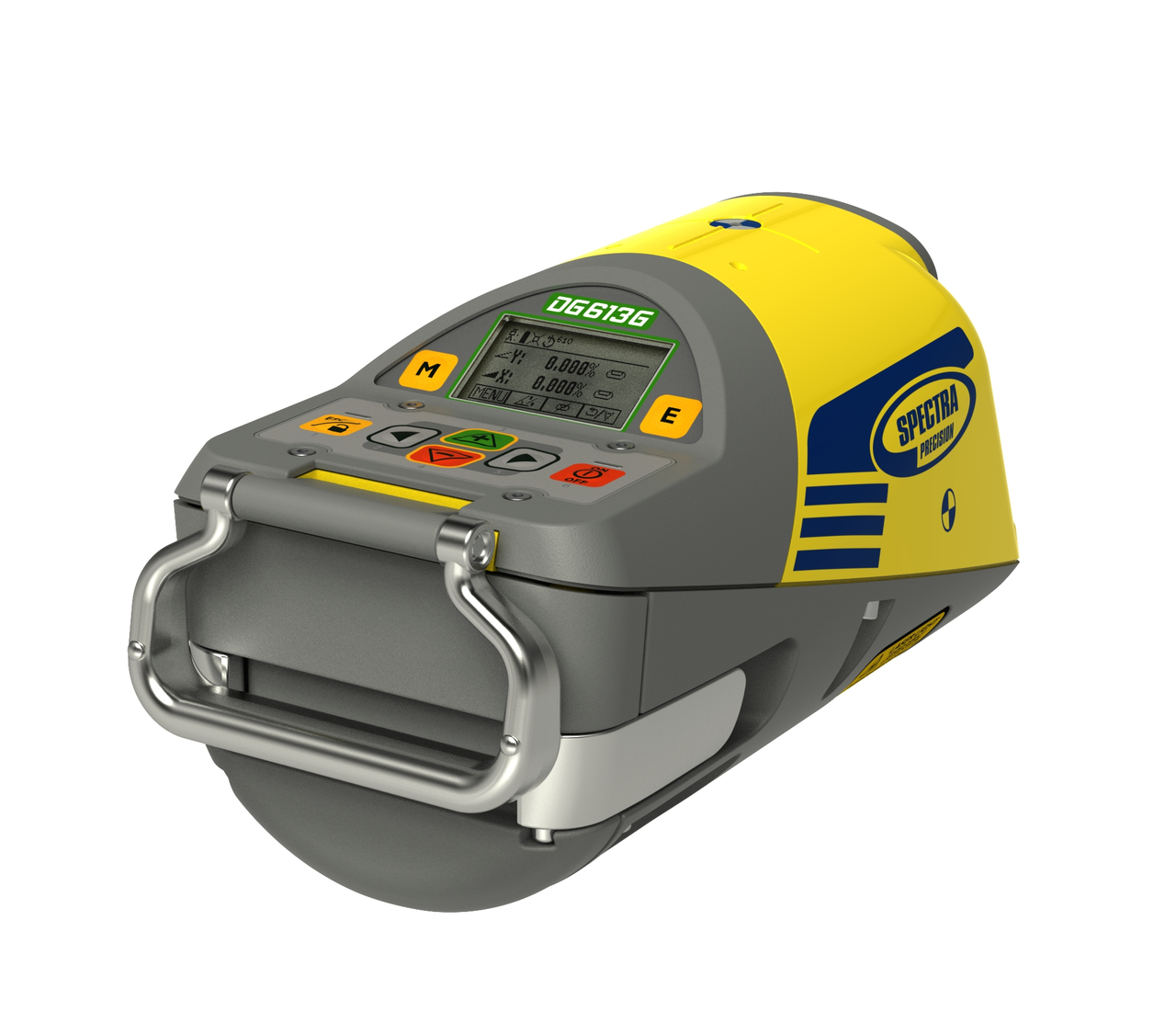

The Spectra DG613G Pipe Laser features an ultra-bright green beam for enhanced visibility and productivity. It self-levels within a -12% to 40% grade range and operates up to 500 feet with ±1/16 inch accuracy at 100 feet. Compact and lightweight, it offers easy setup, cross-axis compensation, and works with the RC803 remote for extended control. Built to withstand dust and water (IP68 rating), it includes helpful functions like Line Scan and Line Alert to simplify alignment tasks, making it ideal for precise groundwork and pipe installation.
Features & Benefits
- Grade range -12% to +40%
- Ultra-fast beam movement
- Operating range up to 150 m (500 ft) with radio / IR remote control
- Large intuitive graphical display on the laser and remote control
- IP68 protection (dust and waterproof)
- Flexible power options (NiMH / Alkaline)
- Advanced functions squeezing working time: Line Set/Check (first day setup), Line
- Scan (second day setup) and Line Alert
- Automatic functions for beam alignment, beam detection, and grade calculation (DG813 only)
- Compact length allows easy set-up even in tight inverts
- Self-leveling range of -12% to +40% over the entire grade range
- Cross axis compensation provides a quicker more accurate set-up as the laser does not have to be level in the pipe – place it in the pipe, it levels, you work
- Bright visible beam works up to 150 m (500 ft)

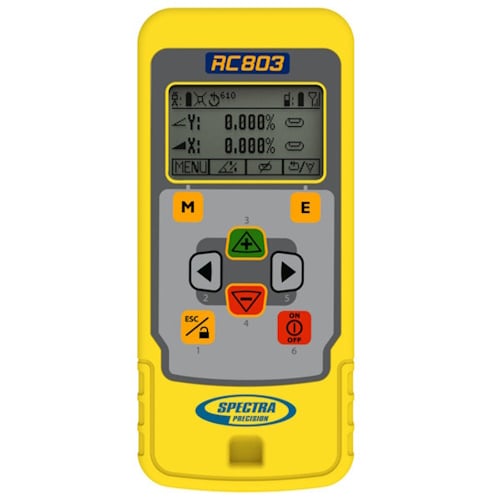

- RC803 remote works via radio 130 m (430 ft) „over-the-top“ or infrared 150 m (500 ft) through the pipe.
 |
Line Alert
This unique feature is ideal for working in high-vibration or wet conditions where the pipe lasers may be disturbed. The beam flashes to notify you that the setup line has been disturbed, eliminating the necessity of rework. Combined with the self-leveling warning, you’ll always complete the DG613(G)/DG813 job correctly, on time and on budget! |
 |
Line Set Check
The Line Set/Check capability of both pipe lasers allows you to raise the beam up to 100% outside of the trench for fast line setup or checking. Raising the laser beam out of the trench to an above-ground stake saves you time—rather than moving the excavator off line during setup of the pipe laser, you can just get on with your job. In addition, the Line Set-Check feature is ideal for rechecking the line for pipe jacking after each push. |
 |
Self-Leveling
The DG813 and DG613(G) feature the largest automatic leveling range in the industry providing quick, easy setups, regardless of grade. Unlike traditional pipe lasers, they eliminate the need for rough leveling and minimize crew training. Simply set up the laser in the pipe, manhole or open cut without the need to swivel or rough level the unit. |
The Spectra DG613G Pipe Laser features an ultra-bright green beam for enhanced visibility and productivity. It self-levels within a -12% to 40% grade range and operates up to 500 feet with ±1/16 inch accuracy at 100 feet. Compact and lightweight, it offers easy setup, cross-axis compensation, and works with the RC803 remote for extended control. Built to withstand dust and water (IP68 rating), it includes helpful functions like Line Scan and Line Alert to simplify alignment tasks, making it ideal for precise groundwork and pipe installation.
Features & Benefits
- Grade range -12% to +40%
- Ultra-fast beam movement
- Operating range up to 150 m (500 ft) with radio / IR remote control
- Large intuitive graphical display on the laser and remote control
- IP68 protection (dust and waterproof)
- Flexible power options (NiMH / Alkaline)
- Advanced functions squeezing working time: Line Set/Check (first day setup), Line
- Scan (second day setup) and Line Alert
- Automatic functions for beam alignment, beam detection, and grade calculation (DG813 only)
- Compact length allows easy set-up even in tight inverts
- Self-leveling range of -12% to +40% over the entire grade range
- Cross axis compensation provides a quicker more accurate set-up as the laser does not have to be level in the pipe – place it in the pipe, it levels, you work
- Bright visible beam works up to 150 m (500 ft)
- RC803 remote works via radio 130 m (430 ft) „over-the-top“ or infrared 150 m (500 ft) through the pipe.
|
Line Alert
This unique feature is ideal for working in high-vibration or wet conditions where the pipe lasers may be disturbed. The beam flashes to notify you that the setup line has been disturbed, eliminating the necessity of rework. Combined with the self-leveling warning, you’ll always complete the DG613(G)/DG813 job correctly, on time and on budget! |
|
Line Set Check
The Line Set/Check capability of both pipe lasers allows you to raise the beam up to 100% outside of the trench for fast line setup or checking. Raising the laser beam out of the trench to an above-ground stake saves you time—rather than moving the excavator off line during setup of the pipe laser, you can just get on with your job. In addition, the Line Set-Check feature is ideal for rechecking the line for pipe jacking after each push. |
|
Self-Leveling
The DG813 and DG613(G) feature the largest automatic leveling range in the industry providing quick, easy setups, regardless of grade. Unlike traditional pipe lasers, they eliminate the need for rough leveling and minimize crew training. Simply set up the laser in the pipe, manhole or open cut without the need to swivel or rough level the unit. |
SKU:SP-DG613G-K

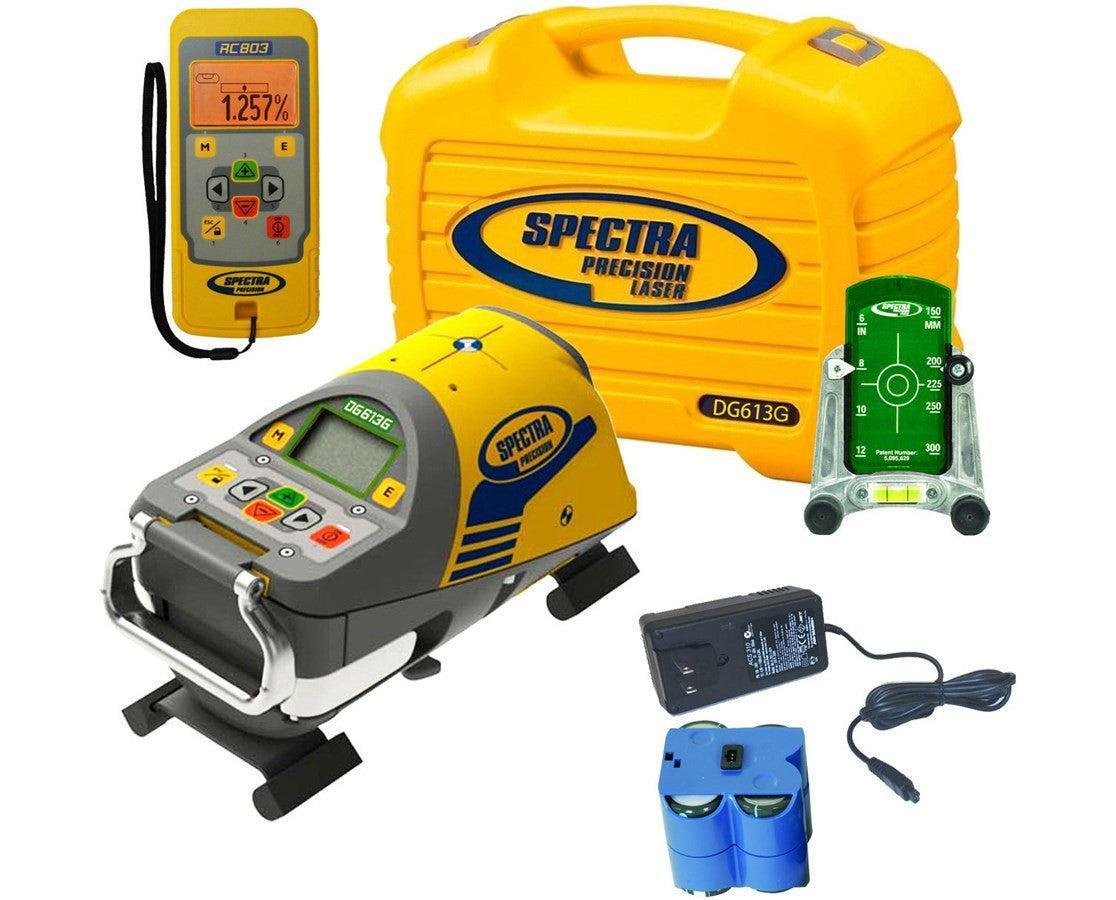

Spectra DG613G Pipe Laser - Green Laser - Kit
- Regular price
- $5,665.00
- Sale price
- $5,665.00
- Regular price
-
This item qualifies for free shipping within the continental U.S.
