Designed to fit around tighter inverts, the Spectra Precision DG613 delivers the most productive pipe laying experience in the market.  They are extremely rugged and thrive in demanding underground conditions.  Benefiting from the latest technology developed by Spectra Precision, the beams move quickly and accurately for alignment and grade.  Spectra's DG613 helps you improve efficiency and provide unprecedented performance and reliability.

The Spectra Precision DG613 Pipe Laser is built for efficiency, accuracy and reliability when laying pipes.  Working in trenches just got easier with the new range of pipe lasers from Spectra Precision.

The length of the DG613 has been reduced to make it easier to set up the lasers into tight inverts in the manhole. The DG613 has a grade range from -12% to +40% and is fully self-leveling over the entire grade range. Even the cross axis is fully compensated providing quick set up and peace of mind that the laser will be level without having to adjust at the bottom of the invert.

The DG613 works over a distance of 500ft providing full operation in a single set-up between manholes. The new RC803 remote control provides full function control and utilizes infrared light in the pipe for up to 500 feet control. For "over-the-top" setups, the remote utilizes radio communications up to a distance of 430 feet.

Flexible power options provide 40 hours operating time with NiMH rechargeable batteries and 50 hours with alkaline batteries. Alkaline batteries can be used directly at the laser without a separate battery pack. An additional car charger is available for work in remote areas.

Large graphical user interface can be seen easily when the laser is in a manhole. All functions are available via graphical menu which makes it simple and easy to use - no secret button pressing and short learning curve means it can be handed to anyone in your crew with little or no training. The same graphical user interface is used at the RC803 remote control.

Features

• New reduced length allows easy set-up even in tight inverts
• Self leveling range of -12% to +40% over the entire grade range
• Cross axis compensation provides a quicker more accurate set-up as the laser does not have to be level in the pipe – place it in the pipe it levels, you work.
• Bright visible beam that works up to 150m (500 feet)
• RC803 remote works via radio 130m (430 feet) or infra-red 150m (500 feet) for both “over-the-top” set-up and in pipe/trench set-up.
• Large, bright, graphical user interface makes the screen easier to see and use when in or out of the pipe. Same graphical user interface can be seen on the remote – what you see on the laser you see on the remote.
• The Spectra Precision DG613 has advanced functions that make setting up and using it easier and more accurate:
• Line-Set/Check – allows the user to align the laser to the manhole quickly and easily to set direction. The beam will go up to 100% allowing easy alignment even in short trenches
• Line Scan – provides a quick alignment to the center of the target for the second day setup
• Line Alert- notifies the user if the set-up is disturbed eliminating costly re-work from errors

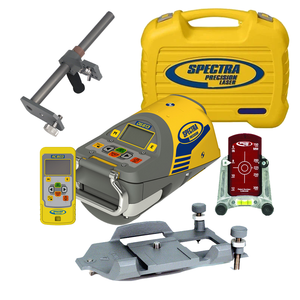

Kit Options
