Product Details
Includes
- Theodolite
- NiMh Rechargeable Battery Pack/Charger
- Alkaline Batterie Pack
- Tool Kit
- Rain Hood
- Plumb Bob and Carrying Case
- Manual
| TECHNICAL DATA | DT8-05P | DT8-05LP | DT8-05LS |
| Telescope – Objective aperture | 1.77 in (45 mm) | 1.77 in (45 mm) | 1.77 in (45 mm) |
| Magnification | 30X | 30X | 30X |
| Image | Erect | Erect | Erect |
| Field of view | 1° 30' | 1° 30' | 1° 30' |
| Resolution | 3” | 3” | 3” |
| Minimum focus | 53 in (1.3 m) | 53 in (1.3 m) | 53 in (1.3 m) |
| Stadia constant | 100 | 100 | 100 |
| Angle measurement | Absolute Encoding | Absolute Encoding | Absolute Encoding |
| Minimum reading | 1” / 5” | 1” / 5” | 1” / 5” |
| Direction method | H: Both sides V: Single side |
H: Both sides V: Single side |
H: Both sides V: Single side |
| Accuracy | 5” | 5” | 5” |
| Unit of angle | Deg / mil / gon / V% | Deg / mil / gon / V% | Deg / mil / gon / V% |

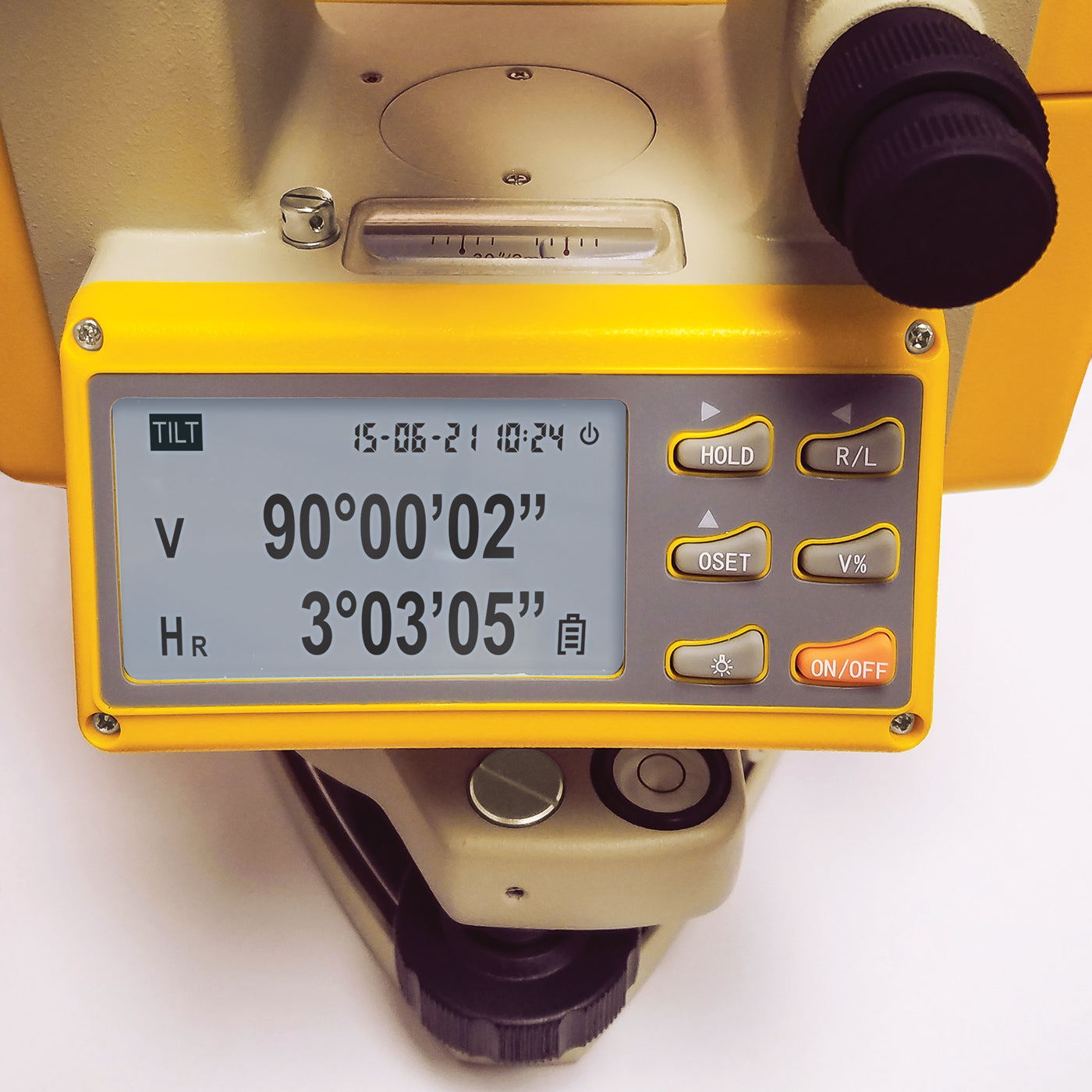

| Display | LCD both sides | LCD both sides | LCD both sides |
| Automatic compensation | Yes | Yes | Yes |
| Range of compensation | ±3’ | ±3’ | ±3’ |
| Plummet type | Optical | Laser | Optical |
| Plummet magnification | 3X | – | 3X |
| Plummet field of view | 5° | – | 5° |
| Focusing range | 20 in to ∞ (0.5 m to ∞) | – | 20 in to ∞ (0.5 m to ∞) |
| Reticle type | Crosshair | – | Crosshair |
| Laser power | – | ≤ 1 mW | – |
| Facular diameter | – | ≤ 2 mm | – |
| Centering precision | 1.5 mm (instrument height 1.5 m) | ||
| Plate vial sensitivity | 30” per 2 mm | 30” per 2 mm | 30” per 2 mm |
| Circular vial sensitivity | 8’ per 2 mm | 8’ per 2 mm | 8’ per 2 mm |
| Operating voltage (typical) | 4.8 VDC | 4.8 VDC | 4.8 VDC |
| Batteries | 4 × AA / Rechargeable Ni-MH | 4 × AA / Rechargeable Ni-MH | 4 × AA / Rechargeable Ni-MH |
| Operating temperature | -4 °F to +122 °F (-20 °C to +50 °C) |
-4 °F to +122 °F (-20 °C to +50 °C) |
-4 °F to +122 °F (-20 °C to +50 °C) |
| Waterproof class | IP54 | IP54 | IP54 |
| Weight | 10.2 lb (4.6 kg) | 10.2 lb (4.6 kg) | 10.2 lb (4.6 kg) |
| Dimensions | 6.5 × 6.1 × 13.4 in (164 × 154 × 340 mm) |
6.5 × 6.1 × 13.4 in (164 × 154 × 340 mm) |
6.5 × 6.1 × 13.4 in (164 × 154 × 340 mm) |
Features

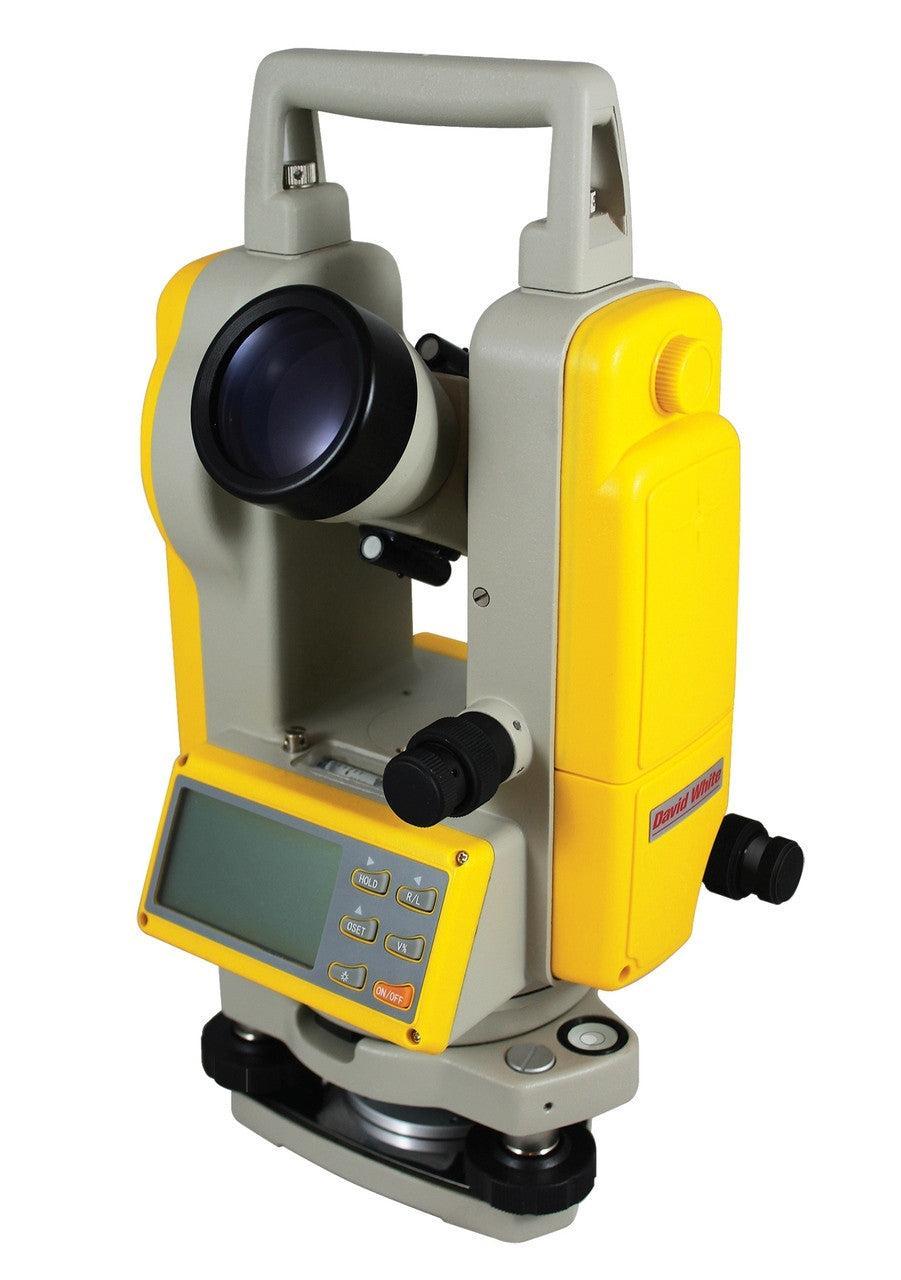

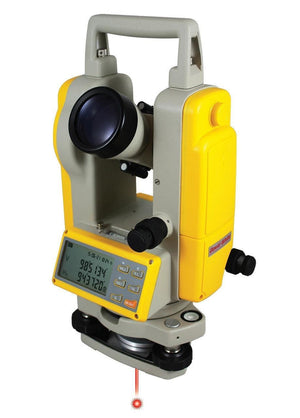

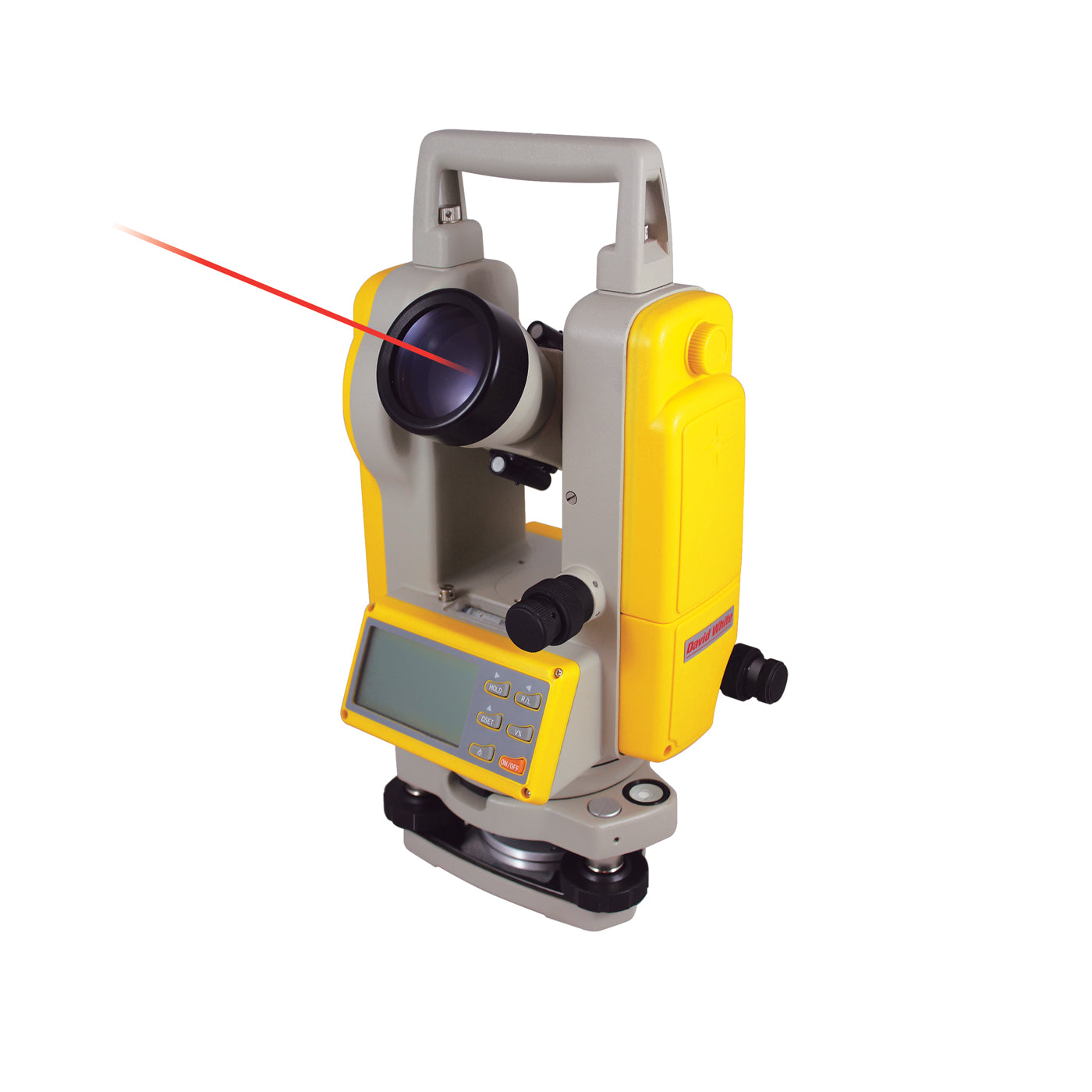

SitePro David White DT8-05 Series Digital Theodolite
