- The prism assembly on this prism kit slides on 9-mm-diameter solid steel pin poles, graduated in cm
- The four solid yellow pole sections have cm grooves that the ball-detent in the prism assembly will automatically center on
- Replaceable stainless steel point
- The assembly is composed of seven 12.7-mm diameter silver-coated mini-prisms in a 360° configuration
- Prism offset is +2mm
- Adjustable circular vial is 40-minute
- Clamp screw locks the prism assembly anywhere on the pole
- Data collector adapter and carrying case are included
- Weighs 1.70 lbs (0.77 kg)
Specifications
Weight
1.70 lbs (0.77 kg)
MPN
5910-24
Product Details
- The prism assembly on this prism kit slides on 9-mm-diameter solid steel pin poles, graduated in cm
- The four solid yellow pole sections have cm grooves that the ball-detent in the prism assembly will automatically center on
- Replaceable stainless steel point
- The assembly is composed of seven 12.7-mm diameter silver-coated mini-prisms in a 360° configuration
- Prism offset is +2mm
- Adjustable circular vial is 40-minute
- Clamp screw locks the prism assembly anywhere on the pole
- Data collector adapter and carrying case are included
- Weighs 1.70 lbs (0.77 kg)
Specifications
Weight
1.70 lbs (0.77 kg)
MPN
5910-24
SECO
SECO
SKU:SE-5910-24

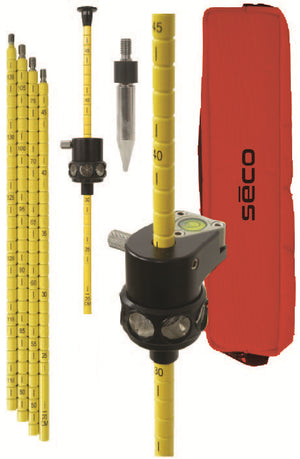

Seco Sliding 360° Prism Kit
- Regular price
- $835.66
- Sale price
- $835.66
- Regular price
-
Shipping calculated at checkout.
The Sliding 360° Prism Kit features a prism assembly that slides smoothly on 9-mm steel pins with centimeter markings for precis...
Read more
The Sliding 360° Prism Kit features a prism assembly that slides smoothly on 9-mm steel pins with centimeter markings for precise positioning. It includes seven 12.7-mm silver-coated mini-prisms arranged in a full circle. The kit has an adjustable 40-minute circular vial and a clamp screw to lock the prism in place. A replaceable stainless steel point, data collector adapter, and carrying case are included.
