About
Product Details
Schonstedt’s underground magnetic locators have been setting the standards for reliability and dependability for over 50 years. They are designed to withstand the rigors of daily on-site usage and a wide range of environmental conditions.
The Schonstedt level of sensitivity allows you to find what you’re looking for quickly, without the risk of passing over your target.
Easy-To-Use

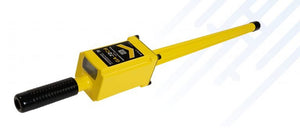

The GA-72Cd Locator detects the magnetic field of iron and steel objects. It provides audio detection signals that peak in frequency when the locator’s tip is held directly over the target. The GA-72Cd has the option of nulling or peaking.
Features
Specifications
Audio Output
Switch at “A” Signal increases or decreases in volume with gradient-field intensity Switch at “B” Signal increases or decreases in frequency with gradient-field intensity.
Video Output
Digital readout and expanding bar graphs indicate polarity (+ or-) and relative strength of the magnetic field.
Input Power
Supplied by two 9V batteries
Battery Life
40 Hours (intermittent usage)
Battery Check
4-segment LCD BATT indicator
Output
Approximately 40 Hz audio tone on speaker. Tone frequency increases or decreases with gradient-field intensity.
Weight
Approximately 2.5 lb (1.14 kg)
Operating Temp
-13° to 140°F (-25° to 60°C)
Overall Length
34.5" (87.6 cm)
Waterproof Length
21" (53.3 cm)
Nominal Sensor Spacing
14" (35.6 cm)
Construction
Rugged, all solid state, polycarbonate & ABS casing

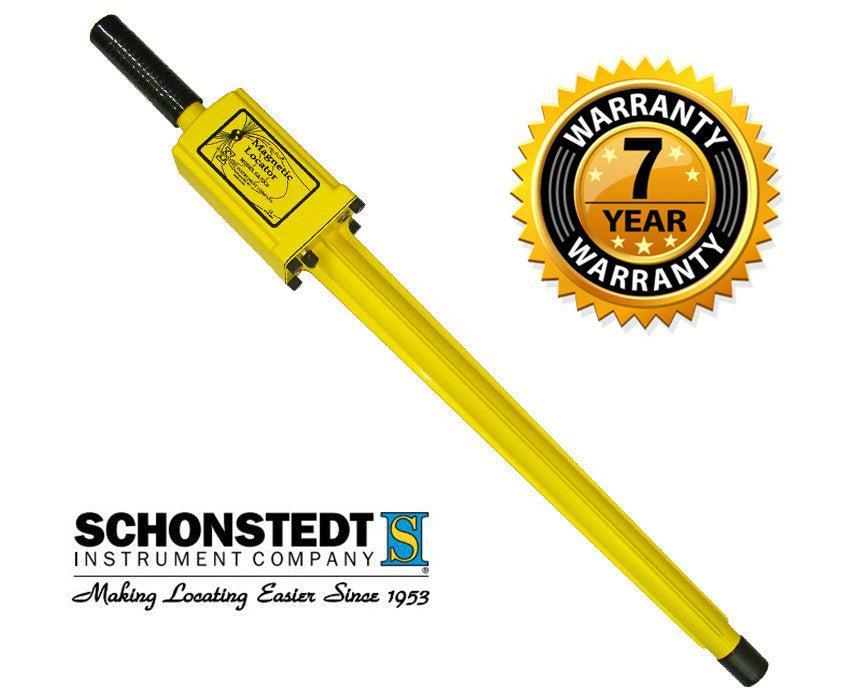

Schonstedt GA-72CD Magnetic Locator
udio Output & Visual Display, Rugged Design, Schonstedt's Most Popular Locator for UXO and Demining Applications. Includes M...
Read more

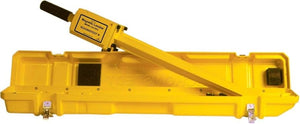

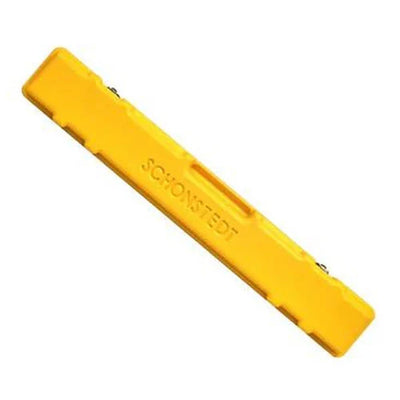

udio Output & Visual Display, Rugged Design, Schonstedt's Most Popular Locator for UXO and Demining Applications. Includes Magnetic Locator and Hard Carrying Case
- Regular price
- $1,419.00
- Sale price
- $1,419.00
- Regular price
-
Shipping calculated at checkout.
Free Shipping
Download Product Spec Sheet
Free Shipping!
This item qualifies for free shipping within the continental U.S.
