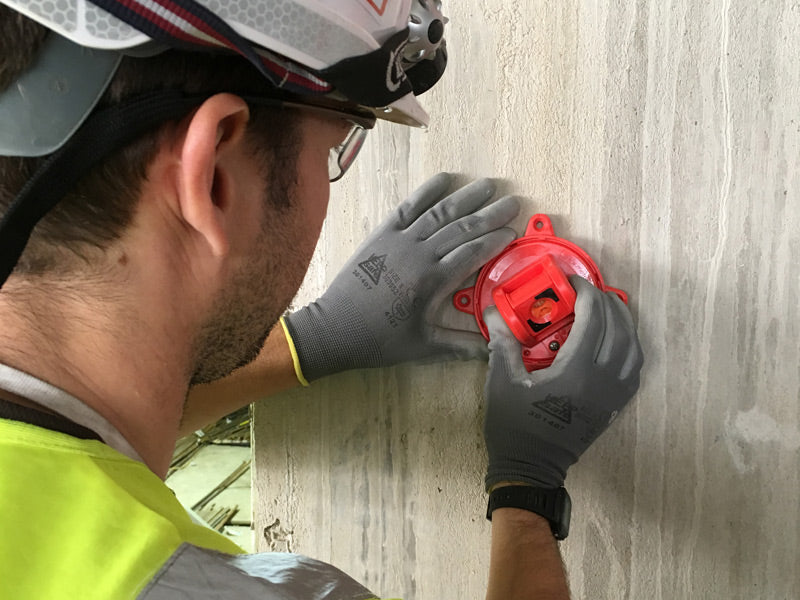

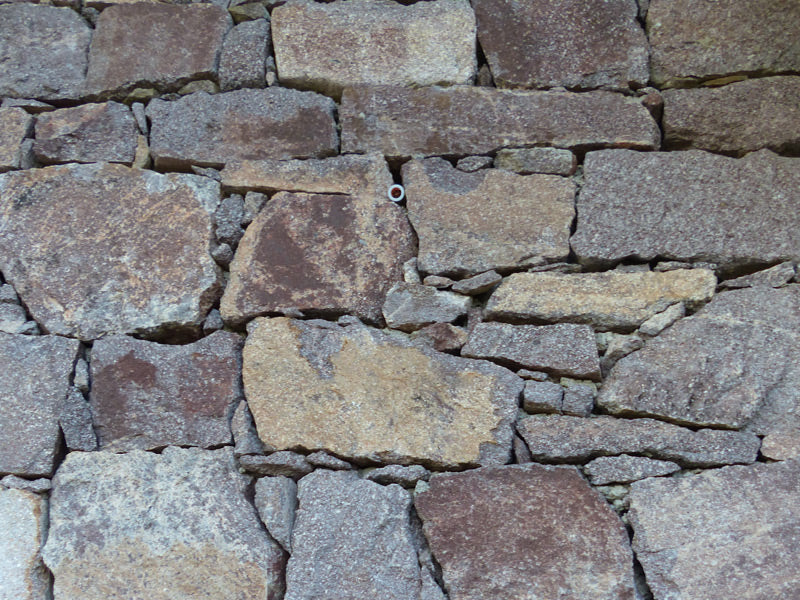

Rothbucher's RSMP380 tilting mini prism can be simply glued or fixed with dowels and screws, even on difficult bases, such as glass and marble facades, historic buildings, steel beams, rails, gas and oil pipelines, etc.
When using tachometers and robotic total stations
- the prism can always be aligned accurately with the measuring instrument
- the prism can be tilted in a radius of 180°, making it possible to use the same survey point from different directions
- bridges, facades, and many other structures can be monitored even more quickly and precisely
- several prisms can be combined with one another due to the integrated connector system, making it possible to survey from different directions without having to turn the prism
When using robotic total stations
- permanent setting measurements can be carried out during the building work
- settling measurements are possible on railway tracks while under the load of rail traffic
- ATR mode ranges of 500 m to 700 m can be achieved*
Features
Specifications
Diameter
17.5 mm with a tolerance of +/- 0.2 mm
Height of the 17.5 mm prism
13.125 mm with a tolerance of +/- 0.2 mm
Accuracy
5 arc sec with a tolerance of +/-2 arc
RSMP380 with 25.4 mm mini prism

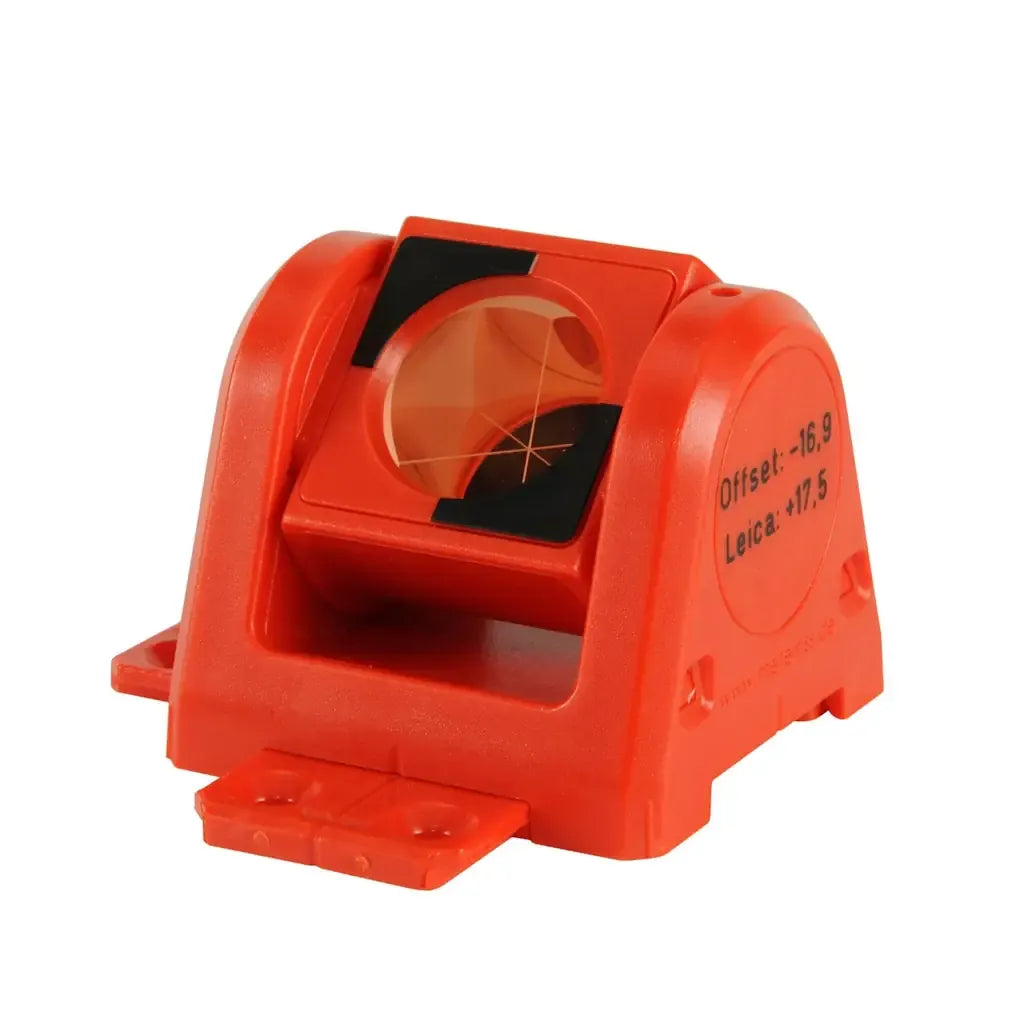

offset: -16.9 (minus 16.9) [Leica + 17.5], tilting axis height: 30 mm
Rothbucher Systems Mini Prisms with tilt function RSMP380C/S

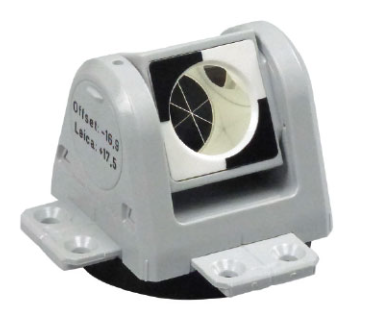

Mini prism RSMP380 with with silver or copper coated Ø 25.4 mm prism, tilting and combinable
Mini prism RSMP380 with with silver or copper coated Ø 25.4 mm prism, tilting and combinable
- Regular price
- $113.85
- Sale price
- $113.85
- Regular price
-
Shipping calculated at checkout.
Download Product Spec Sheet
