A prism that sets standards
Based on experience, aiming the prisms in ATR mode delivers the best measurement results. Accuracy levels of approximately ±1 mm are often achieved.
The combination of easy mounting on almost all surfaces with our accessories and the possibility of being able to use the measuring point from all sides makes these prisms something special.
A unique feature in surveying is the ability to rotate the 220 degree prisms along their axis. This allows the reference point to be used horizontally, vertically, and even at an incline, which is e.g. helpful in ramp construction.
When using mini prism RSMP480 and RSMP490M in the ATR mode ranges of up to 300 meters are obtained. The ranges depend on the survey instrument and are influenced by weather and ambient conditions.
A smart and cost-effective alternative for a 360 Degree Prism:220 Degree Mini Prism RSMP480 with a 5/8" adapter on a prism pole Offset: 0 (Leica +34.4), tilting axis height: 50 mm
|
Part of OPFA systemIn combination with a fixed point from the RSFP-X90 to RSFP-X99 system, the RSMP490M* target can be removed and later reinstalled on the exact same survey point.
|
SKU:RO-RSMP480-C

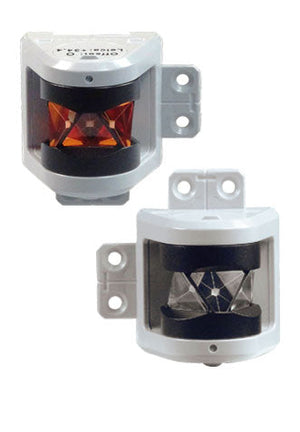

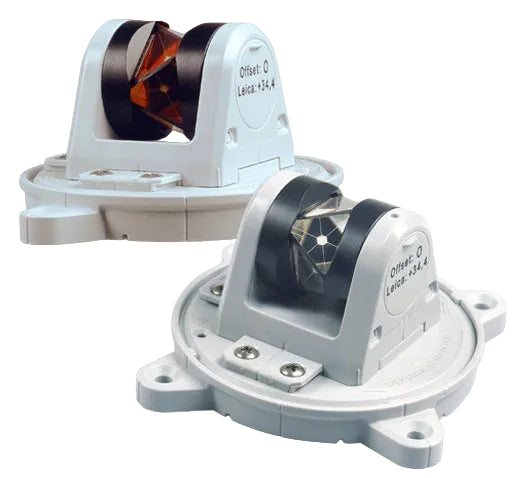

Rothbucher Systems RSMP480/ RSMP490M 220 degree Mini Prisms
