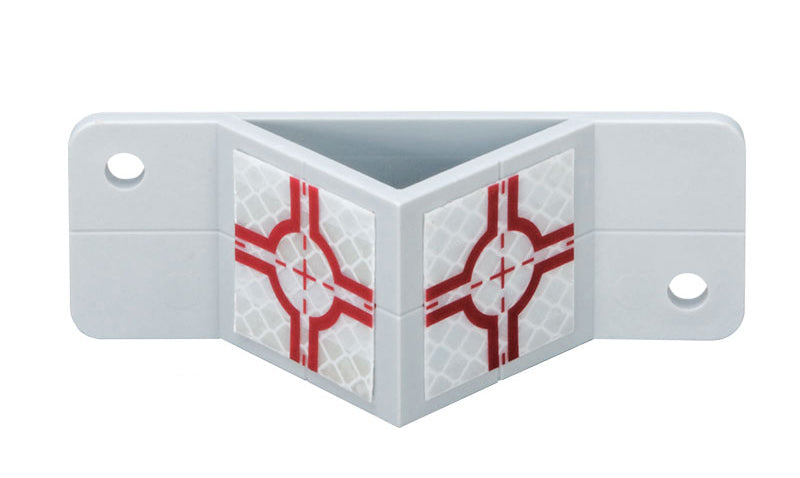

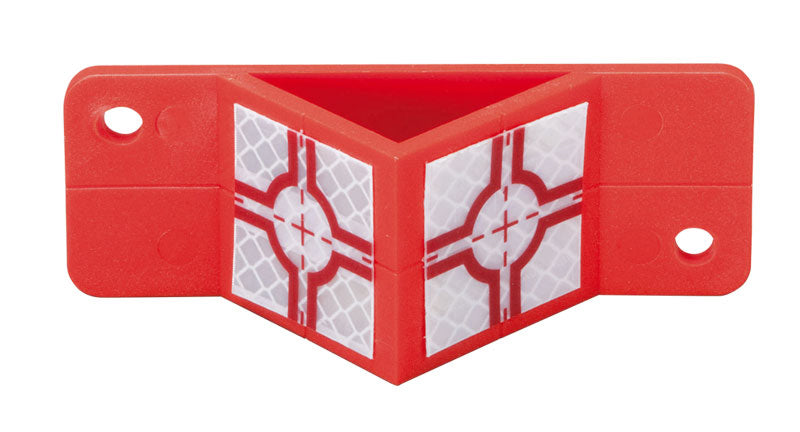

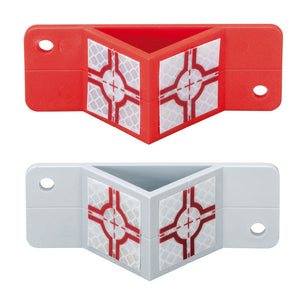

The RSAK130 Smart Angle Adapter from Rothbucher Systems delivers high-visibility, 3D survey reference points in locations where traditional prism setups are not feasible. Equipped with an integrated retro reflective target and designed for multi-angle monitoring, the RSAK130 excels in rail, bridge, tunnel, and industrial applications—especially where space is tight or visibility is limited.

Key Features:

• Integrated Smart Angle Reflective Target – For unmistakable, high-contrast measurement points

• Wide-Angle Measurement Capability – Enables readings from almost any direction

• Ideal for Remote Monitoring – Measure from up to 200 meters away without needing access to the point

• No Road Closures Required – Perfect for active railways, steep terrain, or behind obstacles

• Built for Challenging Environments:

  • Railway monitoring during construction or pressure grouting

  • Bridge and tunnel surveys

  • 3D monitoring of facades, pillars, dams, and structural elements

  • Alignment of machinery and formwork in concrete construction

  • Rock and earth movement monitoring along cliffs or steep slopes

• Durable and Weather-Resistant – Withstands temperatures from -112°F to +212°F

• Compatible with All Major Total Stations and Tachymeters

Range (Average Performance):

• 30 x 30 mm Reflector: ~80 m (262 ft)

• 40 x 40 mm Reflector: ~100 m (328 ft)

• 60 x 60 mm Reflector: ~120 m (393 ft)

Actual ranges vary depending on total station model. Some units require a minimum of 10 meters.

Important Note:
Use only reflective targets for distance measurements with total stations or tachymeters.
Non-reflective, crosshair targets are intended for auto levels, theodolites, and construction lasers.
