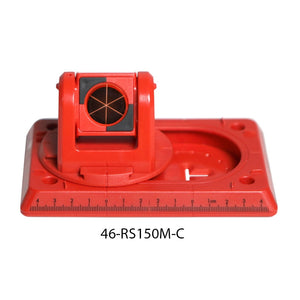

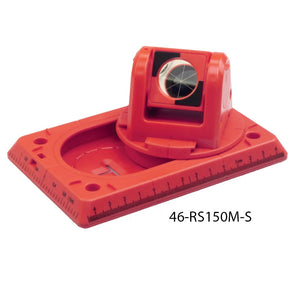

An innovative new solution for staking out measuring points quickly and accurately on horizontal or vertical surfaces using robotic total stations.

After reaching the point to be measured, the particular measuring point is revealed directly below the prism by simply sliding the prism from position A to position B and vice versa, and can be marked directly via a cavity in the base plate.

Advantages

• Precise and fast setting out

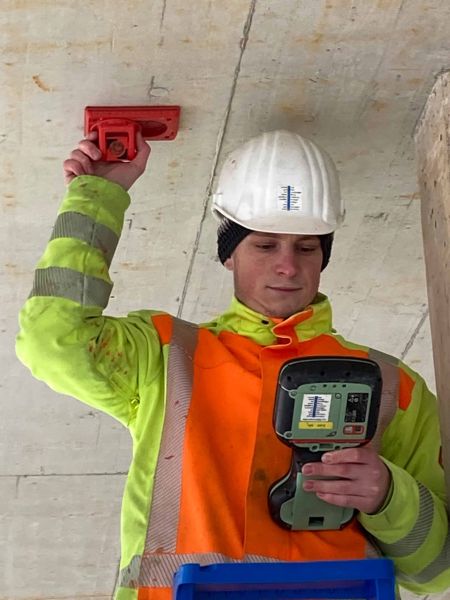

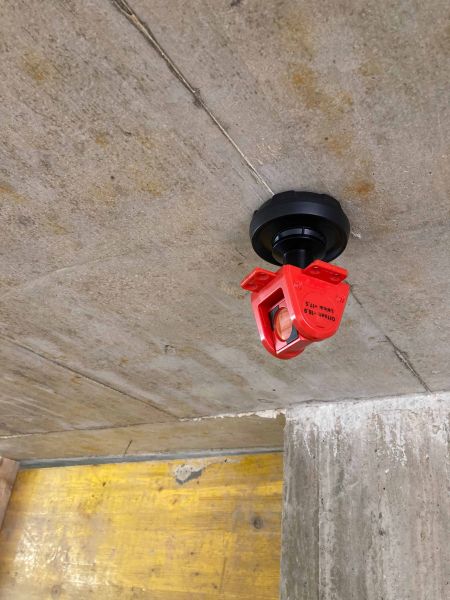

• Facilitates direct marking on the ceiling using the stake out aid upside-down
• Direct marking of the point to be measured on horizontal and vertical surfaces

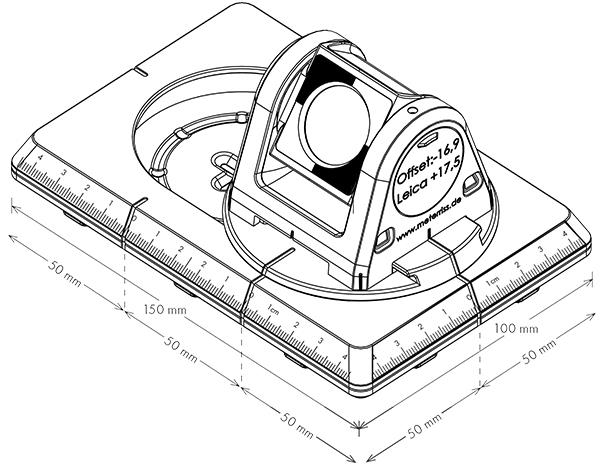

• With a 50 mm height offset set in the total station, heights can be marked directly at the top and bottom edge without moving the prism.
• Prism always remains aligned to the instrument
• Paying attention to a horizontal position by means of a spirit level is not necessary, as the tilting axis height is only 50 mm.
• The RS150WB bubble level is included for straight markings on walls.
• Fast transfer of heights with set height offset of 50 mm in the total station.

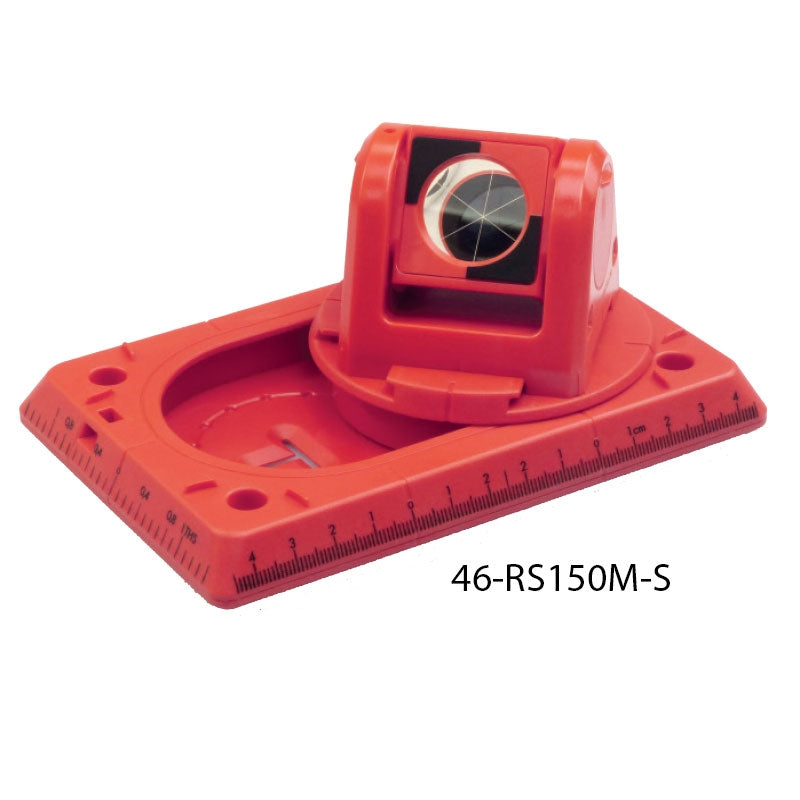

Measuring scale on the side walls in mm or THS
