Product Details
First-class workmanship, a high level of precision and a special magnetic base make these targets something special:
- Ball bearing joints allow the laser scanner target to be aligned smoothly in any direction while always remaining precisely on axis and in position.
- The target can be used as a scanner or drone target.
- Available in two versions:
A) Article RSL420M* – printed on one side with offset 0 and
B) Article RSL422M* – printed on both sides with offset +1.5 mm - Fixed points for linking several viewpoints
- Assignment of spatial reference information to a geodata set
- Suitable for inside and outside use
|

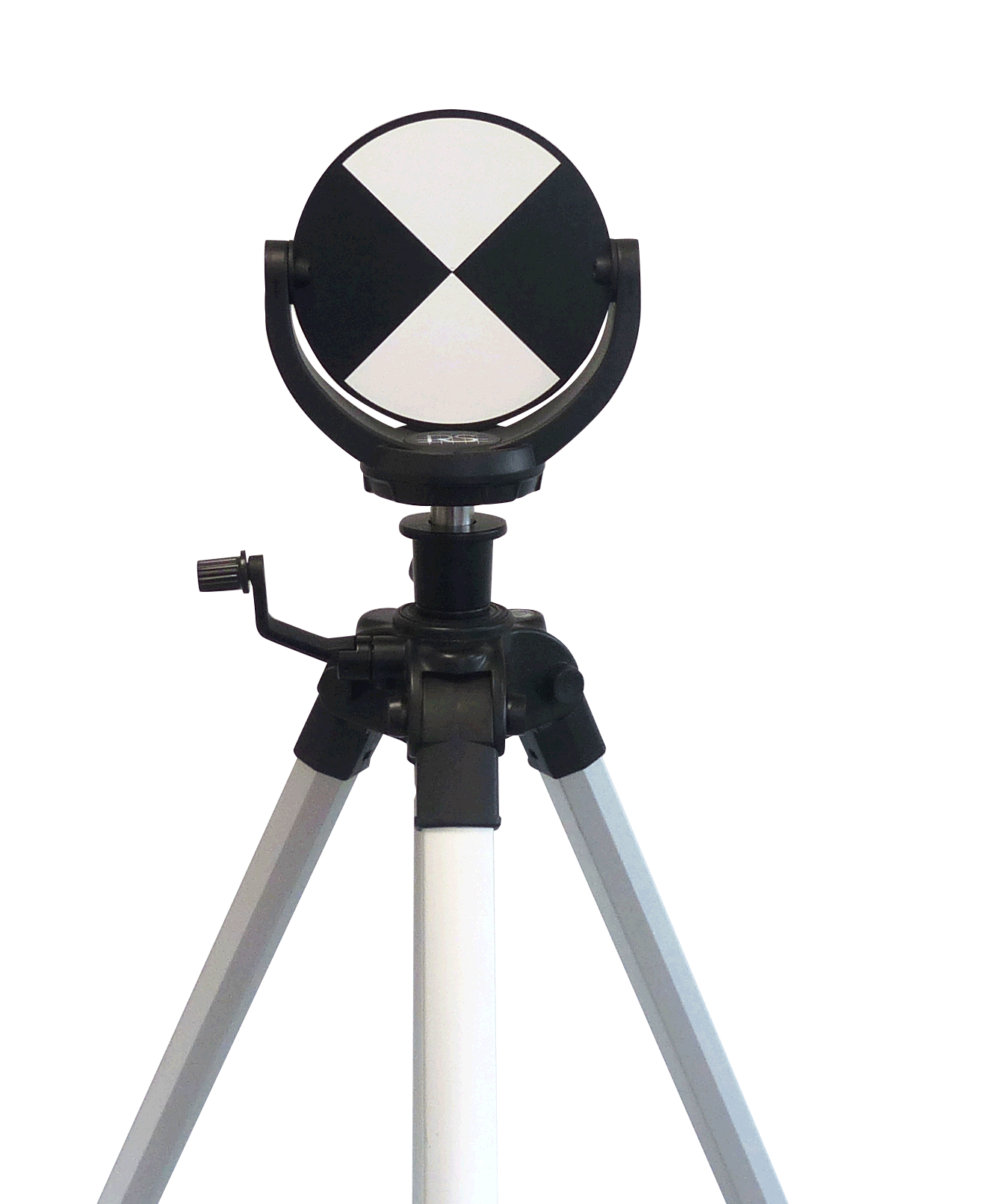

RSL422M on tribrach In conjunction with RSFP-X90-1, RSFP-X902 and RSFP-X90-3 adapters allows the laser scanner target to be placed on any standard tripod or tribrach. |
RSL422M over RSMP380 In conjunction with RSFP-X90-1, RSFP-X902 and RSFP-X90-3 adapters allows the laser scanner target to be placed exactly over an RS Mini Prism. |

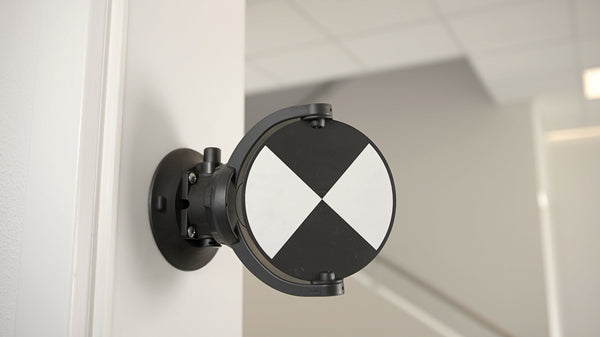

RSL422M on suction cup RSSV-X90 Enables the use of the laser scanner target on any smooth surface such as glass or smooth furniture fronts without drilling or gluing! |
Specifications
Diameter
145mm
Tilting axis height
100mm
Weight
500g
Rothbucher
RSL-420M
Rothbucher Laser Scanner Targets with Swivel and Tilt Function RSL420M and RSL422M
