About

Product Details

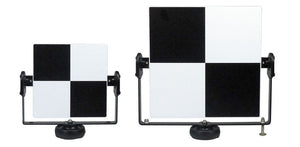

Thanks to ball-bearing joints, the targets can be effortlessly aligned in any direction while
remaining precisely on-axis and in position. The targets are suitable for use with scanner, Lidar and drones and are available in different versions:

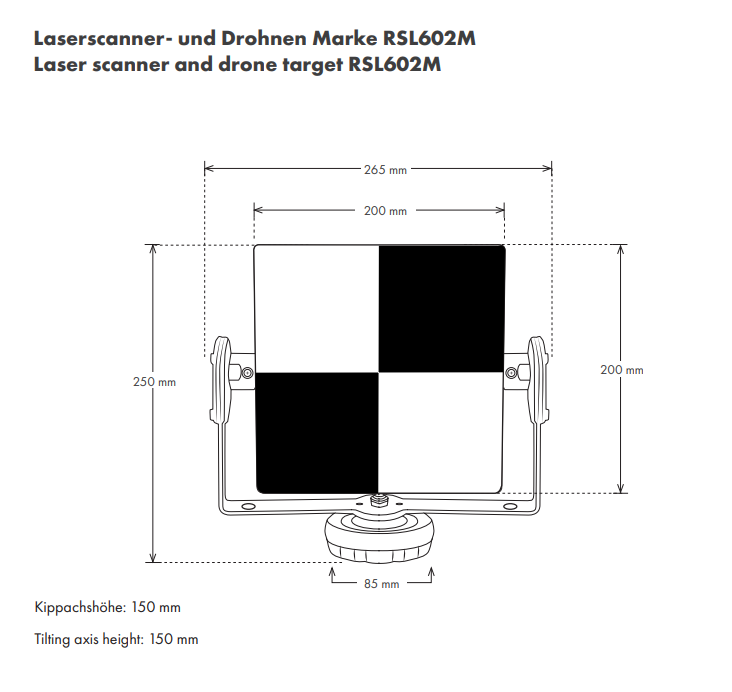

  • RSL602M – with 200 x 200 mm target, tilting axis height 150 mm

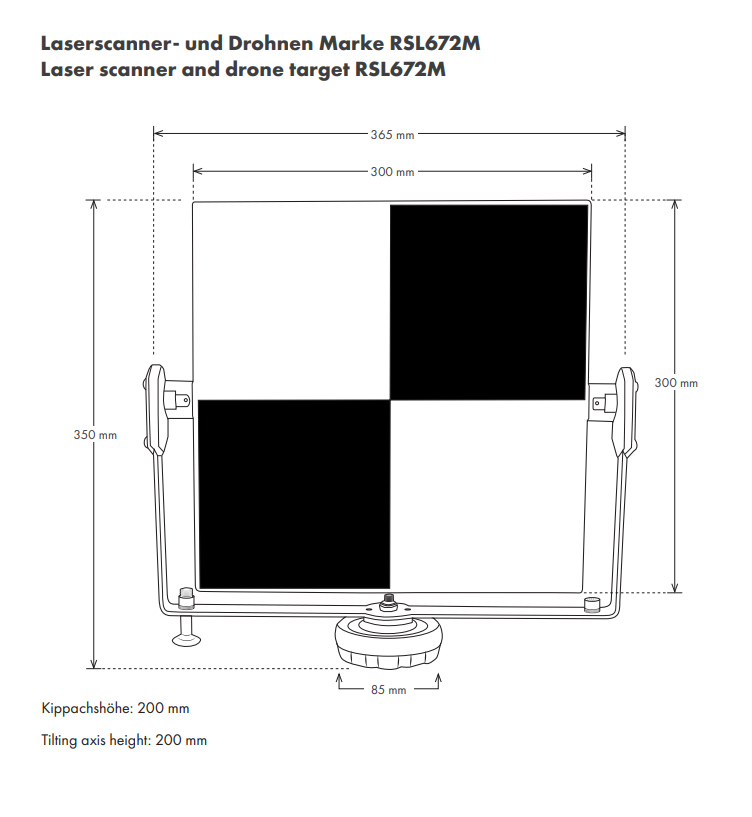

  • RSL672M – with 300 x 300 mm target, tilting axis height 200 mm
  • RSL682M – with 400 x 400 mm target, tilting axis height 250 mm


For mounting on tripods or tribrachs we offer the adapters RSFP-X90-1 and RSFP-X99-1.

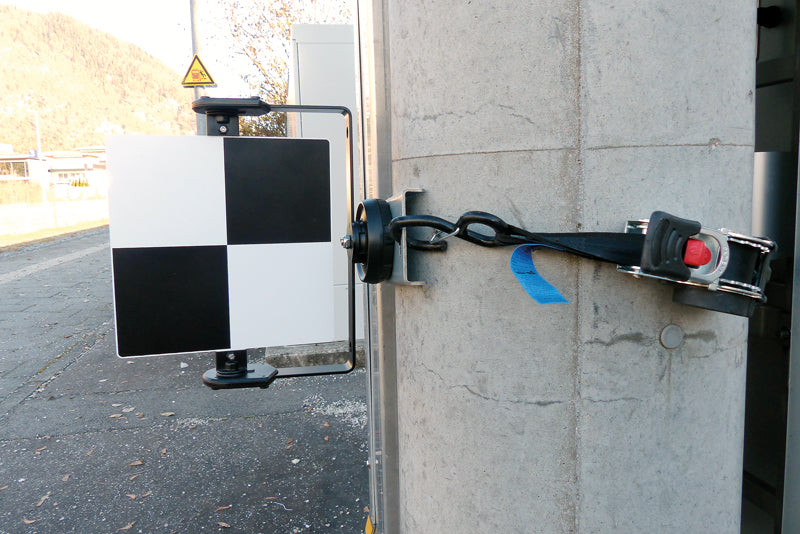

We recommend the RSFP-X99 fixed point with enhanced magnetic force for mounting on walls or non-metallic surfaces due to the dead weight.

Features
  • Can be placed on any standard tripod or tribrach.
  • In combination with our floor stands RSFP-X98-1 and RSFP-X98-2: Quick, easy, and precise to handle, as well as convenient to transport.
  • Provides the option for precise placement over RS Mini Prisms RSMP380.
  • Fixed points for connecting several positions
  • Precise assignment of spatial reference information to a geodata set, even over larger distances.
Specifications
RSL602M 200 x 200 mm target, tilting axis height 150 mm
RSL672M 300 x 300 mm target, tilting axis height 200 mm
RSL682M 400 x 400 mm target, tilting axis height 250 mm
Documents
Rothbucher Laser scanner, Lidar and drone targets with Swivel, magnetic and tilt function Datasheet
Datasheet
Rothbucher | RSL602M

Rothbucher Laser scanner, Lidar and drone targets with Swivel, magnetic and tilt function

$246.00
$246.00
Shipping calculated at checkout.
