The KS5 case sets with AprilTags were specially designed for the precise capture of 3D point clouds with mobile devices.



Each marker has a unique ID and is recognized in real time by the Dot3D software . The app automatically calculates the exact position and orientation of the tags in space, which significantly improves the accuracy of the 3D scans.



In Dot3D, AprilTags are used primarily to optimize measurement accuracy , for loop closure (closing scan loops), and to link multiple scans. If individual AprilTags are also measured tachymetrically, accuracies in the range of a few millimeters are possible.





The application is simple: The AprilTags are distributed within the scan area, while the Dot3D app automatically detects them and uses them to optimize the point cloud. Especially with large or complex scenes, the AprilTags ensure reliable referencing and minimize errors caused by drift or overlap.

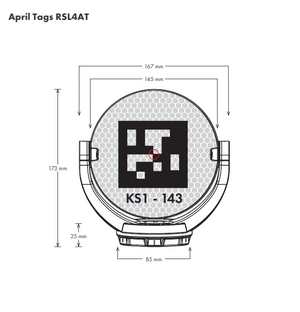

April Tags RSL4AT



The combination of mobile flexibility, powerful software and AprilTags makes Dot3D a versatile solution for professional 3D documentation.





Our KS5 case sets are part of the “ One Point Fits All” system and allow the AprilTags to be flexibly attached to a wide variety of surfaces to ensure optimal placement and maximum scan quality.

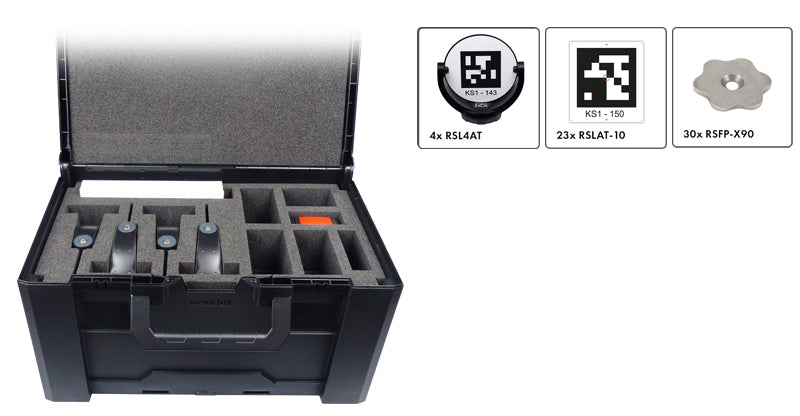

Contents KS5-10

  • 4 April Tags RSL4AT (low numbers)

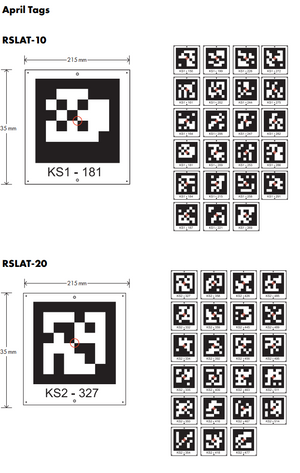

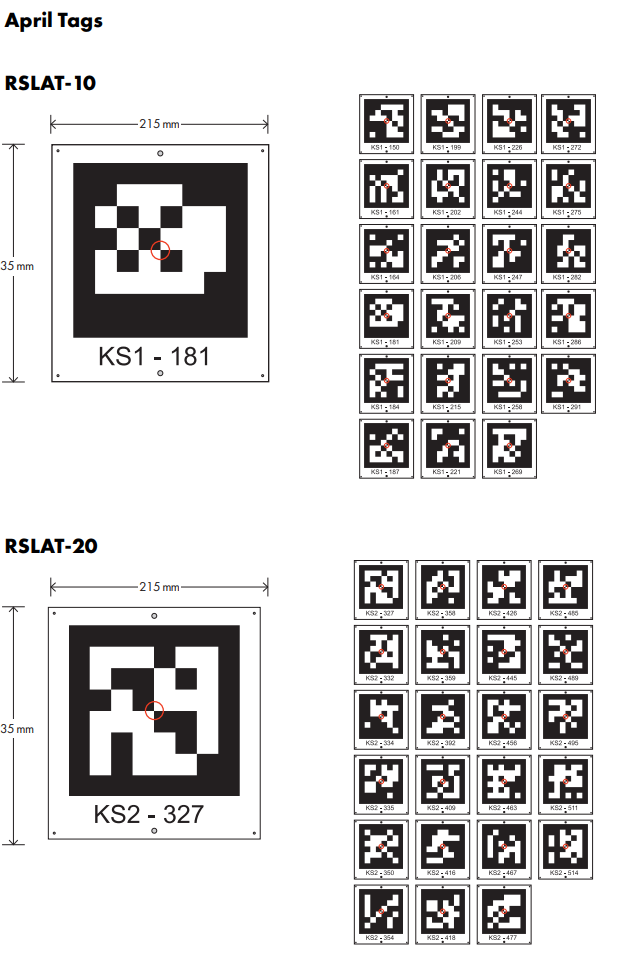

  • 23 April Tags RSLAT-10 (low numbers)
  • 30 RSFP-X90

Contents KS5-20

  • 4 April Tags RSL4AT (higher numbers)
  • 23 April Tags RSLAT-20 (higher numbers)
  • 30 RSFP-X90

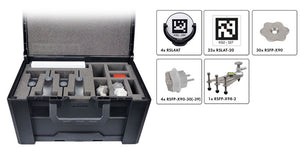

Contents KS5-15

  • 4 AprilTags RSL4AT (low numbers)
  • 23 April Tags RSLAT-10 (low numbers)
  • 30 RSFP-X90
  • 1 RSFP-X98-2
  • 4 RSFP-X90-30-39 (note different country versions!)

Contents KS5-25

  • 4 April Tags RSL4AT (higher numbers)
  • 23 April Tags RSLAT-20 (higher numbers)
  • 30 RSFP-X90
  • 1 RSFP-X98-2
  • 4 RSFP-X90-30-39 (note different country versions!)
Features
  • Can be placed on any standard tripod or tribrach.
  • In combination with our floor stands RSFP-X98-1 and RSFP-X98-2: Quick, easy, and precise to handle, as well as convenient to transport.
  • Provides the option for precise placement over RS Mini Prisms RSMP380.
  • Fixed points for connecting several positions
  • Precise assignment of spatial reference information to a geodata set, even over larger distances.
Rothbucher

Rothbucher AprilTags RSL4AT and RSLAT-10 to -20 Suitcase Set KS5-10/20

$1,748.00
$1,748.00
Shipping calculated at checkout.
Kit Option:
Download Product Spec Sheet
Download Rothbucher AprilTags RSL4AT and RSLAT-10 to -20 Suitcase Set KS5-10/20 SDS
Want more Information?

Not sure if this fits your setup? Ask us before you buy.

Request More Info
