Product Details

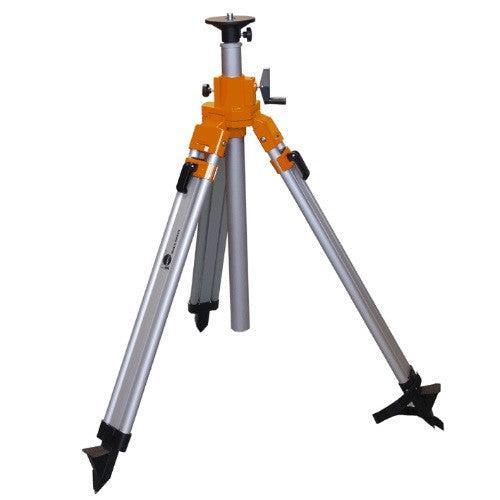

The Nedo Aluminum Elevating Tripod features a reinforced indirect gear unit that ensures smooth operation and reduces wear on the crank, preventing accidental instrument descent. Its silver anodized aluminum legs provide durability, while the powder-coated aluminum head and plate enhance stability. Equipped with break-proof quick release levers and brass hinge pins, this tripod offers exceptional strength. The aluminum feet with steel points improve grip, and an integrated mechanical stop prevents leg spreading. The innovative Retract-and-Go leg locking system secures legs firmly during transport without the need for straps, delivering professional reliability and ease of use.
Specifications
Min. effective height
approx. 31" / 0.80 m
Max. effective height
approx. 80" / 2.00 m
Retracted length
40'' / 1.00 m
Holding screw
5/8’’ x 11 thread
Weight
11 lbs. / 5.10 kg
Tripod plate
Ø 4.3’’ / 110 mm
Telescopic section
1-fold
Adjustable column range
22’’ / 555 mm
MPN
210616-185
