Collecting high-accuracy geospatial data on your smartphone or tablet has never been easier.



Pair with all existing Leica Zeno handhelds and a wide range of Android, Apple or Windows® smart devices, to bring cutting-edge GNSS technology and industry-leading 555 channel tracking power to your hands.



The rugged, flexible and easy-to-use smart antenna utilises RTK technology and can now apply Precise Point Positioning (PPP). This makes high-accuracy data collection possible in real-time even in the most demanding of locations without the need for a mobile data connection.



With its compact, lightweight design and IP68 durability, you can work longer in all conditions - the world of high accuracy mapping comes to life at your fingertips.





LEICA ZENO GG04 PLUS I — GNSS TECHNOLOGY
Number of channels 555 channels (more signals, fast acquisition, high sensitivity)
Satellite signal tracking GPS (L1, L2, L2C/L2P, L5), Glonass (L1, L2, L3), BeiDou (B1, B2, B31), Galileo (E1, E5a, E5b, Alt-BOC, E61), QZSS, NavIC (IRNSS, L5), SBAS (WAAS, EGNOS, MSAS, GAGAN), L-band
Real-time and post-processing Support of real-time correction service and post-processing to achieve positioning accuracy
Output data protocols
  • Windows®: NMEA2 via Zeno Connect
  • Android: position provided by Location Service and NMEA2 output possible, both via Zeno Connect
  • iOS: position provided by iOS Location Feature and NMEA2 output possible (via EA protocol) via Zeno Connect
Update rate 20 Hz (0.05 sec)
Post-processing accuracy (static mode)
  • Horizontal: 3 mm + 0.1 ppm (rms) or better
  • Vertical: 3.5 mm + 0.4 ppm (rms) or better
Horizontal real-time accuracy
  • SBAS (L1): < 0.9 m
  • Spot Lite / PPP: < 60 cm after ~8 min (multi-frequency option)
  • DGNSS (L1): < 40 cm
  • Spot Prime / PPP: < 10 cm after ~15 min (multi-frequency option)
  • RTK (multi-frequency): < 8 mm + 0.5 ppm
Vertical real-time accuracy RTK (multi-frequency): < 15 mm + 0.5 ppm
Real-time protocols RTCM 2.x, RTCM 3.0, RTCM 3.1, RTCM 3.2, RTCM MSM, CMR, CMR+
Integrated real-time SBAS (EGNOS, WAAS, MSAS, GAGAN) or PPP via L-band (valid Spot option required)
Time for initialisation Typically 6 seconds
User interface On/Off key
Status indicator (LED): satellite tracking, Bluetooth® communication, battery power
Communication Bluetooth® 4.1 class 1 & sealed 8-pin Lemo combined USB / Serial232 port
Field controller connection Bluetooth® (3 ports), RS232, or USB cable
Removable battery GEB212 (7.4 V / 2600 mAh Li-Ion rechargeable)
Battery charging time 2 hours to full charge with GKL341
Power Nominal: 12 V DC
Range: 10.5 – 28 V DC
Operating time 7.5 h (RTK), 10 h (GNSS only)
Weight & dimensions 0.8 kg with all-day battery
Height: 0.071 m × Diameter: 0.186 m
Protection rating IP66 & IP68 — dust and water-resistant; temporary submersion (2 hours at 1.40 m)
Operating / storage temperature Operation: –40 to 65 °C (–40°F to +149°F)
Storage: –40 to 80 °C (–40°F to +176°F)
Humidity 100%
Drop resistance Topple over from 2 m survey pole onto hard surface
1 m drop onto hard surface
Vibration Withstands strong vibration (ISO9022-36-05)
Features

Smart device independence

  • Use your existing smartphone or tablet
  • Available for Android, Apple and Windows®
  • Bluetooth® connection ensures cable free operation

Enhanced tracking performance

  • 555 channels support an increased number of satellites
  • State-of-the-art GNSS technology
  • Ready for future GNSS developments

Precise point positioning (PPP)

  • Achieve high accuracy data collection without a mobile data connection
  • Available anywhere in the world, anytime
  • Removes reliance on post processing

Extensive software support

  • Use with your favourite data collection apps and software
  • No development efforts required
  • Provides NMEA messages output on different Bluetooth® ports to allow reviewing and storing of GNSS metadata information

Built to last

  • IP68 protection ensures water and dustproofing
  • Continuous performance in all environments
  • All day battery life

Leica Geosystems compatible software

  • Zeno Mobile One
  • Zeno Connect
Leica Geosystems

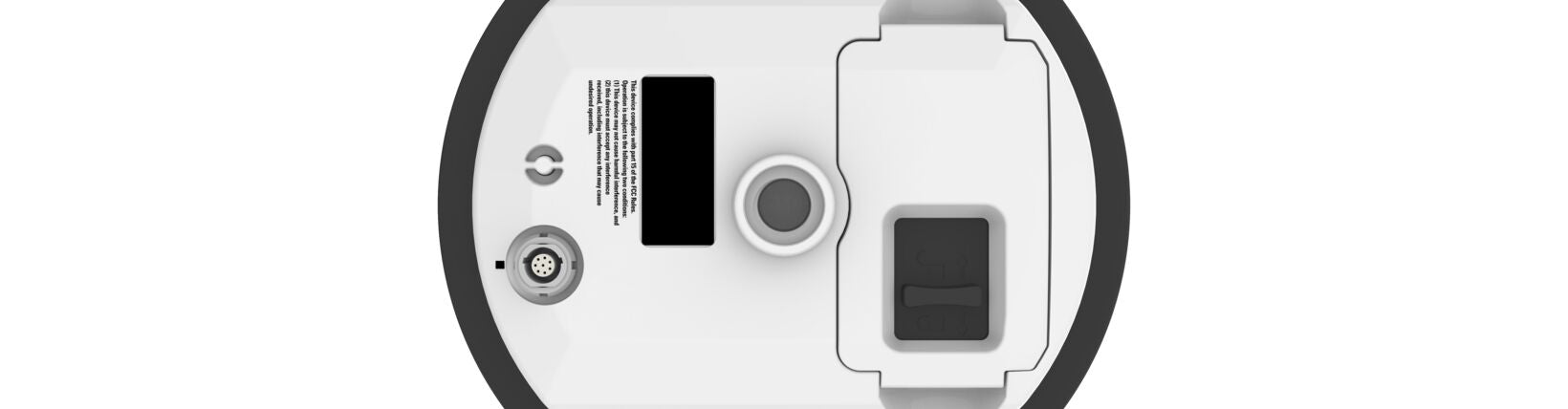

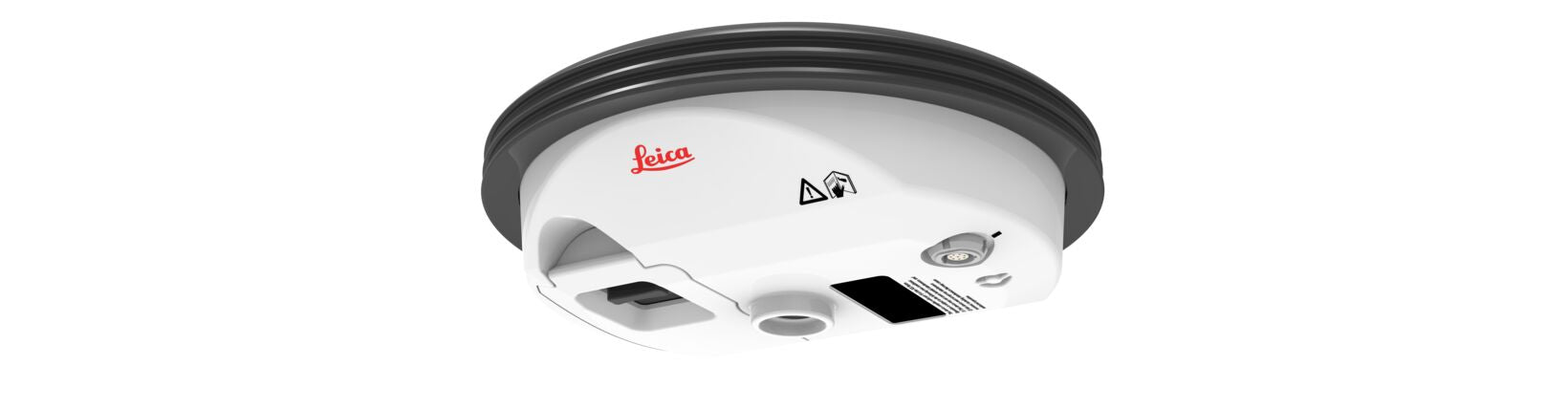

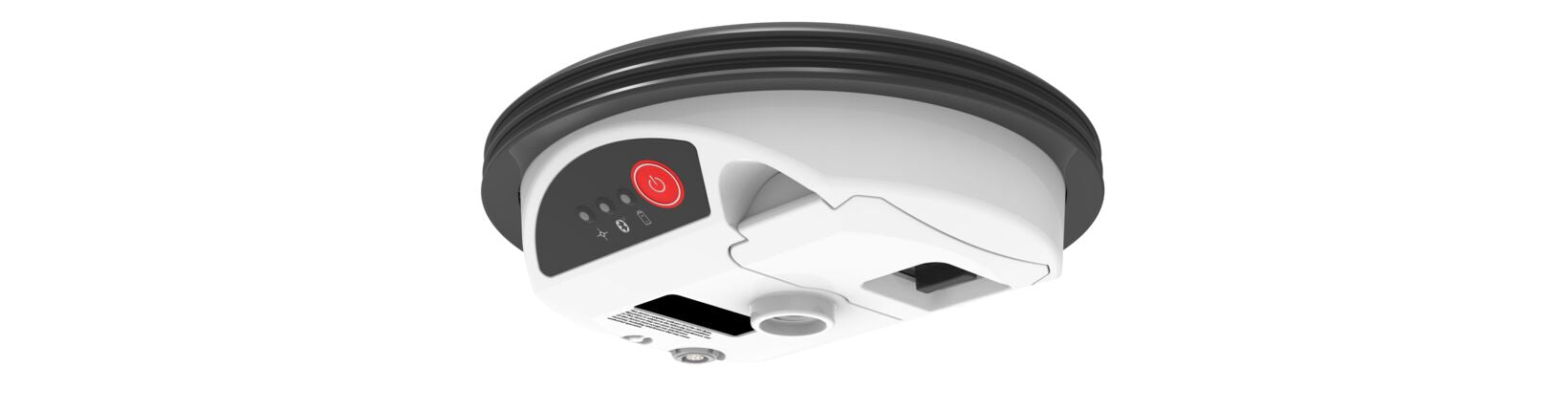

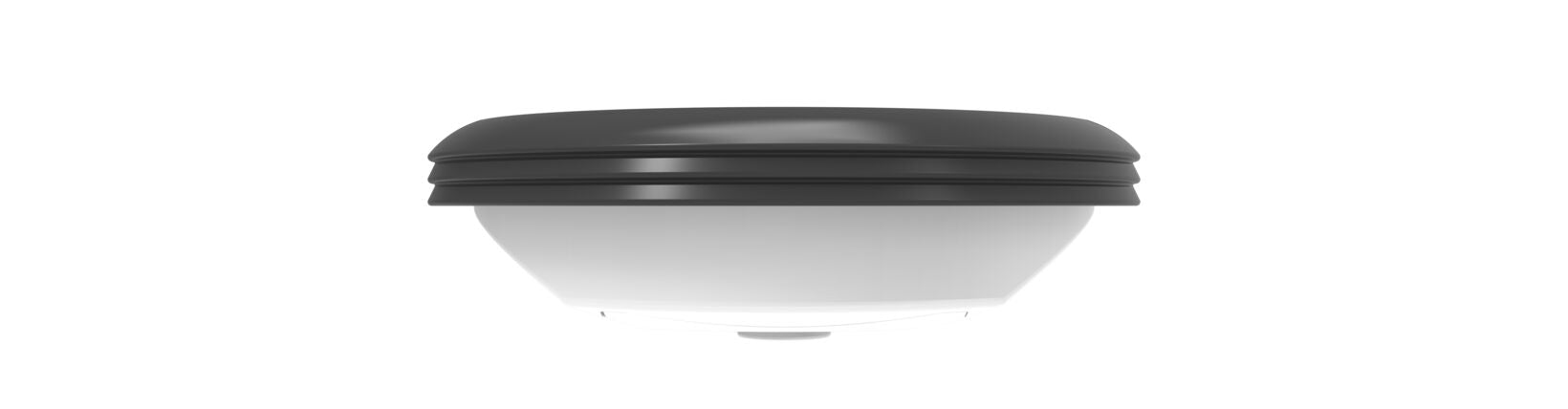

Leica Zeno GG04 plus Smart Antenna with Glonass

"GG04 plus Professional. GPS and Glonass Multi-Frequency, GNSS Smart/Antenna with RTK processing kernel, 20 Hz, 555 channels, up...  Read more
"GG04 plus Professional. GPS and Glonass Multi-Frequency, GNSS Smart/Antenna with RTK processing kernel, 20 Hz, 555 channels, upgradeable options, raw data logging support and NMEA streaming. A Zeno Connect license is already included with the GG04 plus in order to use the antenna on Android/ iOS mobile devices (smartphones/tablets) via Zeno Connect from the Google Play Store or Apple App Store (iOS)."
$9,850.00
$9,850.00
Shipping calculated at checkout.
Free Shipping
Download Product Spec Sheet
Download Leica Zeno GG04 plus Smart Antenna with Glonass SDS
Free Shipping!

This item qualifies for free shipping within the continental U.S.
