With the Leica Rugby 600 Series, Leica Geosystems further expands its strong portfolio of rotating lasers. All of the five models of the Rugby 600 Series offer a professional solution with an outstanding price-to-quality ratio allowing quick leveling and aligning for general construction and interior applications eliminating costly errors, rework and downtime.



The Rugby 600 Series lasers include the customer care package "PROTECT by Leica Geosystems", which offers a lifetime warranty and a three-year no cost period. The Rugby 600 Series lasers are built for the construction site - water and dust-proof, extremely durable housing and perform to the highest standards in all conditions.

Features

Where levelling stays in focus

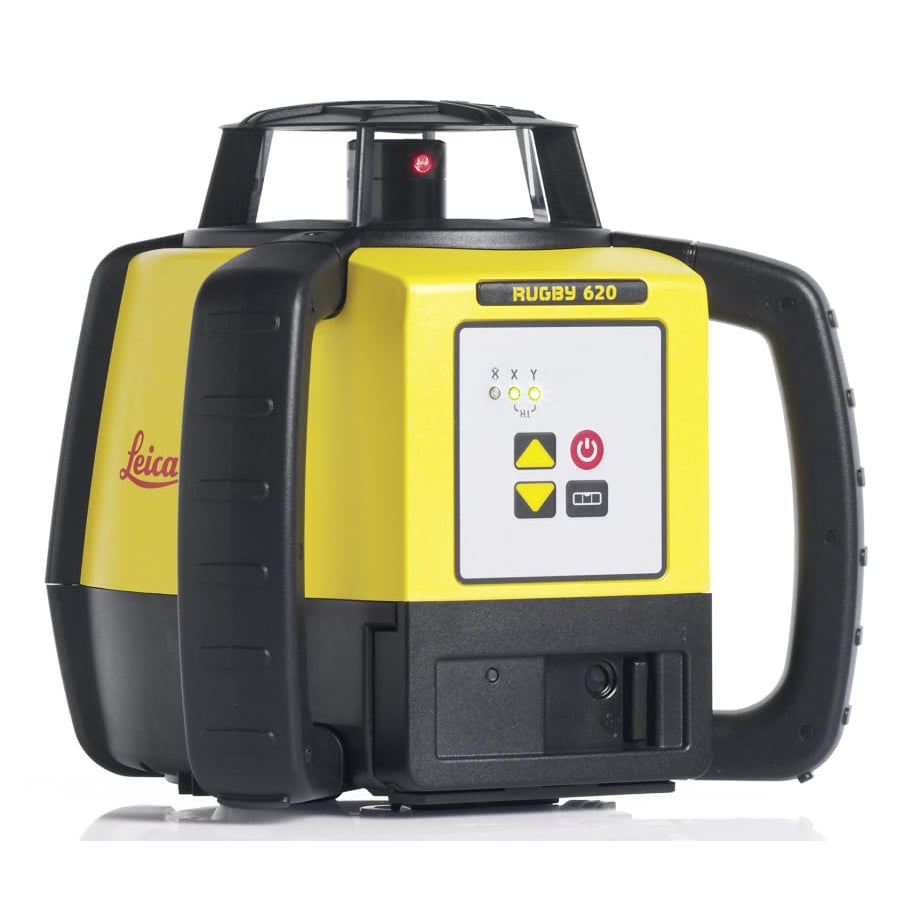

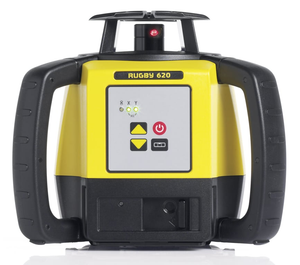

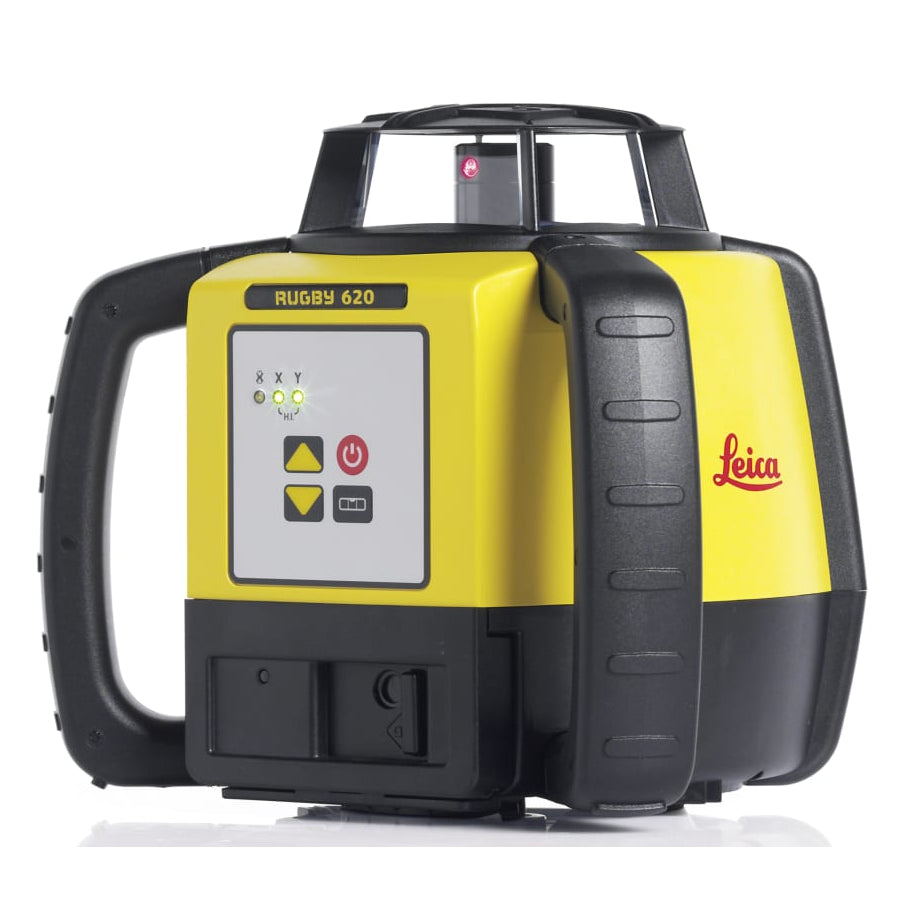

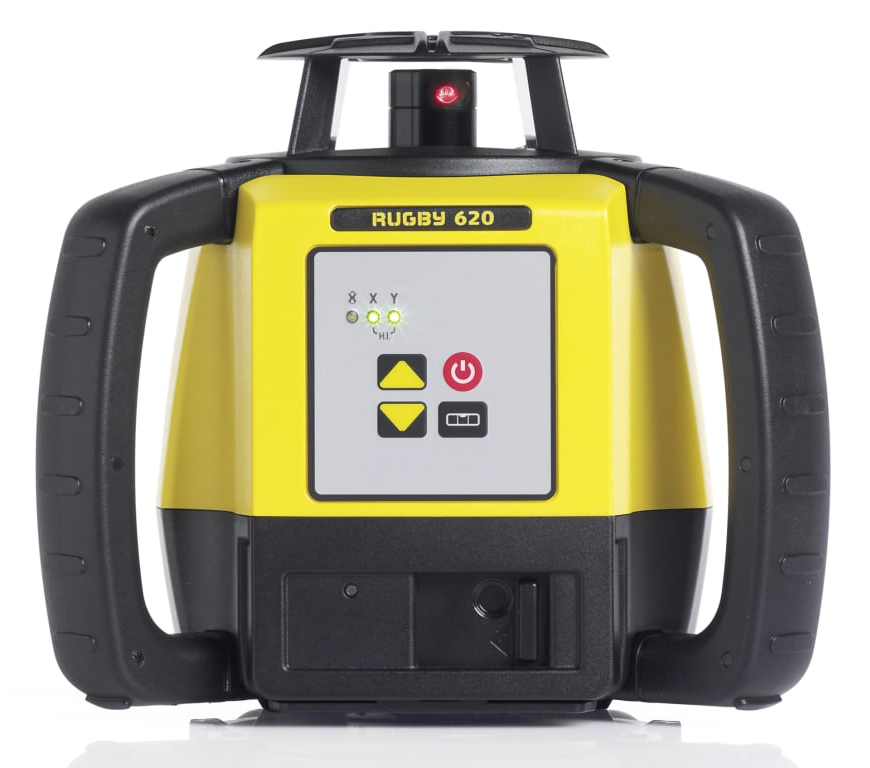

Increase your productivity in levelling applications with the Leica Rugby 620 construction laser. Designed for general contractors who mainly perform formwork and concrete applications, the Rugby 620 rotating laser level offers a professional but simple levelling solution with an outstanding price-to-quality-ratio. Forget about costly errors, rework or downtime thanks to the fully-automatic operation with the Leica Rod Eye receivers. Concrete pouring, formwork levelling, setting foundations and footings has never been more efficient



Simple and quick slopes

The professional Rugby 620 laser level offers contractors application flexibility, allowing them to perform single slope applications using the manual grade control. Rugby 620 is a perfect laser tool for those contractors who occasionally need to do simple slope tasks like driveways, landscaping and parking areas. Depending on the type of the job, Rugby 620 offers operating range of up to 500 m with the Rod Eye Basic, and up to 600 m with the Rod Eye 140 and 160 digital receivers.



Tough as the jobsite

The Rugby 620 rotating laser brings ruggedness and reliability to a jobsite with its IP67 water and dust protection. Moreover, it is covered by the PROTECT by Leica Geosystems service offering which includes Lifetime Manufacturer’s Warranty and three year No Cost period, covering the repair or replacement of all defective parts including labor time, adjustment and calibration. Rugby 620 rotary laser is delivered in a package with a long-lasting Li-Ion battery.

Specifications
Dimensions 8-3/4" X 9-3/8" x 7-9/16"
Weight 5.6 Lbs
Functionality Self-Leveling Horizontal & Manual Slope in one axis
Laser Class Class 2
Laser Type 635nm(Visible)
Beam Color Red
Plumb Up No
Measured at 20°C (Horizontal/Vertical) ±1.5mm at 30 M (1/16" at 100 Ft)
Grade Range No
Rotation - RPS 10
Range (Diameter) - RE Basic 800 M (2,600 Ft) (Sold Separately)
Range (Diameter) - RE140/160 1100 M (3,600 Ft) (Sold Separately)
Approximate Li-Ion Battery Life 40+ Hrs
Approximate Alkaline Battery Life 60+ Hrs
Working Temperature Range 14 to +122°F (-10 to +50°C)
Storage Temperature Range 4 to +158°F (-20 to +70°C)
Seal (Both Excluding and Including battery Pack) IP67
Manufacturer's Warranty 3 Year No Cost Period + Leica "PROTECT" Lifetime
Leica Geosystems Leica Geosystems

SKU:LE-790359

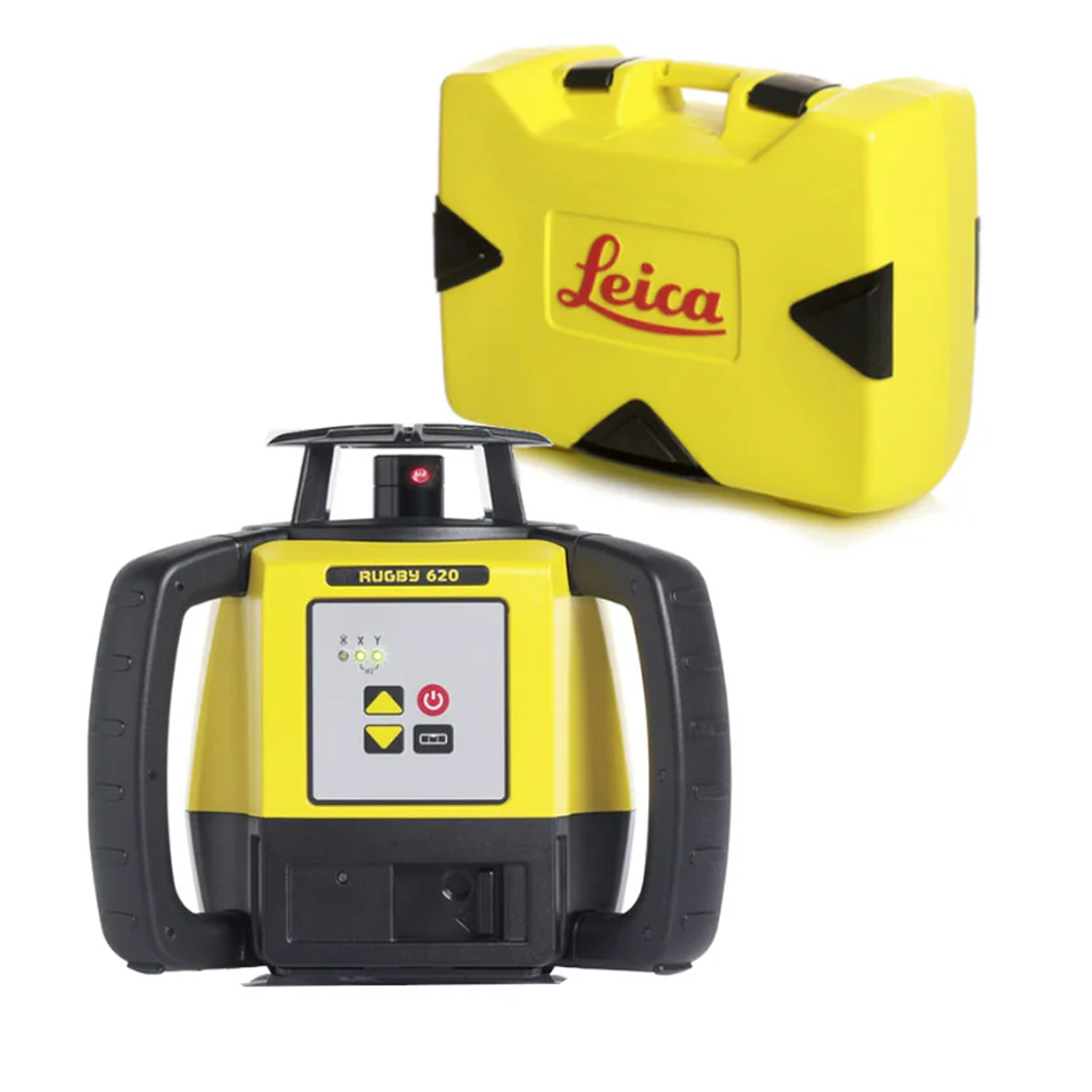

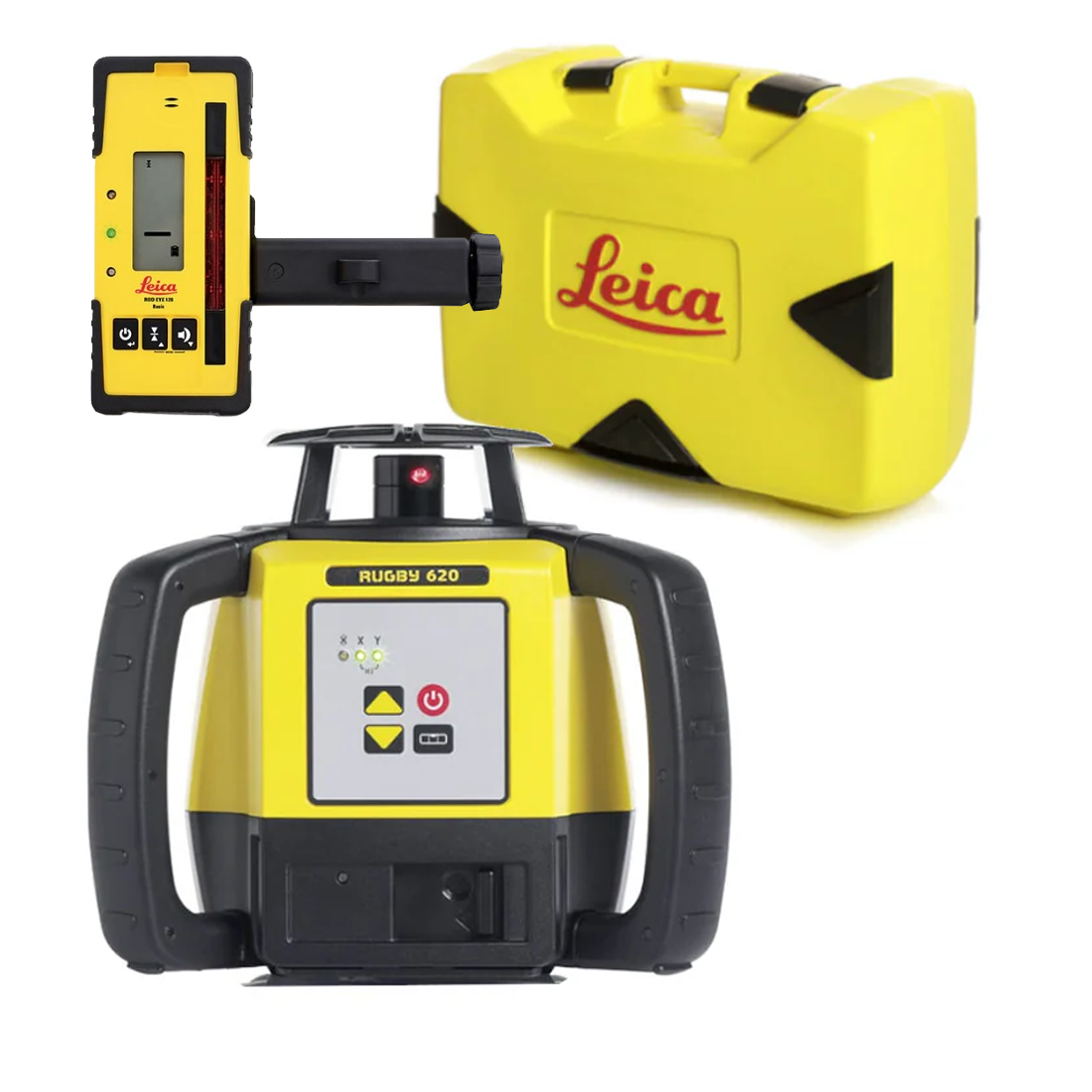

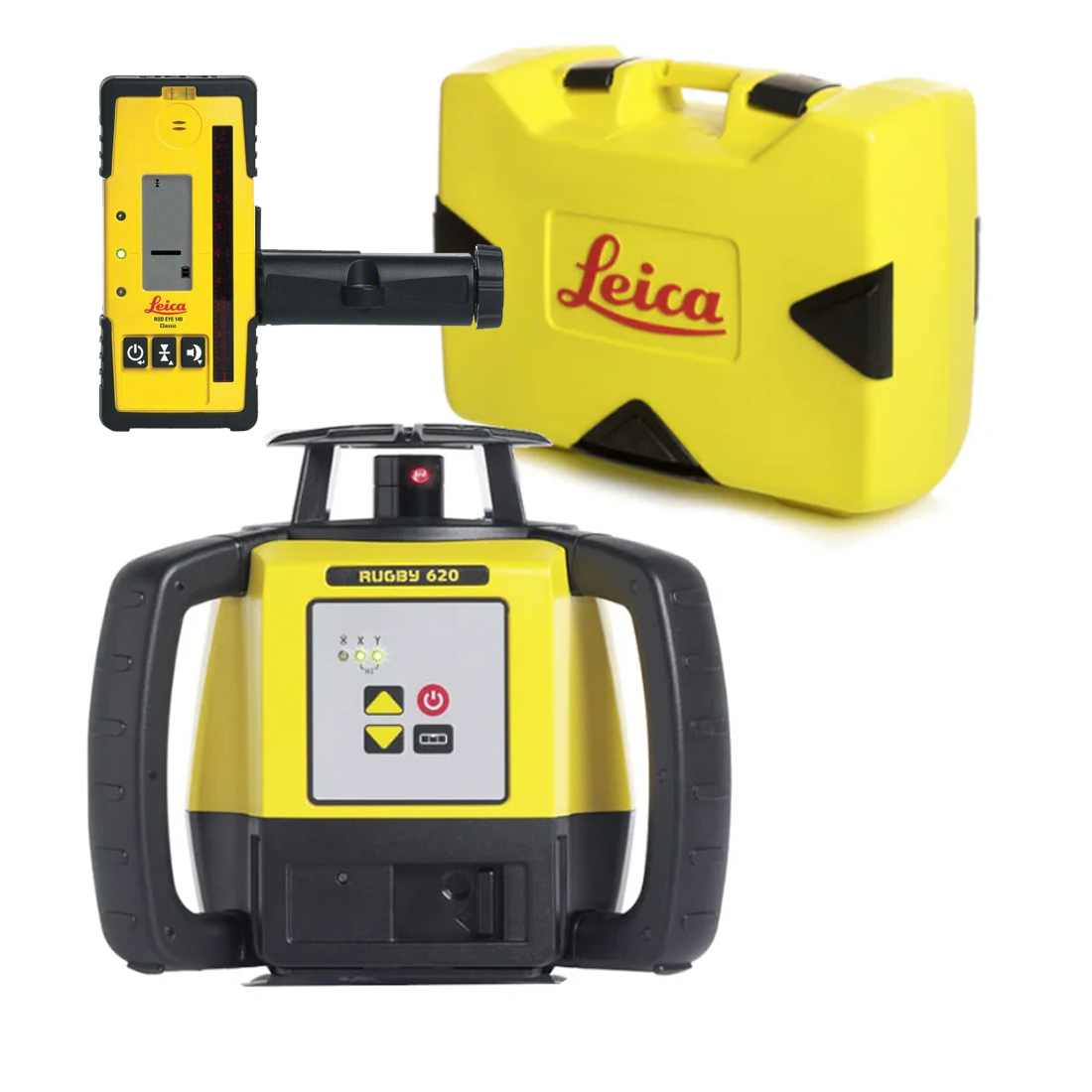

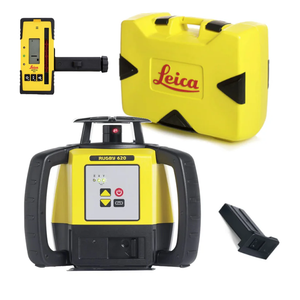

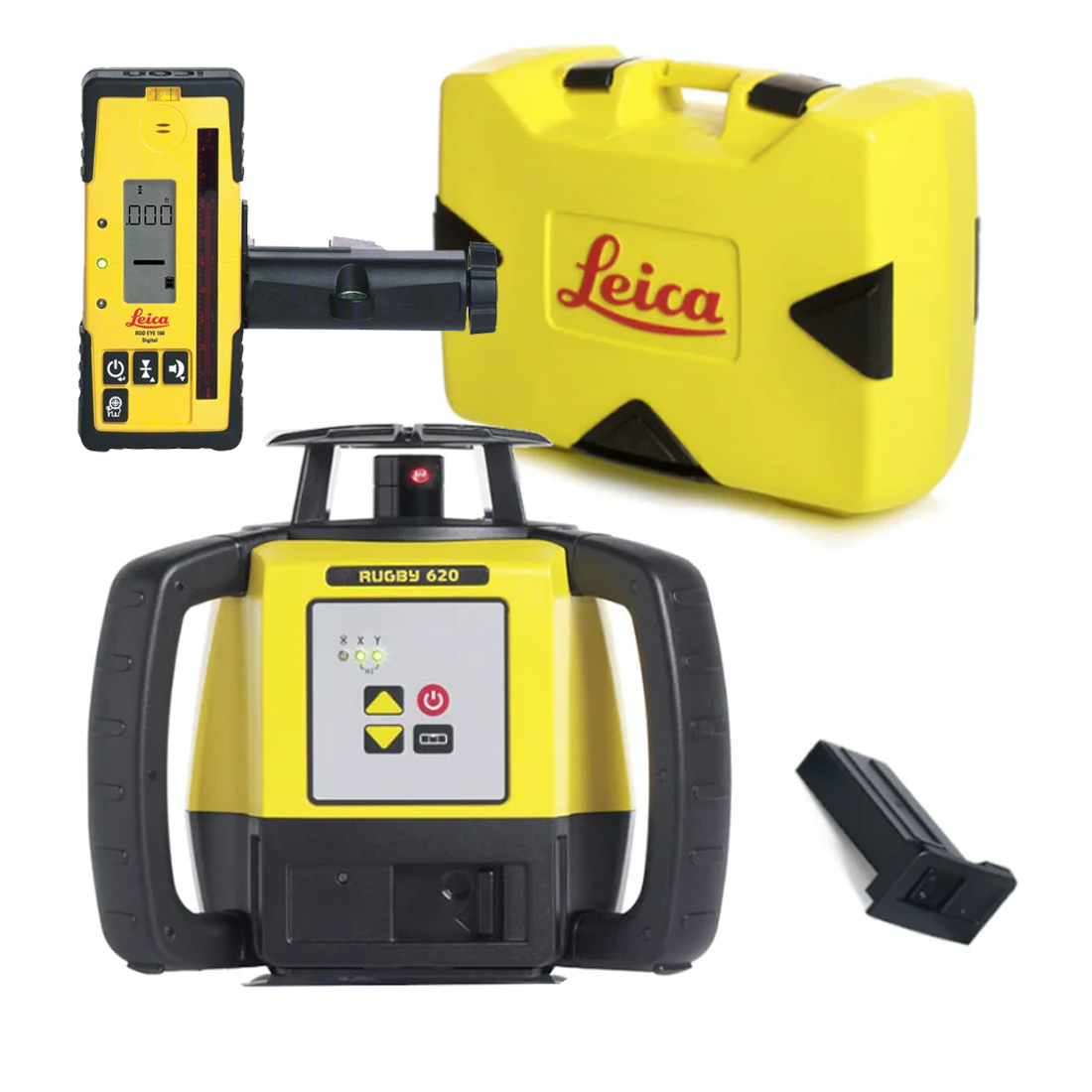

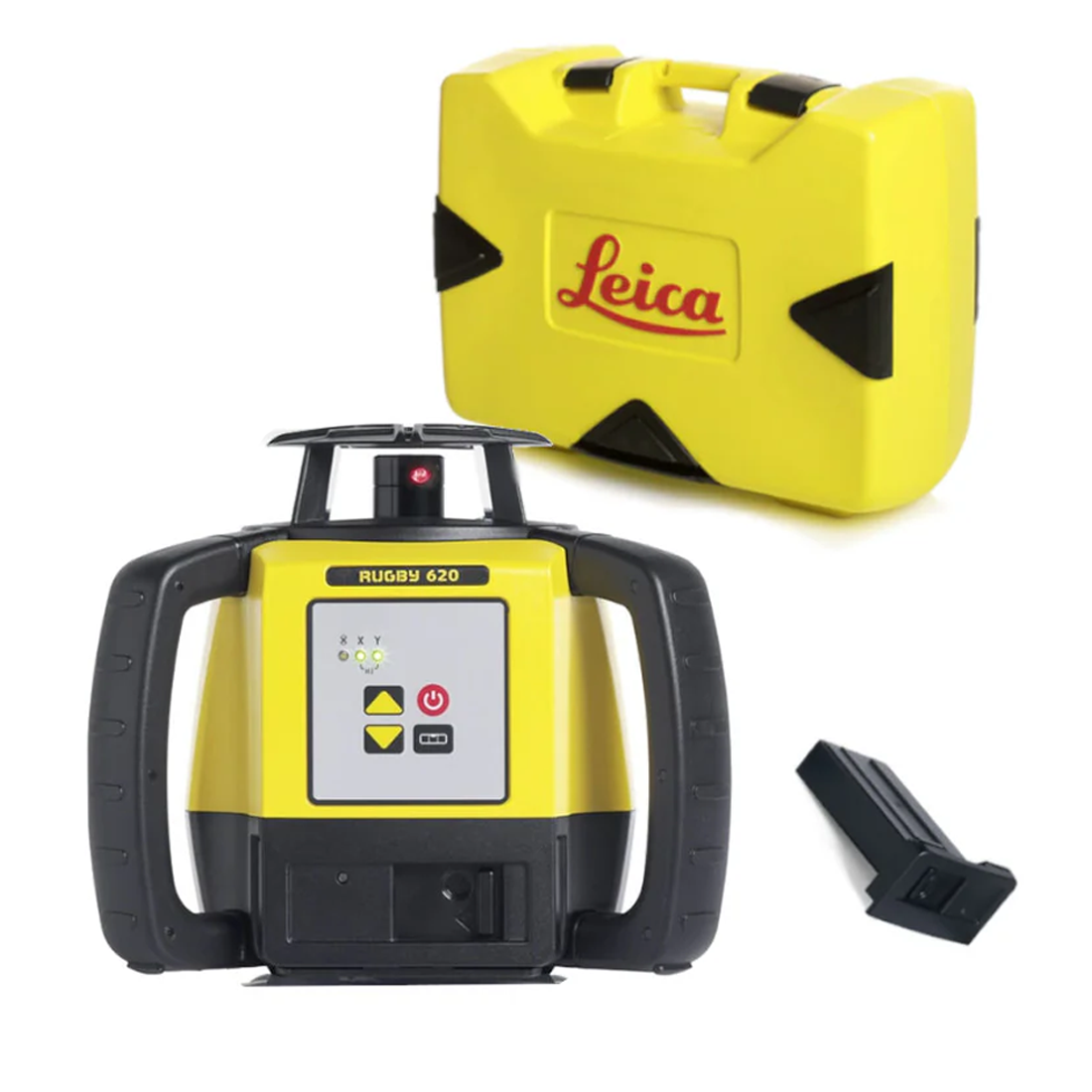

Leica Rugby 620 Rotating Laser Kit

Horizontal laser with manual grade capability
Horizontal laser with manual grade capability
Regular price
$699.60
Sale price
$699.60
Regular price
Shipping calculated at checkout.
Free Shipping
Kit Options:
Show more
Free Shipping!

This item qualifies for free shipping within the continental U.S.
