Product Details

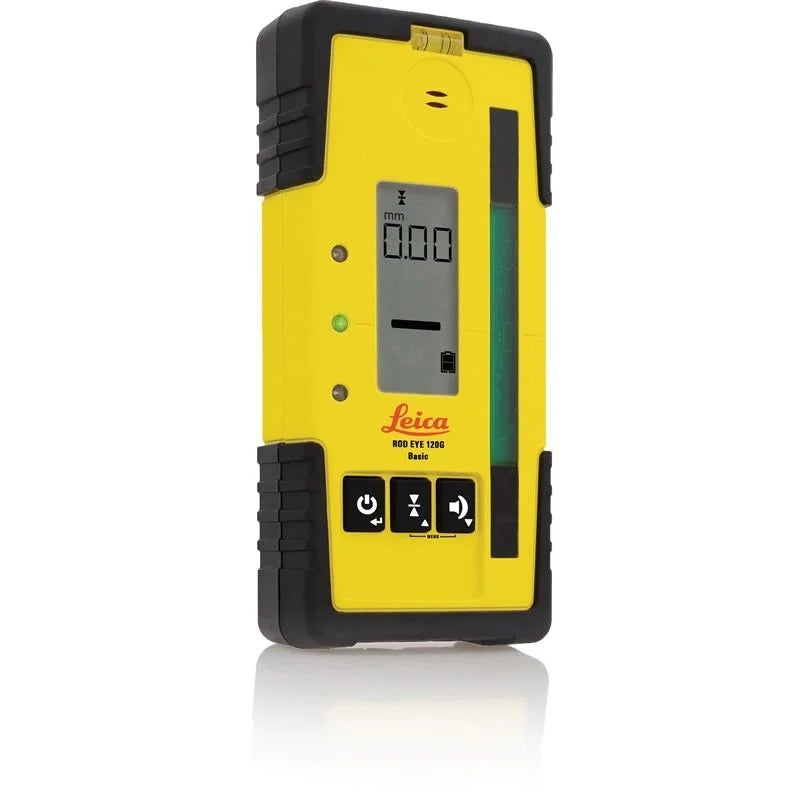

The Leica Rod Eye 120G receiver is designed to capture the green laser beam of the Rugby 640G rotating laser. The digital read out capability makes height readings and working with offsets convenient and fast, whereas the 7 cm detection window allows beam detection up to 200 meters (radius).
- LCD indication – two large graphic displays on the front and back of the receiver
- The digital readout of the Rod Eye 120G measures offset from Rugby 640G beam position, adding convenience and saving time
- Audio indication - three volume levels: loud, soft, off
- Accuracy (bandwidth) indication - three accuracy levels: fine, medium, coarse
- Built-in 7 cm detection window allows easy detection of the beam over the entire distance
Specifications
Working diameter (laser dependent)
400 m
Detection window
70 mm
Digital readout /height
Yes / 70 mm
Digital readout /units
mm, cm, in, frac, ft
Detectable spectrum
500 nm to 570 nm
Automatic shutoff
10 Minutes
Audio volumes
High / Low / Off
Arrow display
11 channels
Detection accuracies
Fine ± 1 mm, Medium ± 2 mm, Coarse ± 3 mm
Protection class (splash water/dust proof)
IP67
Battery type/ life
2x AA / 50+ hours
Dimensions (HWD)
173 x 76 x 29 mm
Operating temperature
–20°C to +50°C

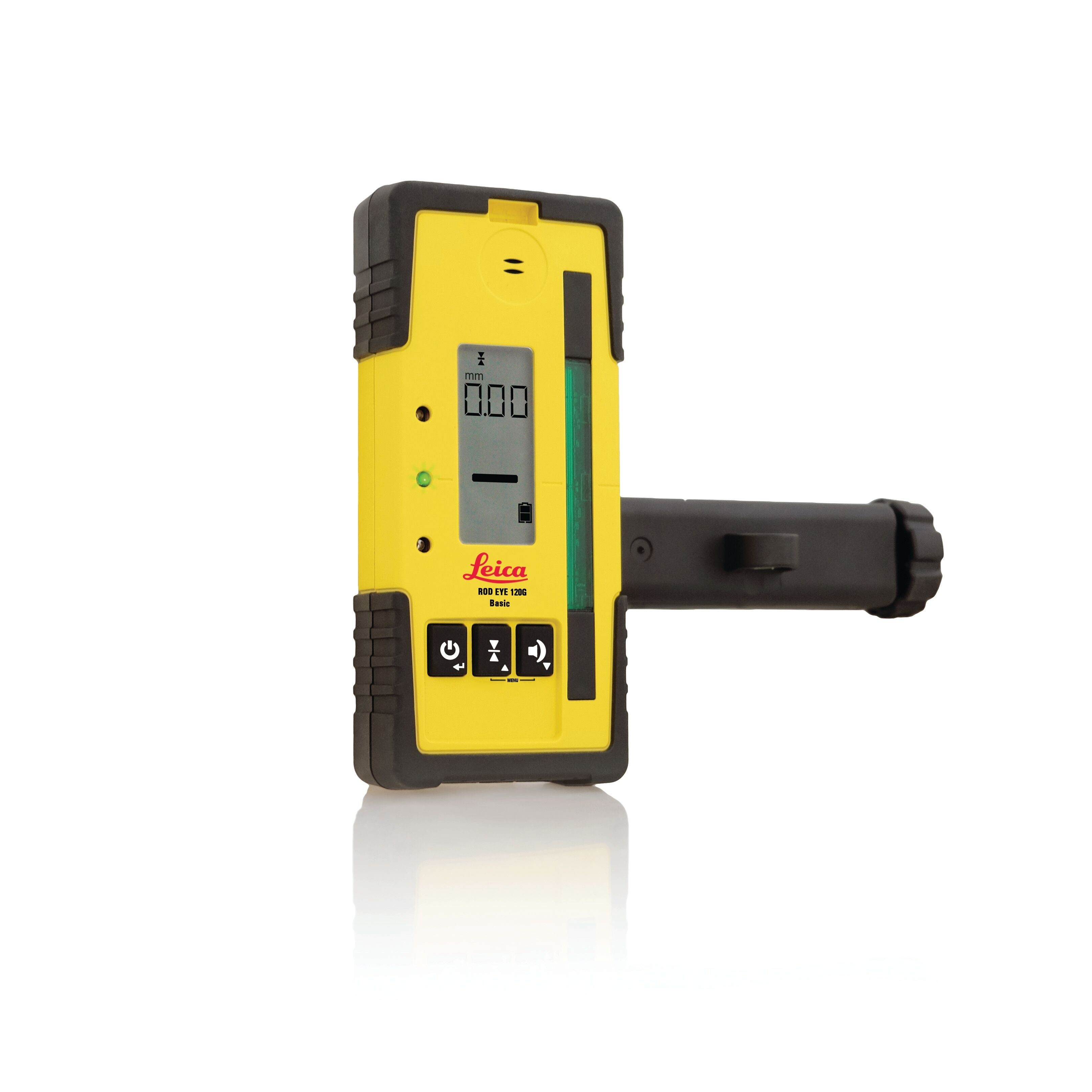

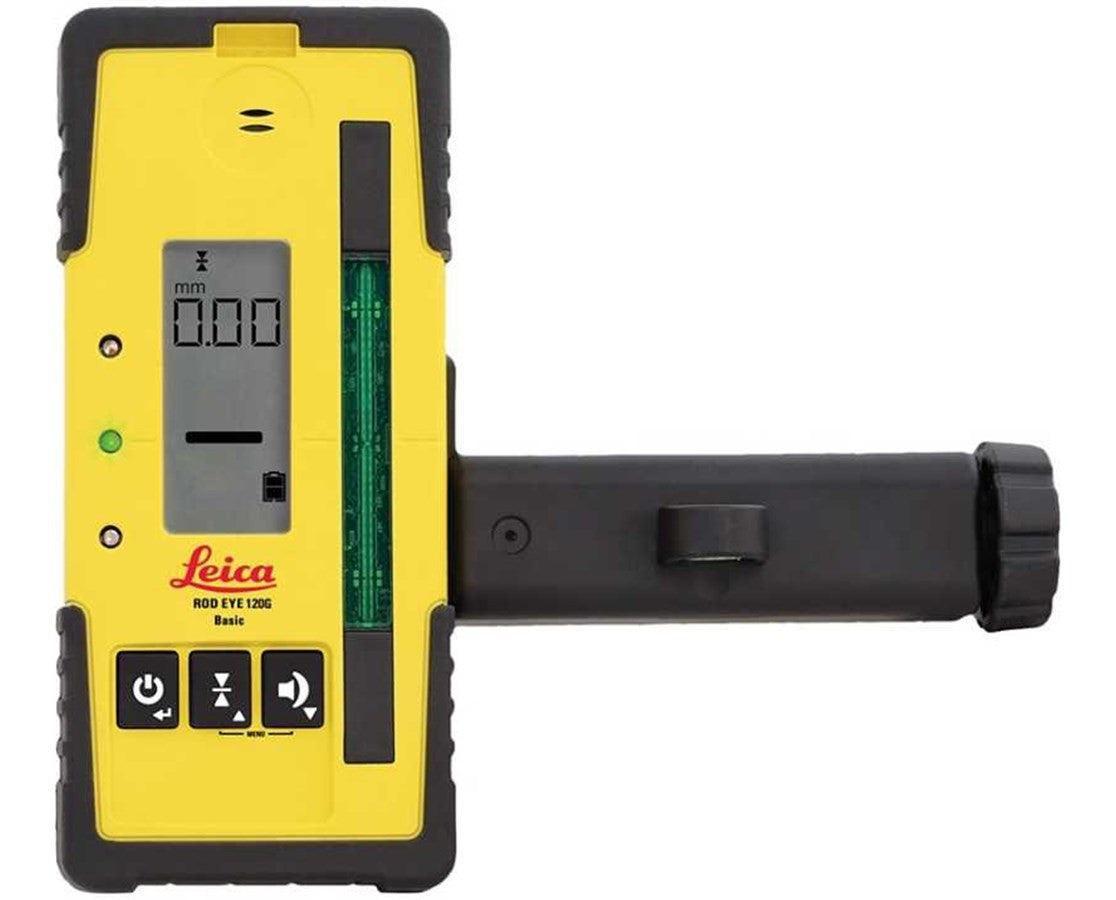

Leica Rod Eye 120G Detector W/ Bracket (844745)
The Leica Rod Eye 120G receiver is designed to capture the green laser beam of the Rugby 640G rotating laser.
The Leica Rod Eye 120G receiver is designed to capture the green laser beam of the Rugby 640G rotating laser.
- Regular price
- $325.00
- Sale price
- $325.00
- Regular price
-
Shipping calculated at checkout.
Download Product Spec Sheet
