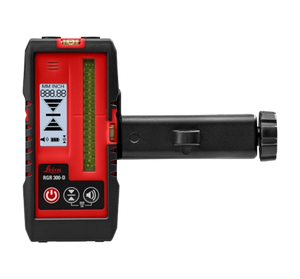

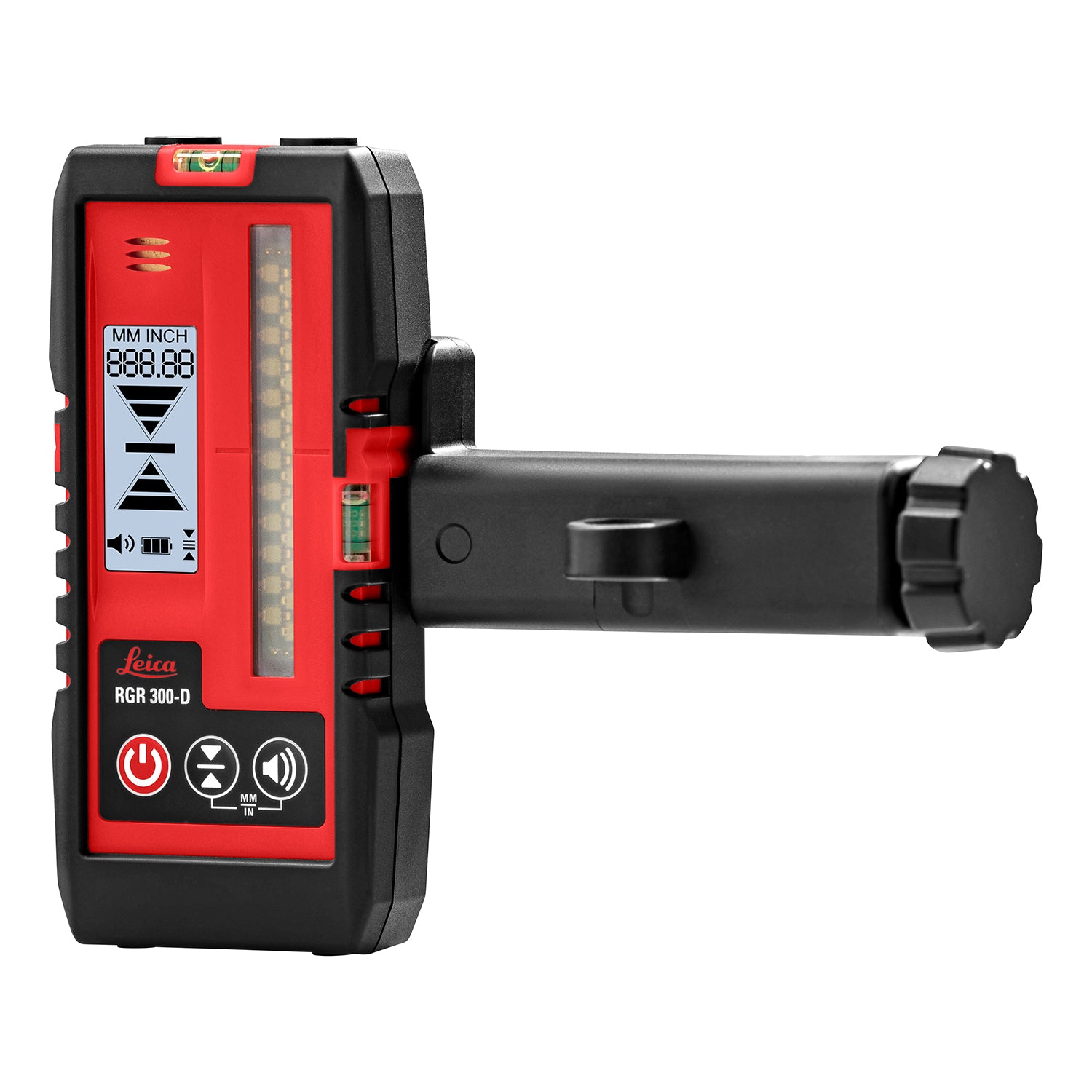

Digital line laser receiver with clear mm or inch guidance with dual-screen display and built-in magnets for secure attachment to metallic surfaces. Detects red and green laser beams at distances up to 80 m.

Compatibility: Leica Lino P5, L2, L2G, L2P5, L2P5G, L6R, L6G
Dimensions: 158 x 73 x 26 mm



Working range of up to 80 m

In large spaces, the Leica RGR 300-D minimizes the need to reposition the laser by offering an extended laser range of up to 80 meters.





Designed for rough construction sites!

The Leica RGR 300-D ensures reliable performance in harsh conditions. It can withstand a drop of 1.2 meters and features an IP65 rating for dust and water resistance.



Leica RGR receiver family

The Leica RGR portfolio features the Leica RGR 300-D digital receiver alongside the Leica RGR 200 receiver, which provides acoustic guidance only.

Features
  • Receiver with digital read-out in mm or inch
  • Increase range of Line Laser to 80 m
  • Supports red as well as green laser models
  • Two illuminated displays to allow reading from backside
  • Large detecting area
  • Compatible with all red and green line lasers operating at a 10kHz frequency, ideally designed for use with Leica Lino L2, L2P5, or L6
  • Acoustic feedback

Specifications
Working range 2 m – 80 m (6.6 ft – 262 ft)
Accuracy (switchable) ± 0.5 mm (± 0.02 in) / ± 2.0 mm (± 0.08 in) / ±5.0 mm (±0.19 in)
Detection window 85 mm (3.3 in)
Detection angle 60 mm (2.4 in)
Detectable spectrum ± 25 mm (± 1 in)
Illuminated display 45° @ 10 m (33 ft)
Acoustical signal 635 ± 5 nm (red) / 525 ± 5 nm (green) class 2 acc. IEC 60825-1
Protection class front and back
Drop resistance 90 dB / 70 dB / 0 dB
Battery type/life IP65 (IEC 60529) dust and jet water
Low power alert 1.2 m (3.9 ft)
Dimensions (L x W x H) 2 x AA 1.5 V / 24 hours
Weight with batteries digital display
Automatic shut-off 158 x 73 x 26 mm (6.22 x 2.87 x 1.02 in)
Operating temperature 265 g (0.58 lbs)
Storage temperature 30 min. without detection
Leica Geosystems Leica Geosystems

LE-1017990

Leica RGR 300-D Laser Receiver

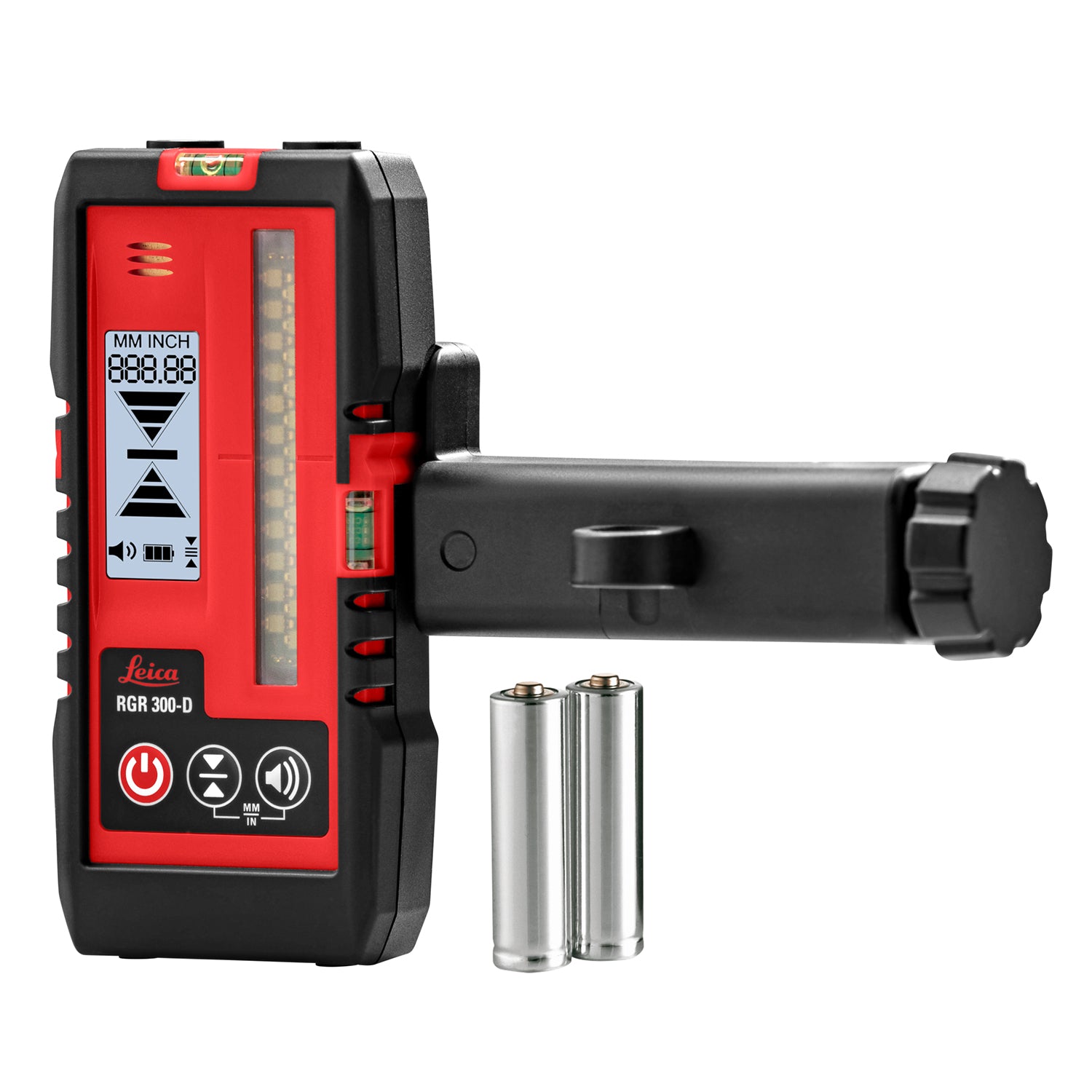

Includes Leica RGR 300-D, clamp for staff, 2 x AA batteries
Includes Leica RGR 300-D, clamp for staff, 2 x AA batteries
$305.00
$305.00
Shipping calculated at checkout.
Download Product Spec Sheet
Download Leica RGR 300-D Laser Receiver SDS
