About

Product Details

The Piper Green series offers you four times better visibility of the laser providing you higher levelling accuracy. This allows you to work at longer distances from the instrument position even in bright conditions. Often used in water and sewage the green series improves the usability in those use cases.

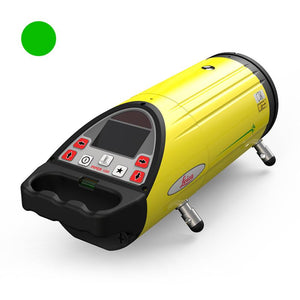

Tough and robust the Leica Piper 100G laser housing is made from cast aluminum and is completely waterproof. It features a large LED display which shows the grade and level indication and battery status.

It is ideal for sanitary and storm sewer construction, gravity flow pipes and any place where a single line and grade are required with only one laser beam. This pipe laser has a range of 200 meters and grade ranges of -10% to +25%. Standard battery life is 40 hours.

The Leica Piper's bright, visible beam is focused to maintain its crisp, clear spot and size over long distances. Automatic grade compensation easily identifies and corrects grade errors. It automatically self-levels over a full grade range and eliminates the need to tip the laser for steep slopes.



Includes

  • Piper 100G Pipe Laser
  • GEB221 Li-Ion Battery

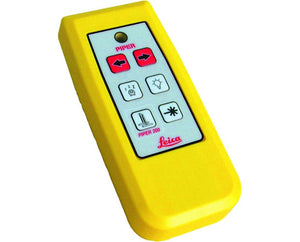

  • IR Remote Control
  • Target Assembly + Insert
  • Battery Charger
  • Self-centering Feet
  • Carry Case
  • User Manual
  • Calibration Certificate - 1 Year
Specifications
Green Laser Diode 520 nm
Laser Output 4.80 mw maximum
Working Range 200m
Grade Range -10 % to +25 %
Self-levelling Range -15 % to +30 %
Line Movement 6m @ 30m
Battery Type & Life Lithium-Ion, 40 hours
Operating Temp -20° to +50° C
Weight 2kg
Seal IPX8
Wireless remote control up to 150 meters
Leica Geosystems Leica Geosystems

SKU:LE-6016058

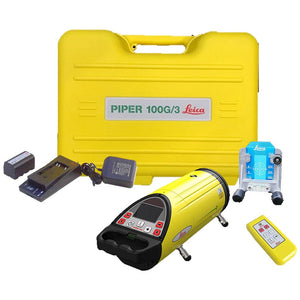

Leica Piper 100G Package with Remote- 6016058

Includes: carry case, remote control, target assembly w/small insert, 300mm, 100mm/6" feet, li-Ion battery, charger, universal adapter.
Includes: carry case, remote control, target assembly w/small insert, 300mm, 100mm/6" feet, li-Ion battery, charger, universal adapter.
Regular price
$6,055.00
Sale price
$6,055.00
Regular price
Shipping calculated at checkout.
Free Shipping
Free Shipping!

This item qualifies for free shipping within the continental U.S.
