About
Product Details
On your terms, on your site, Leica Geosystems is your trusted partner. The Leica NA500 Series provides you with reliable levels for accurate measurements and high quality results.
Accurate. Focused. Protected.
- Leica Geosystems is a pioneer in manufacturing levels and understands the needs of construction workers
- Whatever your need, basic or more, Leica Geosystems levels are your answer
- With a unique design, these levels produce the highest quality results at the best price value
- The unique design of the Leica NA500 Series reflects the high quality of technology featured inside each level
- The NA500 Series is ruggedly made to withstand the harshest elements
- These levels, while highly accurate, provide quick and easy measurements
- Rely on the known expert knowledge of Leica Geosystems with service centers worldwide ready to support you
- Unbeaten warranty and service offering
- Leica Geosystems offers solutions for all your construction needs
Specifications
Standard deviation for 1 km double levelling (ISO17123-2)
NA520 - 2.5mm, NA524 - 1.9mm, NA532 - 1.6mm
Magnification
NA520 - 20x, NA524 - 24x, NA532 - 32x
Objective aperture
36 mm
Shortest target distance from instr. axis
<1.0 m
Field of view at 100 m
<2.1 m
Working range
± 15’
Setting accuracy (standard deviation)
<0.5’’
Sensitivity
8’/2 mm
Operating temperature range
–20° C to +50° C
Protection
IP56
Product Details
On your terms, on your site, Leica Geosystems is your trusted partner. The Leica NA500 Series provides you with reliable levels for accurate measurements and high quality results.
Accurate. Focused. Protected.
- Leica Geosystems is a pioneer in manufacturing levels and understands the needs of construction workers
- Whatever your need, basic or more, Leica Geosystems levels are your answer
- With a unique design, these levels produce the highest quality results at the best price value
- The unique design of the Leica NA500 Series reflects the high quality of technology featured inside each level
- The NA500 Series is ruggedly made to withstand the harshest elements
- These levels, while highly accurate, provide quick and easy measurements
- Rely on the known expert knowledge of Leica Geosystems with service centers worldwide ready to support you
- Unbeaten warranty and service offering
- Leica Geosystems offers solutions for all your construction needs
Specifications
Standard deviation for 1 km double levelling (ISO17123-2)
NA520 - 2.5mm, NA524 - 1.9mm, NA532 - 1.6mm
Magnification
NA520 - 20x, NA524 - 24x, NA532 - 32x
Objective aperture
36 mm
Shortest target distance from instr. axis
<1.0 m
Field of view at 100 m
<2.1 m
Working range
± 15’
Setting accuracy (standard deviation)
<0.5’’
Sensitivity
8’/2 mm
Operating temperature range
–20° C to +50° C
Protection
IP56
Leica Geosystems
Leica Geosystems
SKU:LE-840384

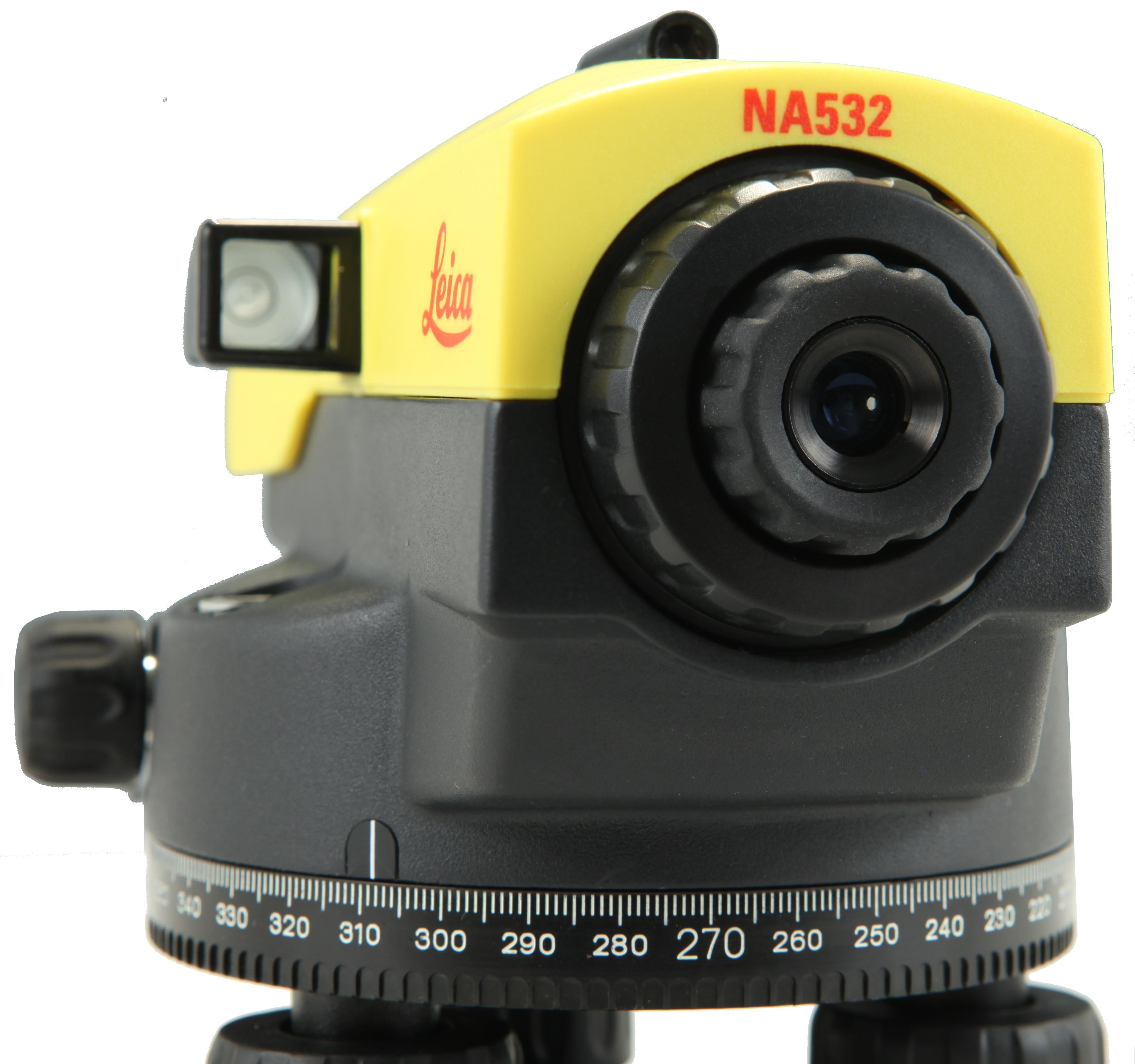

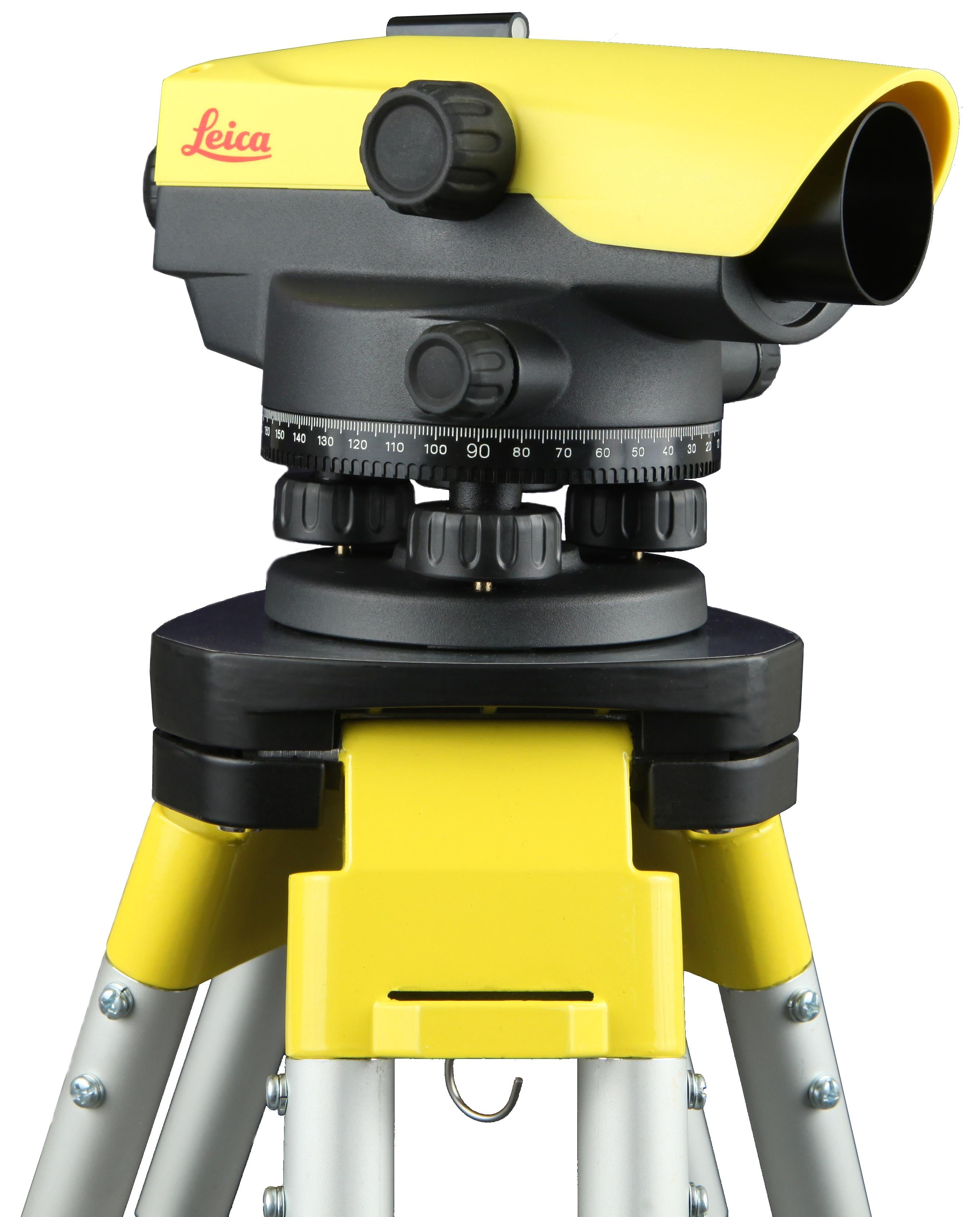

Leica NA500 Series Automatic Levels
- Regular price
- $460.00
- Sale price
- $460.00
- Regular price
-
Shipping calculated at checkout.
Reliable levels for accurate measurements and high quality results
Reliable levels for accurate measurements and high quality results
Download Product Spec Sheet
