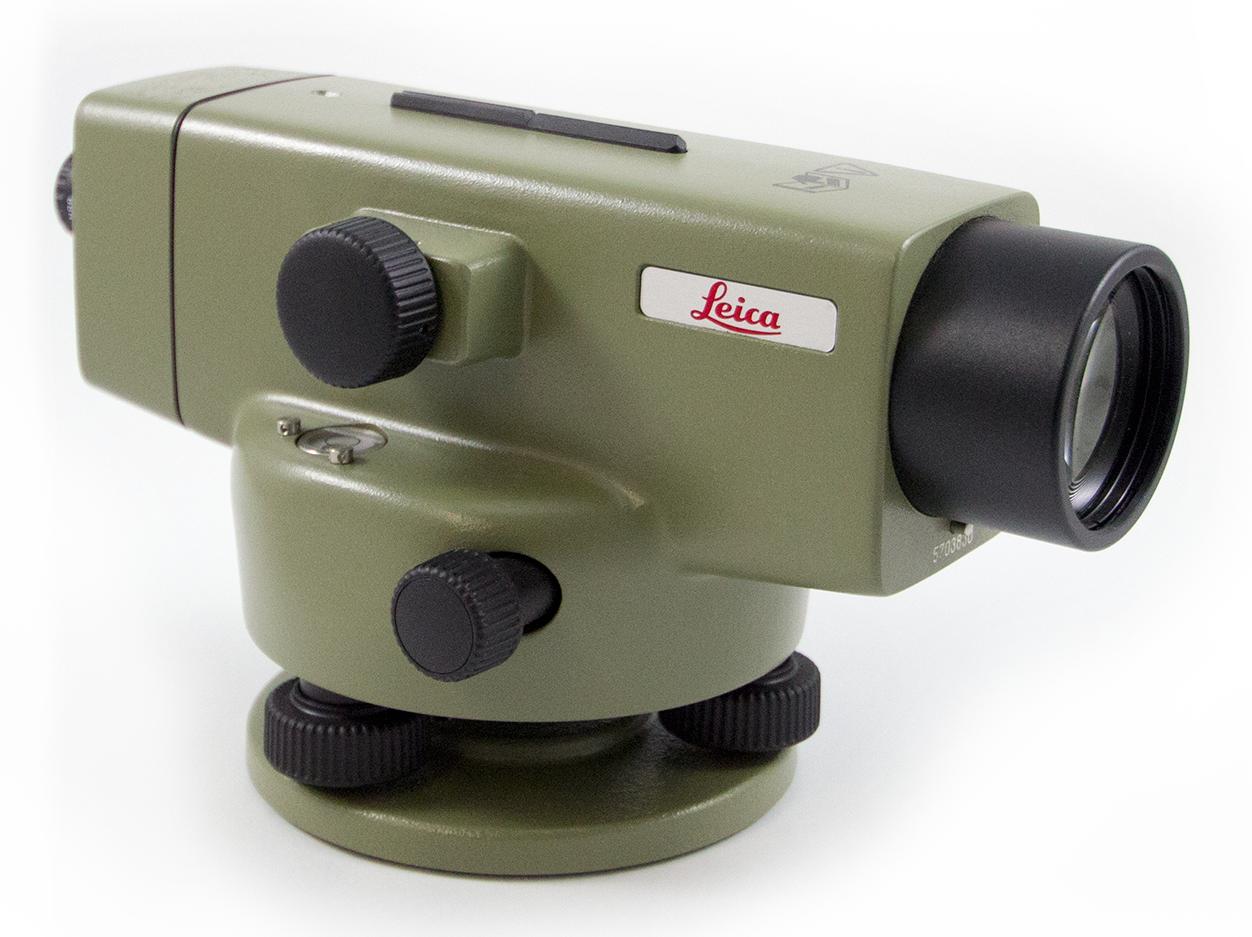

Leica NA2 32X Automatic Level with Brunson 190 Optical Micrometer Kit
Leica NA2 32X Automatic Level
    Leica NA2 32X Automatic Level with Brunson 190 Optical Micrometer Kit
    Leica NA2 32X Automatic Level
Leica NA2 32X Automatic Level with Brunson 190 Optical Micrometer Kit
Leica NA2 32X Automatic Level
Leica NA2 32X Automatic Level with Brunson 190 Optical Micrometer Kit
Leica NA2 32X Automatic Level
    Leica NA2 32X Automatic Level with Brunson 190 Optical Micrometer Kit
    Leica NA2 32X Automatic Level
Leica NA2 32X Automatic Level with Brunson 190 Optical Micrometer Kit
Leica NA2 32X Automatic Level

About

Product Details

Leica's top-class optical quality gives the NA2 & NAK2 a bright high contrast image.

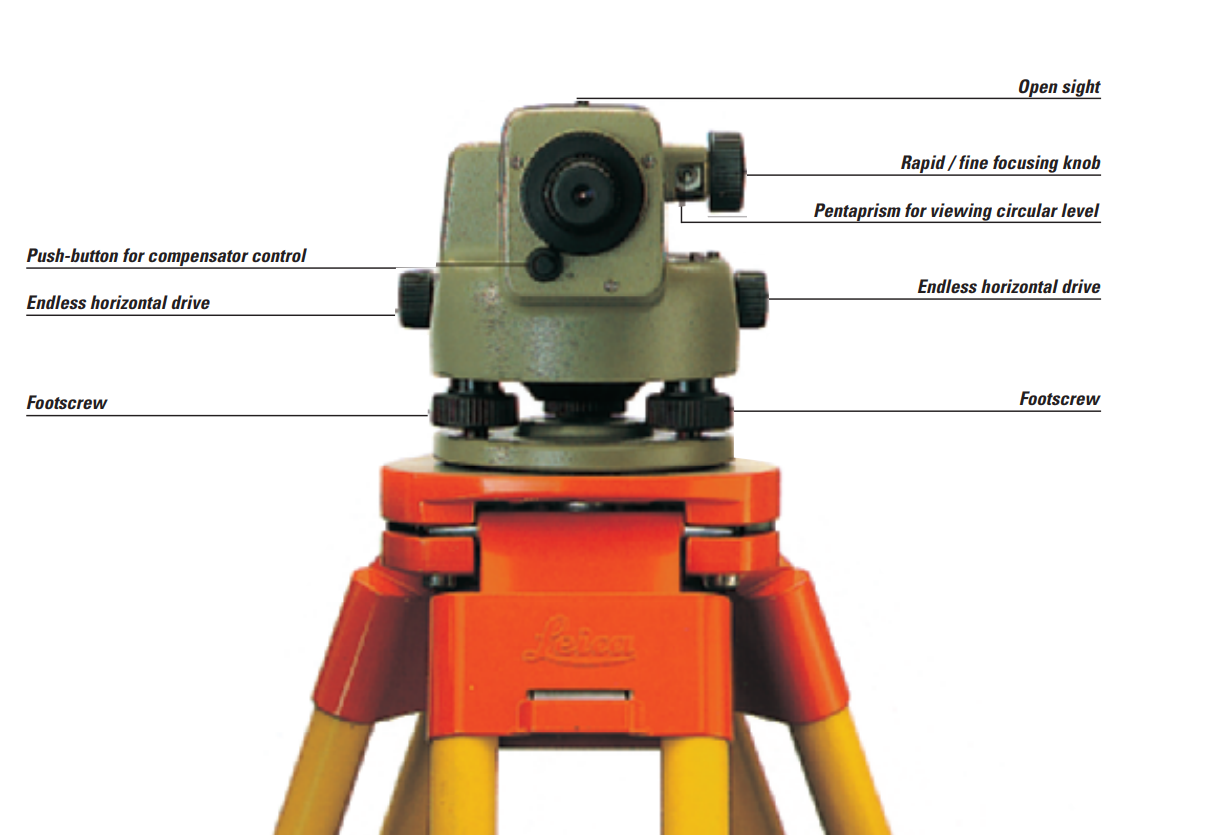

  • push button compensator check
  • endless horizontal drive for left and right handed users
  • coarse and fine focusing knob
  • play-free footscrews
  • optional eyepieces available
  • top-class optics



Accuracy (per 1km double run)
  • 0.7mm (dependent on operator/technique)
  • 0.3mm (with parallel-plate micrometer)
Magnification
  • Standard: 32x
  • with FOK73 eyepiece*: 40x
Shortest Focusing Distance
  • 1.6m
Compensator Setting Accuracy
  • 0.3"



*To improve accuracy a parallel plate micrometer can be fitted over the telescope objective. The parallel plate micrometer permits direct readings to 0.1mm and estimated readings to 0.01mm. This makes the NA2 and NAK2 an ideal precise level for deformation studies or industrial measuring tasks.



The NAK2 model has an internal glass circle for reading horizontal angles. Combined with the stadia calculation of distances from staff readings the NAK2 circle adds the application benefit of detail survey work.

Features

Flexibility that pays off
The NA series is designed to be used for all types of surveying tasks. Independent if you have to do routine levelling on construction sites, check or monitor buildings, railways or roads, with the Leica NA levels you always have the right tool at hand.

Highest accuracy and reliability
Get reliable and precise levelling results even on sunny days. The top-class optical quality of Leica Geosystems always delivers a high contrast image and makes the read-out precise and easy even in unfavourable light conditions. Due to the high temperature stability the Leica NA levels deliver always reliable results and are relatively insensitive to direct solar radiation.

Fast and convenient set-up
Increase your efficiency and safe time with the fast to set-up Leica NA levels. Use the coarse movement of the focusing knob for rapid setting with minimum turning. The fine movement gives the final touch for a perfect image. To check if the compensator is functioning, simply press the button.  This check will take less than a second  and gives you a high level of security!

Specifications
MPN 352038

Leica NA2 & NAK2 Automatic Optical Levels

Leica's top-class optical quality gives the NA2 & NAK2 a bright high contrast image.
Leica's top-class optical quality gives the NA2 & NAK2 a bright high contrast image.
Regular price
$6,850.00
Sale price
$6,850.00
