About

Product Details

One Button Operation

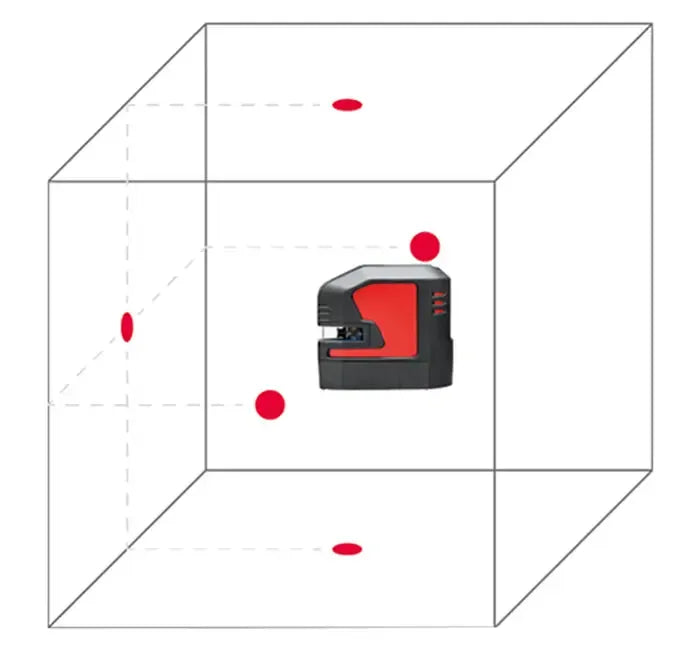

The Leica Lino P5 point laser is very easy to use. At the push of a button, it accurately projects five reference points at exact right angles to one another.



Quick Positioning

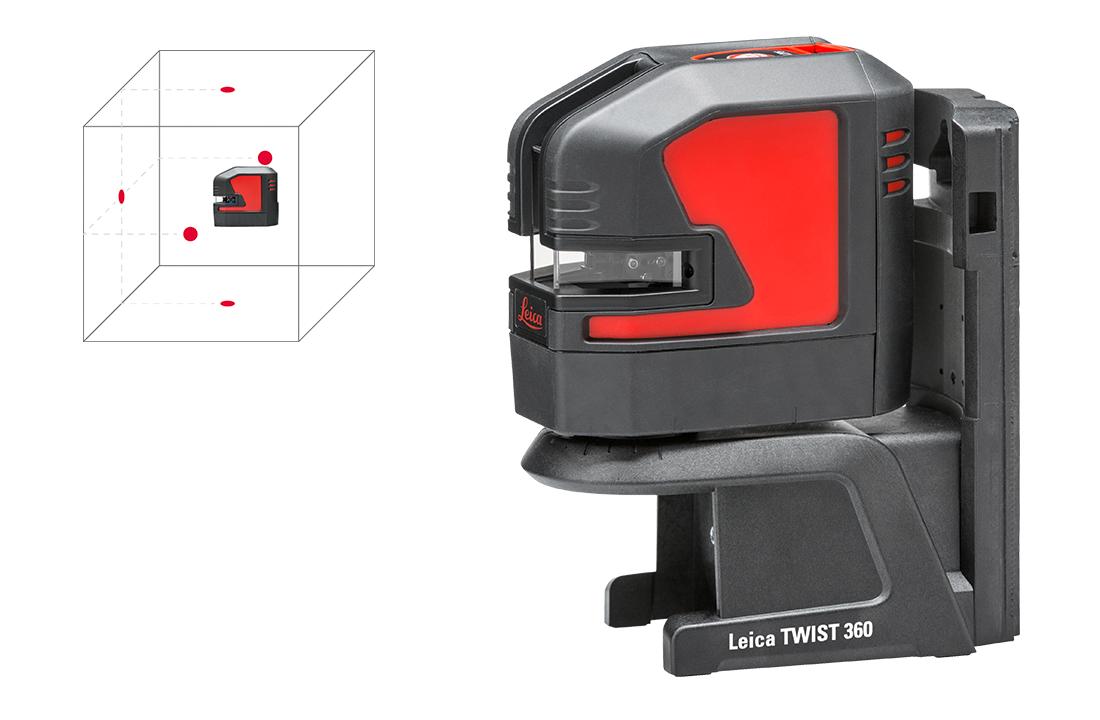

Magnetic smart adapters allow you to quickly attach your Leica Lino P5 to edges, profiles, iron pipes, tracks or bars, allowing you to complete your job faster.



Self-Leveling

The Leica Lino P5 automatically adjusts its positioning if it is slightly out of level to ensure the correct transfer of angles and reference points up to ± 4°. Flashing laser points mean that the tilt is outside this limit.



Triple Power Concept

The Leica Lino P5 laser has a triple power concept. It comes with Alkaline batteries but it can be operated with the addition of a Li-Ion battery pack, too.



Rugged Design

The Leica Lino P5 is dust and spray water protected to IP 54 standards. This makes it a tough instrument suitable for all your jobs.

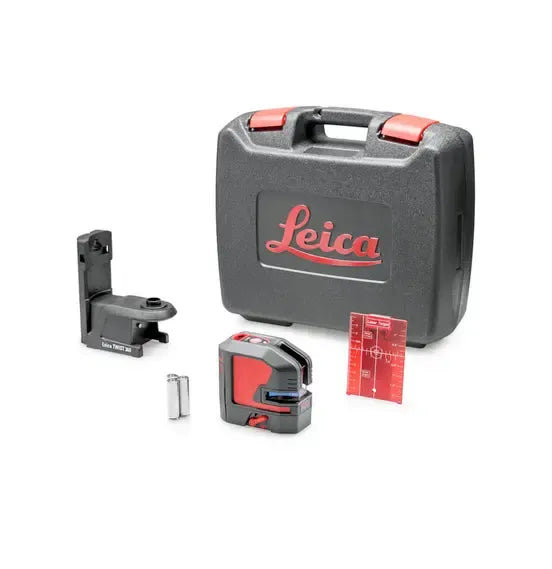

In The Box:

  • Leica Lino P5
  • Quick start guide
  • Rugged case
  • 3 AA batteries
  • Laser target
  • TWIST 360 magnetic multi functional adapter
  • Safety instructions, Calibration certificate, Warranty card.
Specifications
Range up to 30 m depending on lighting conditions
Levelling accuracy ± 0.2 mm / m
Self-levelling range ± 4 °
Self-levelling time < 3 s
Number of laser dots up, down, forward, right, left
Beam direction ± 0.2 mm / m
Dot accuracy 635 nm / class 2 (red)
Laser type AA 3 x 1.5 V (optional Li-Ion)
Battery type up to 37 h (AA) depending on laser mode
Operating time -25 to 70°C (-13 to 158°F)
Temperature range storage -10 to 50°C (14 to 122°F)
Temperature range operation IP 54
Protection class 110 x 60 x 100 mm
Dimensions 495 g
Weight with batteries 1/4"

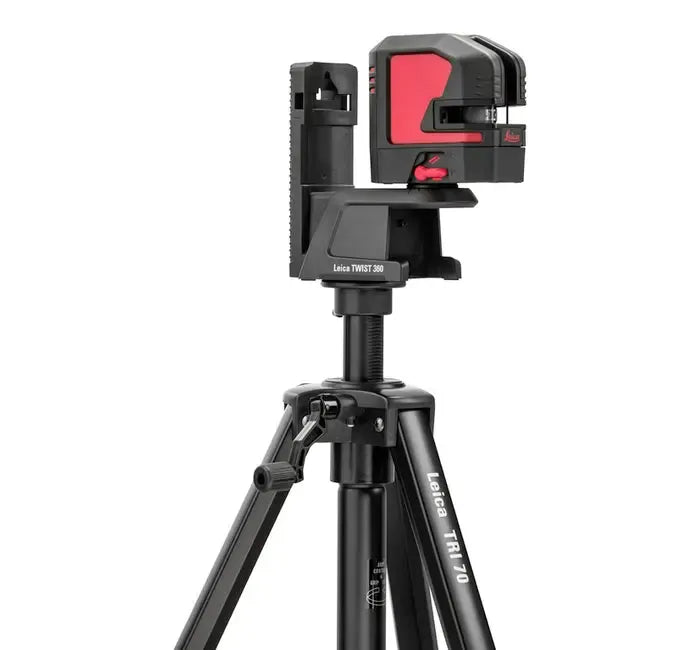

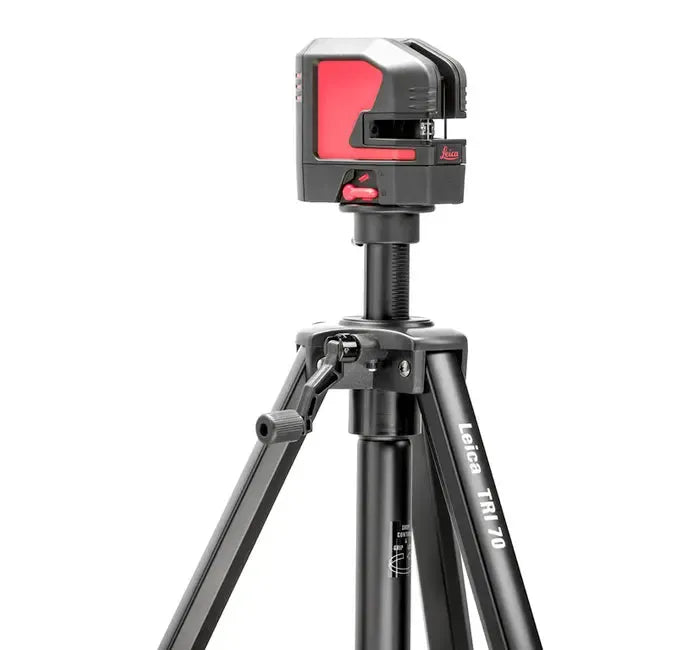

Tripod thread Lino 1/4" + 5/8"
Tripod thread adapter 5: Up, Down, Forward, Left, Right
Number of points 864427
MPN
Product Details

One Button Operation

The Leica Lino P5 point laser is very easy to use. At the push of a button, it accurately projects five reference points at exact right angles to one another.



Quick Positioning

Magnetic smart adapters allow you to quickly attach your Leica Lino P5 to edges, profiles, iron pipes, tracks or bars, allowing you to complete your job faster.



Self-Leveling

The Leica Lino P5 automatically adjusts its positioning if it is slightly out of level to ensure the correct transfer of angles and reference points up to ± 4°. Flashing laser points mean that the tilt is outside this limit.



Triple Power Concept

The Leica Lino P5 laser has a triple power concept. It comes with Alkaline batteries but it can be operated with the addition of a Li-Ion battery pack, too.



Rugged Design

The Leica Lino P5 is dust and spray water protected to IP 54 standards. This makes it a tough instrument suitable for all your jobs.




In The Box:

  • Leica Lino P5
  • Quick start guide
  • Rugged case
  • 3 AA batteries
  • Laser target
  • TWIST 360 magnetic multi functional adapter
  • Safety instructions, Calibration certificate, Warranty card.
Specifications
Range up to 30 m depending on lighting conditions
Levelling accuracy ± 0.2 mm / m
Self-levelling range ± 4 °
Self-levelling time < 3 s
Number of laser dots up, down, forward, right, left
Beam direction ± 0.2 mm / m
Dot accuracy 635 nm / class 2 (red)
Laser type AA 3 x 1.5 V (optional Li-Ion)
Battery type up to 37 h (AA) depending on laser mode
Operating time -25 to 70°C (-13 to 158°F)
Temperature range storage -10 to 50°C (14 to 122°F)
Temperature range operation IP 54
Protection class 110 x 60 x 100 mm
Dimensions 495 g
Weight with batteries 1/4"
Tripod thread Lino 1/4" + 5/8"
Tripod thread adapter 5: Up, Down, Forward, Left, Right
Number of points 864427
MPN
Leica Geosystems Leica Geosystems

LE-864427

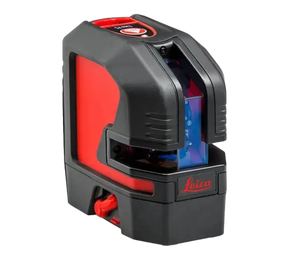

LEICA LINO P5 Red Line Laser

$300.00
$300.00
Shipping calculated at checkout.
Compact five-point laser for professional plumb and alignment tasks. It quickly and accurately projects 5 points to floor, walls...  Read more

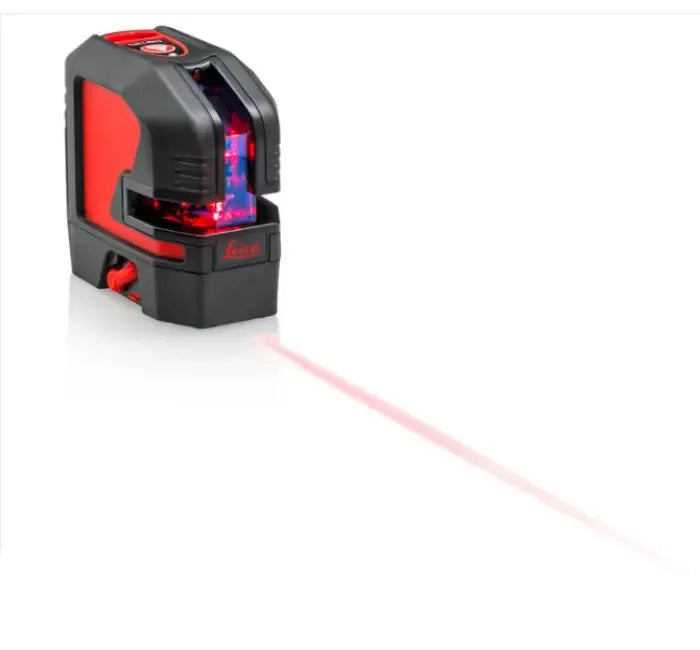

Compact five-point laser for professional plumb and alignment tasks. It quickly and accurately projects 5 points to floor, walls and ceilings which are exactly at the right angle to one another.
Download Product Spec Sheet
Download LEICA LINO P5 Red Line Laser SDS
Free Shipping Available

Free Shipping on Levels, Lasers, Locators, Total Stations and Digital Theodolites

Want more Information?

Not sure if this fits your setup? Ask us before you buy.

Request More Info
