About

Product Details

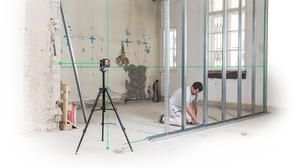

Best in-class, green beam cross-line and point laser with superior visibility. Ideal for alignment tasks such as drywalling, tiling, partitioning and electrical installations. Provides plumb point projection and setting out or transferring of measured points. A clean, level and bright line, even in bright environments or large spaces, improves workflow, is more accurate and saves time and money.



Includes

Lino L2P5G Laser Layout Tool, Molded Case, Wall Mount UAL 130, Twist 360, Target Plate, Li-Ion Battery / Charger, AA Battery Tray



green laser
GREEN LASER VISIBILITY
The L2P5G's green laser beams and points are up to four times more visible to the human eye compared to red ones, making it ideal for bright environments and large rooms.
L2P5G
LI-ION TECHNOLOGY
Li-Ion batteries allow this all-round laser tool to run up to 28 hours on a single charge. It can also be powered by alkaline batteries or its charger.
maximum accuracy
MAXIMUM ACCURACY
The L2P5G uses advanced green laser technology to project crisp, clear lines at precise right angles, enabling high-accuracy interior layout work.
working range
WORKING RANGE
Large glass optics ensure sharp alignment and levelling over long distances. It covers up to 35 meters (115 ft) or 80 meters (262 ft) with the Leica RGR 200 receiver.
easy positioning
EASY POSITIONING

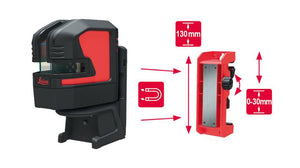

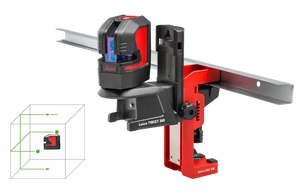

Easily attach the L2P5G to various surfaces using the magnetic adapter or optional UAL 130 adapter for poles, edges, and bars.
self-leveling
SELF-LEVELLING
The L2P5G automatically adjusts its level within ±4°. If outside this range, an alert notifies the user for repositioning.
case
CONSTRUCTION SITE PROOF
Built tough for field use, the L2P5G is IP54-rated for dust and splash water protection — perfect for modern job site conditions.
Specifications
Range up to 35 m depending on lighting conditions
Range with laser receiver up to 80 m depending on lighting conditions
Levelling accuracy ± 0.2 mm / m
Self-levelling range ± 4 °
Self-levelling time < 3 s
Number of laser dots 4
Number of laser lines 2
Beam direction vertical, horizontal, up, down, right, left
Dot accuracy ± 0.2 mm / m
Laser line width at 5m < 2 mm
Laser type 525 nm / class 2 (green)
Battery type Li-Ion rechargeable (or AA 3 x 1.5 V)
Operating time up to 28 h (Li-Ion) depending on laser mode
Temperature range storage -25 to 70°C (-13 to 158°F)
Temperature range operation -10 to 50°C (14 to 122°F)
Protection class IP 54
Dimensions 110 x 60 x 100 mm
Weight with batteries 530 g
Tripod thread Lino 1/4"
Tripod thread adapter 1/4" + 5/8"
MPN 864435
Product Details

Best in-class, green beam cross-line and point laser with superior visibility. Ideal for alignment tasks such as drywalling, tiling, partitioning and electrical installations. Provides plumb point projection and setting out or transferring of measured points. A clean, level and bright line, even in bright environments or large spaces, improves workflow, is more accurate and saves time and money.



Includes

Lino L2P5G Laser Layout Tool, Molded Case, Wall Mount UAL 130, Twist 360, Target Plate, Li-Ion Battery / Charger, AA Battery Tray



green laser
GREEN LASER VISIBILITY
The L2P5G's green laser beams and points are up to four times more visible to the human eye compared to red ones, making it ideal for bright environments and large rooms.
L2P5G
LI-ION TECHNOLOGY
Li-Ion batteries allow this all-round laser tool to run up to 28 hours on a single charge. It can also be powered by alkaline batteries or its charger.
maximum accuracy
MAXIMUM ACCURACY
The L2P5G uses advanced green laser technology to project crisp, clear lines at precise right angles, enabling high-accuracy interior layout work.
working range
WORKING RANGE
Large glass optics ensure sharp alignment and levelling over long distances. It covers up to 35 meters (115 ft) or 80 meters (262 ft) with the Leica RGR 200 receiver.
easy positioning
EASY POSITIONING
Easily attach the L2P5G to various surfaces using the magnetic adapter or optional UAL 130 adapter for poles, edges, and bars.
self-leveling
SELF-LEVELLING
The L2P5G automatically adjusts its level within ±4°. If outside this range, an alert notifies the user for repositioning.
case
CONSTRUCTION SITE PROOF
Built tough for field use, the L2P5G is IP54-rated for dust and splash water protection — perfect for modern job site conditions.
Specifications
Range up to 35 m depending on lighting conditions
Range with laser receiver up to 80 m depending on lighting conditions
Levelling accuracy ± 0.2 mm / m
Self-levelling range ± 4 °
Self-levelling time < 3 s
Number of laser dots 4
Number of laser lines 2
Beam direction vertical, horizontal, up, down, right, left
Dot accuracy ± 0.2 mm / m
Laser line width at 5m < 2 mm
Laser type 525 nm / class 2 (green)
Battery type Li-Ion rechargeable (or AA 3 x 1.5 V)
Operating time up to 28 h (Li-Ion) depending on laser mode
Temperature range storage -25 to 70°C (-13 to 158°F)
Temperature range operation -10 to 50°C (14 to 122°F)
Protection class IP 54
Dimensions 110 x 60 x 100 mm
Weight with batteries 530 g
Tripod thread Lino 1/4"
Tripod thread adapter 1/4" + 5/8"
MPN 864435
