Product Details
The Leica Lino L2P5 is a self-leveling cross-line and point laser, ideal for interior alignment tasks like tiling, partitioning, and electrical installation. It offers a working range up to 25 meters (extendable to 80 meters with a receiver), features magnetic adapters for fast positioning, and supports Li-Ion, alkaline, or direct power for continuous operation. Built tough, it’s IP54-rated for dust and water resistance on active job sites.
CROSS LINE AND POINT LASER

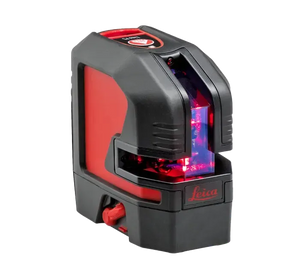

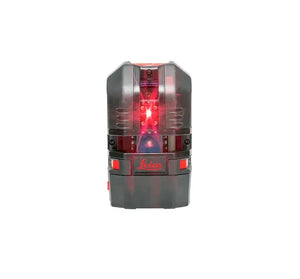

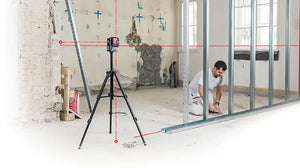

The Leica Lino L2P5 is a self-levelling cross-line and point laser. This Lino is ideal for alignment tasks such as tiling, drywalling, partitioning and electrical installations, as well as plumb point projection, setting out, or transferring measured points.
WORKING RANGE

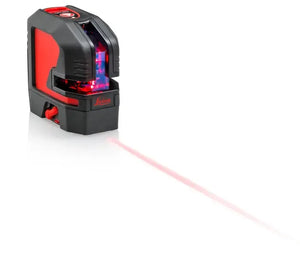

Leica optics enable the Lino L2P5 to project very bright and clearly visible laser lines and dots. Depending on lighting conditions, the working range is up to 25 meters. This can be extended to 80 meters using a laser receiver.
MAGNETIC POSITIONING

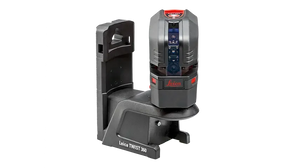

This two-in-one laser level has magnetic adapters that allow you to position the instrument quickly and precisely. Easily attach it within U-profiles, to edges, or any magnetic surface.
SELF-LEVELLING
The Leica Lino L2P5 automatically adjusts its position up to ±4° when slightly out of level—no manual realignment needed.
CONTINUOUS POWER
The L2P5 offers a triple power concept: Li-Ion battery (up to 44 hours), alkaline batteries, or operation via direct charger.
RUGGED DESIGN
Designed for jobsite conditions, the L2P5 is dust and spray water protected (IP54) for durable, reliable use.
Specifications
Range
up to 25 m depending on lighting conditions
Range with laser receiver
up to 80 m depending on lighting conditions
Levelling accuracy
± 0.2 mm / m
Self-levelling range
± 4 °
Self-levelling time
< 3 s
Number of laser dots
4
Number of laser lines
2
Beam direction
vertical, horizontal, up, down, right, left
Dot accuracy
± 0.2 mm / m
Laser line width at 5m
< 2 mm
Laser type
635 nm / class 2 (red)
Battery type
Li-Ion rechargeable (or AA 3 x 1.5 V)
Operating time
up to 44 h (Li-Ion) depending on laser mode
Temperature range storage
-25 to 70°C (-13 to 158°F)
Temperature range operation
-10 to 50°C (14 to 122°F)
Protection class
IP 54
Dimensions
110 x 60 x 100 mm
Weight with batteries
530 g

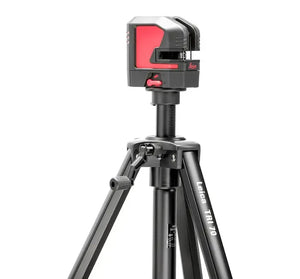

Tripod thread Lino
1/4"
Tripod thread adapter
1/4" + 5/8"
MPN
864431
Product Details
The Leica Lino L2P5 is a self-leveling cross-line and point laser, ideal for interior alignment tasks like tiling, partitioning, and electrical installation. It offers a working range up to 25 meters (extendable to 80 meters with a receiver), features magnetic adapters for fast positioning, and supports Li-Ion, alkaline, or direct power for continuous operation. Built tough, it’s IP54-rated for dust and water resistance on active job sites.
CROSS LINE AND POINT LASER
The Leica Lino L2P5 is a self-levelling cross-line and point laser. This Lino is ideal for alignment tasks such as tiling, drywalling, partitioning and electrical installations, as well as plumb point projection, setting out, or transferring measured points.
WORKING RANGE
Leica optics enable the Lino L2P5 to project very bright and clearly visible laser lines and dots. Depending on lighting conditions, the working range is up to 25 meters. This can be extended to 80 meters using a laser receiver.
MAGNETIC POSITIONING
This two-in-one laser level has magnetic adapters that allow you to position the instrument quickly and precisely. Easily attach it within U-profiles, to edges, or any magnetic surface.
SELF-LEVELLING
The Leica Lino L2P5 automatically adjusts its position up to ±4° when slightly out of level—no manual realignment needed.
CONTINUOUS POWER
The L2P5 offers a triple power concept: Li-Ion battery (up to 44 hours), alkaline batteries, or operation via direct charger.
RUGGED DESIGN
Designed for jobsite conditions, the L2P5 is dust and spray water protected (IP54) for durable, reliable use.
Specifications
Range
up to 25 m depending on lighting conditions
Range with laser receiver
up to 80 m depending on lighting conditions
Levelling accuracy
± 0.2 mm / m
Self-levelling range
± 4 °
Self-levelling time
< 3 s
Number of laser dots
4
Number of laser lines
2
Beam direction
vertical, horizontal, up, down, right, left
Dot accuracy
± 0.2 mm / m
Laser line width at 5m
< 2 mm
Laser type
635 nm / class 2 (red)
Battery type
Li-Ion rechargeable (or AA 3 x 1.5 V)
Operating time
up to 44 h (Li-Ion) depending on laser mode
Temperature range storage
-25 to 70°C (-13 to 158°F)
Temperature range operation
-10 to 50°C (14 to 122°F)
Protection class
IP 54
Dimensions
110 x 60 x 100 mm
Weight with batteries
530 g
Tripod thread Lino
1/4"
Tripod thread adapter
1/4" + 5/8"
MPN
864431
Leica Geosystems
Leica Geosystems
SKU:LE-864431

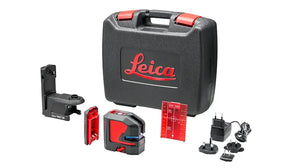

Leica Lino L2P5 Cross Line and Point Laser Kit
- Regular price
- $485.00
- Sale price
- $485.00
- Regular price
-
Shipping calculated at checkout.
Featuring a rugged design with two crossing vertical and horizontal lines, along with five points (four points, and one intersec...
Read more

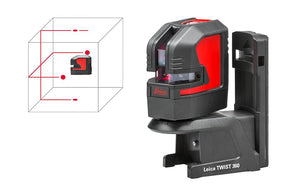

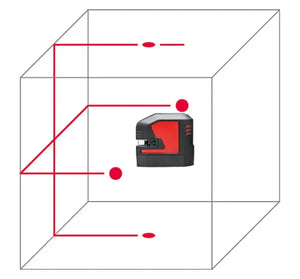

Featuring a rugged design with two crossing vertical and horizontal lines, along with five points (four points, and one intersection point in front of the device). Projects bright and clear laser lines and dots, with a working range of up to 25 meters. It will automatically adjust its positioning up to ± 4°.
