About

Product Details

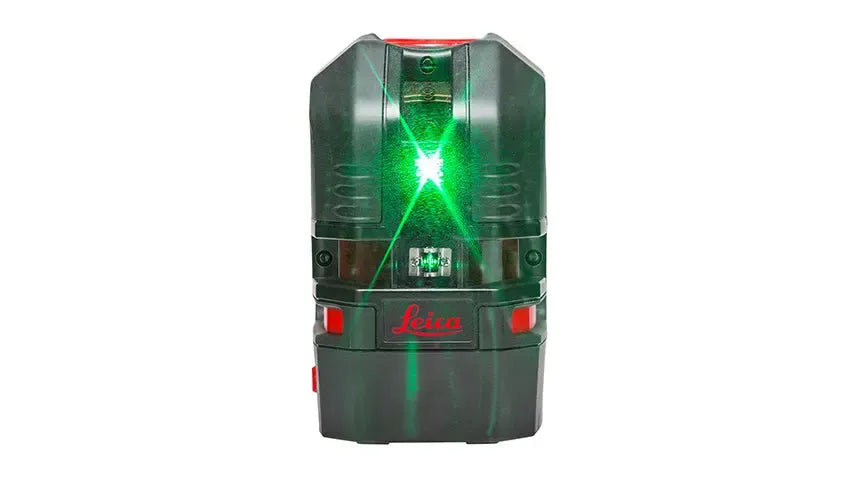

Green Laser Visibility

Leica’s latest green laser technology brings laser line visibility and clarity to the highest level. Green reference lines are easily seen in difficult lighting conditions and over long distances.

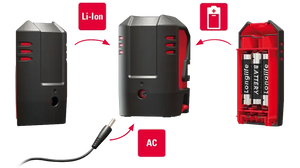

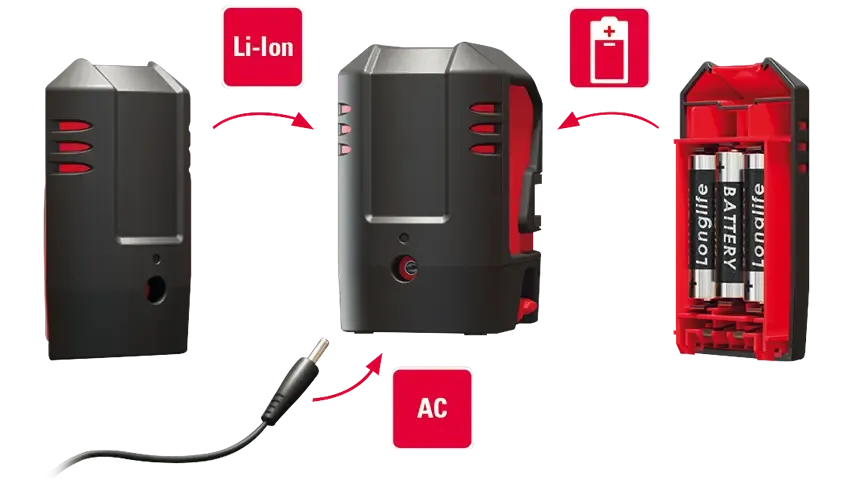

Triple Power Concept

The Leica Lino L2G’s triple power concept ensures an uninterrupted workflow. You can power your laser by using rechargeable Li-Ion batteries for up to 28 hours on one charge. Alternatively, you can use Alkaline batteries or simply its charger.

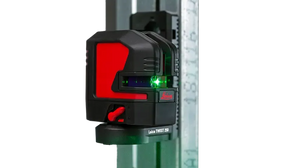

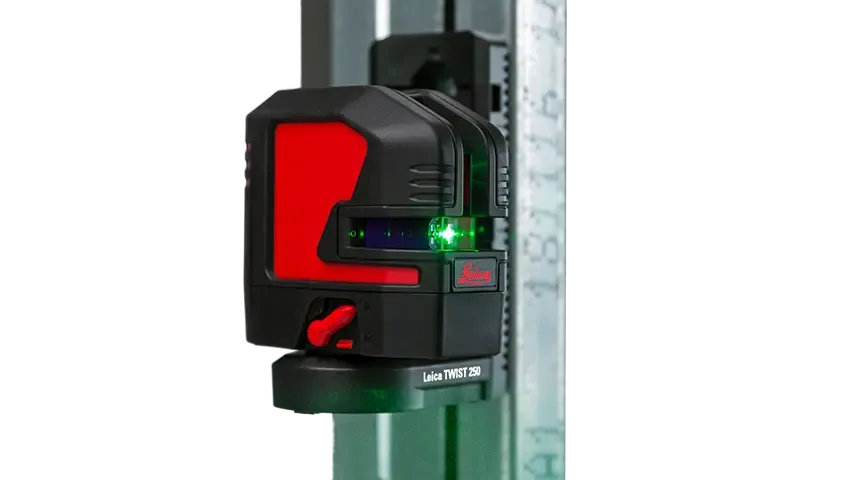

Magnetic Smart Adapters

Magnetic smart adapters allow you to quickly position your Lino L2G with absolute precision. You can set up the rotatable adapter over edges and profiles, or attach it to iron pipes, tracks and bars with the addition of the UAL 130 adapter.



Always Level

The Leica Lino L2G is a self-leveling laser. It automatically corrects its positioning when out of level up to ± 4°. The laser beams flash if the tilt is outside this range to prevent errors.



Construction Site Proof

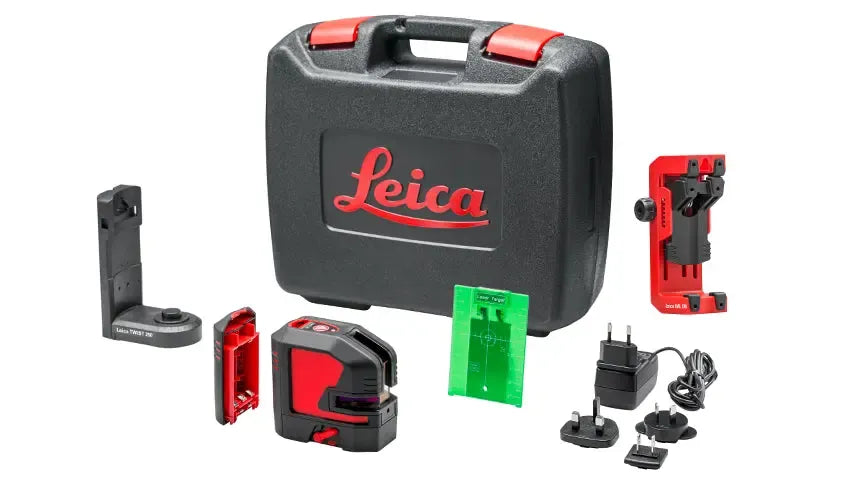

The Leica Lino L2G is dust and spray water protected to IP 54 standards and comes in a hard case allowing you to store all accessories safely.

Specifications
Range up to 35 m depending on lighting conditions
Range with laser receiver up to 80 m depending on lighting conditions
Levelling accuracy ± 0.2 mm / m
Self-levelling range ± 4 °
Self-levelling time < 3 s
Number of laser lines 2
Beam direction vertical, horizontal
Laser line width at 5m < 2 mm
Laser type 525 nm / class 2 (green)
Battery type Li-Ion rechargeable (or AA 3 x 1.5 V)
Operating time up to 28 h (Li-Ion) depending on laser mode
Temperature range storage -25 to 70°C (-13 to 158°F)
Temperature range operation -10 to 50°C (14 to 122°F)
Protection class IP 54
Dimensions 110 x 60 x 100 mm
Weight with batteries 530 g
Tripod thread Lino 1/4"
Tripod thread adapter 1/4" + 5/8"
MPN 864420
Product Details

Green Laser Visibility

Leica’s latest green laser technology brings laser line visibility and clarity to the highest level. Green reference lines are easily seen in difficult lighting conditions and over long distances.



Triple Power Concept

The Leica Lino L2G’s triple power concept ensures an uninterrupted workflow. You can power your laser by using rechargeable Li-Ion batteries for up to 28 hours on one charge. Alternatively, you can use Alkaline batteries or simply its charger.



Magnetic Smart Adapters

Magnetic smart adapters allow you to quickly position your Lino L2G with absolute precision. You can set up the rotatable adapter over edges and profiles, or attach it to iron pipes, tracks and bars with the addition of the UAL 130 adapter.



Always Level

The Leica Lino L2G is a self-leveling laser. It automatically corrects its positioning when out of level up to ± 4°. The laser beams flash if the tilt is outside this range to prevent errors.



Construction Site Proof

The Leica Lino L2G is dust and spray water protected to IP 54 standards and comes in a hard case allowing you to store all accessories safely.

Specifications
Range up to 35 m depending on lighting conditions
Range with laser receiver up to 80 m depending on lighting conditions
Levelling accuracy ± 0.2 mm / m
Self-levelling range ± 4 °
Self-levelling time < 3 s
Number of laser lines 2
Beam direction vertical, horizontal
Laser line width at 5m < 2 mm
Laser type 525 nm / class 2 (green)
Battery type Li-Ion rechargeable (or AA 3 x 1.5 V)
Operating time up to 28 h (Li-Ion) depending on laser mode
Temperature range storage -25 to 70°C (-13 to 158°F)
Temperature range operation -10 to 50°C (14 to 122°F)
Protection class IP 54
Dimensions 110 x 60 x 100 mm
Weight with batteries 530 g
Tripod thread Lino 1/4"
Tripod thread adapter 1/4" + 5/8"
MPN 864420
