About

Product Details

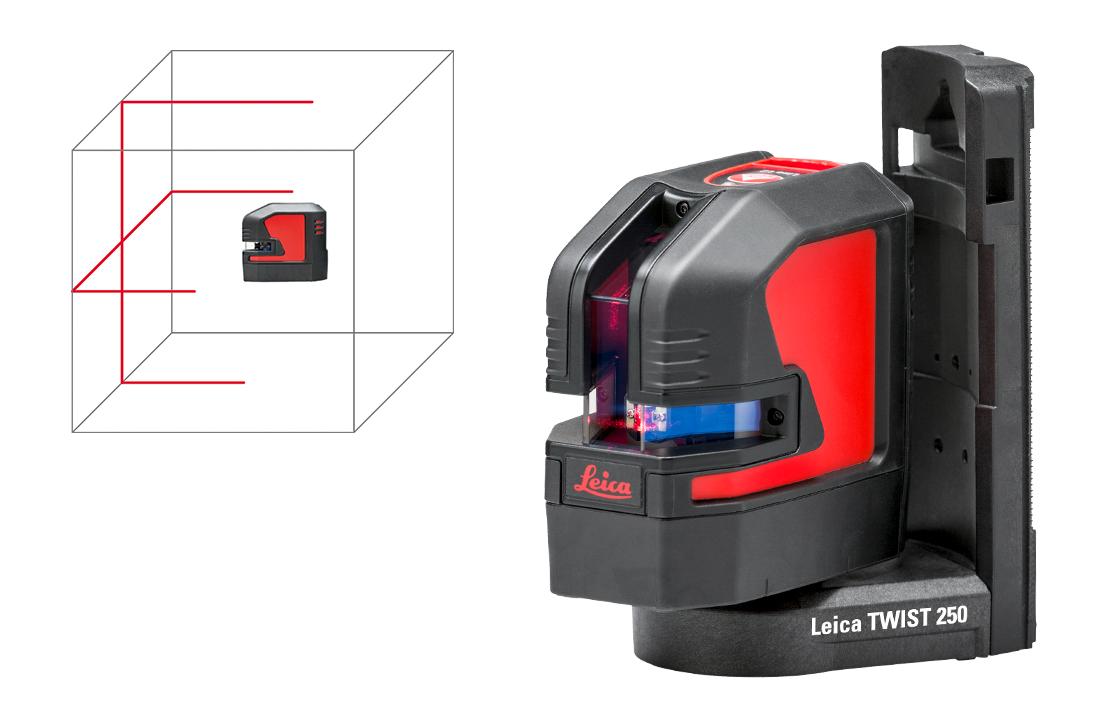

Time-consuming and tedious drawing of lines on walls is a thing of the past. Precise laser lines are quickly and easily projected which allows one to get started with the job in hand right away.

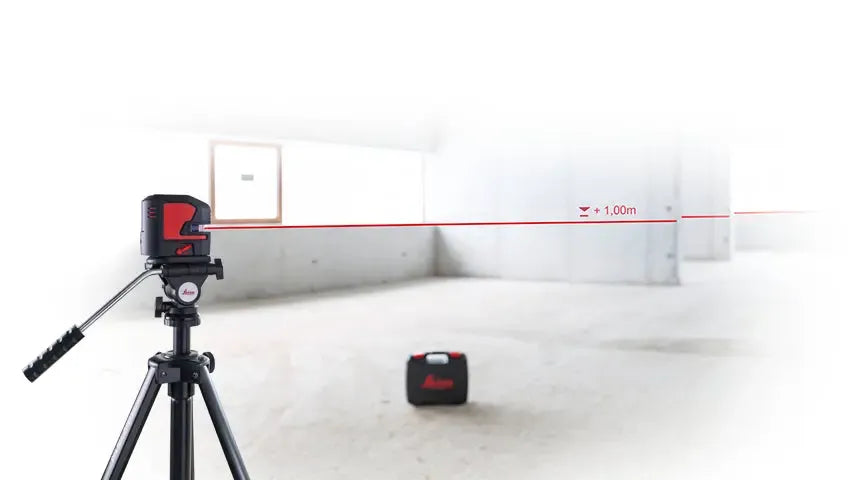

OUTSTANDING LASER VISIBILITY

The high-precision optics of the Leica Lino L2 ensure outstanding laser line visibility up to 25 meters, depending on lighting conditions. Its exceptionally long horizontal and vertical laser lines are projected to floors, walls and ceilings at more than 180 degrees.

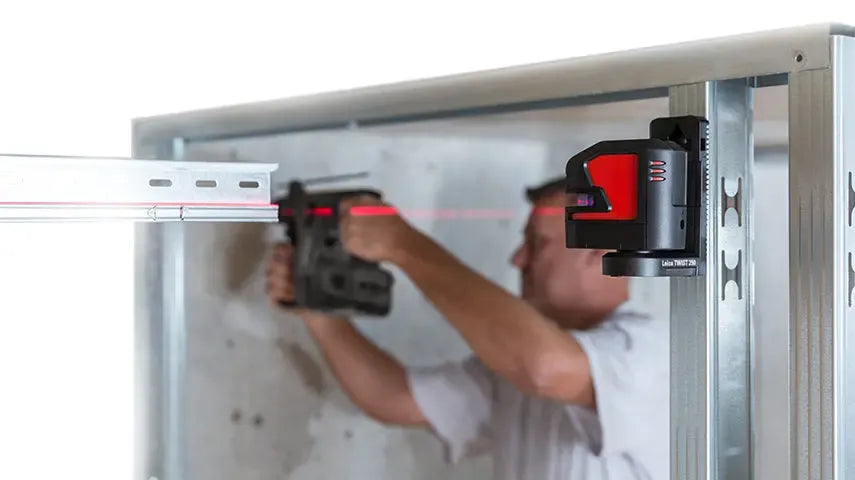

SELF-LEVELING

The Leica Lino L2 automatically adjusts its positioning if it is slightly out of level up to ± 4°. Outside this limit a visual alert is activated to prevent errors.

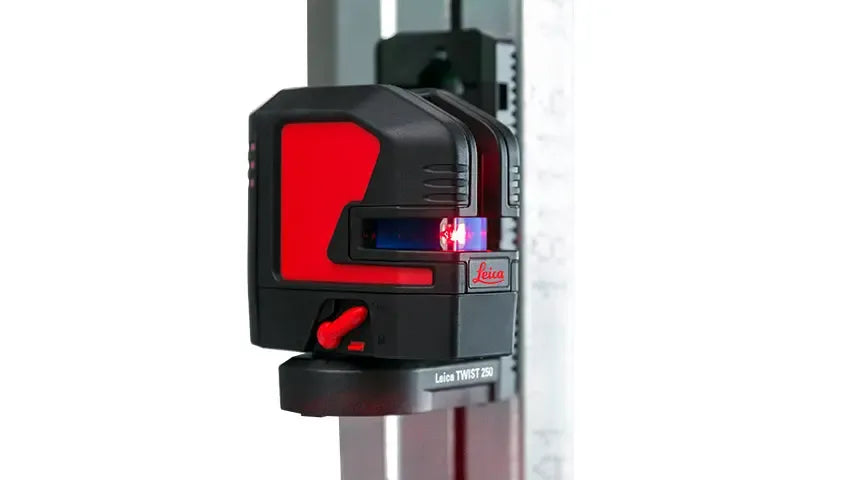

SMART ADAPTERS

Smart adapters allow for quick and precise positioning. You can set up rotatable adapters over edges and profiles, or easily attach them to iron pipes, tracks and bars.

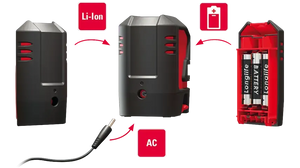

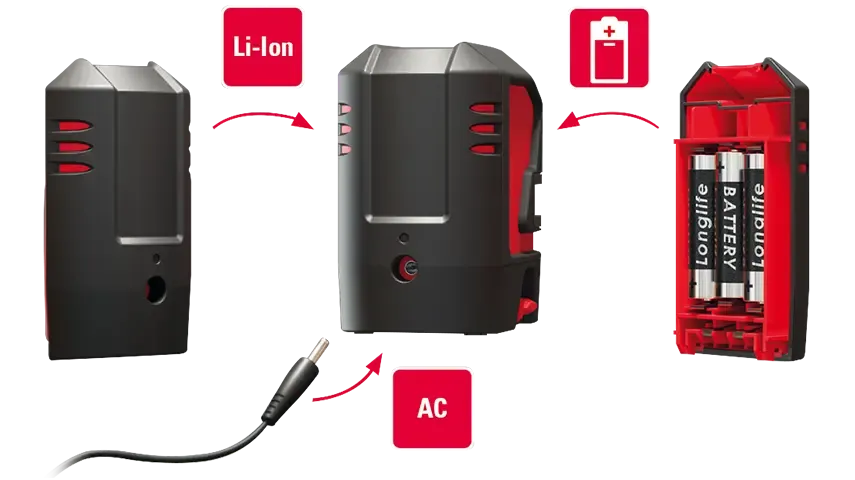

TRIPLE POWER CONCEPT

The Leica Lino L2’s triple power concept ensures an uninterrupted workflow. You can power your laser by using rechargeable Li-Ion batteries for up to 44 hours on one charge. Alternatively, you can use Alkaline batteries or simply its charger.



RUGGED DESIGN

The Leica Lino L2 is dust and spray water protected to IP 54 standards. This makes it a rugged instrument suitable for all your jobs.

Specifications
Range Up to 82' (25 m) depending on lighting conditions
Leveling Accuracy ±0.002 in/ft = ±0.08" at 33' (±0.2 mm/m = ±2.0 mm at 10 m)
Self-Leveling Range ±4°
Self-Leveling Time <3 seconds
Number of Laser Lines 2
Beam Direction Vertical, Horizontal
Laser Line Width at 16.4' (5 m) <0.08" (<2 mm)
Laser Type 635 nm/Class 2
Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature -13 to 158°F (-25 to 70°C)
Battery Type Li-Ion Rechargeable or 3 x 1.5 V AA
Operating Time Up to 44 hours (Li-Ion) depending on laser mode
Protection Class IP54
Dimensions 4.33 x 2.36 x 3.94" (110 x 60 x 100 mm)
Weight (With Batteries) 18.7 oz (530 g)
Product Details

Time-consuming and tedious drawing of lines on walls is a thing of the past. Precise laser lines are quickly and easily projected which allows one to get started with the job in hand right away.


OUTSTANDING LASER VISIBILITY

The high-precision optics of the Leica Lino L2 ensure outstanding laser line visibility up to 25 meters, depending on lighting conditions. Its exceptionally long horizontal and vertical laser lines are projected to floors, walls and ceilings at more than 180 degrees.



SELF-LEVELING

The Leica Lino L2 automatically adjusts its positioning if it is slightly out of level up to ± 4°. Outside this limit a visual alert is activated to prevent errors.



SMART ADAPTERS

Smart adapters allow for quick and precise positioning. You can set up rotatable adapters over edges and profiles, or easily attach them to iron pipes, tracks and bars.



TRIPLE POWER CONCEPT

The Leica Lino L2’s triple power concept ensures an uninterrupted workflow. You can power your laser by using rechargeable Li-Ion batteries for up to 44 hours on one charge. Alternatively, you can use Alkaline batteries or simply its charger.



RUGGED DESIGN

The Leica Lino L2 is dust and spray water protected to IP 54 standards. This makes it a rugged instrument suitable for all your jobs.

Specifications
Range Up to 82' (25 m) depending on lighting conditions
Leveling Accuracy ±0.002 in/ft = ±0.08" at 33' (±0.2 mm/m = ±2.0 mm at 10 m)
Self-Leveling Range ±4°
Self-Leveling Time <3 seconds
Number of Laser Lines 2
Beam Direction Vertical, Horizontal
Laser Line Width at 16.4' (5 m) <0.08" (<2 mm)
Laser Type 635 nm/Class 2
Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature -13 to 158°F (-25 to 70°C)
Battery Type Li-Ion Rechargeable or 3 x 1.5 V AA
Operating Time Up to 44 hours (Li-Ion) depending on laser mode
Protection Class IP54
Dimensions 4.33 x 2.36 x 3.94" (110 x 60 x 100 mm)
Weight (With Batteries) 18.7 oz (530 g)
Leica Geosystems Leica Geosystems

LE-864413

Leica Lino L2 Red Line Laser

$300.00
$300.00
Shipping calculated at checkout.
The Lino L2 cross-line laser projects sharp lines at the correct angles to one another. The increased laser power enhances line ...  Read more
The Lino L2 cross-line laser projects sharp lines at the correct angles to one another. The increased laser power enhances line visibility and improves the efficiency of interior work
Download Product Spec Sheet
Download Leica Lino L2 Red Line Laser SDS
Free Shipping Available

Free Shipping on Levels, Lasers, Locators, Total Stations and Digital Theodolites
