About
- Suitable for all robotic TPS work performed with a survey pole.
- Large rubber mountings protect the prism.
- Overall 3D pointing accuracy of 5.0mm.
- When aiming on a side marked by a yellow arrow, an accuracy of better than 2.0mm can be achieved.
- ATR range of 600m (2000ft)
This reflector is recommended for all robotic work performed with a survey pole. The rubber mountings on the top and bottom of the prisms provide protection of the glass if the pole falls over. The reflector is supplied in a padded case for safe transportation.
The GRZ4 has an overall pointing accuracy of 5mm (<1/4"). However, when aiming directly at one of the three prisms, indicated by yellow arrows, an accuracy of better than 2mm (<1/8") can be achieved.
- Suitable for all robotic TPS work performed with a survey pole.
- Large rubber mountings protect the prism.
- Overall 3D pointing accuracy of 5.0mm.
- When aiming on a side marked by a yellow arrow, an accuracy of better than 2.0mm can be achieved.
- ATR range of 600m (2000ft)
This reflector is recommended for all robotic work performed with a survey pole. The rubber mountings on the top and bottom of the prisms provide protection of the glass if the pole falls over. The reflector is supplied in a padded case for safe transportation.
The GRZ4 has an overall pointing accuracy of 5mm (<1/4"). However, when aiming directly at one of the three prisms, indicated by yellow arrows, an accuracy of better than 2mm (<1/8") can be achieved.
SKU:LE-639985

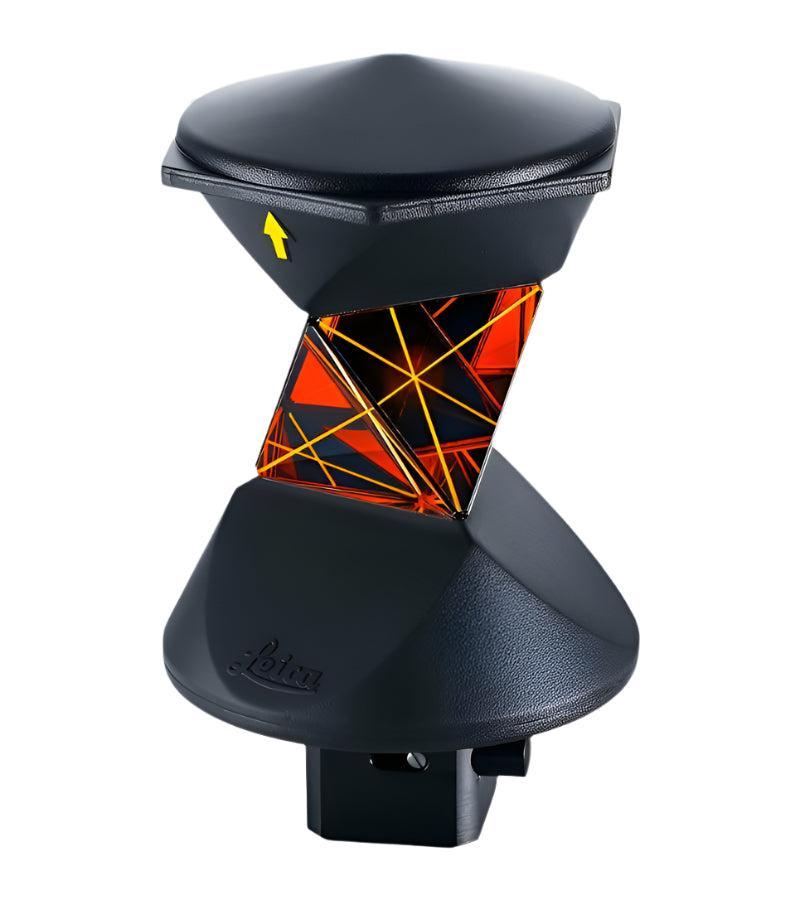

Leica GRZ4 360 Prism
- Regular price
- $1,430.00
- Sale price
- $1,430.00
