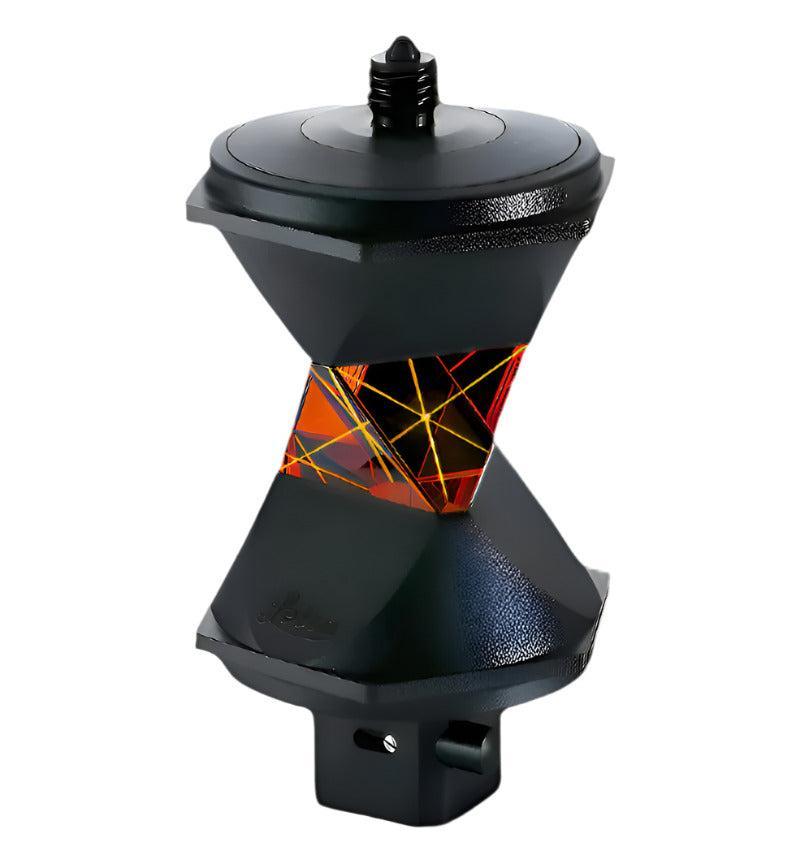

Leica GRZ122 360 Prism
grz122-dimensions
    Leica GRZ122 360 Prism
    grz122-dimensions
Leica GRZ122 360 Prism
grz122-dimensions
Leica GRZ122 360 Prism
grz122-dimensions
    Leica GRZ122 360 Prism
    grz122-dimensions
Leica GRZ122 360 Prism
grz122-dimensions

About

Product Details
  • Suitable for all robotic TPS work performed with a survey pole.
  • Large rubber mountings protect the prism.
  • Overall 3D pointing accuracy of 5.0mm.
  • When aiming on a side marked by a yellow arrow, an accuracy of better than 2.0mm can be achieved.
  • ATR range of 600m (2000ft)



The high performance GRZ122 allows connectivity to the Leica SmartAntenna. The built-in point allows the reflector to be positioned directly on a survey mark at a height of 78mm. 3D pointing accuracy: 2.0mm. ATR range: 600m.

Leica Part #: 754384

Features
  • 3D pointing accuracy is 2.0 mm.
  • ATR range of 1000 m (2,000 ft)
  • Includes 5/8" thread adapter for mounting of GPS antenna.
Specifications
Leica Part #: 754384
Absolute Constant -11.3mm
Leica Constant +23.1mm
ATR range 600m (2000ft)
3D pointing accuracy 2.0mm

Leica GRZ122 360 Prism Reflector PRO

360° Reflector with 5/8" Thread Adapter
360° Reflector with 5/8" Thread Adapter
Free Shipping
Regular price
$2,250.00
Sale price
$2,250.00
Regular price
Shipping calculated at checkout.
Pickup available at KARA Co. Typically ready within 24 hours.
