About

Product Details

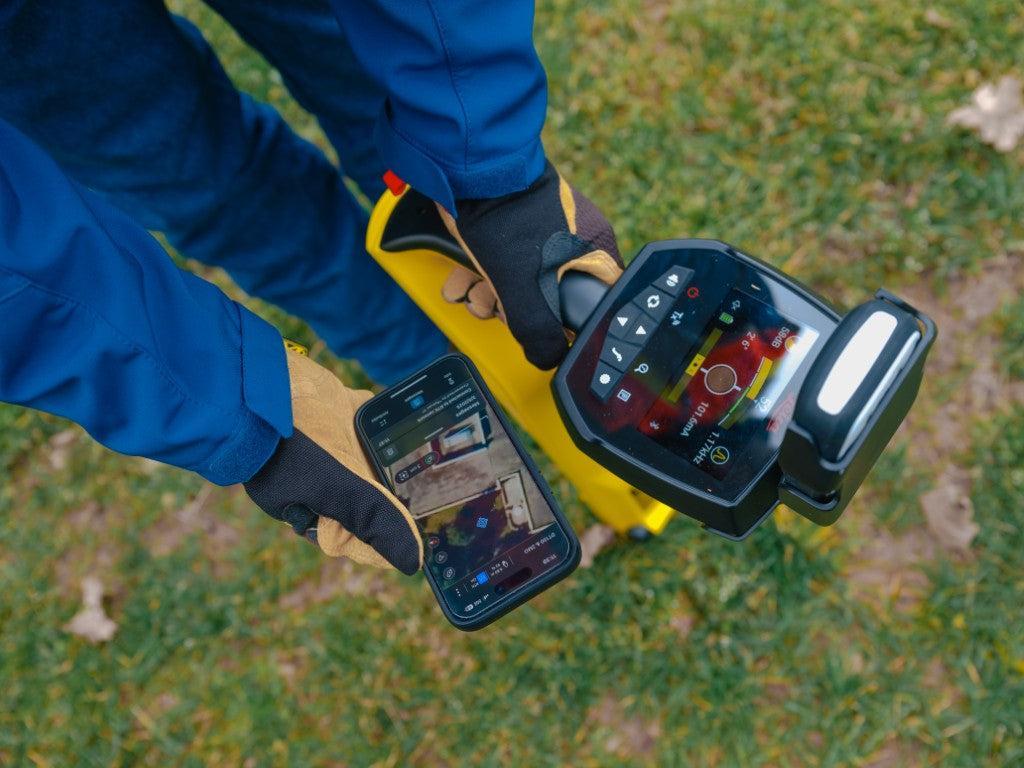

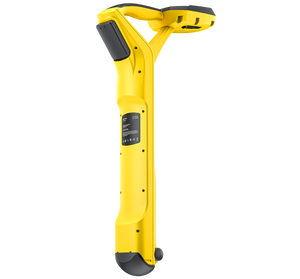

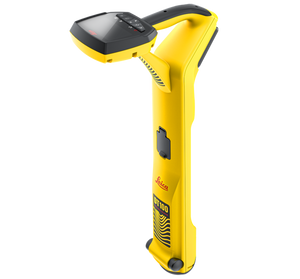

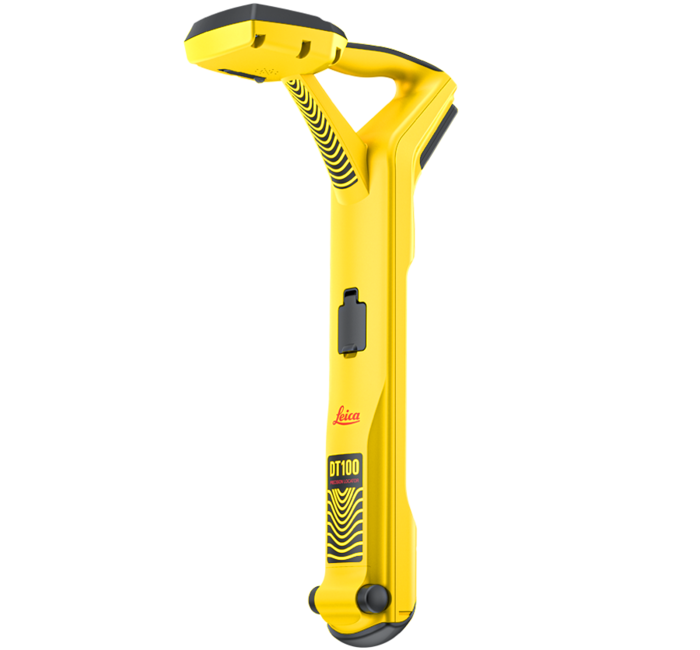

Introducing the new Leica DT100, created to redefine the standard for precision locators. The DT100 delivers a robust solution designed to meet the high expectations of industries like construction, utility, survey, and more.

Pair your locator with the DE100 transmitter to address key market demands, including high accuracy, ease of use, and real-time feedback. The intuitive interface allows operators to quickly perform complex location tasks with precision, making it accessible to both experienced and new users alike.

The ergonomic design of the locator allows users to acquire data easily over long periods of use, providing an optimized user experience and maximum flexibility in practice. The system locates underground utility lines with the highest accuracy thanks to its intelligent signal processing with unique flexible operating modes; this advanced system locates the underground utility network with outstanding precision and reliability providing users with ease and flexibility across all the surveying workflow.



Leica DT100 infographic





Included Items DT100 Precision Locator Package DT100 DE100 Lite Package DT100 DE100 Surveyor Package
Leica DT100 Precision Locator
Leica DE100 10 W Transmitter
2 × Li-Ion Battery for DT100
Alkaline Adaptor for DT100
Li-Ion Battery Charger for DT100
Power Cord Adapters Type A/C/G/I ✔ (2×)
Earth Stakes (48 cm) ✔ (2×)
Crocodile Clamps
Signal Clamp
8 m Ground Spool
USB-C Cable
System Bag
Transmitter Bag
Li-Ion Battery for DE100
Alkaline Adaptor for DE100 (TX)
Li-Ion Battery Charger for DE100
Specifications
Frequency Range 50Hz - 200kHz
Sensitivity 33kHz (1µA at 1m)
Dynamic Range 117dB
Max Automatic Depth 6m / 20ft
Max Pushbutton Depth 11m / 36ft
Locate Accuracy ±5% depth
Dynamic Overload Protection 60dB (automatic)
Depth Accuracy - In line ±5% to 3m / - In line ±5% to 10ft - Sonde ±5% to 3m / - Sonde ±5% to 10ft - Passive ±5% to 3m / - Passive ±5% to 10ft
Factory Standard Frequencies (Hz) - Power: 50, 60, 150, 180, 450, 540 - Grouped Power: 50, 60 (+odd harmonics up to ~1.1kHz) - Radio: bandwidth approx 13kHz - 28kHz - Cathodic: 120Hz for 60Hz 100Hz for 50Hz - Active: 256, 263, 440, 512, 560, 577, 640, 815, 870, 940, 1.02k, 1.17k, 3.14k, 4.1k, 8.01k, 8.19k, 9.82k, 12.1k, 16.3k, 22.5k, 29.4k, 32.8k, 44.5k, 66.1k, 88.8k, 99k, 132k, 200k - Sonde: 512, 640, 8.19k, 32.8k
Locate Direction Any frequency from 256Hz to 10kHz
Fault-finding DE based 263Hz
Active Locate Mode - Twin - Single Peak - Null - Twin Sweep (Omnidirectional) - Single Sweep (Omnidirectional)
Gain Control Manual gain using “↑” or “↓” buttons
Alerts - Strike Alert - Swing Warning - Overead Cable
Frequency Analyzer Determines the best frequency option based on environmental interference
Autoshutdown Selectable via settings menu
Connectivity Bluetooth low energy (BLE)
Available accessory Ring Clamp
Languages 22 languages user selectable: English, Spanish, French, German, Italian, Polish, Dutch, Portuguese, Russian, Swedish, Danish, Estonian, Norwegian, Latvian, Lithuanian, Czech, Finnish, Greek, Hungarian, Romanian, Chinese, Korean
Backlight Selectable via settings menu
Units Metric and Imperial - selectable via settings menu
Environmental Protection IP65
Operating Temperature -20 °C to +50 °C / -4°F to +122°F
Storage temperature -32°C to +70°C / -25°F to +158°F
Battery Li-Ion Battery Pack 3200mAh - 11.1V, 35.5Wh 6 X AA Alkaline Battery
Battery Life - With Lithium: 15 hours continuous - 30 intermittent - With Alkaline: 5 hours continuous - 10 intermittent
Dimensions (HxWxD) 68x14.7x32.6 cm - 26.7x5.8x12.7 in
Weight with batteries 2.1kg - 4.8lbs
