Product Details

The DE100 is a 10-watt signal transmitter capable of delivering up to 1A of maximum current, enhancing signal transmission along utilities. Immediately evaluate the current, voltage, and impedance values of the circuit created within the utility using the embedded display.



Leica DT100 system can be integrated with the DE100, a 10-watt signal transmitter capable of delivering up to 1A of maximum current, enhancing signal transmission along utilities. The DE100 features dual output ports, allowing for the connection of two accessories simultaneously. The preferred accessory can be selected with the press of a single button. With the information shown on the embedded display, it is possible to immediately evaluate whether the signal flows correctly within the utility.



Leica DE100 infographic





Kit Includes:

  • Leica DE100 10 Watt Transmitter

  • 2x Li-Ion battery for DE100

  • Alkaline adaptor for DE100

  • Li-Ion battery charger for DE100

  • Crocodile clamps

  • 2x Earth Stake

  • 8m Ground Spool

  • Transmitter Bag

  • Power Cord Adapters Type A/C/G/I





Specifications
Frequency Range 256Hz - 200kHz
Power Output Up to 10 Watt with Li-Ion battery (1Watt above 45kHz) Up to 5 Watt with Alkaline battery
Current Max 1A - (0.5A Above 45kHz)
Voltage Max 90 V rms
Factory Standard Frequencies (Hz) - Direct Connect and Clamp: 256, 263, 440, 512, 560, 577, 640, 815, 870, 940, 1.02k, 1.17k, 3.14k, 4.1k, 8.01k, 8.19k, 9.82k, 12.1k, 16.3k, 22.5k, 29.4k, 32.8k, 44.5k, 66.1k, 88.8k, 99k, 132k, 200k - Induction: all listed above starting at 3.14kHz
Modes Direct Connect, Clamp and Induction
Multimeter Function Watts, Current, Ohms and Volts
Output Dual Output for Clamp and Direct Connect
Locate Direction User enabled. Any frequency up to 10 kHz
Protection High voltage isolation
Warnings - High Voltage - up to 100 V - visual indication - Destructive Voltage - > 100 V - visual indication
Autoshutdown Selectable via settings menu
Available accessory Clamp and Crocodile leads
Languages 22 languages user selectable: English, Spanish, French, German, Italian, Polish, Dutch, Portuguese, Russian, Swedish, Danish, Estonian, Norwegian, Latvian, Lithuanian, Czech, Finnish, Greek, Hungarian, Romanian, Chinese, Korean
Environmental Protection IP65
Operating Temperature -20 °C to +50 °C / -4 °F to +122°F
Storage temperature -32°C to +70°C, / -25°F to +158°F
Battery Li-Ion Battery Pack 6400 mAh - 14.8V , 94.7Wh 8 x LR20 Alkaline
Battery Life - Lithium: 17 hours continuous - 34 hours intermittent - Alkaline: 10 hours continuous - 20 hours intermittent
Dimensions (HxWxD) 21x19.3x38.1 cm - 8.3x7.6x15 in
Weight with batteries 3.6kg - 7.9lbs
Product Details

The DE100 is a 10-watt signal transmitter capable of delivering up to 1A of maximum current, enhancing signal transmission along utilities. Immediately evaluate the current, voltage, and impedance values of the circuit created within the utility using the embedded display.



Leica DT100 system can be integrated with the DE100, a 10-watt signal transmitter capable of delivering up to 1A of maximum current, enhancing signal transmission along utilities. The DE100 features dual output ports, allowing for the connection of two accessories simultaneously. The preferred accessory can be selected with the press of a single button. With the information shown on the embedded display, it is possible to immediately evaluate whether the signal flows correctly within the utility.



Leica DE100 infographic





Kit Includes:

  • Leica DE100 10 Watt Transmitter

  • 2x Li-Ion battery for DE100

  • Alkaline adaptor for DE100

  • Li-Ion battery charger for DE100

  • Crocodile clamps

  • 2x Earth Stake

  • 8m Ground Spool

  • Transmitter Bag

  • Power Cord Adapters Type A/C/G/I





Specifications
Frequency Range 256Hz - 200kHz
Power Output Up to 10 Watt with Li-Ion battery (1Watt above 45kHz) Up to 5 Watt with Alkaline battery
Current Max 1A - (0.5A Above 45kHz)
Voltage Max 90 V rms
Factory Standard Frequencies (Hz) - Direct Connect and Clamp: 256, 263, 440, 512, 560, 577, 640, 815, 870, 940, 1.02k, 1.17k, 3.14k, 4.1k, 8.01k, 8.19k, 9.82k, 12.1k, 16.3k, 22.5k, 29.4k, 32.8k, 44.5k, 66.1k, 88.8k, 99k, 132k, 200k - Induction: all listed above starting at 3.14kHz
Modes Direct Connect, Clamp and Induction
Multimeter Function Watts, Current, Ohms and Volts
Output Dual Output for Clamp and Direct Connect
Locate Direction User enabled. Any frequency up to 10 kHz
Protection High voltage isolation
Warnings - High Voltage - up to 100 V - visual indication - Destructive Voltage - > 100 V - visual indication
Autoshutdown Selectable via settings menu
Available accessory Clamp and Crocodile leads
Languages 22 languages user selectable: English, Spanish, French, German, Italian, Polish, Dutch, Portuguese, Russian, Swedish, Danish, Estonian, Norwegian, Latvian, Lithuanian, Czech, Finnish, Greek, Hungarian, Romanian, Chinese, Korean
Environmental Protection IP65
Operating Temperature -20 °C to +50 °C / -4 °F to +122°F
Storage temperature -32°C to +70°C, / -25°F to +158°F
Battery Li-Ion Battery Pack 6400 mAh - 14.8V , 94.7Wh 8 x LR20 Alkaline
Battery Life - Lithium: 17 hours continuous - 34 hours intermittent - Alkaline: 10 hours continuous - 20 hours intermittent
Dimensions (HxWxD) 21x19.3x38.1 cm - 8.3x7.6x15 in
Weight with batteries 3.6kg - 7.9lbs
Leica Geosystems Leica Geosystems

LE-DE100

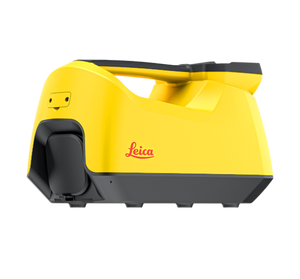

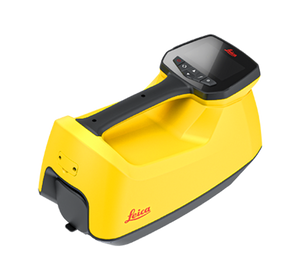

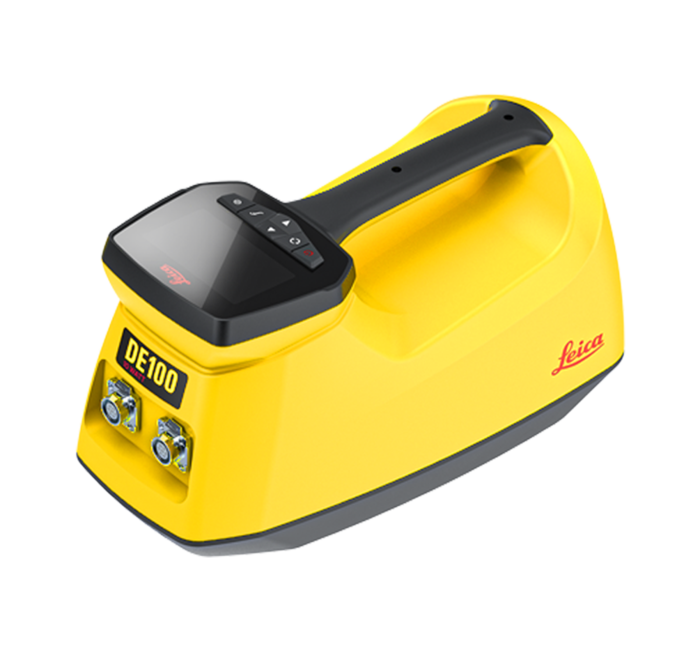

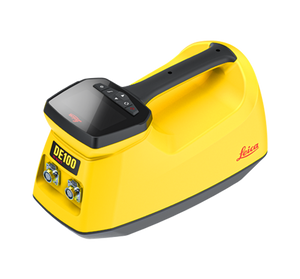

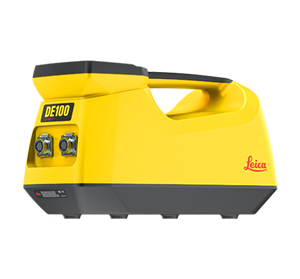

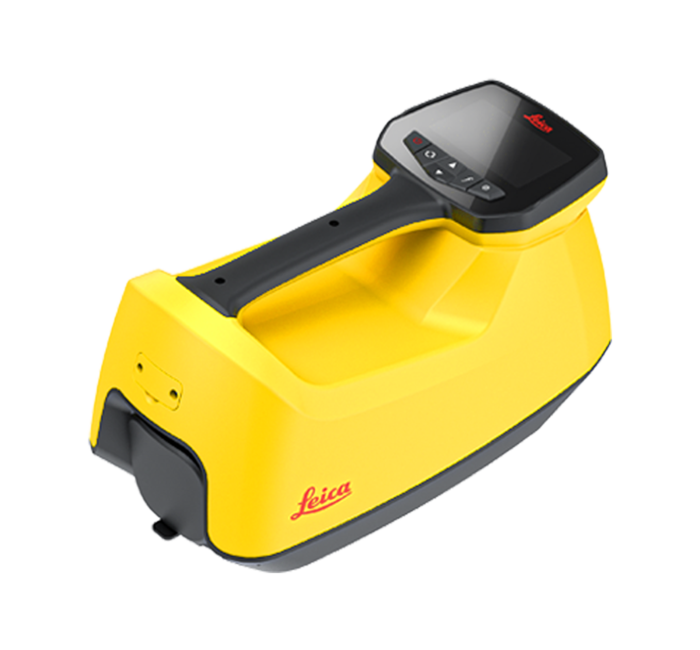

Leica DE100 10 Watt Transmitter Package

$4,230.00
$4,230.00
Shipping calculated at checkout.
Free Shipping
Download Product Spec Sheet
Download Leica DE100 10 Watt Transmitter Package SDS
Free Shipping!

This item qualifies for free shipping within the continental U.S.
