Details
| Description |
|

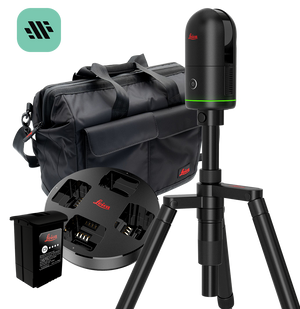

Field 360 -BLK360 G2 Field Pack with RCS |
|

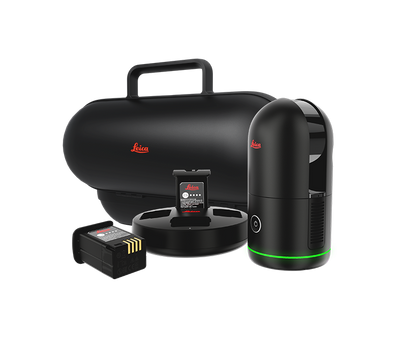

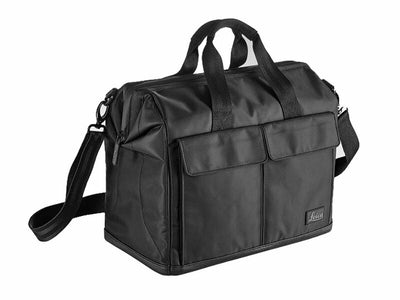

Register 360 - BLK360 G2 Starter Pack with RCS Includes: 1x Leica BLK360 Laser Scanner (951110) 1x GST29 BLK360 Tripod (853638) 1x GVP735 BLK Mission Bag (879639) 1x Cyclone Base Subscription (1yr) (5308150) 1x Cyclone REGISTER 360 PLUS BLK Ed. (1yr) (5311712) 1x Hexagon GeoCloud, 500GB Data Usage, 6mo Eval (1041101) |
Features
Leica BLK360 G2 Field Pack/ Starter Pack with RCS
- Regular price
- $27,250.00
- Sale price
- $27,250.00
- Regular price
-
Shipping calculated at checkout.
Free Shipping
Download Product Spec Sheet
Free Shipping!
This item qualifies for free shipping within the continental U.S.
Immersive HDR Imaging
The BLK360’s four 13-megapixel cameras capture high-quality photospheres, and 5-bracket HDR imaging captures all the details in challenging lighting conditions and environments for more immersive photospheres and colourised point clouds.
VIS Scan Alignment System
Leica Geosystems patented VIS, available with our Leica RTC360, is built into the BLK360 to combine scans automatically. Each scan captured in the field combines with the previous scan so you’ll spend less time aligning data in the office and more time creating valuable deliverables.
Ultra-Fast Scanning
The enclosed LiDAR sensor in the BLK360 captures point clouds at a rate of 680,000 points per second and completes a scan with spherical images in 20 seconds, with flexible scan settings to ensure you capture everything you want and need.
High-Speed Data Transfer
The USB-C port on the BLK360 gives you a fast, easy way to transfer your data. You’ll benefit from fast and stable data transfers without relying on WLAN.
GENERAL
Imaging Scanner
3D scanner with high-speed HDR spherical imaging and Visual Inertial System (VIS) for real-time pre-registration
DESIGN & PHYSICAL
Housing
Black anodized aluminium
Dimensions
Height: 155 mm
Diameter: 80 mm
Diameter: 80 mm
Weight
0.75 kg (0.85 kg incl. battery)
Transport Cover
GVP739 transportation cover
Mounting Mechanism
Button-press quick release
OPERATION
Standalone Operation
One-button operation
Mobile Devices
BLK Live app (iOS & Android)
Leica Cyclone FIELD 360 app (iOS & Android)
Leica Cyclone FIELD 360 app (iOS & Android)
Wireless Communication
Integrated WLAN (802.11 b/g/n)
Internal Memory
Storage for up to 1500 setups
Instrument Orientation
Upright and upside down
POWER
Battery Type
Internal rechargeable Li-Ion (Leica GEB825)
Capacity
Up to 70 setups per battery
SCANNING
Distance Measurement
Time-of-flight with Waveform Digitizing (WFD) technology
Laser Class
Class 1 (IEC 60825-1:2014)
Wavelength
830 nm
Field of View
360° (horizontal) / 270° (vertical)
Range*
0.5 m – 45 m
Point Measurement Rate
Up to 680,000 pts/sec
Measurement Modes
6 / 12 / 25 / 50 mm @ 10 m
IMAGING
Camera System
13 MPx (4 cameras), 104 MPx raw 360° x 270° spherical image
Speed
< 8 sec LDR image
< 20 sec HDR (5-bracket) image
< 20 sec HDR (5-bracket) image
Image Modes
Auto-exposed LDR, 5-brackets HDR, or Off (scan only)
PERFORMANCE
Data Acquisition
< 20 sec full dome scan and spherical LDR image (50 mm @ 10 m)
3D Point Accuracy*
4 mm @ 10 m
Real-Time Pre-registration
Automatic point cloud alignment using VIS (video-enhanced inertial system)
ENVIRONMENTAL
Robustness
Indoor and outdoor use
Operating Temperature
0°C to +40°C
Ingress Protection
IP54 (IEC 60529)
DATA PROCESSING
Data Transfer
Wireless and USB 3.0
Desktop Software
Leica Cyclone REGISTER 360 and BLK Edition
Cloud Software
HxDR Digital Reality Platform
