About

Product Details

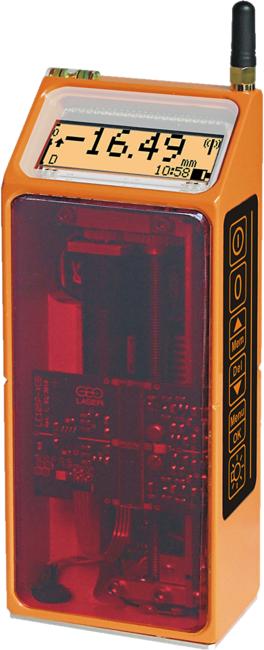

The LE-71 is a high-precision laser receiver designed for demanding measurement tasks with rotating lasers. With an impressive 0.01 mm resolution and ±0.02 mm accuracy, it’s ideal for applications requiring maximum precision and long-term monitoring.



Key Features:

  • Auto Laser Detection: Scans a 70 mm range to automatically detect the laser beam/light plane.

  • Digital Display: Backlit LCD shows measurements in mm or inches, along with device status, battery, and more.

  • Adjustable Zero Point: Measure ± values across the full range without risk of accidental reset.

  • Measurement Modes: Supports single, continuous, and interval measurements with manual or automatic data storage.

  • Data Logging: Store up to 2,600 values internally or transmit wirelessly via Bluetooth to your PC. Includes date/time stamps for long-term monitoring.

  • Durable & Waterproof: Metal housing, plastic-coated and nitrogen-filled for 100% waterproof protection (excluding battery compartment).

  • Battery Life: Up to 50 hours per charge (20 hours with Bluetooth/lights on); quick recharge in 4 hours or use 2 standard AA batteries.

  • Multilingual Menu: Available in English, German, and Dutch.

  • Anti-Theft Feature: Personal name storage for device identification and theft deterrence.

  • Measuring Range: 0.5 – 250 m depending on laser type, with a Bluetooth range of 100 m.

Specifications
Laser range Laser range 0.5 - 250 m, depending on the used type of laser, Bluetooth range 100m
Operating time up to 50 hours without Bluetooth and lights on, with Bluetooth and lights turned on 20 hours
External power supply 9 - 14 V DC / 0.1 A max., Charger LG-71
Power supply 2 x AA HR6, NiMH; 2500 mAh
Waterproof yes, except battery compartment
Dimensions 214 x 70 x 40 mm
Weight 0.62 kg
Guarantee 24 month
Screen resolution 0.1 mm
Housing watertight, except battery compartment
Working distance 0.5 - 250 m, depending on the used type of laser
Transmitting power < 100 mW (EIRP)
Reception area laser (633 - 815 nm homogenous beam profile) Ø from 5 - 35 mm, 0.5 - 2 mW, 300 - 800 rpm
Accuracy measuring receiver 0.02 mm
Distance to lamps and powerlines > 1.5 m
Measuring range 70 mm
Product Details

The LE-71 is a high-precision laser receiver designed for demanding measurement tasks with rotating lasers. With an impressive 0.01 mm resolution and ±0.02 mm accuracy, it’s ideal for applications requiring maximum precision and long-term monitoring.



Key Features:

  • Auto Laser Detection: Scans a 70 mm range to automatically detect the laser beam/light plane.

  • Digital Display: Backlit LCD shows measurements in mm or inches, along with device status, battery, and more.

  • Adjustable Zero Point: Measure ± values across the full range without risk of accidental reset.

  • Measurement Modes: Supports single, continuous, and interval measurements with manual or automatic data storage.

  • Data Logging: Store up to 2,600 values internally or transmit wirelessly via Bluetooth to your PC. Includes date/time stamps for long-term monitoring.

  • Durable & Waterproof: Metal housing, plastic-coated and nitrogen-filled for 100% waterproof protection (excluding battery compartment).

  • Battery Life: Up to 50 hours per charge (20 hours with Bluetooth/lights on); quick recharge in 4 hours or use 2 standard AA batteries.

  • Multilingual Menu: Available in English, German, and Dutch.

  • Anti-Theft Feature: Personal name storage for device identification and theft deterrence.

  • Measuring Range: 0.5 – 250 m depending on laser type, with a Bluetooth range of 100 m.

Specifications
Laser range Laser range 0.5 - 250 m, depending on the used type of laser, Bluetooth range 100m
Operating time up to 50 hours without Bluetooth and lights on, with Bluetooth and lights turned on 20 hours
External power supply 9 - 14 V DC / 0.1 A max., Charger LG-71
Power supply 2 x AA HR6, NiMH; 2500 mAh
Waterproof yes, except battery compartment
Dimensions 214 x 70 x 40 mm
Weight 0.62 kg
Guarantee 24 month
Screen resolution 0.1 mm
Housing watertight, except battery compartment
Working distance 0.5 - 250 m, depending on the used type of laser
Transmitting power < 100 mW (EIRP)
Reception area laser (633 - 815 nm homogenous beam profile) Ø from 5 - 35 mm, 0.5 - 2 mW, 300 - 800 rpm
Accuracy measuring receiver 0.02 mm
Distance to lamps and powerlines > 1.5 m
Measuring range 70 mm
