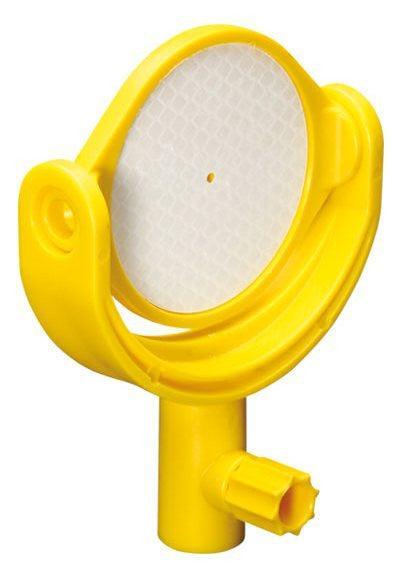

Goecke Schwelm Tilting Target (60mm, Reflective Sticker)
Goecke Schwelm Tilting Target (60mm, Reflective Sticker)
    Goecke Schwelm Tilting Target (60mm, Reflective Sticker)
Goecke Schwelm Tilting Target (60mm, Reflective Sticker)

About

Product Details

Made of break-resistant special plastic. Reflective tape on both sides with 60 mm diameter, centering for comfortable and precise pointing. Rugged clamping screw for reliable locking of the vertical shaft.

Fixing Accessories
Image Product Connection / Specification Description & Application
5KBW convergence bolt with 12 mm Leica adapter 5KBW Convergence Bolt – 12 mm Leica Adapter 12 mm Leica-style connection Galvanized steel convergence bolt with an integrated 12 mm Leica-style mounting connection. Designed for installing compatible monitoring prisms in concrete tunnel linings.
5KB convergence bolt with 3/8 inch male thread 5KB Convergence Bolt – 3/8" Male Thread 3/8" male thread Standard galvanized steel convergence bolt for permanent installation. Compatible prisms can be mounted using the 46-VA connection adapter with a sacrificial breaking point.
5KB convergence bolt connection accessories Convergence Bolt Connection Accessories 3/8" bolt accessories Connection components for mounting compatible monitoring prisms to 3/8" convergence bolts. Includes 46-VA connection adapters and related mounting accessories.
Steel protection ring for convergence bolts Convergence Bolt Protection Ring Welded steel protection ring Protects installed convergence measurement points from mechanical impacts and falling debris. Particularly useful in tunnel construction environments involving blasting. Optional protective plugs provide additional protection during shotcrete application.
Welding and magnetic adapters with Leica connections Welding / Magnetic Leica Adapter 12 mm Leica-style connection Mounting adapters for attaching compatible monitoring prisms to steel structures. Available configurations support welded or magnetic attachment methods, including models 46-1300W, 46-2016W, and 11R10-W.
Beam clamp with M8 female thread Beam Clamp – M8 Female Thread M8 female thread
Clamping range: 0–23 mm 		Galvanized steel clamp for mounting monitoring prisms to steel beams, lattice structures, sheet piles, and other suitable structural members using compatible adapters.
11R wall bolts with M8 female thread 11R Wall Bolt – M8 Female Thread M8 female thread Economical mounting solution for installing monitoring prisms in concrete, rock, or masonry. Used with compatible threaded prism adapters. Available in multiple configurations within the 11R series.
M8-to-Leica adapters for 11R wall bolts M8-to-Leica Wall Bolt Adapter M8 male thread to 12 mm Leica-style connection Connects compatible monitoring prisms with Leica-style mounting sockets to 11R series wall bolts. Available in different materials and configurations, including 46-VA-M8, 11R5-W, and 11R5-W-VA.
Specifications
Maximum target range Up to 150 m
Recording 12 mm socket (WILD/LEICA compatible)
Horizontal axis 86 mm
Offset 2 mm
Documents
Special-Survey Equipment for tunnelling and monitoring
Brochure
Goecke Schwelm | 46-BRT

Goecke Schwelm Tilting Target (60mm, Reflective Sticker)

Reflective tape on both sides with 60 mm diameter
Reflective tape on both sides with 60 mm diameter
$31.00
$31.00
Shipping calculated at checkout.
Pickup available at KARA Co. Typically ready within 24 hours.
