Product Details

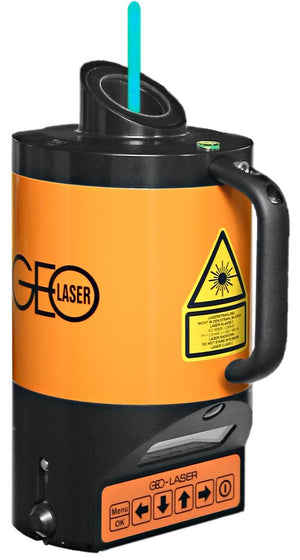

The automatic plumb laser LL-91L with green laser beam is a laser for plumbing up in laser class 3R, capable of electronic self-levelling over two axes. The new green laser beam noticeably enhances visibility of the target, even in difficult lighting conditions. This is because the human eye is four times more receptive to green light than to red. In addition, green light does not get overpowered so much by the red spectrum of the sunlight.
Every time where there is the need to project a point exactly vertically up, this laser is the right choice.
This laser is also available with a higher precision of ± 2,5 mm/100 m and alternatively as LL-90L in laser class 2.
Includes
- LL-91L AUTOMATIC PLUMB-UP LASER W/GREEN BEAM
- NE-80 CHARGER
- 5/8" HEXAGON HEAD CAP SCREW W/NUT & WASHER

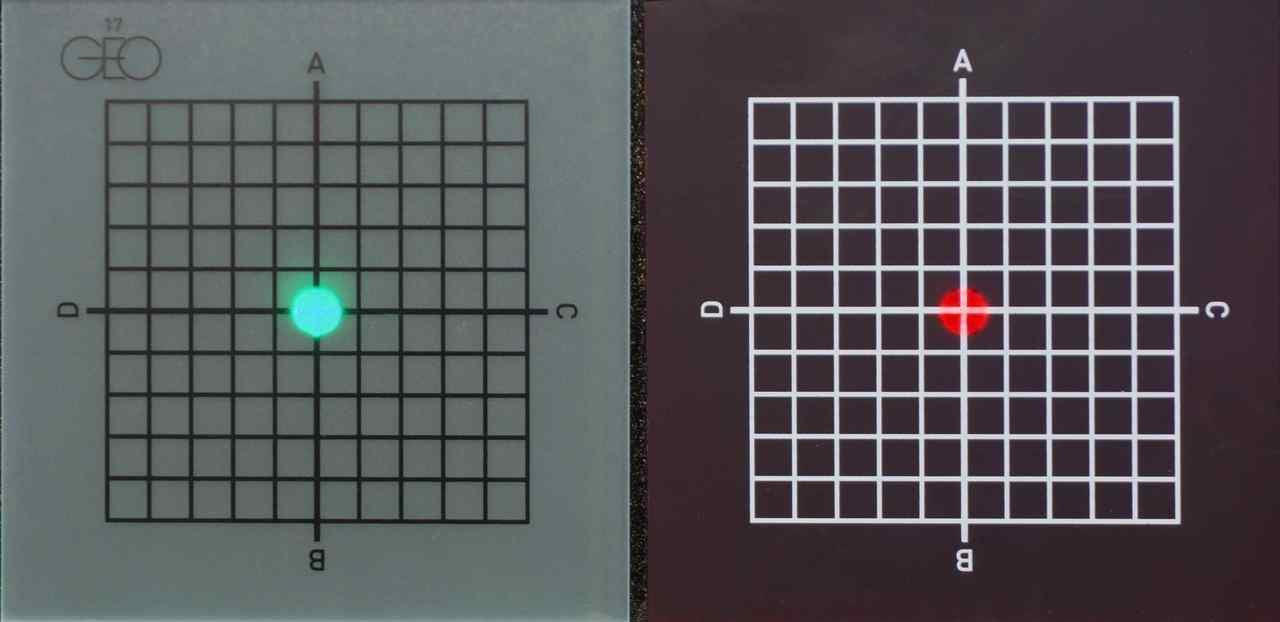

- LL-ZT GREEN TARGET W/COORDINATES GRID
- TRANSPORT CASE
Features
Specifications
Laser class
3R, < 5 mW
Laser
diode laser, visible green, 520 nm
Laser range
up to 500 m
Beam diameter at laser
at laser 13 mm
Self-levelling range
± 5 %
Permissible deviation
± 5 mm/100 m
Operating time
up to 34 hours
External power supply
11 V DC to 14 V DC with cable 0117.02
Undervoltage cut-out
yes
Waterproof
to 3.5 m
Temperature range
- 10° C to + 50° C
Weight
3.4 kg
Guarantee
24 month
Adjustment
possible in the field without having to open the device
MPN
0001.417.1
GEO Plumb Laser LL-91L With Green Beam
