About
Product Details
For table-top applications or very low setups.
5" fixed height. Stand extensions are available upon request.

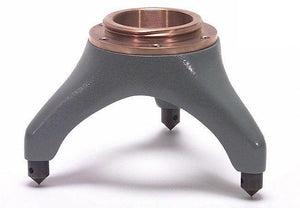

The 198-1 trivet provides a convenient means of setting up instruments on surface plates, machine tables, the floor, or any place where the line of sight is close to the supporting surface.
The mounting ring has a standard 3½-8 inch external thread for instrument mounting as well as a 2.825-20 inch internal thread, which is the same as on the intermediate tubes of our heavy duty stands.
A number of our products fit on the 198-1. However, simple reasonable care must be taken to prevent the assembly from becoming top heavy.
Specifications
Body Material
Cast Iron
Finish
Machine Grey
Mount Height
5" (127 mm)
MPN
198-1
